Description

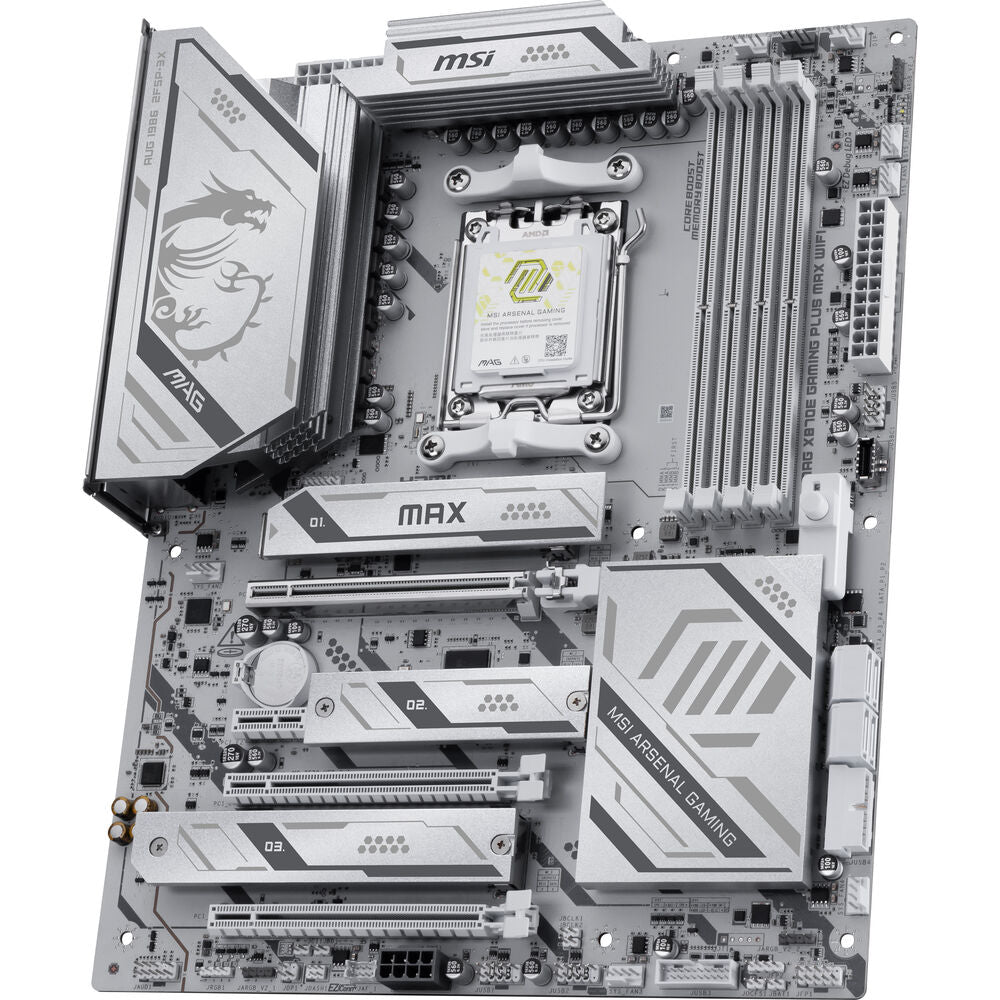

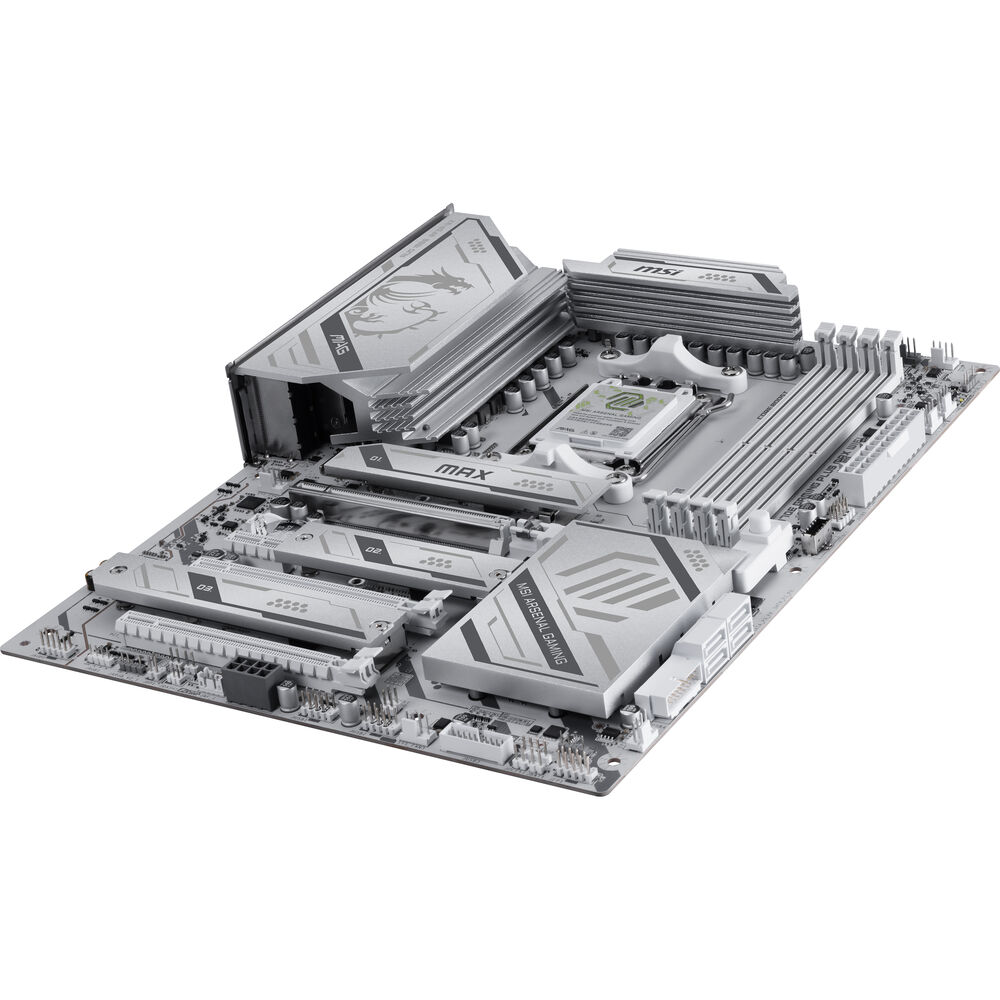

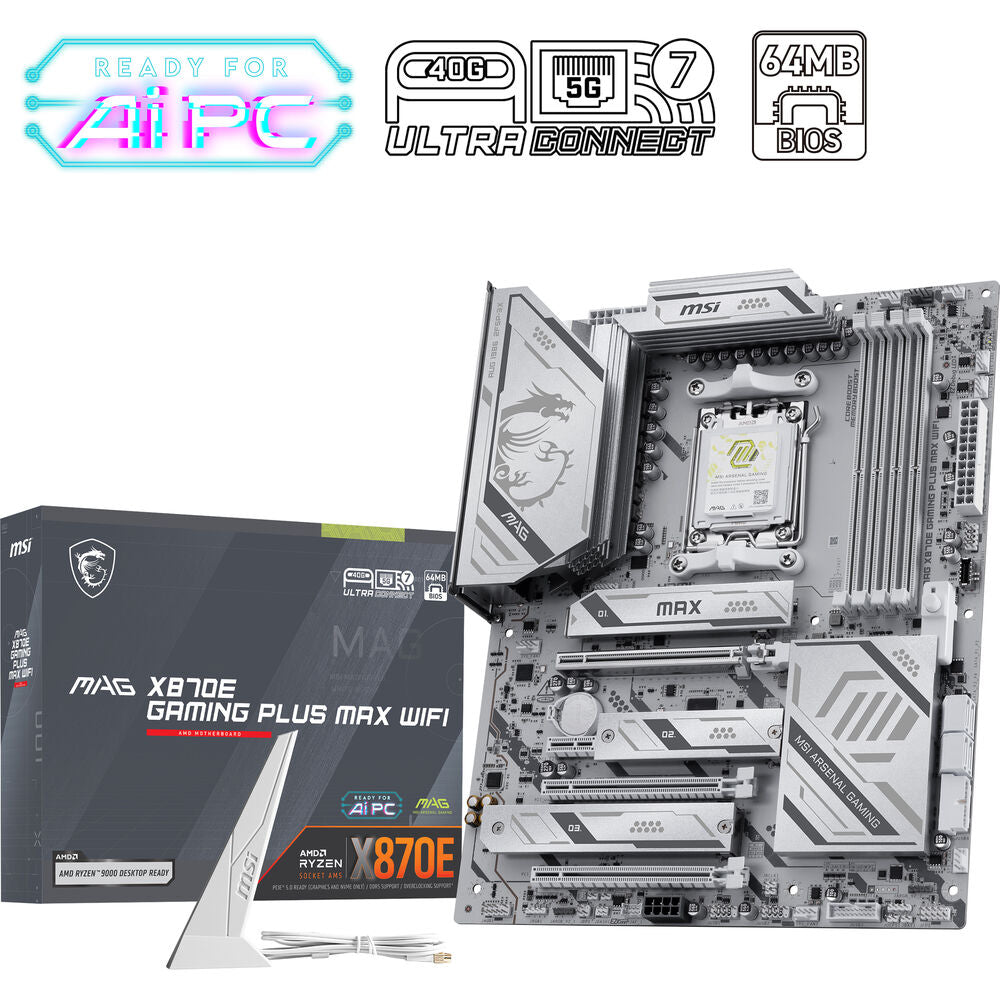

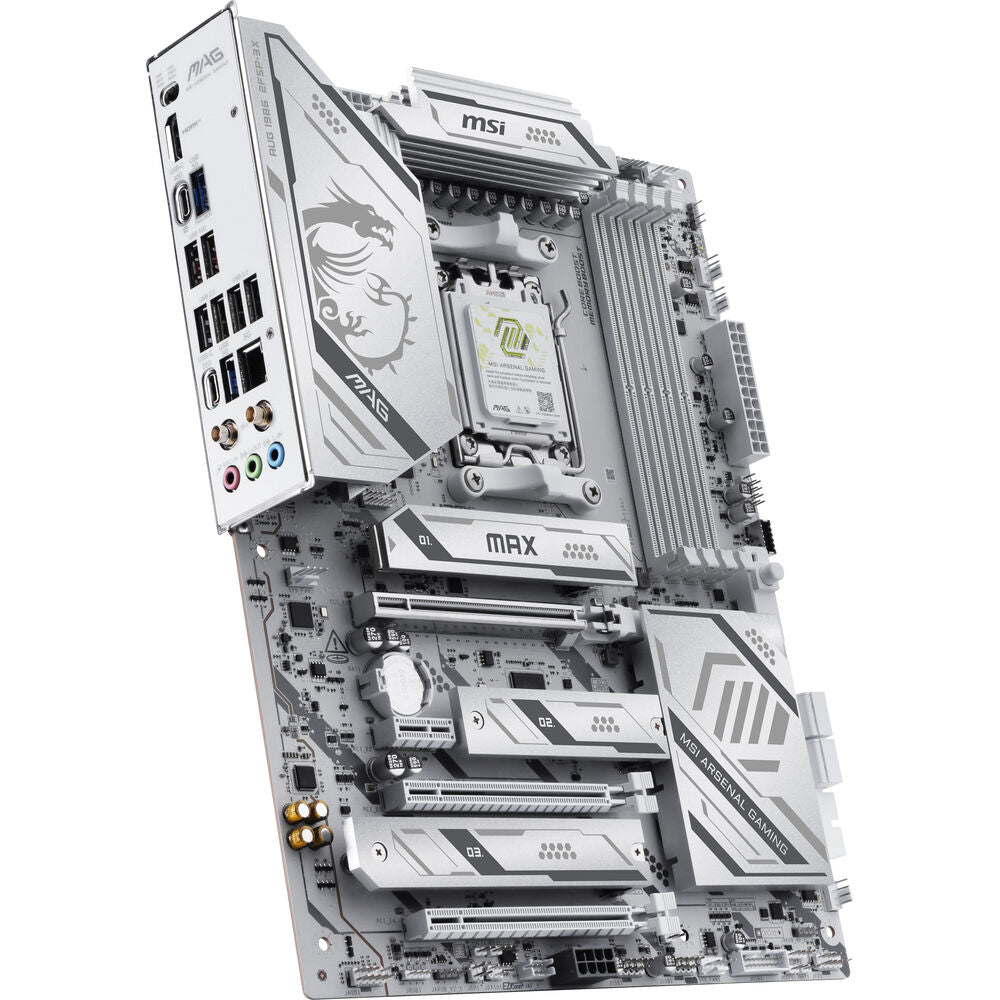

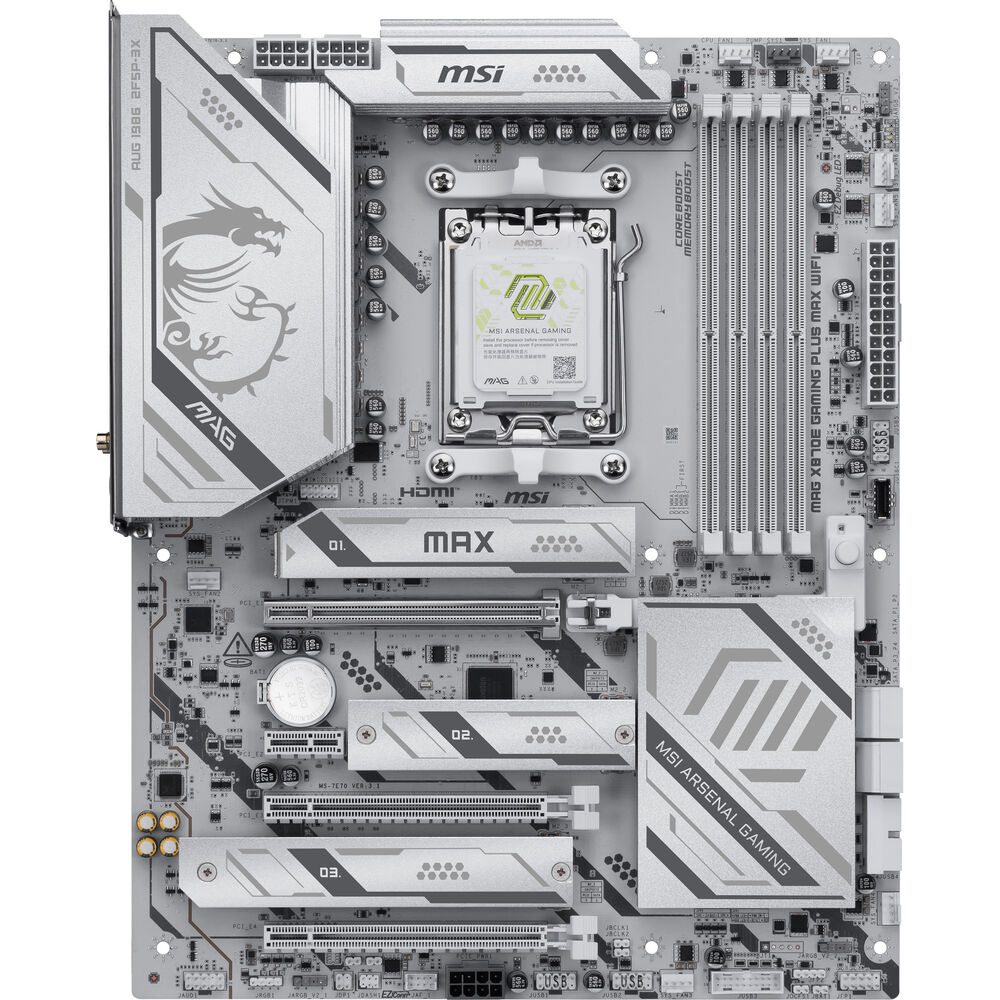

Take your gaming and content creation experiences to a new level by including the MSI MAG X870E GAMING PLUS MAX WIFI AM5 ATX Motherboard in your computer build. Supporting AMD Ryzen 9000, 8000, and 7000 series processors with the AM5 socket, gamers and enthusiasts can outfit this motherboard to smoothly handle demanding applications and AI workloads.
Designed to help simplify builds, MSI's EZ technology makes it easy to install one M.2 PCIe 5.0 and two PCIe 4.0 SSDs to store your games library, applications, and important files. There are also four SATA III connectors available. You can install up to 256GB of DDR5 memory, supporting up 8200 MT/s overclocked speeds, across four DIMM slots. With a PCIe 5.0 x16, PCIe 4.0 x16 (x4), and two PCIe 3.0 x1 slots, you can install powerful graphics cards and other compatible expansions.

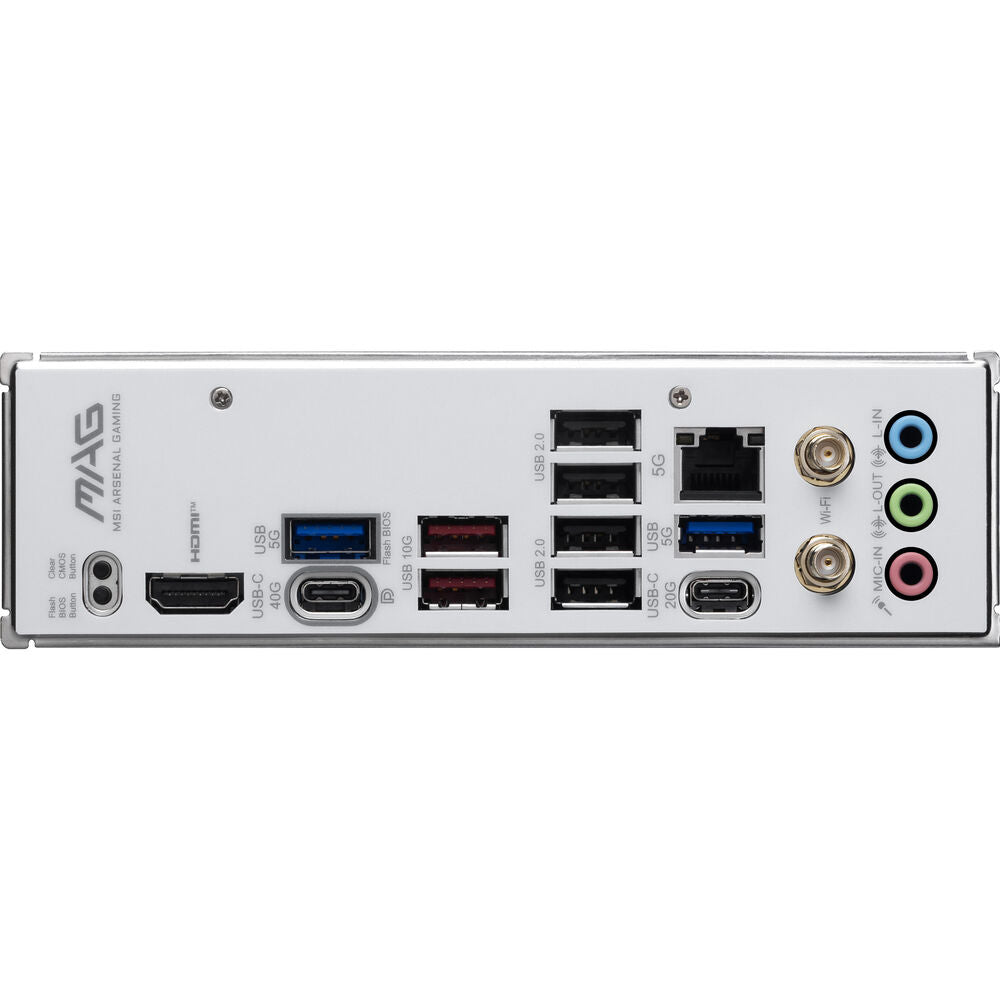

The rear panel features a USB4 port that can transfer up to 40 Gb/s with compatible devices and supports compatible displays. A USB-C 3.2 Gen 2x2 port works with up to 20 Gb/s devices. It's also loaded with two USB-A 3.2 Gen 2 ports that support 10 Gb/s devices. Additional peripherals may be connected to the two USB-A 3.2 Gen 1 and four USB-A 2.0 ports. An internal header allows you to connect a front panel 10 Gb/s USB-C port. Built-in Wi-Fi 7 (802.11be) support with a 5 Gb/s Ethernet ports provide you with connections to compatible network devices for smooth 8K video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR5 |
| M.2 Slots | 22110 / 2280 |
| Expansion Slots | 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x8 mode) 1x PCIe 4.0 x16 (x4 mode) |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| Form Factor | ATX |
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| USB I/O | 1x USB-C (USB4) 1x USB-C (USB 3.2 Gen 2x2) 2x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
| Thunderbolt I/O | No |
| Display I/O | 1x HDMI Output |
| Audio I/O | 3x 1/8" / 3.5 mm |
| Ethernet / Controller | 1x 5GbE |
| Wi-Fi Antenna | 2x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR5 |
| Maximum Capacity | 256 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4x SATA III |
| M.2 Slots | 1x M.2 (M Key) 2280/2260 (PCIe 5.0 x4) 1x M.2 (M Key) 2280/2260 (PCIe 4.0 x4) 1x M.2 (M Key) 22110/2280 (PCIe 4.0 x4) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 10 (SATA) RAID 0, 1, 5 (M.2) |
| Expansion Slots | 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x8 mode) 1x PCIe 4.0 x16 (x4 mode) |
| USB | 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 3x USB 2.0 Header (Supports 6 USB-A Port) |
| Air Cooling | 1x 4-Pin CPU 6x 4-Pin System |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard 2x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 4x RGB |
| Diagnostics | Clear CMOS, Flash BIOS, Reset |
| ROM | 512 Mb |
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1 |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| DAC | No |
| Wi-Fi | Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Bluetooth | Bluetooth 5.4 |
| OS Compatibility | Windows 11 (64-Bit Only) |
| Form Factor | ATX |
| Dimensions | 9.6 x 12" / 244 x 305 mm |
| Package Weight | 4.46 lb |
| Box Dimensions (LxWxH) | 14 x 11.3 x 2.8" |
