Description

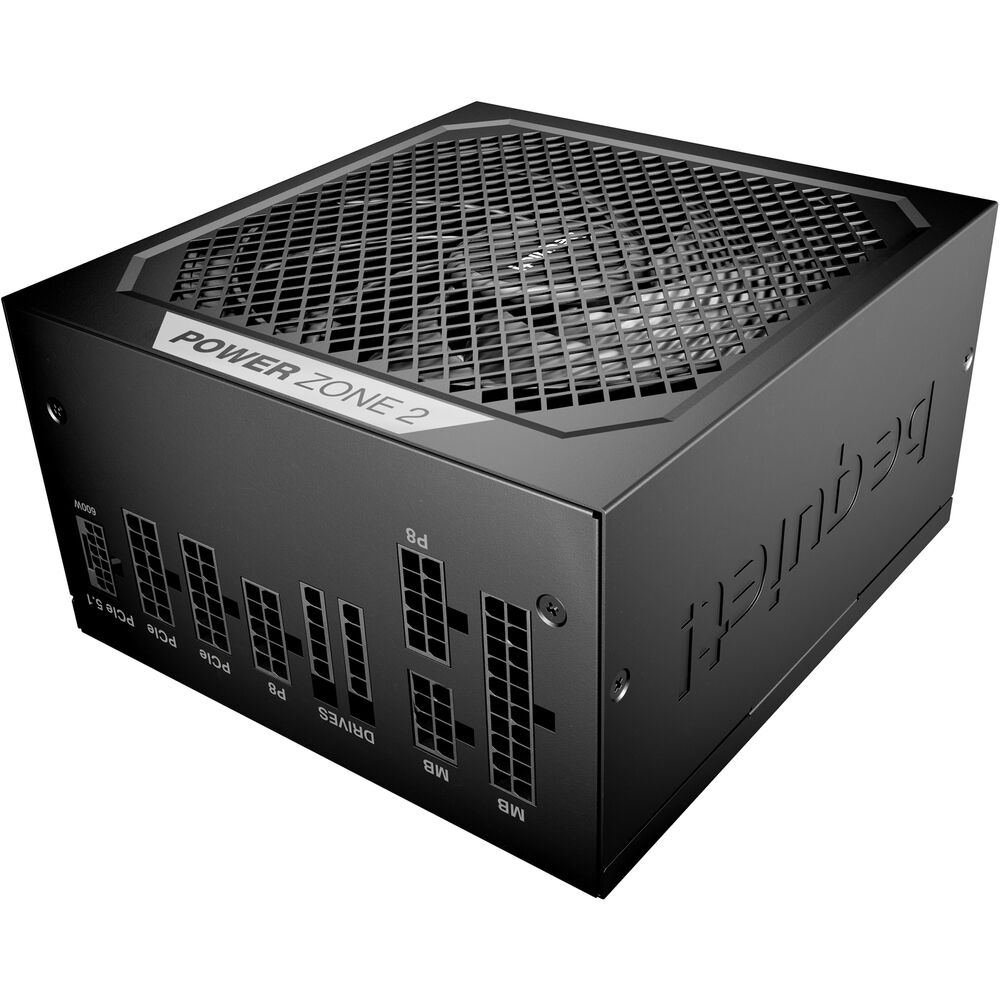

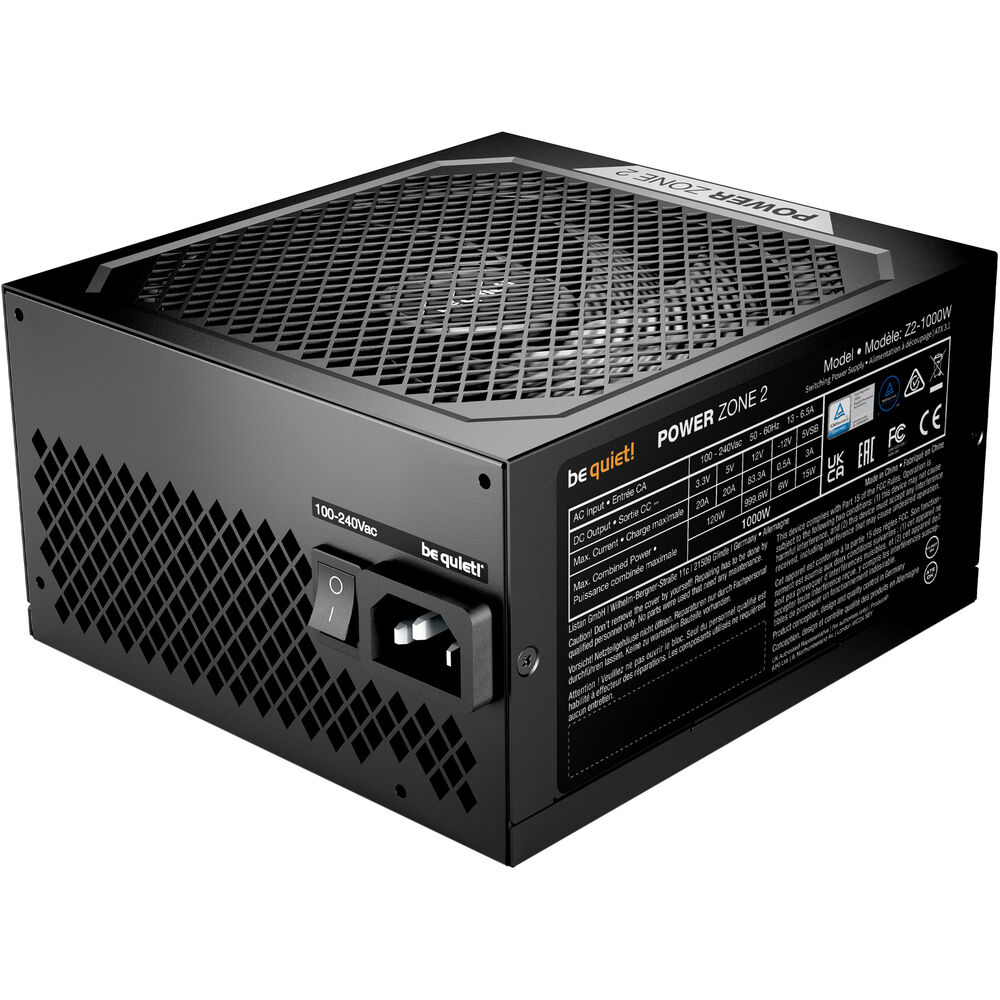

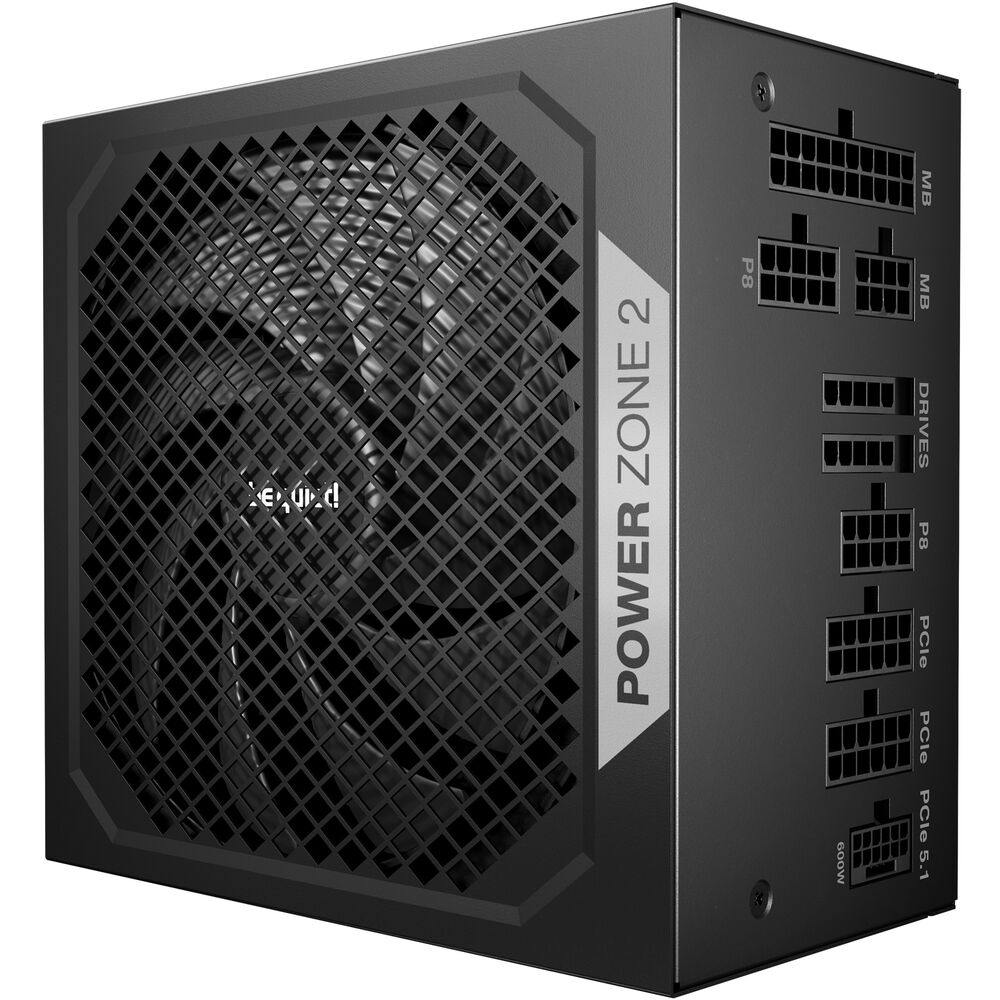

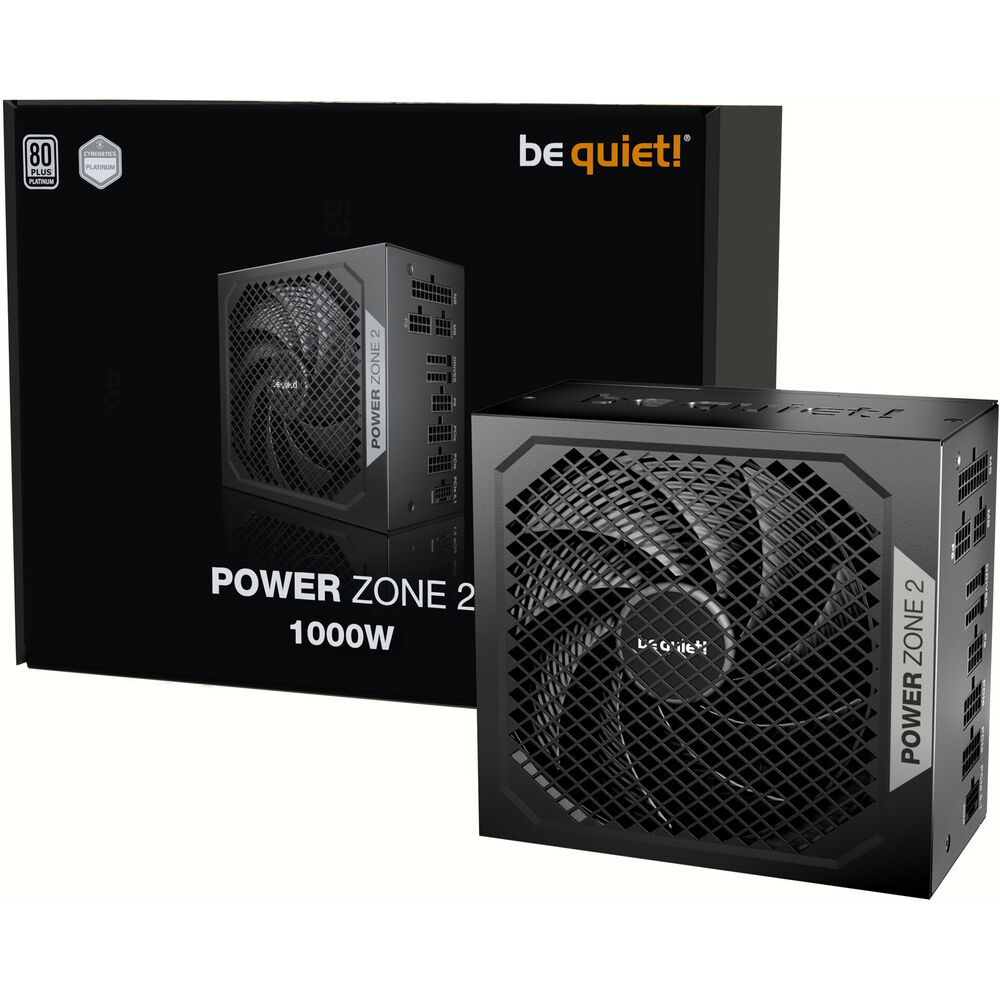

Enjoy ample power for your components by including the Power Zone 2 80 PLUS Platinum Fully Modular 1000W ATX Power Supply from be quiet! in your build.

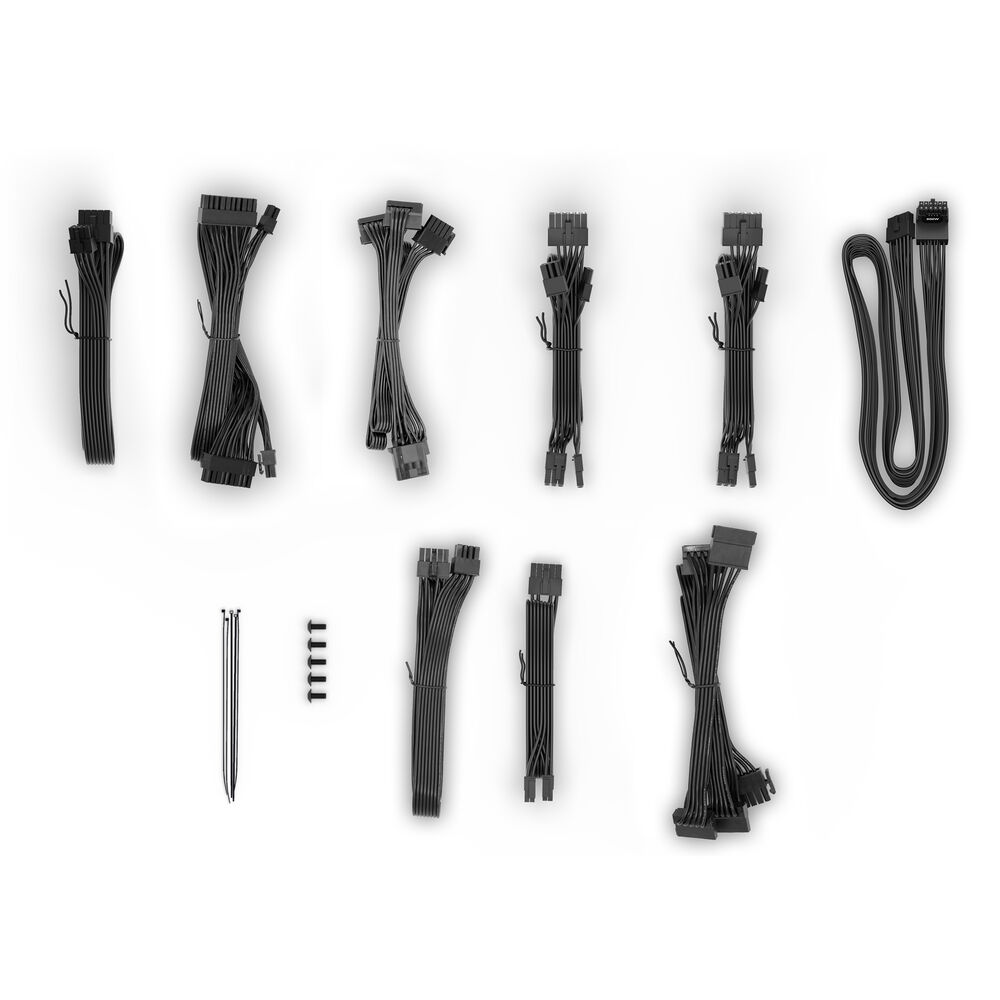

With a single +12V rail, the Power Zone 2 can provide your system with up to 1000W of power to help ensure smooth performance from powerful graphics cards and overclocked components. ATX 3.1 compliance ensures compatibility with PCIe 5.1 devices. This power supply features three PCIe 6+2-pin connectors, seven SATA connectors, and one PATA/Molex connector. A modular design allows you to choose which flat cables you want to use to maintain a clean look.

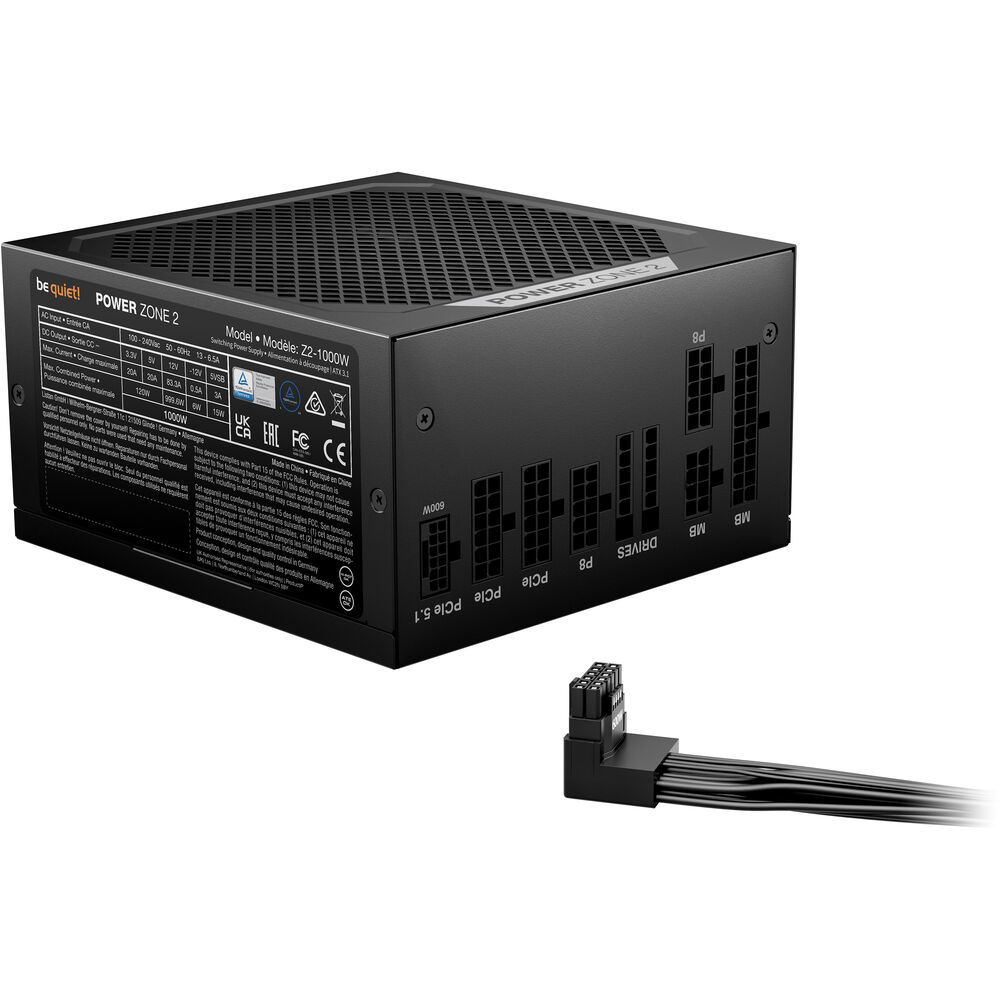

| Total Connectors | 1x 20+4-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 3x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 7x 15-Pin SATA 1x 4-Pin Peripheral / Molex |
| Cable Design | Flat, Modular |
| Total Wattage | 1000 W |
| Number of +12 V Rails | 1 |
| Efficiency Rating | 80 PLUS Platinum |
| Form Factor | ATX |
| Total Connectors | 1x 20+4-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 3x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 7x 15-Pin SATA 1x 4-Pin Peripheral / Molex |
| Cable Design | Flat, Modular |
| PCIe Connector Distances | 23.6" / 600 mm |
| SATA Connector Distances | 21.7" / 550 mm 27.6" / 700 mm 33.5" / 850 mm 39.4" / 1000 mm |
| Peripheral Connector Distances | 27.6" / 700 mm |
| ATX Connector Distance | 23.6" / 600 mm |
| EPS Connector Distances | 27.6" / 700 mm |
| Total Wattage | 1000 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 999.6 W |
| Max Load for +12 V | 83.3 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 6 W |
| Max Load for -12 V | 0.5 A |
| Peak Power | 1070 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating | 80 PLUS Platinum |
| Active Power Factor Correction | No |
| Efficiency | 70% at 2% Load 90% at 10% Load 93% at 20% Load 94% at 50% Load 93% at 100% Load |
| Fan Size | 140 mm |
| Bearing Type | Rifle |
| Noise Level | 6.5 to 27.2 dBA |
| Form Factor | ATX |
| Compliance | ATX v3.1, EPS 12 V v2.92 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection |
| Certifications | BSMI, CB, CE, ENERGY STAR, ErP, FCC, RCM, RoHS, TUV, UKCA, WEEE, cTUVus |
| Operating Conditions | Up to 104°F / 40°C |
| Mean Time Between Failures (MTBF) | 100,000 Hours |
| Dimensions | 6.3 x 5.9 x 3.4" / 160 x 150 x 86 mm |
| Weight | 6.22 lb / 2.82 kg |
| Package Weight | 7.625 lb |
| Box Dimensions (LxWxH) | 13 x 9.9 x 4.2" |
