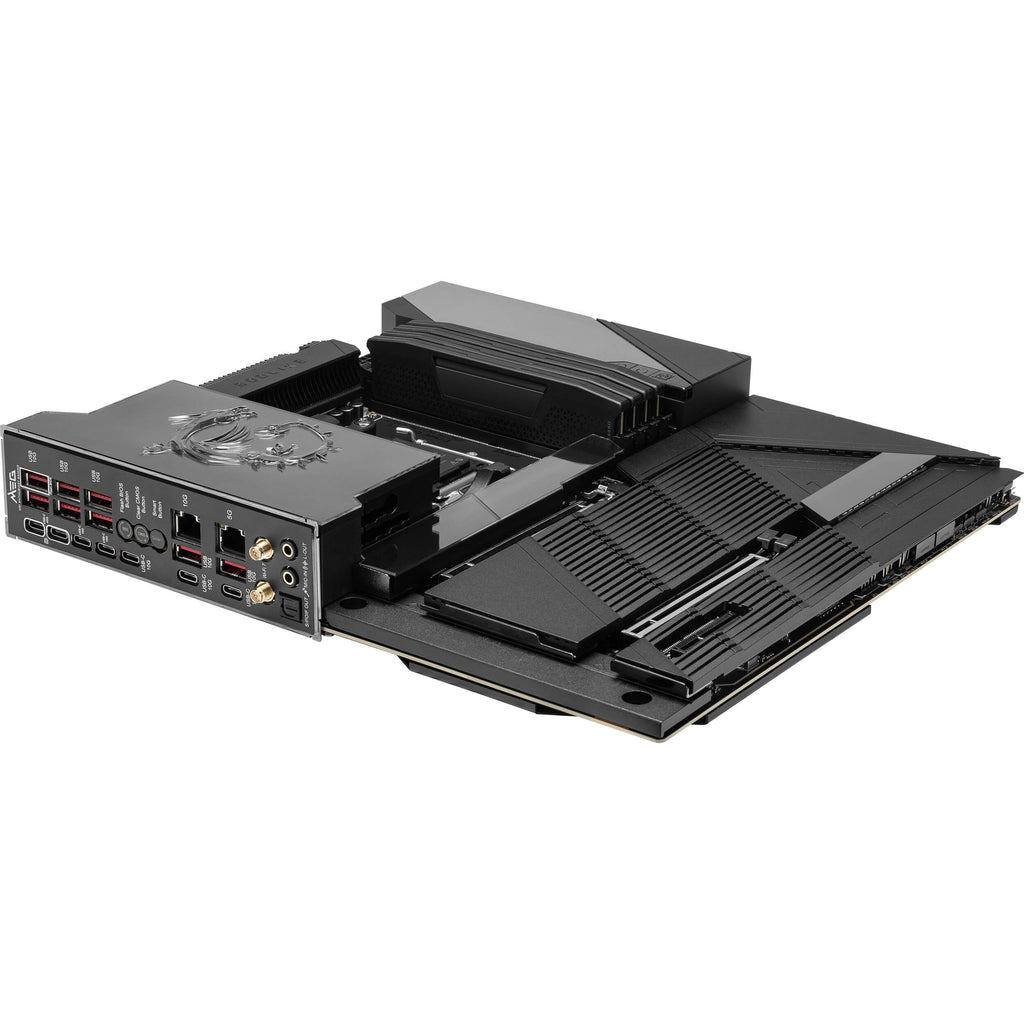

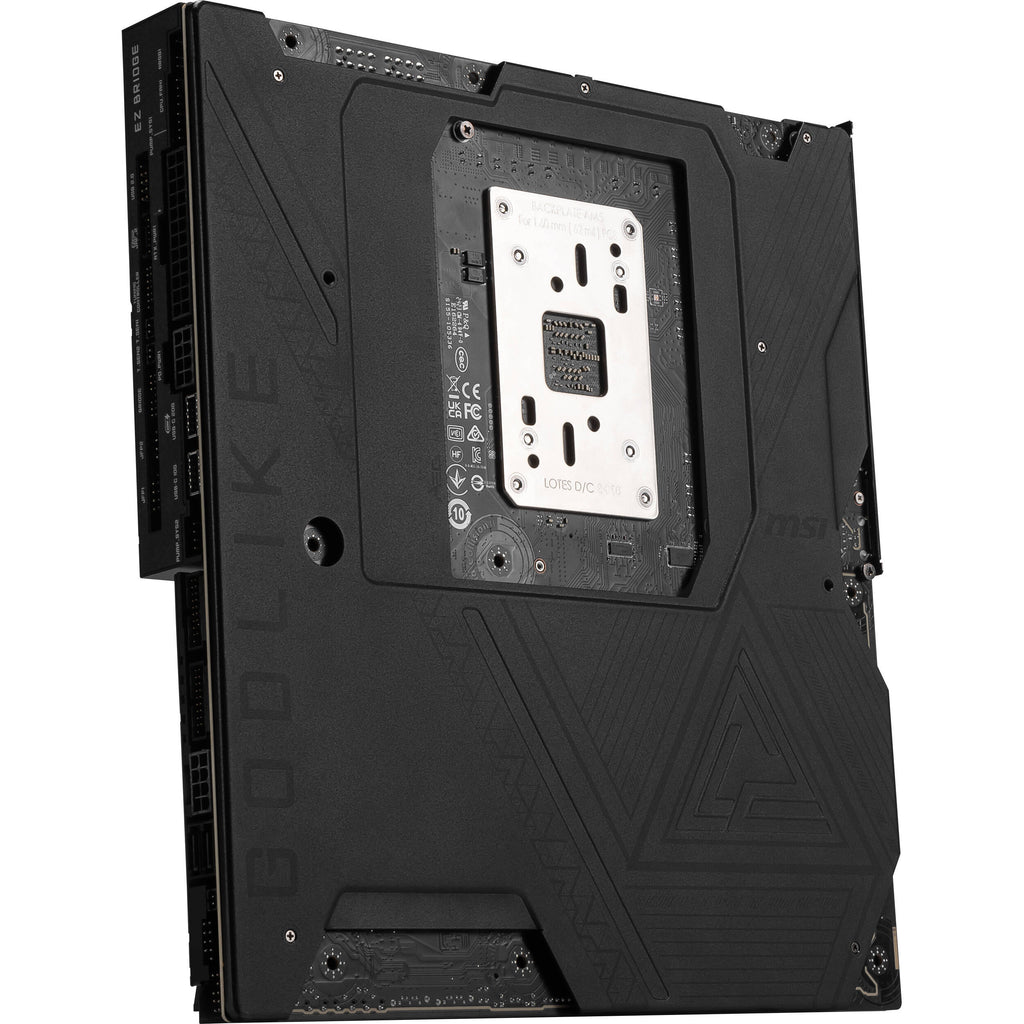

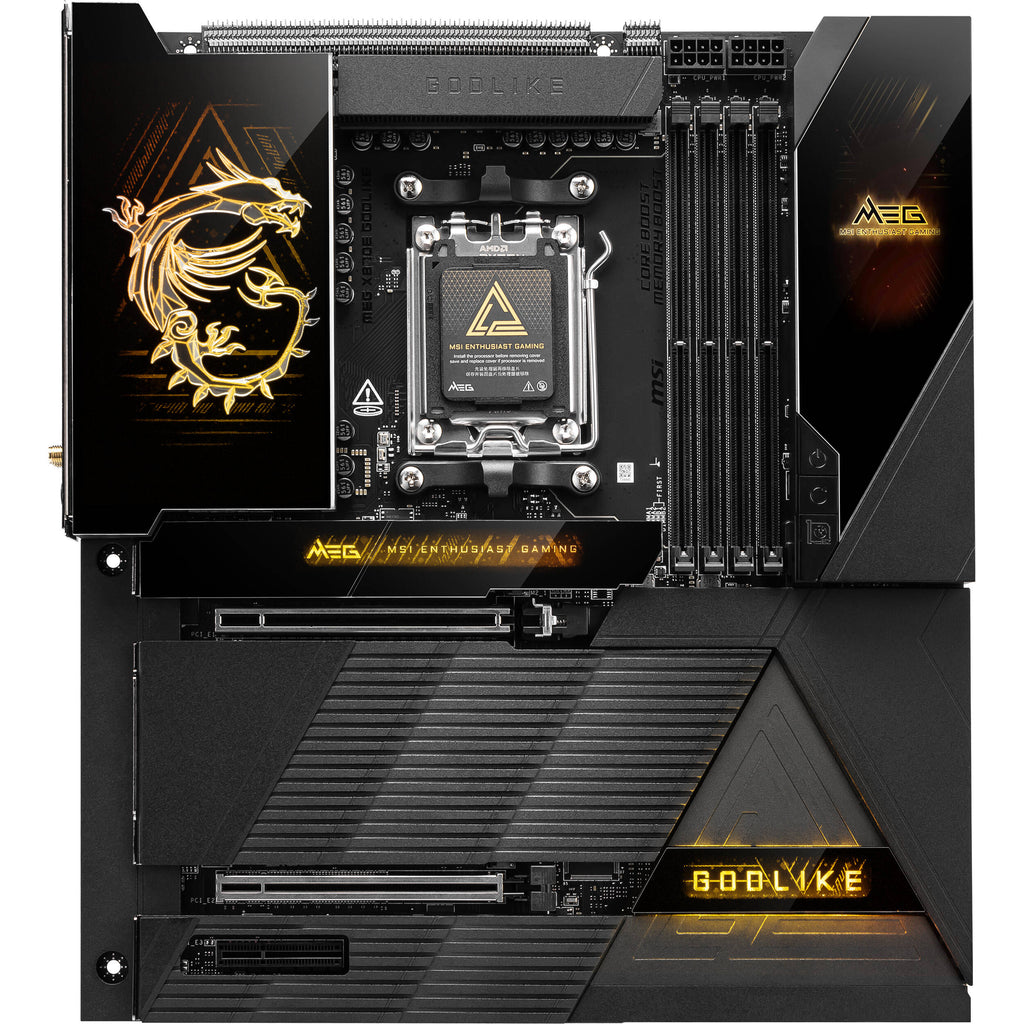

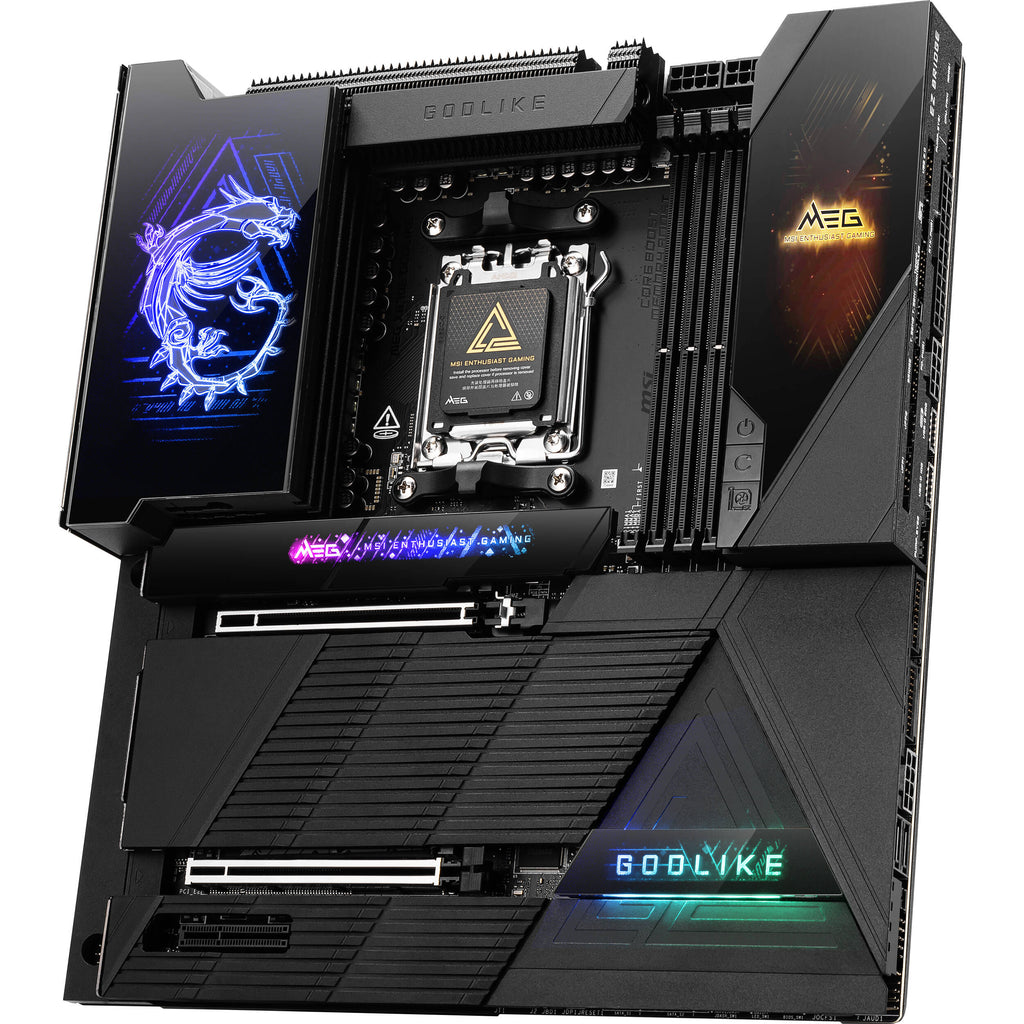

MSI MEG X870E GODLIKE AM5 E-ATX Motherboard

Roll over image to zoom in

MSI MEG X870E GODLIKE AM5 E-ATX Motherboard


	₹ 172975.0 includes GST and import duties.
	B2B customers can avail ₹ 26378.69 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7262787305557
MPN:	MEG
UPC/HSN:	824142388747

Share this product

MSI X870E GODLIKE Overview

From Manufacturer

MEG X870E GODLIKE X EDITION - 10 Years of Evolution, One GODLIKE Moment | MSI

Unleash the GODLIKE: X870E motherboard lineup

Prepare your next build for maximum gaming and content creation performance with the MSI MEG X870E GODLIKE AM5 E-ATX Motherboard. Supporting AMD 7000, 8000, and 9000 series processors with the AM5 socket, this motherboard can be outfitted with overclocked components to handle demanding applications and AI-enhanced workloads.

Designed with EZ Link technology to streamline builds, you can install up two M.2 PCIe 5.0 and three PCIe 4.0 SSDs on the motherboard. Two more M.2 PCIe 5.0 SSDs may be added using the included M.2 XPANDER-Z Slider Gen 5 card. You can also install up to four SATA III drives to store your games library, applications, and important files. Four DDR5 DIMM slots are available for up to 256GB of memory, which may be overclocked for up to 9000 MT/s performance. With two PCIe 5.0 x16 slots and one PCIe 4.0 x4 slot, you can add multiple graphics cards and other compatible expansions.

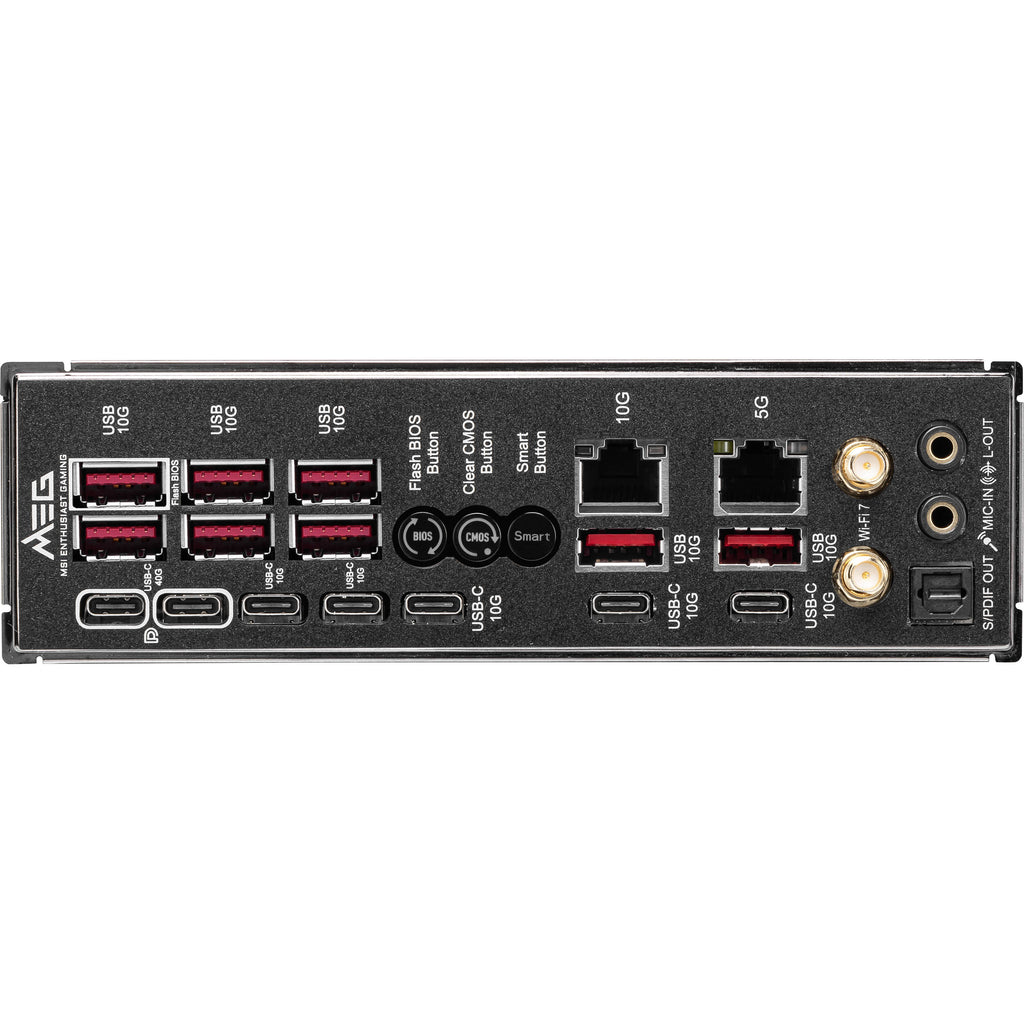

The rear panel features two USB4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. There are also five USB-C and eight USB-A ports that work with 10 Gb/s devices. An internal header allows you to use a 20 Gb/s USB-C port on the front panel. Built-in Wi-Fi 7 (802.11be) support and both 5G and 10G compatible Ethernet ports provide you with high-speed connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.

MSI GODLIKE Design

Dynamic Dashboard III

A built-in 3.99" color LCD screen allows you to monitor your hardware performance in real-time or display personalized graphics.

EZ Link

MSI's EZ Link design helps to simplify installation by consolidating most of the front panel, fan, and RGB headers into the EZ Bridge and EZ Control Hub. The EZ Bridge, which holds the LCD screen, magnetically attaches to the motherboard and attaches directly to the EZ Control hub with a flexible cable.

Ultra Performance

Power Solution

Unleash and sustain the maximum performance with a digital PWM IC design with a 24+2+1 Duet Rail Power System. By combining dual power connectors and 110A Smart Power Stage, the MEG X870E GODLIKE is ready for high-end processors and hardware.

Optimized PCB Design

The 10-layer PCB design features 2 ounces of copper and has been optimized for higher bandwidth and faster transfer speeds.

DDR5 Memory Support

High-performance DDR5 memory works with a dedicated SMT welding process and MSI Memory Boost technology to deliver exceptional performance.

Ultra Engine

Multiple CPU and memory overlocking features included in the Click BIOS X tool allow you to quickly and easily fine-tune performance.

Frozr Design

Maintain optimal temperatures with magnetic double-sided M.2 shield heat sinks, a metal backplate, aluminum cover, direct touch cross heatpipes, and more.

Wi-Fi 7

Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s.

DIY Friendly

PCIe 5.0

Doubling the speed of the previous generation, the PCIe 5.0 x16 interface can reach 128 GB/s.

SMT PCIe Slots

The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise to fully support the PCI-E 5.0 signal. They are reinforced with Steel Armor II technology to support heavy graphics cards.

Steel Armor II

Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.

M.2 XPANDER-Z Slider Gen 5

Add two additional M.2 PCIe 5.0 SSDs to your system using the included expansion card, which features an EZ slide design for simplified installation. Dual 70mm double-ball bearing fans help to maintain optimal temperatures.

EZ PCIe Release

An easy-to-access physical button release mechanism helps to remove any PCIe card with a single tap, making it easier to upgrade to a new GPU or other compatible device.

EZ M.2 Clip II

MSI's EZ M.2 CLIP II makes SSD installation seamless. Insert the SSD into the M.2 slot and press it down to lock it in place with the clip. Flicking the clip outward lets you remove the SSD. Use the EZ M.2 Clip II remover tool to detach or reposition the clip on the motherboard.

Flash BIOS

Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.

Clear CMOS

Restore the BIOS to its default settings with the push of a button.

UPC: 824142388747

Items Included

MSI MEG X870E GODLIKE AM5 E-ATX Motherboard
4 x SATA Cable
M.2 XPANDER-Z Slider Gen 5
EZ Control Hub
EZ Wi-Fi Antenna
USB Drive
1-to-3 ARGB Gen 2 Cable
1-to-2 RGB Extension Cable
ARGB Extension Cable
1-to-3 EZ Conn Cable (v2)
EZ Link Cable
EZ Control Hub SATA Power Cable
M.2 Xpander Card Fan Control Cable
EZ Front Panel Cable
2 x Thermistor Cable
2 x M.2 Xpander Card Thermal Pad
EZ M.2 Clips II Remover
EZ Control Hub Screw Set
Cable Sticker Sheet
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

7.4 MB

MSI X870E GODLIKE Specs

Key Specs

Chipset	AMD X870E
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 MT/s
Storage Slots	4x M.2 (M Key) 2260, 2280 1x M.2 (M Key) 2280, 22110 2x M.2 (M Key) 2280
Expansion Slots	2x PCIe 5.0 x16 1x PCIe 4.0 x4
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor	E-ATX

CPU

Chipset	AMD X870E
CPU Socket	AM5

Back Panel I/O

USB	2x USB-C (USB4) 5x USB-C (USB 3.1/3.2 Gen 2) 8x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt	No
Display	No Dedicated Display Ports (Video Signal via USB-C)
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x 5GbE 1x 10GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	4x M.2 (M Key) 2260, 2280 1x M.2 (M Key) 2280, 22110 2x M.2 (M Key) 2280
Optane Memory Support	No
RAID Support	RAID 0, 1, 10 (SATA) RAID 0, 1, 10 (M.2)

Internal I/O

Expansion Slots	2x PCIe 5.0 x16 1x PCIe 4.0 x4
USB	2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 7x 4-Pin Assistant
Liquid Cooling	2x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 4x 8-Pin ATX
Security	Chassis Intrusion, TPM Module
LED Header	3x RGB

BIOS

ROM

2x 256 Mb

Front Panel I/O

AAFP, USB 3.1/3.2 Gen 2, USB 3.2 Gen 2x2

Audio

Audio Codec	Realtek ALC4082 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth	5.4

Physical

Form Factor	E-ATX
Dimensions	10.9 x 12" / 276.9 x 304.8 mm

Packaging Info

Package Weight	14.12 lb
Box Dimensions (LxWxH)	15.5 x 14.2 x 5.8"
