- Dual Monitor Support
- Universal PCI Express
- 512 MB of Memory
- Low-Profile Form Factor
- Passive Cooling & Low Power Consumption
- Stretched and Independent Desktop Modes
- Edge Overlap
- Multiple Operating System Support

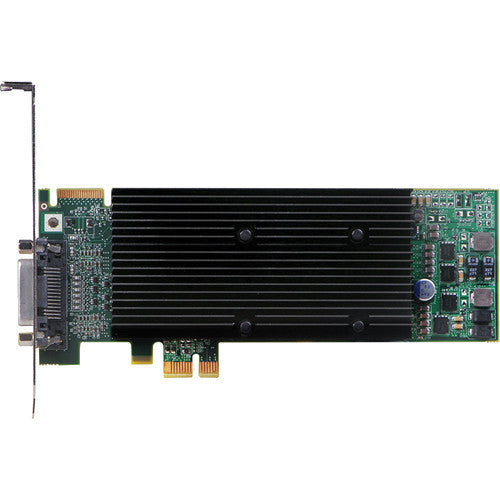

The Matrox M9120 512MB PCI Express x1 Low-Profile Graphics Card renders pristine image quality on up to two displays, at digital resolutions up to 1920 x 1200 or analog resolutions up to 2048 x 1536 each. It also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920 x 1200 each.
- High-Resolution Dual Monitor Support
- Support digital resolutions up to 1920 x 1200 and analog resolutions up to 2048 x 1536 per output
- Universal PCI Express
- PCIe x1 format allows card to work in any PCIe slot like PCIe x16, x8, x4 or x1
- Upgrade Option to Four Monitors
- Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
- 512 MB of Memory
- For enhanced performance in demanding multi-monitor applications
- Low-Profile Form Factor
- To fit in a wide variety of systems, includes bracket for full-height ATX form factor
- Passive Cooling and Low Power Consumption
- Fanless design eliminates noise and increases product reliability
- Stretched and Independent Desktop Modes
- Expand your desktop across multiple monitors or set each monitor independent of each other
- Edge Overlap
- Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors
- M-Series Multi-Card Support
- Add an additional M-Series card into the same system to drive up to 12 displays from two cards 1
Please Note:
Operating system, hardware and driver compatibility need to be verified for large monitor configuration arrays
close
- Joined Graphics Card Mode
- Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop 2
Please Note:
Available only under Microsoft XP and Windows 7 XDDM mode when M9188 is the additional card
close
- Matrox Clone
- View a copy of one display on the other displays
- Wide Enterprise Flexibility
- Unified driver package compatible with other Matrox products
- Matrox PowerDesk Software
- Easily configure and manage program windows on multiple monitors
- Multiple Operating System Support
- Display drivers for Windows 7 (32 / 64-bit), Windows Vista (32 / 64-bit), Windows XP (32 / 64-bit), Windows Server 2003 / 2008 (32 / 64-bit) and Linux
UPC: 790750236124
In the Box
Matrox M9120 512MB PCI Express x1 Low-Profile Graphics Card
- Low-Profile Bracket
- LFH60 to 2x DVI-I Dual Monitor Adapter Cable, 1' (0.30 m)
- 2 x DVI-I to HD15 Connector Adapters
- Matrox Display Drivers and PowerDesk Desktop Management Software
- 3 Year Warranty
| Hardware |
| Bus Type | PCIe x1 |
| Graphics Memory | 512 MB DDR2 |
| Card Form Factor (PCB / Bracket) | Low-Profile / ATX |
| Display Resolutions |
| Max Digital Resolution Per Output | 1920 x 1200 |
| Max Analog Resolution Per Output | 2048 x 1536 (1920 x 1200 with quad analog upgrade cable) |
| Max Display Outputs Per Card | 2 (4 with analog upgrade cable) |
| Supported Display Output Types | DVI SL, Analog |
| Features |
| Independent Desktop Mode | Yes |
| Stretched Desktop Mode | Yes |
| Matrox Clone | Yes |
| Pivot Support | Yes |
| Passive Cooling | Yes |
| Unified Driver Package | Yes |
| PowerDesk Software | Yes |
| Open GL Support | 2.0 |
| General |
| EMC Certifications | Class B |
| Supported Operating Systems | Windows 7 (32 / 64-bit), Windows Vista (32 / 64-bit), Windows XP (32 / 64-bit), Windows Server 2003 / 2008 (32 / 64-bit) and Linux |
| Dimensions (LxH) | 6.6 x 2.7" (16.76 x 6.85 cm) |
| Weight | Not specified by the manufacturer |
| Packaging Info |
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 14.1 x 6.9 x 1.7" |
