Lian Li SP850 Overview

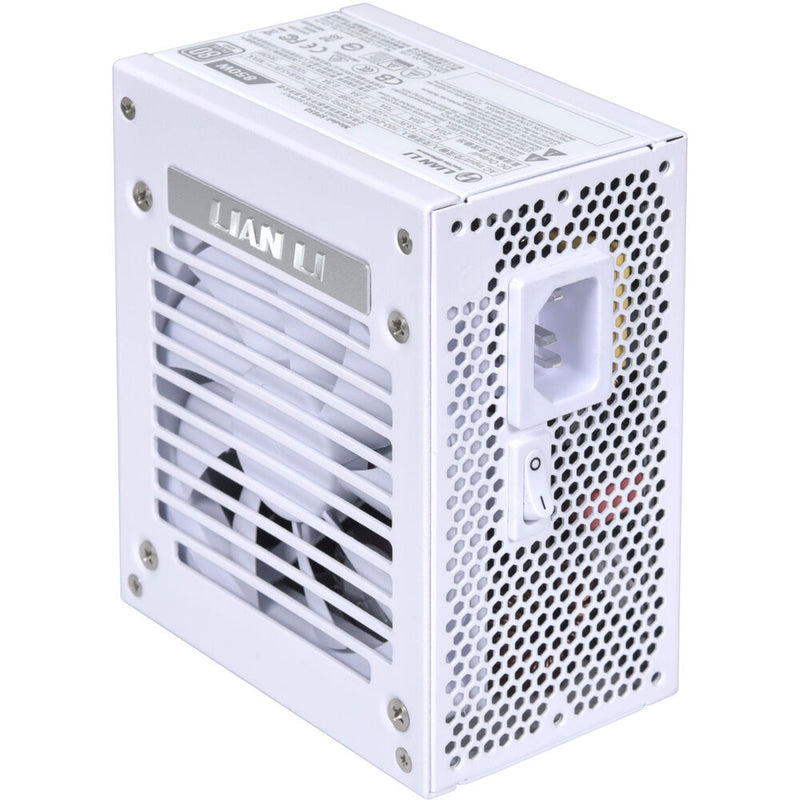

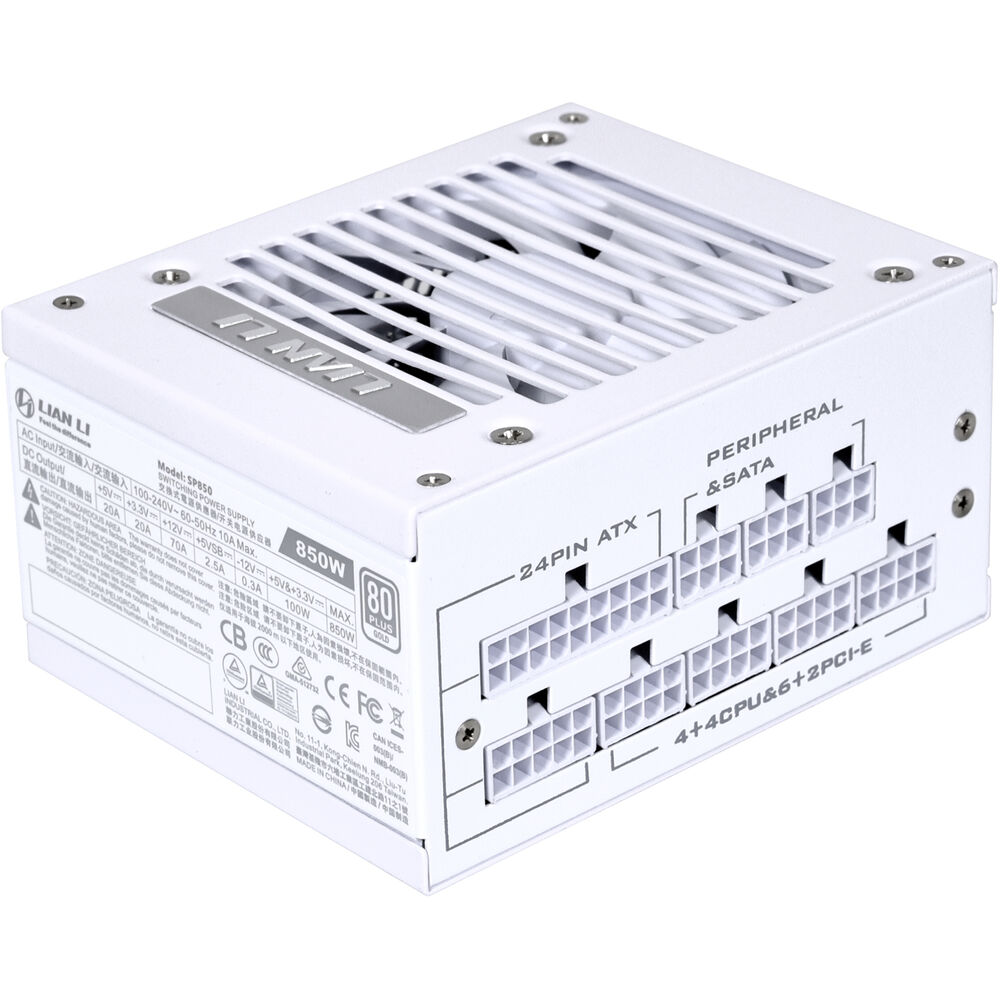

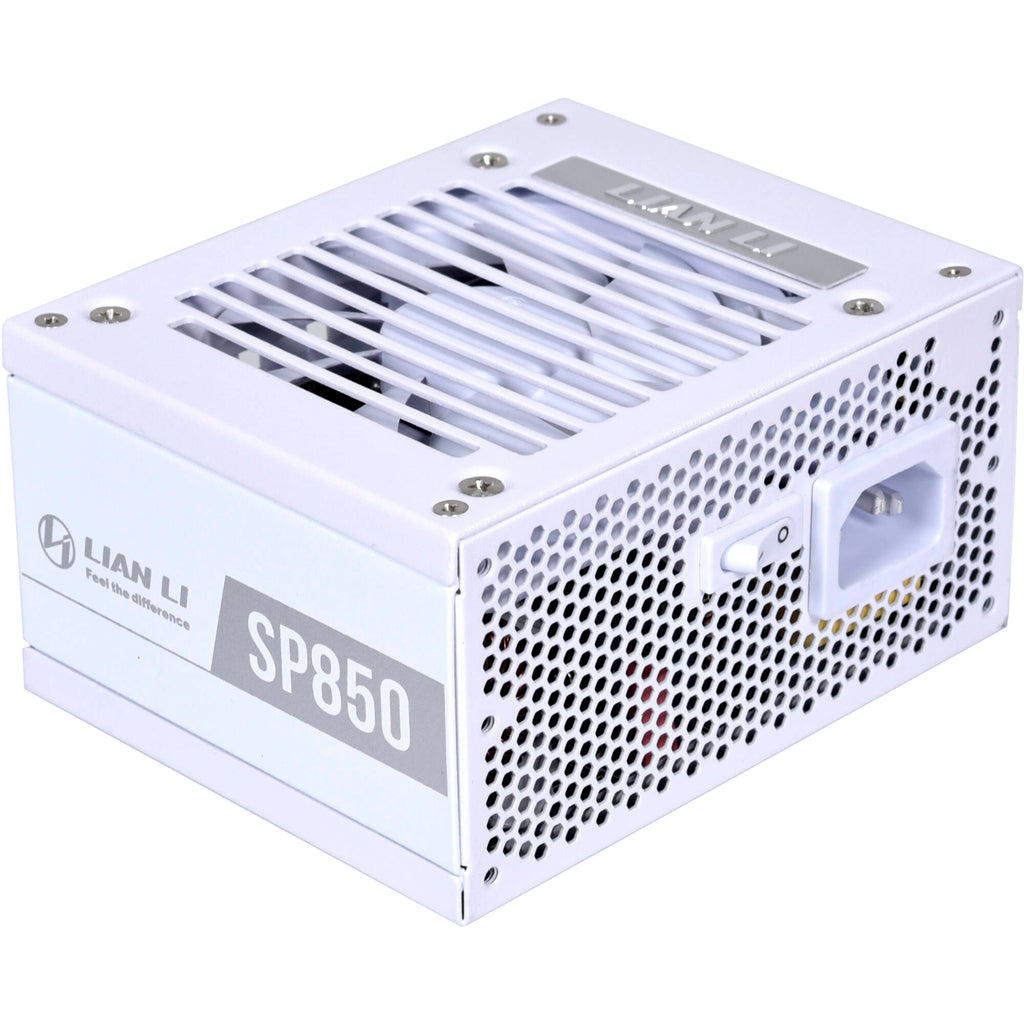

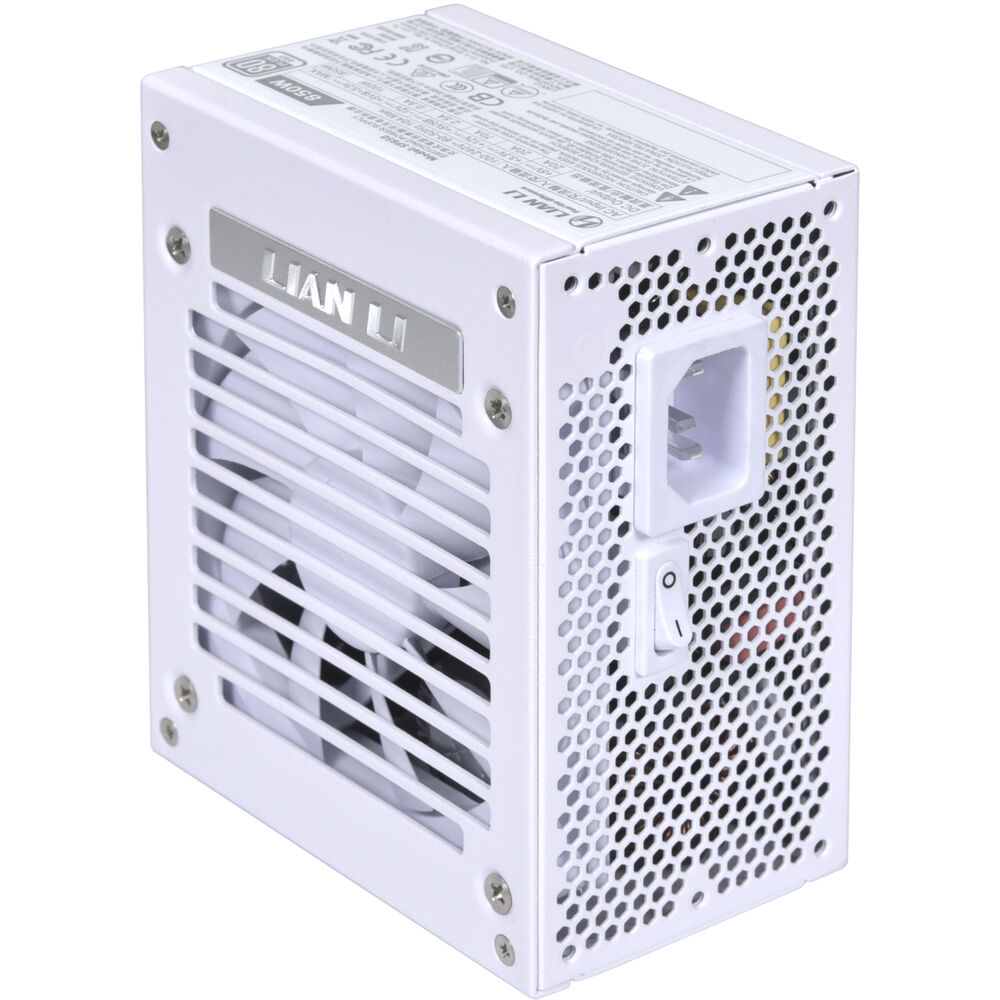

Elevate the performance of your custom mini-PC rig with the Lian Li 850W SP850 80+ Gold SFX Modular Power Supply. Delivering ample power while sporting the SFX form factor, this PSU can drive stable and reliable electricity to your system.

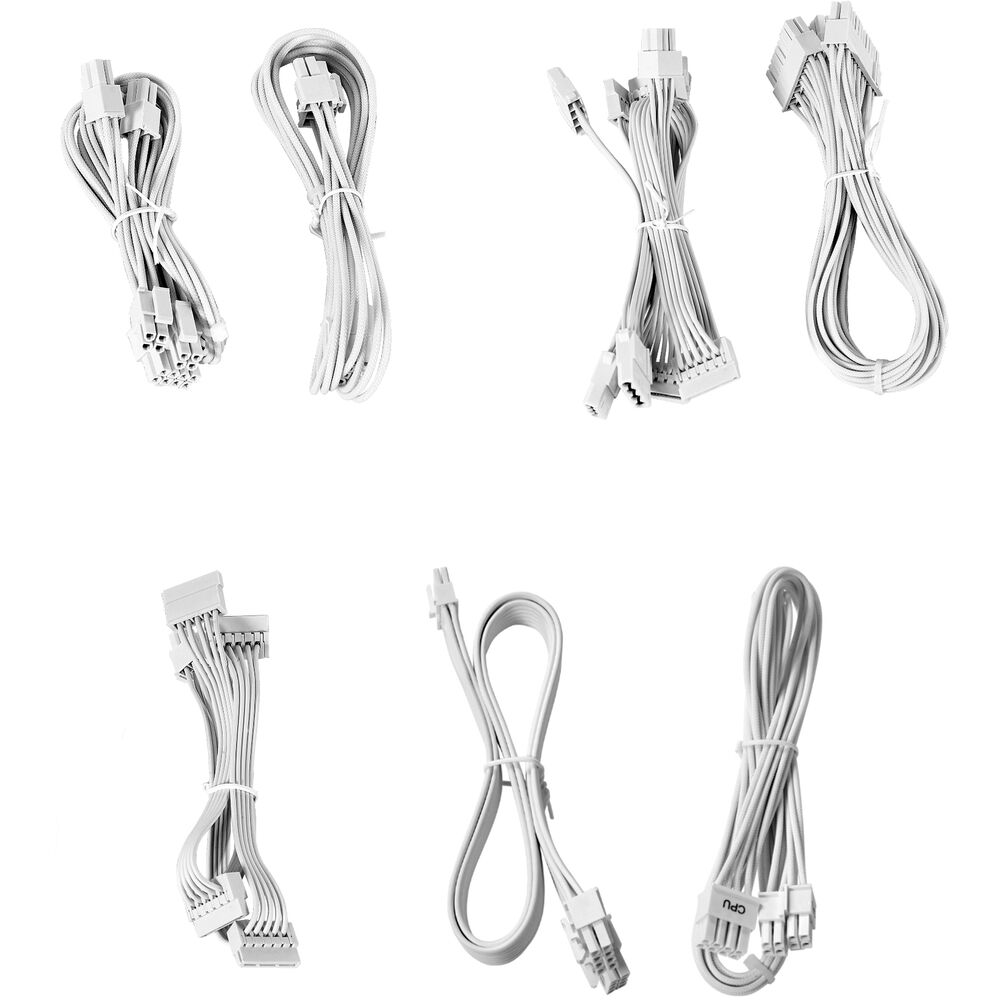

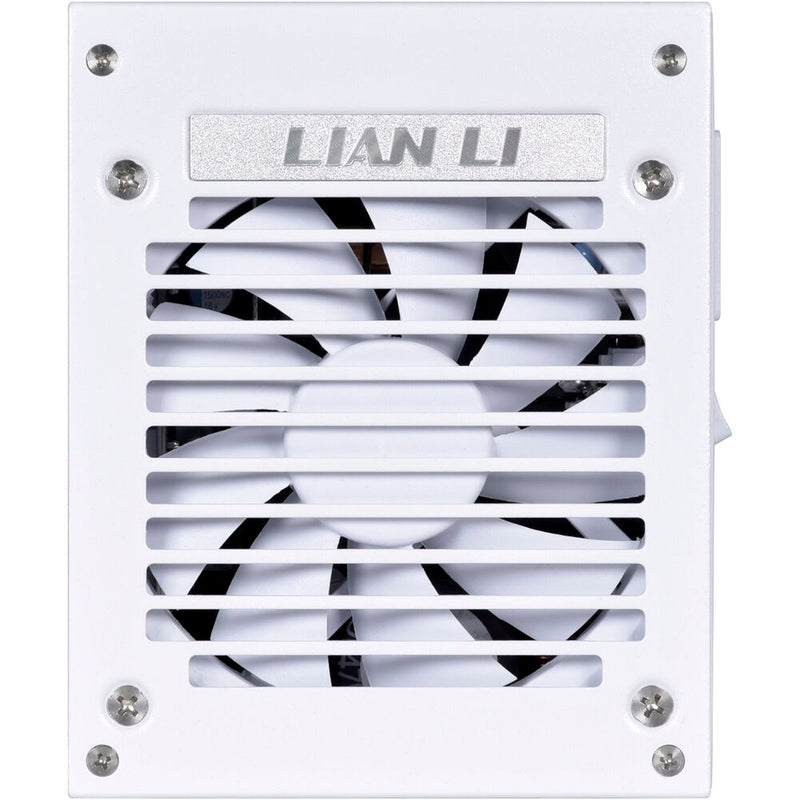

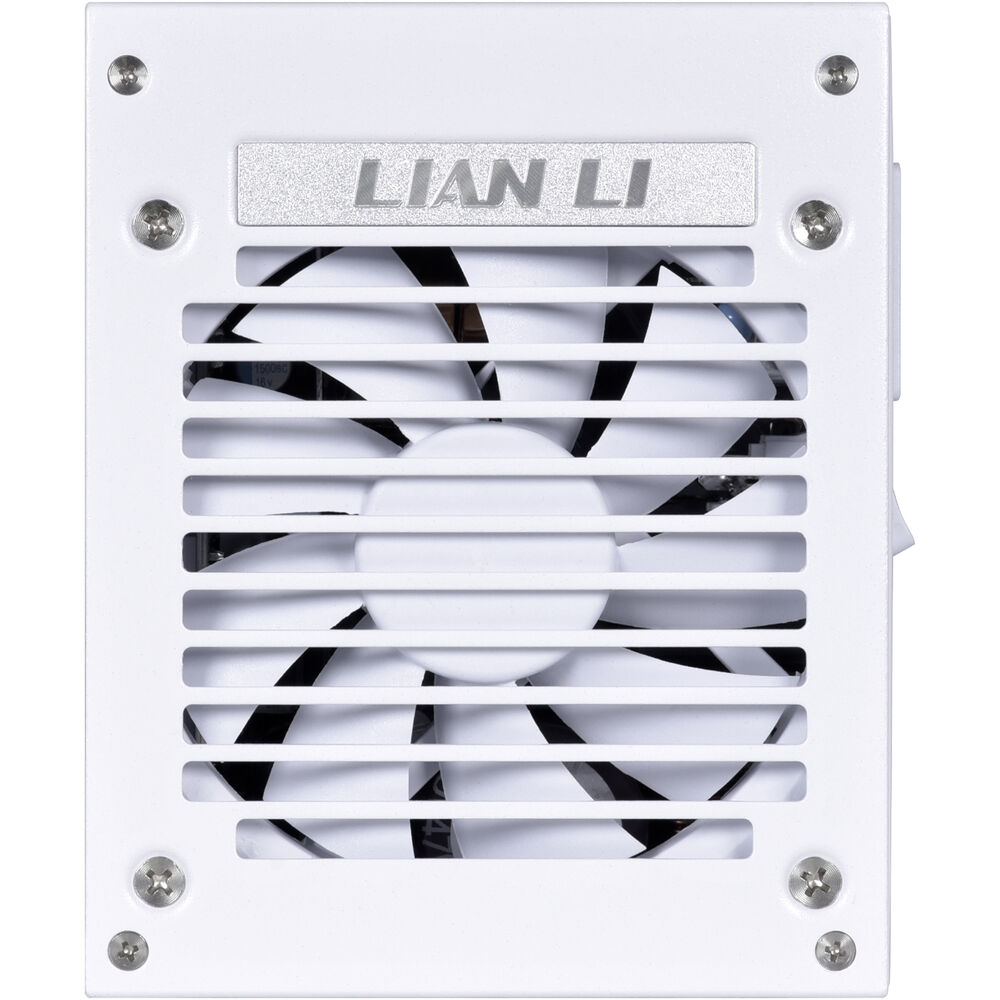

The reduced SFX form factor allows you to install the SP850 in a variety of small cases without compromising performance. A wide range of connectors allow you to plug in various components including the motherboard, peripherals, and more. A dedicated 12VHPWR connector is designed for PCIe 5.0 enabled graphics cards, delivering up to 400W of power directly to the card. Modular braided cables are designed to help reduce clutter within your case, ensuring proper airflow with little interference. Electrical layout utilizes durable Japanese capacitors to enhance throughput, giving the SP850 an 80+ Gold certification, ensuring up to 92% efficiency under maximum load. Keeping the SP850 cool is a 92mm fan which uses a unique ZERO RPM mode to allow the system to operate normally until 40% electrical load is detected, keeping your system nice and quiet.
In the Box
- Lian Li 850W SP850 80+ Gold SFX Modular Power Supply (White)
- Power Cable
- Limited 5-Year Manufacturer Warranty
Lian Li SP850 Specs
Connectivity

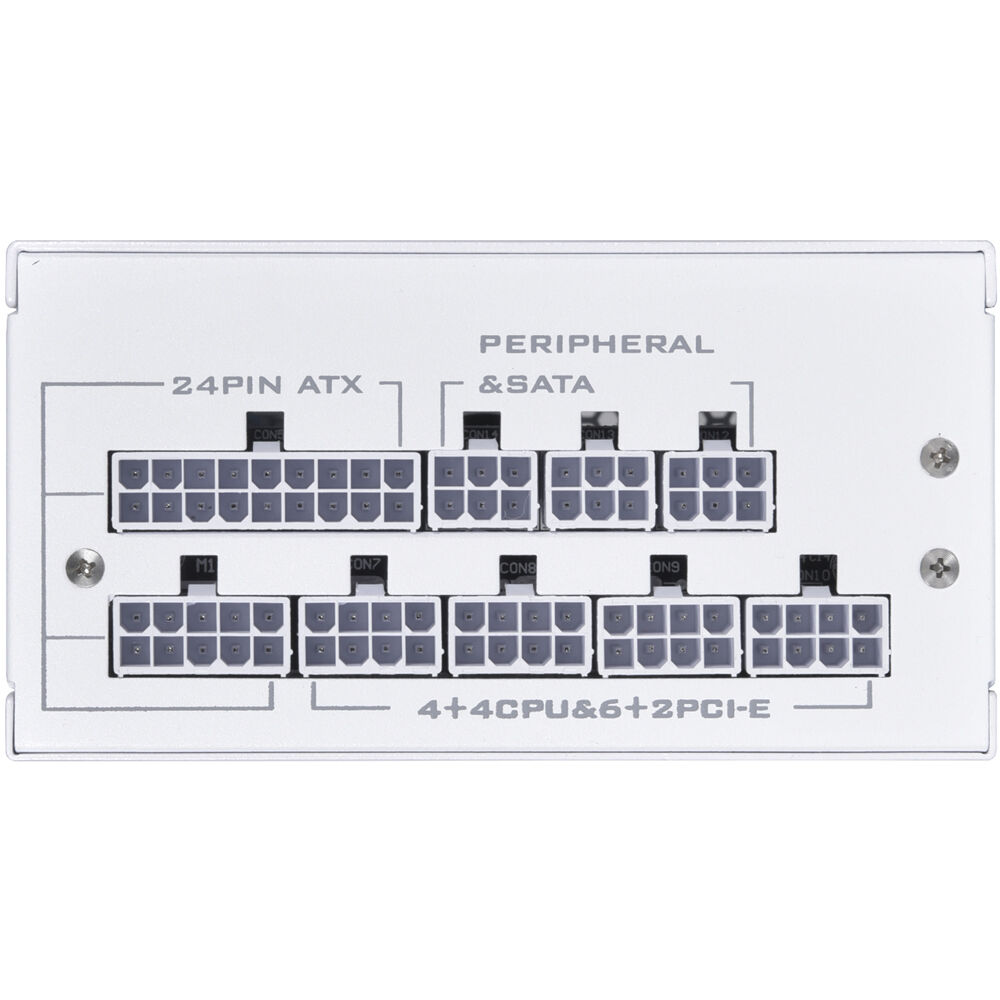

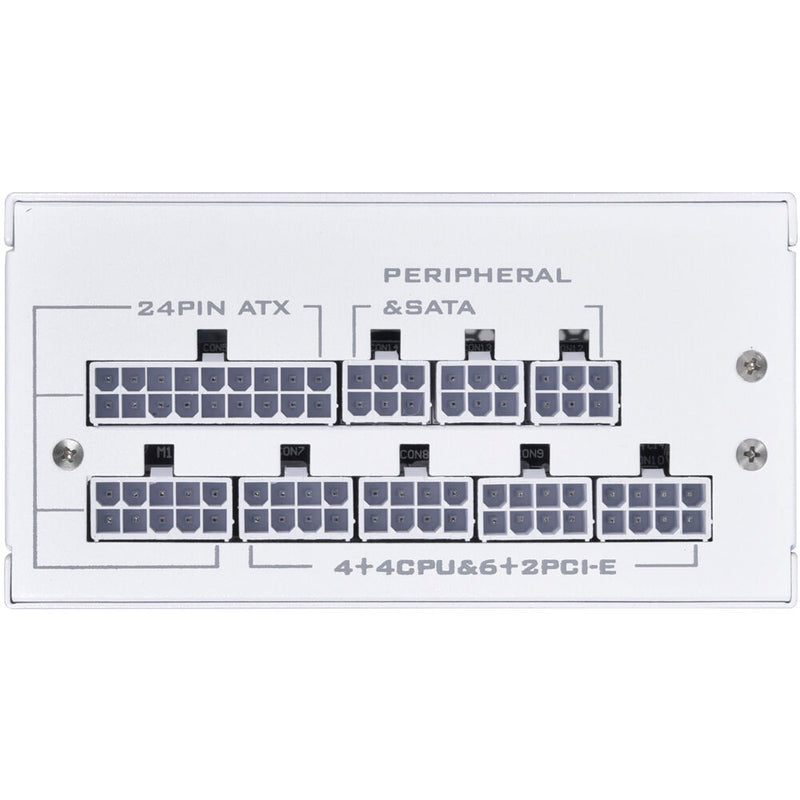

| Total Connectors |
1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
2 x 6+2-Pin PCIe
3 x 6-Pin SATA / Peripheral |
| Cable Design |
Modular |
Electrical
| Total Wattage |
850 W |
| Number of +12 V Rails |
1 |
| Combined Power for +12 V |
840 W |
| Combined Power for +3.3/+5 V |
100 W |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
General
| Efficiency Rating |
80 PLUS Gold |
| Active Power Factor Correction |
None |
| Efficiency |
93% at 100% Load |
Cooling
| Fan Size |
92 mm |
| Fan Speed |
1000 to 2800 rpm |
| Bearing Type |
Hydraulic |
| Noise Level |
17.1 to 40.6 dBA |
Physical
| Form Factor |
SFX |
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Dimensions |
2.5 x 4.9 x 3.9" / 63.5 x 125 x 100 mm |
Packaging Info
| Package Weight |
3.87 lb |
| Box Dimensions (LxWxH) |
10.7 x 7.1 x 4.2" |
