Description
ASUS H610I-PLUSD4-CSM Overview
- 1Description
- 2Flexibility
- 3UEFI BIOS
- 4Cooling
- 5Storage
- 6Connectivity
- 7Customization

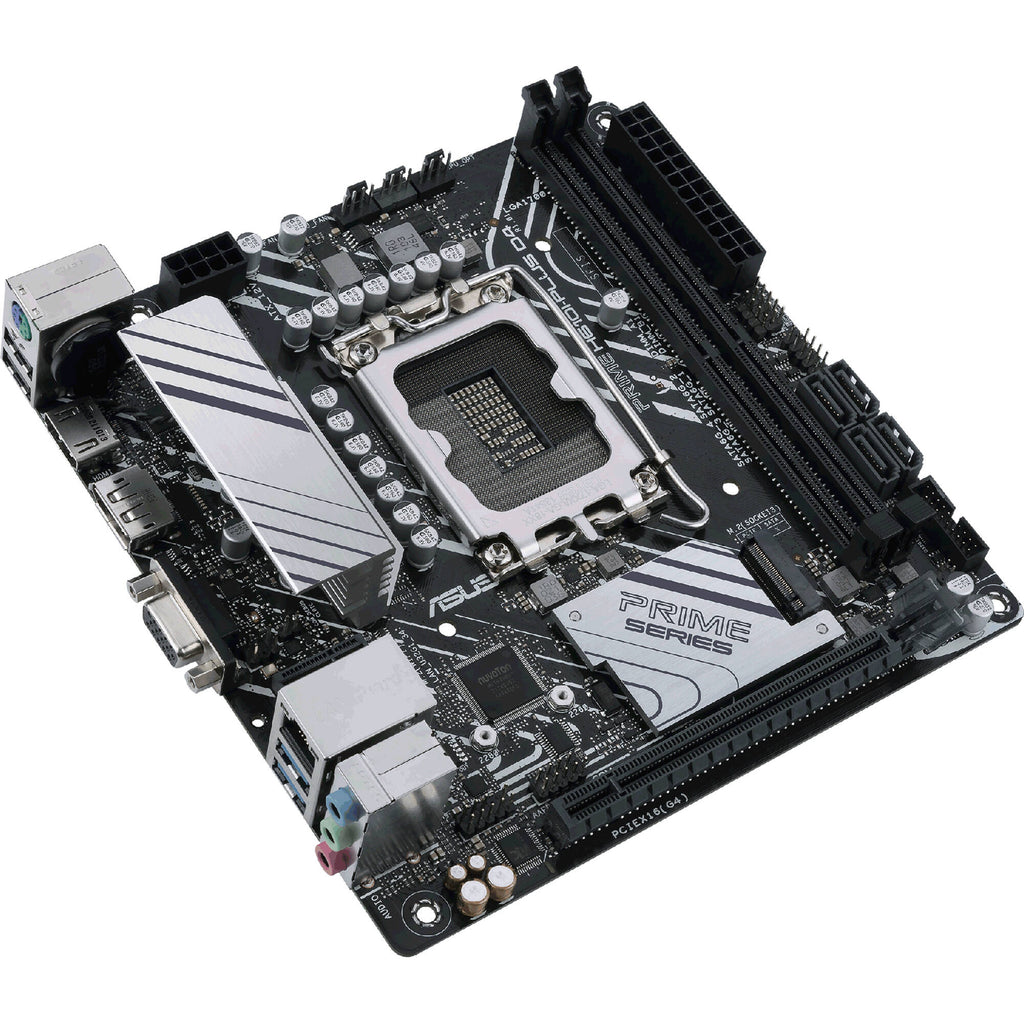

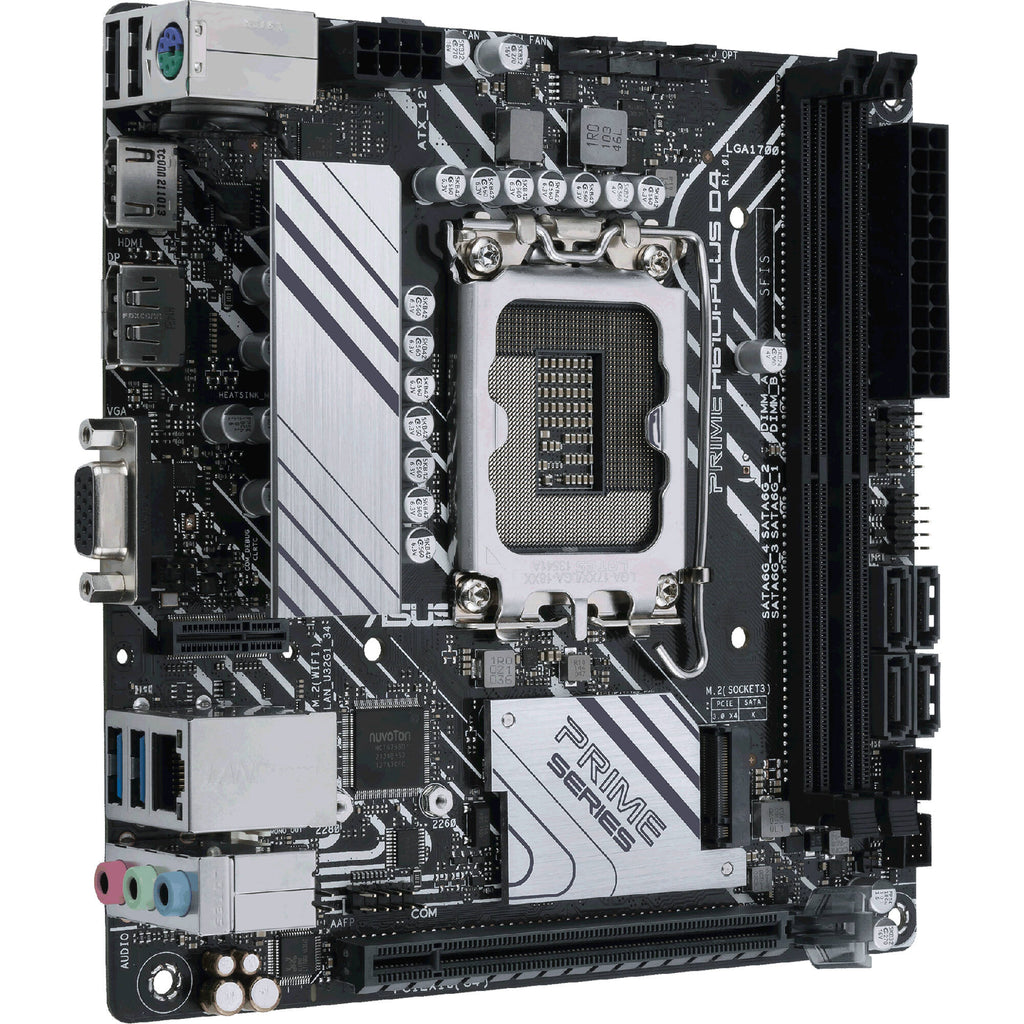

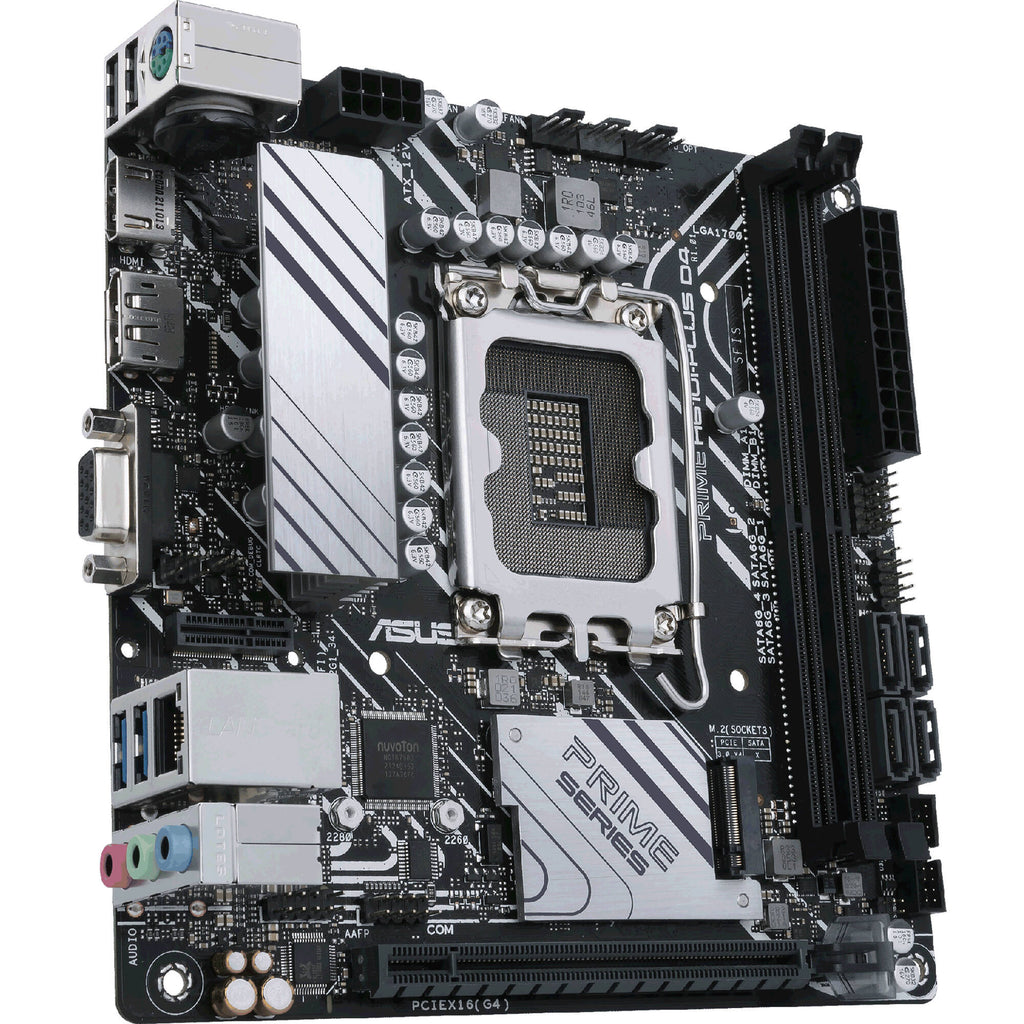

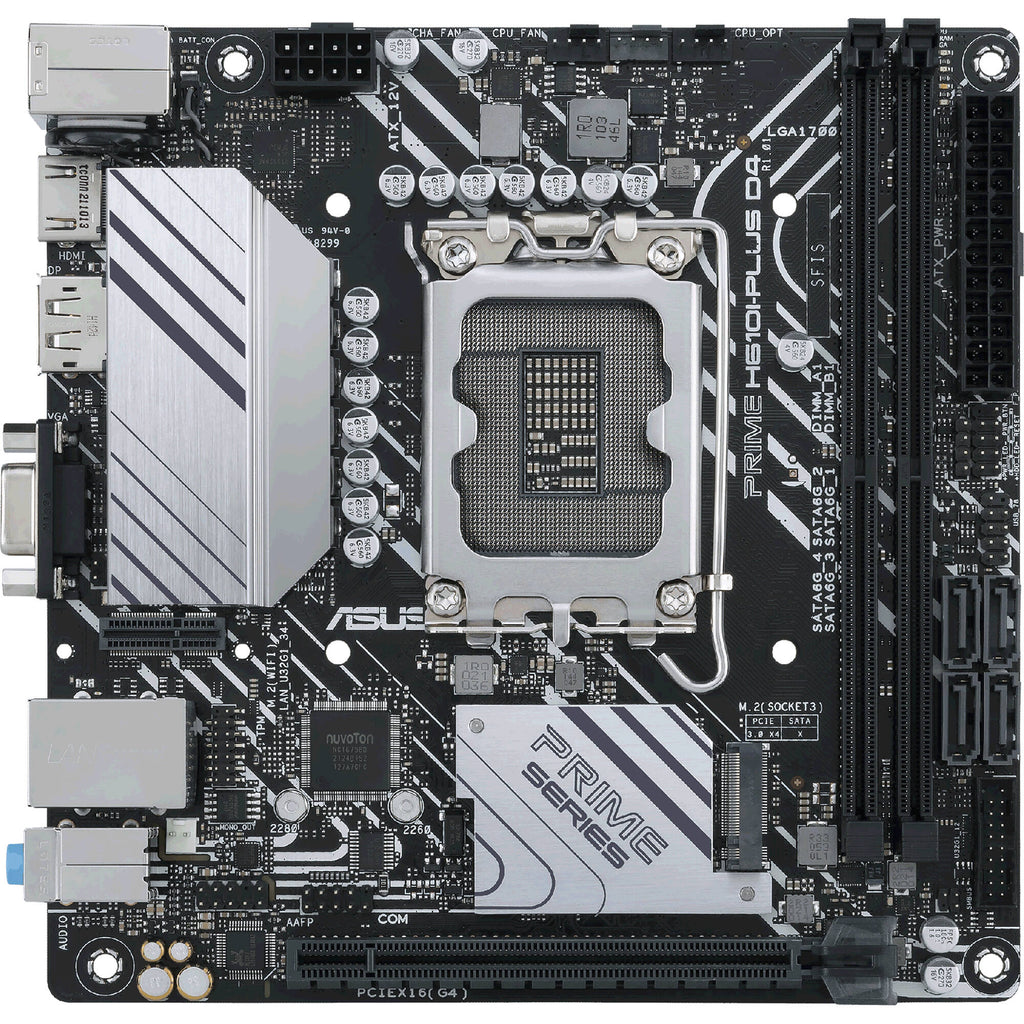

Whether you are an enthusiast or business-focused user, the PRIME H610I-PLUS D4 LGA 1700 Mini-ITX Motherboard from ASUS provides you with flexibility and performance suitable for a variety of uses in a small form factor. Utilizing the power of 12th Gen Intel processors, you can experience enhanced speeds with PCIe 4.0 technology, providing boosts to M.2 SSD and graphics card performance.
Built on the Intel H610 chipset, you have access to an LGA 1700 socket, providing compatibility with a wide range of 11th and 12th gen Intel processors. Two DDR4 DIMM slots allow you to install up to 64GB of memory for multitasking performance. Expand your system storage thanks to a single M.2 slot and four SATA III connectors. A dedicated graphics card can be installed into the PCIe 4.0 x16 slot, while multiple USB ports allow you to connect various peripherals such as external drives, keyboards, or mice with ease. Connect to a wired network with Realtek 1Gb Ethernet port, or install a wireless module (sold separately) in the M.2 E Key slot. Connect to a display using the HDMI, VGA, and DisplayPort outputs.
Flexibility
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode � a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Fan Xpert
Prime 600 Series motherboards offer comprehensive control over system fans via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.
Digi+ VRM Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings � all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
EZ XMP
EZ XMP allows you to improve DRAM performance with one click.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
Cooling
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU-intensive tasks.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
Storage
M.2 Slot
The Prime H610I-PLUS D4 offers one M.2 slot that support data-transfer speeds of up to 32 Gb/s via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
Connectivity
PCIe 4.0
Prime H610 motherboards are designed specifically for 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
USB 3.2 Gen 1
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 1 connectivity for compatible cases.
V-M.2 Slot Key E for Wi-Fi
The PRIME H610I-PLUS D4 features a vertical M.2 (Key E) slot and ASUS exclusive Wi-Fi card holder which provides you with the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.
Customization
Armoury Crate
Armoury Crate is an ASUS-exclusive software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize a fan curve for each connected fan via FAN Xpert utility. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlights to help you stay in touch with the ASUS community.
Fortified PCIe Slot Prevents Damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides stronger retention and greater shearing resistance than standard expansion slots.
UPC: 195553755757
In the Box
- ASUS PRIME H610I-PLUS D4 LGA 1700 Mini-ITX Motherboard
- 2 x SATA III
- I/O Shield
- M.2 Screw Package
Table of Contents
- Description
- Flexibility
- UEFI BIOS
- Cooling
- Storage
- Connectivity
- Customization
ASUS H610I-PLUSD4-CSM Specs
CPU
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 |

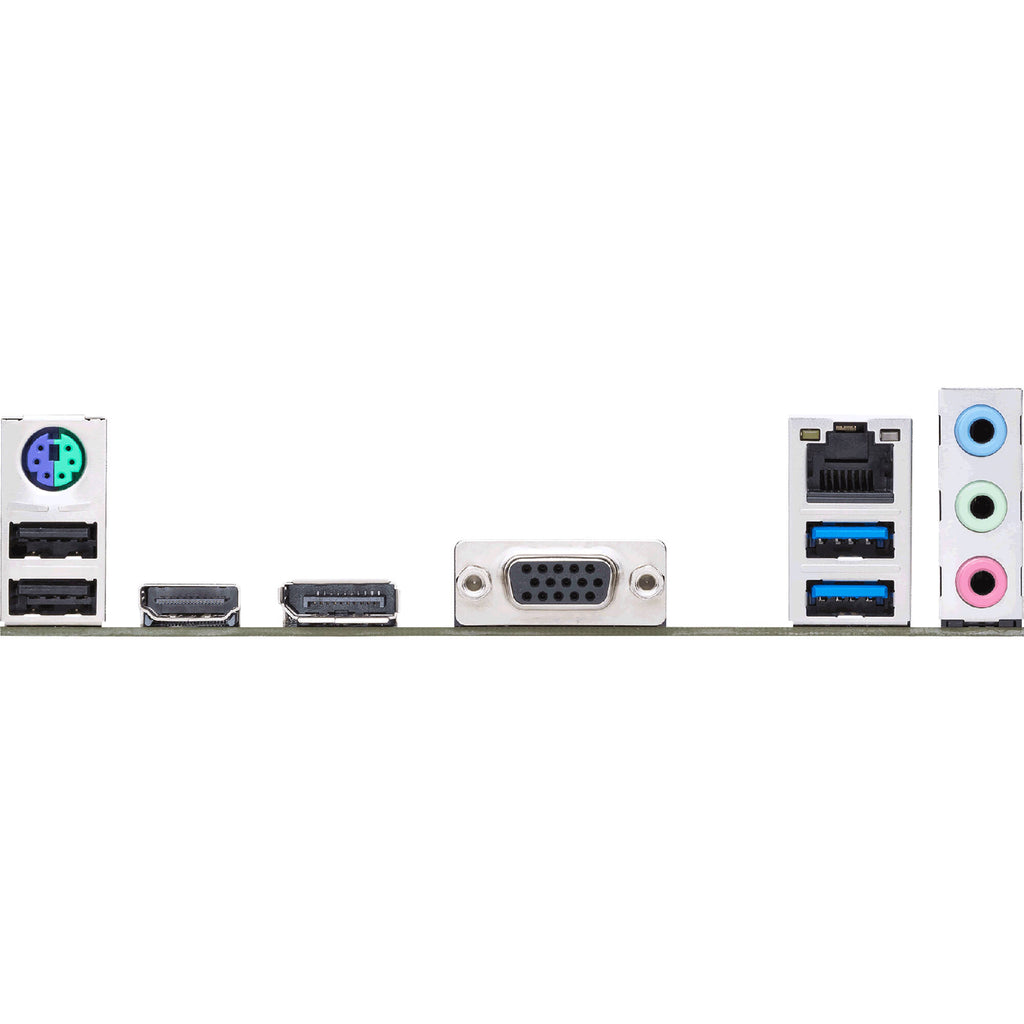

Back Panel I/O
| USB | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1 x VGA 1 x HDMI |
| Audio | 3 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Realtek Gigabit |
| PS/2 | 1 x Combo |
| Buttons | BIOS Flashback |
Memory
| Memory Slots | 2 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 |
| USB | 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1 x 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling | 2 x 4-Pin CPU 1 x 4-Pin System |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 20-Pin Mainboard |
| Security | TPM Header |
| Audio | 2 x Speaker 1 x S/PDIF |
| Diagnostics | Clear CMOS |
BIOS
| ROM | 128 Mb |
Front Panel I/O
| Front Panel I/O | AAFP |
Audio
| Audio Codec | Realtek (7.1-Channel) |
Wireless
| Bluetooth | None |
| Wi-Fi | None |
| Module Support | 1 E Key Vertical M.2 |
Software
| OS Compatibility | Windows 11 Windows 10 *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor | Mini-ITX |
| Dimensions | 6.7 x 6.7" / 170.2 x 170.2 mm |
Packaging Info
| Package Weight | 1.605 lb |
| Box Dimensions (LxWxH) | 9 x 7.3 x 2.5" |
