Description
Tripp Lite BHDBT3-USB Overview

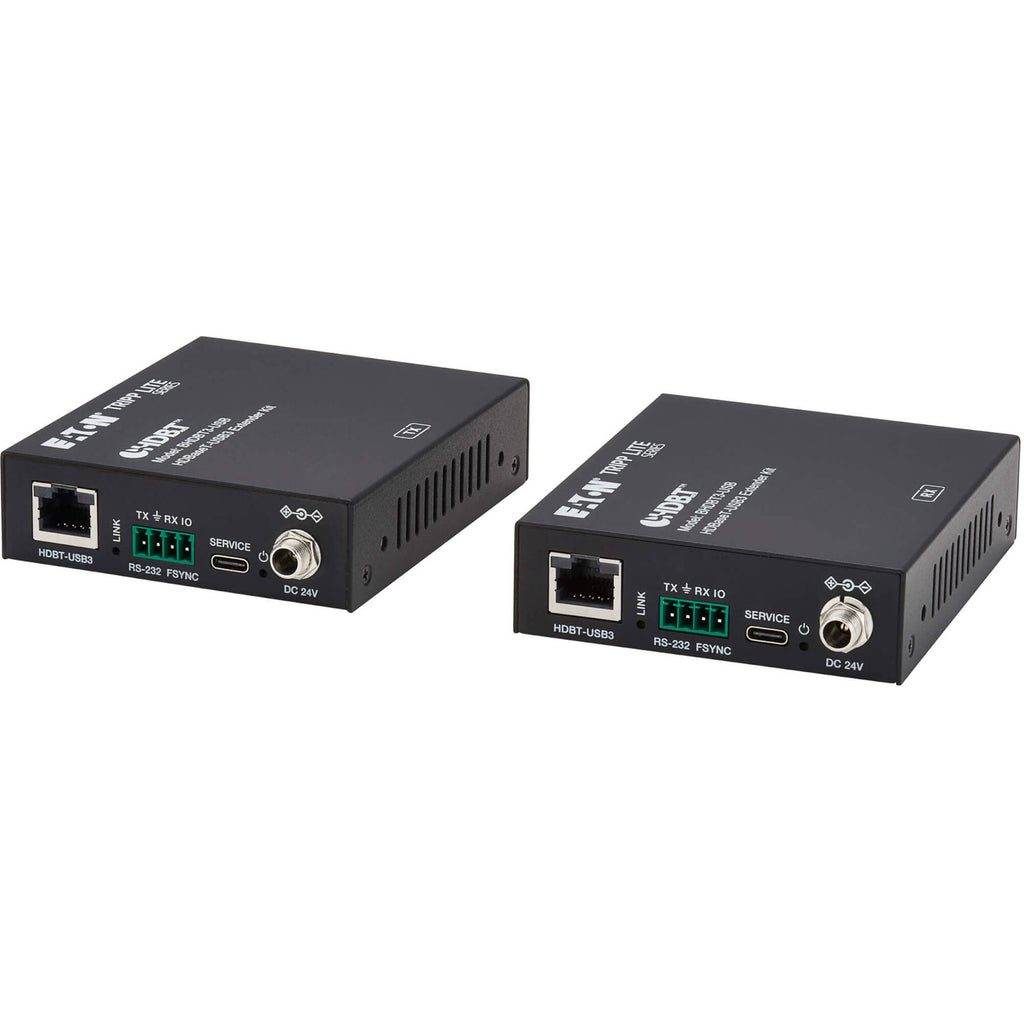

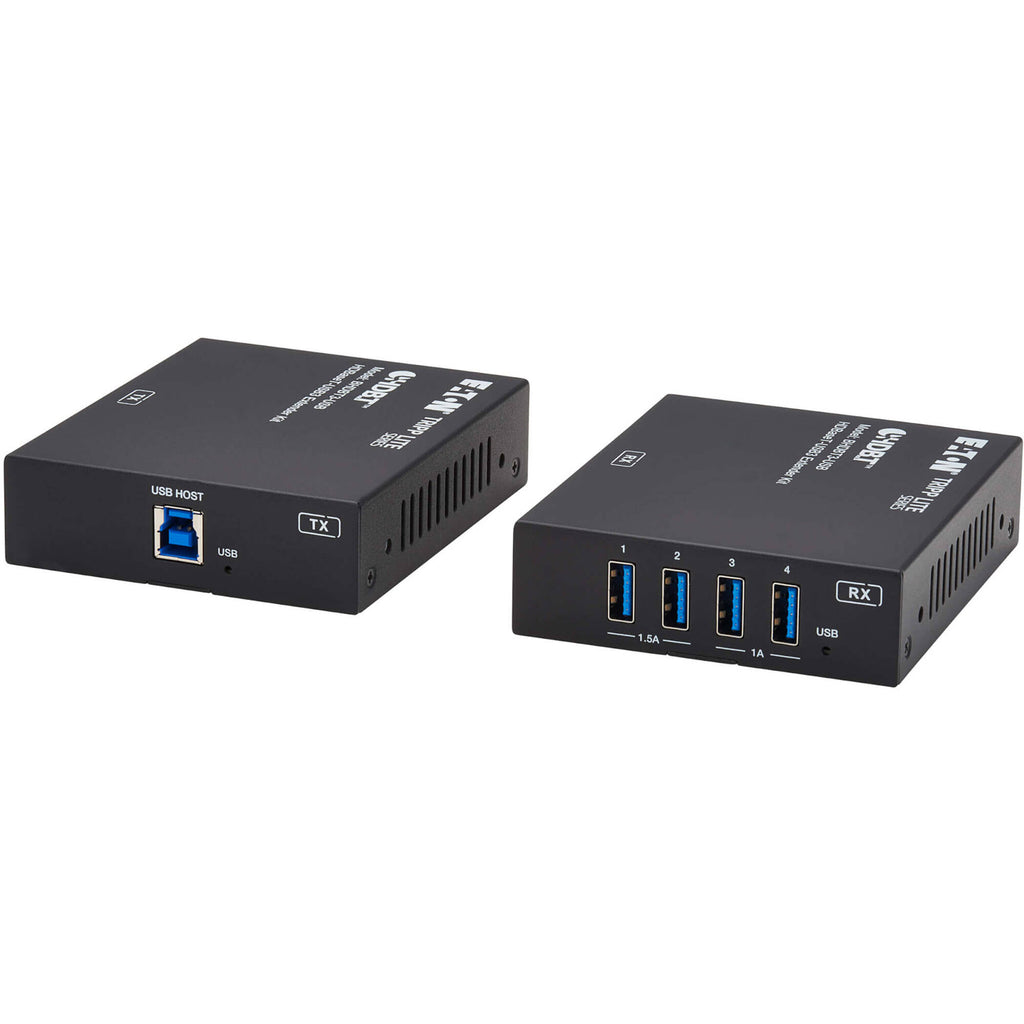

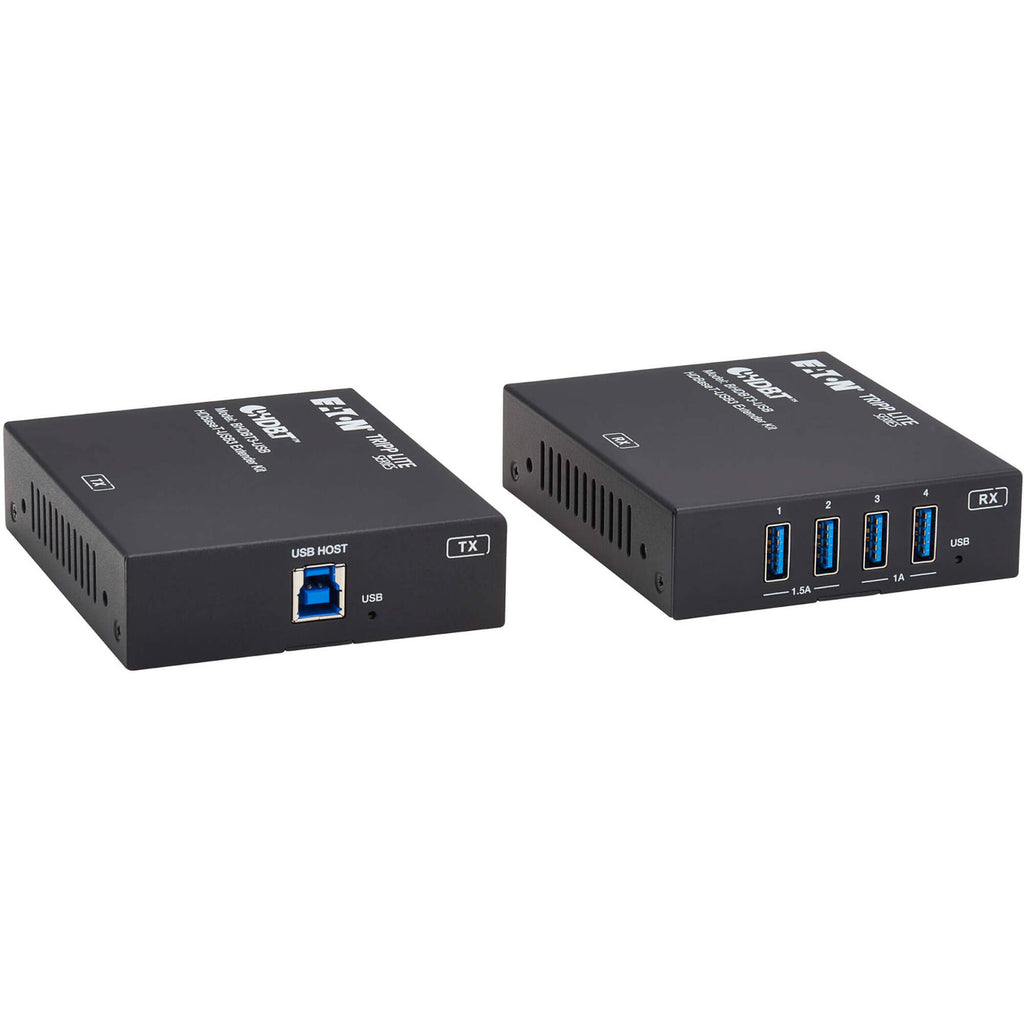

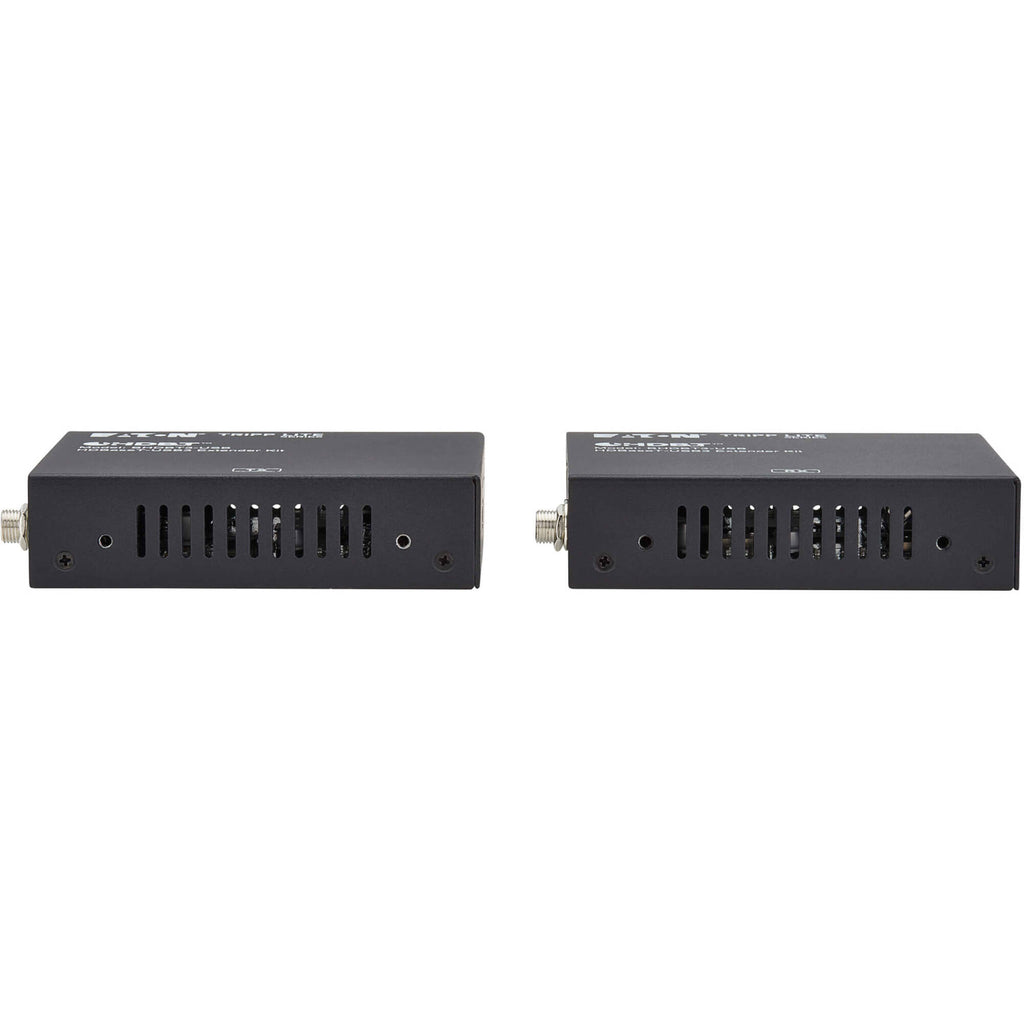

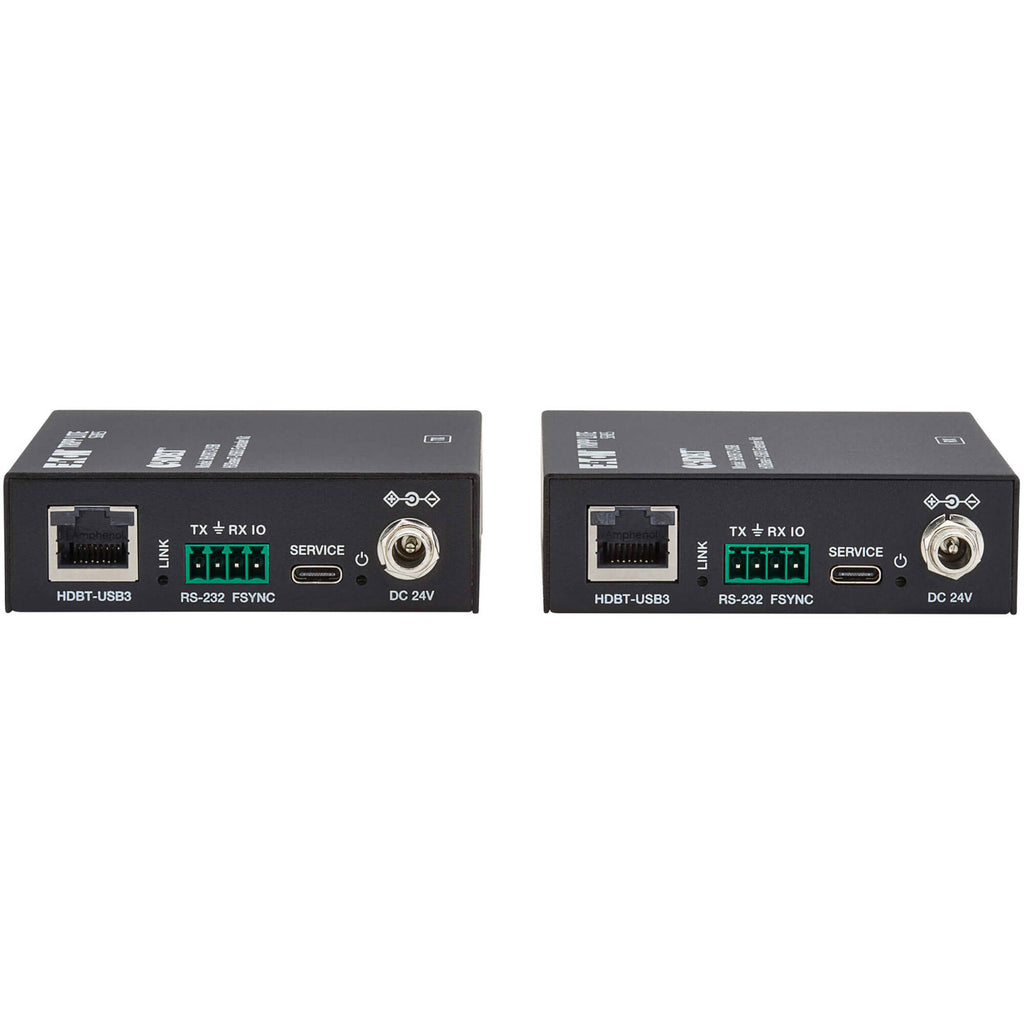

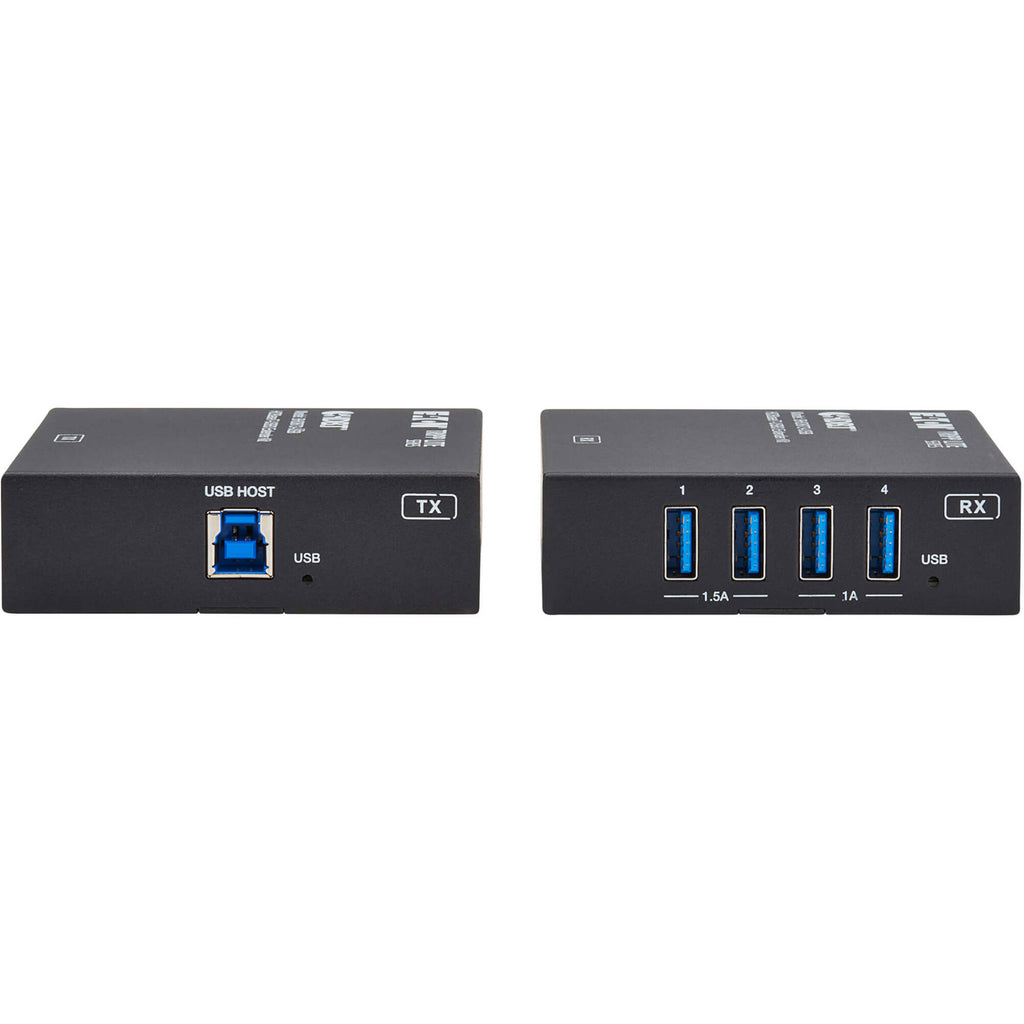

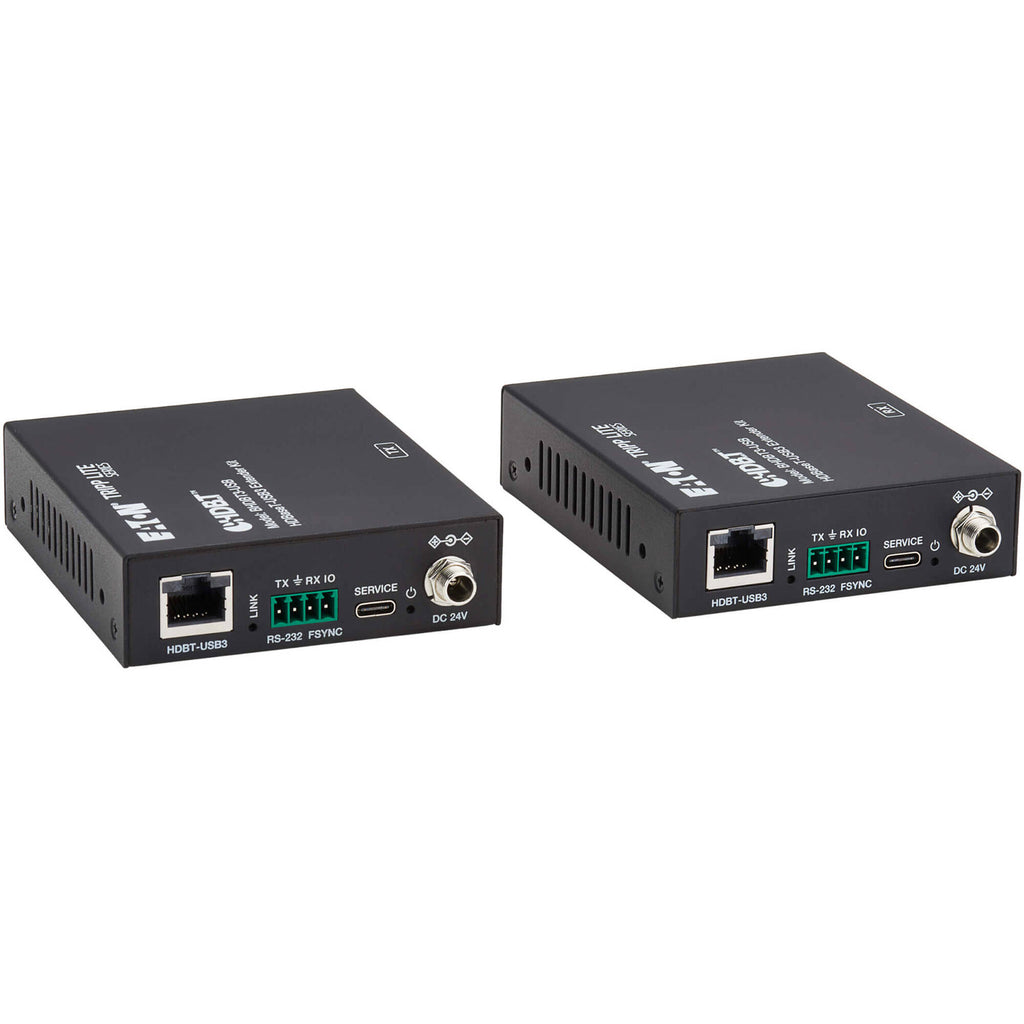

The Tripp Lite HDBaseT-USB3 Cat 6a Extender Kit uses HDBaseT technology to extend up to four USB-A 3.2 Gen 1 signals to up to 328' for peripherals over a single Cat 6a cable. Bidirectional 24V PoC and support for RS-232 and FSYNC GPIO pass-through allows you to connect USB peripherals and A/V equipment over long distances with ease, making this device ideal for locations that require long-distance transmissions such as auditoriums, conference halls, lecture halls, and more. The plug-and-play design means the extender kit requires no software or drivers to install, making setup quick and easy. Mount the extender kit on walls using the included brackets.
Items Included
- Tripp Lite HDBaseT-USB3 Cat 6a Extender Kit (328')
- Locking Power Supply
- 4 x International Power Adapters (NA, AUS, EU, UK)
- 2 x 3.5mm Phoenix Connectors
- Mounting Hardware
- Limited 1-Year Manufacturer Warranty
Additional Resources
Tripp Lite BHDBT3-USB Specs
Key Specs
| Maximum Range |
USB 3.0 / 3.1/3.2 Gen 1: 328.1' / 100 m over Cat 6a Cable
|
| Receiver I/O |
1x USB-C Input
4x USB-A (3.0 / 3.1/3.2 Gen 1) Input 1x RJ45 Output 1x Block 3-Pin (RS-232) Input |
| Transmitter I/O |
1x USB-C Input
1x USB-B Output 1x RJ45 Input 1x Block 3-Pin (RS-232) Input |
| Power Source |
Power Adapter
|
| Receiver I/O |
1x USB-C Input
4x USB-A (3.0 / 3.1/3.2 Gen 1) Input 1x RJ45 Output 1x Block 3-Pin (RS-232) Input |
| Transmitter I/O |
1x USB-C Input
1x USB-B Output 1x RJ45 Input 1x Block 3-Pin (RS-232) Input |
Power
| Power Source |
Power Adapter
|
| Power Connector |
Unspecified Size Barrel
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.5 A
|
| USB Output Current |
1.5 A
|
| Power Consumption |
40 W
|
Physical
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Certifications |
CAN/CSA-C22.2 No. 62368-1, CE (Europe), CE, EN 55032, EN 55035, FCC Part 15 Class B (USA), FCC, ICES (Canada), IEC 62368-1, PSE, REACH, RoHS3, TUV, UKCA, UL 62368-1, UL, WEEE, WEEE, cUL
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Enclosure Material |
Metal
|
| Dimensions |
3.3 x 1.0 x 3.9" / 8.5 x 2.5 x 10.0 cm Each
|
| Weight |
Transmitter: 0.57 lb / 0.26 kg
Receiver: 0.55 lb / 0.25 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
