Description

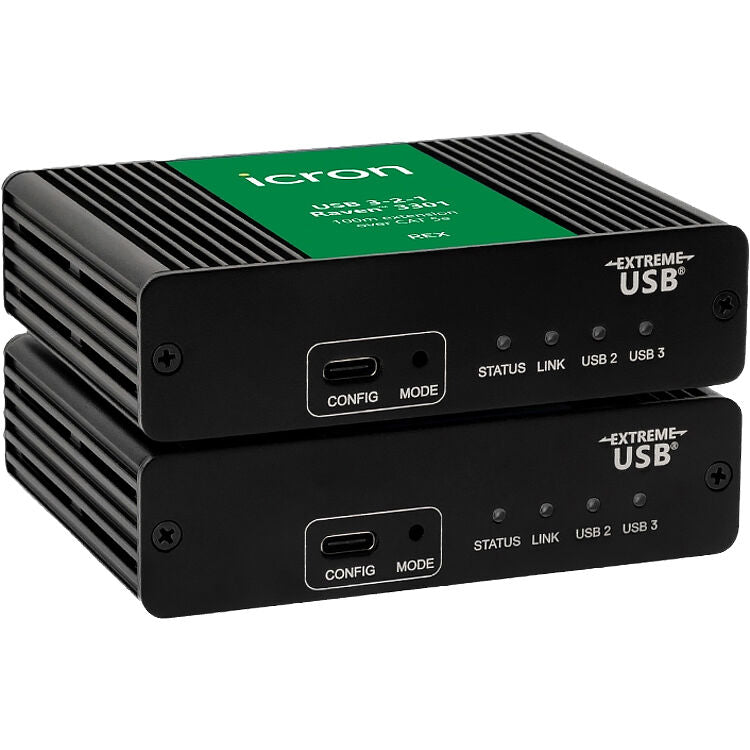

Simultaneously extend a USB-C 3.2 Gen 1 data signal over long distances with this Raven 3301 USB-C 3.2 Gen 1 Extension System from Icron. The system consists of a local extender (LEX) and remote extender (REX). Each have a RJ45 LAN port that supports Cat 5e or better cables and a USB-C 3.2 Gen 1 port. Connect your host to the USB-C on the LEX and your conference cameras, touch controllers, or peripherals to the USB-C port on the REX. Data is transferred between them via a Cat 5e Ethernet cable (not included) up to 328' away.
| Maximum Range | USB 3.0 / 3.1/3.2 Gen 1: 328.1' / 100 m over Cat 5e Cable |
| Receiver I/O | 1x USB-C Input 1x RJ45 Input |
| Transmitter I/O | 1x USB-C Input 1x RJ45 Output |
| Power Source | Receiver: Power Adapter |
| Maximum Range | USB 3.0 / 3.1/3.2 Gen 1: 328.1' / 100 m over Cat 5e Cable |
| Receiver I/O | 1x USB-C Input 1x RJ45 Input |
| Transmitter I/O | 1x USB-C Input 1x RJ45 Output |
| Maximum Number of Devices | 2 |
| Power Source | Receiver: Power Adapter |
| Power Connector | Unspecified Size Barrel |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| USB Output Current | 3 A |
| Power Consumption | 15 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
| Certifications | CE, FCC(Class A), ICES-003 Issue 7, IEC/UL/cUL, RCM, TAA, UKCA |
| Storage Conditions | -4 to 158°F / -20 to 70°C at 10 to 90% Humidity |
| Enclosure Material | Aluminum |
| Dimensions | 3.9 x 1 x 3" / 100.0 x 25.4 x 76.0 mm Each |
| Weight | Each: 0.5 lb / 210 g |
| Package Weight | 1.985 lb |
| Box Dimensions (LxWxH) | 9.6 x 6.9 x 2.4" |
