Description
Sonifex AVN-AI04 Overview

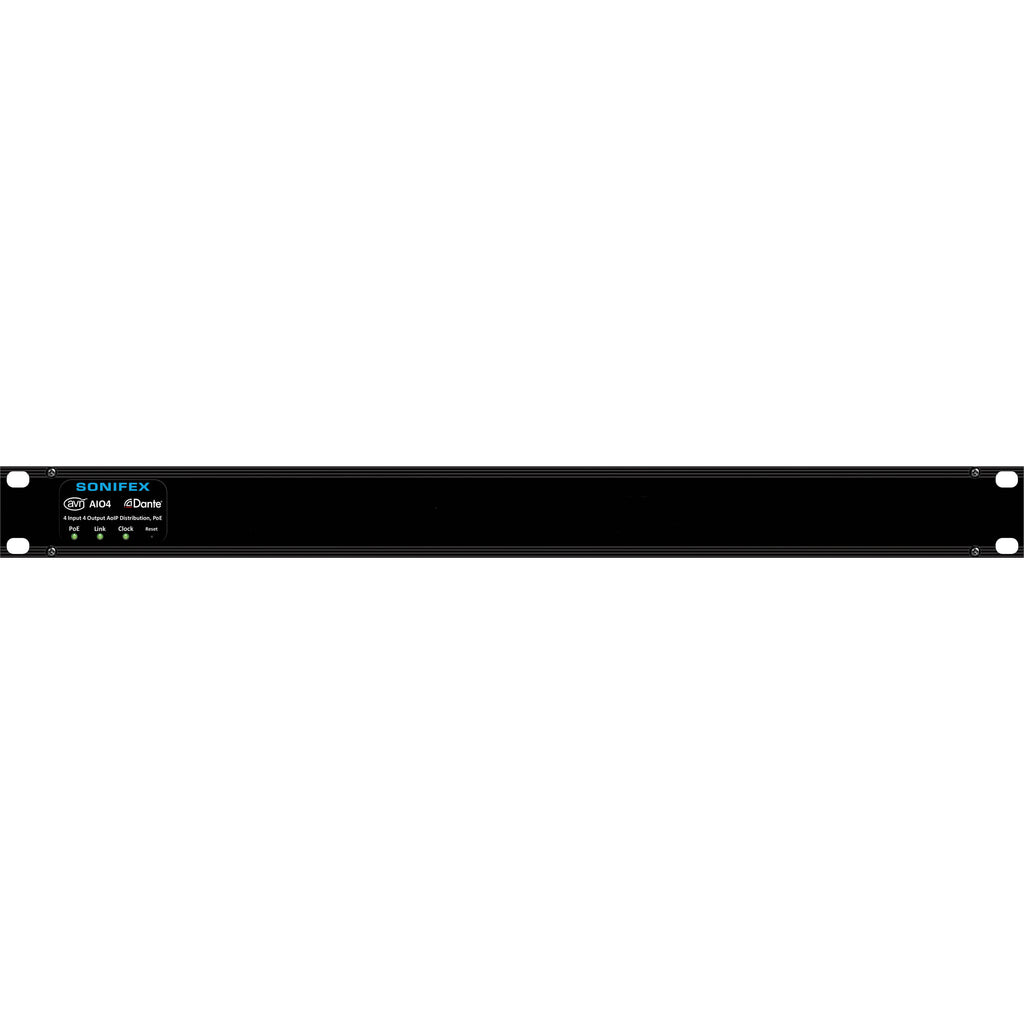

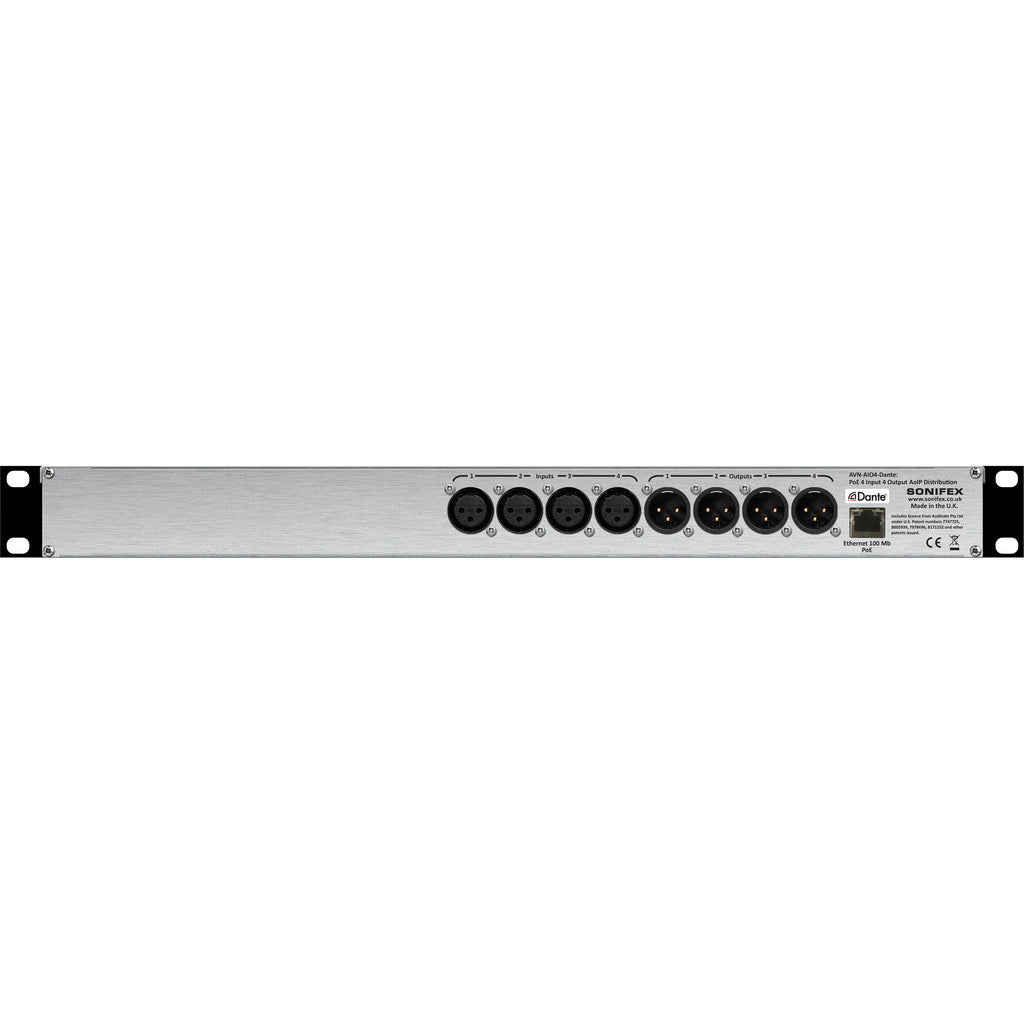

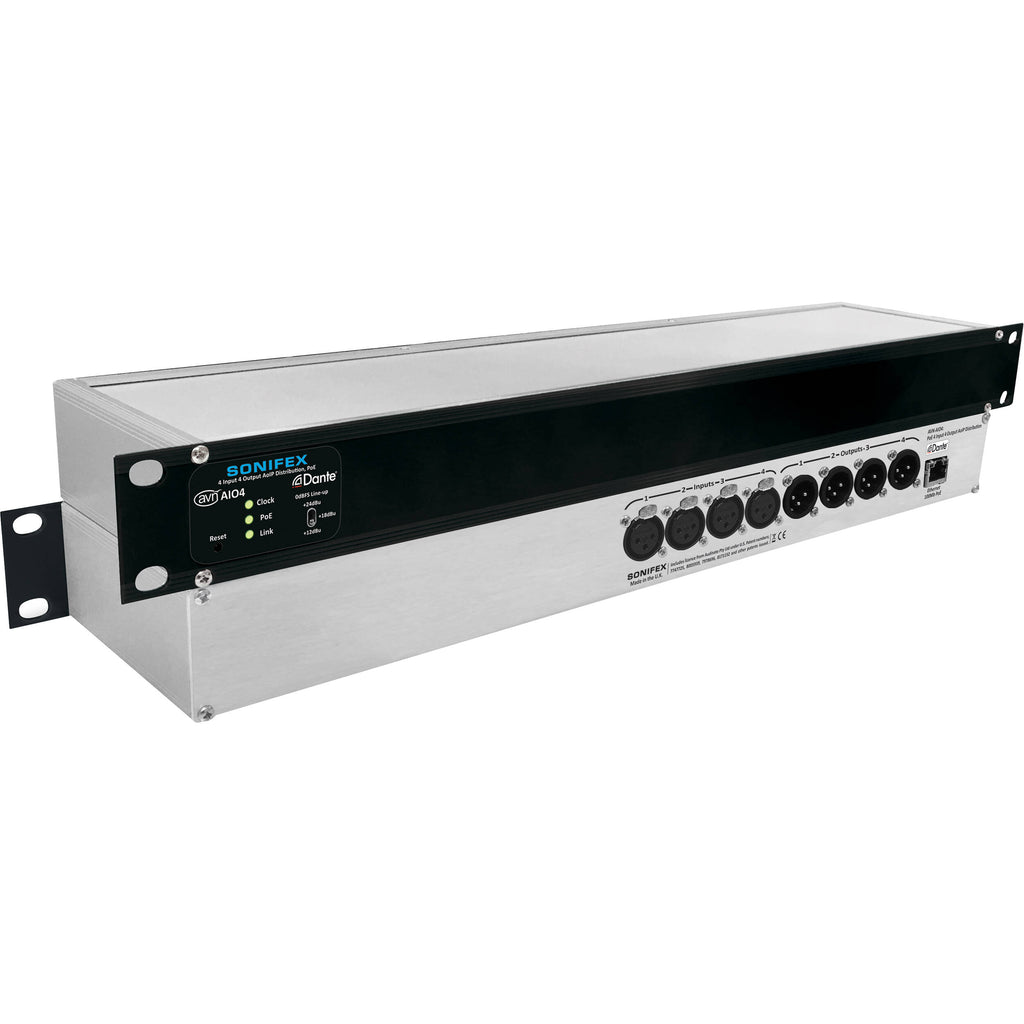

Add Dante networking to your facility with the AVN-AIO4 from Sonifex. This single-rack-space interface offers 4 XLR inputs and 4 XLR outputs, allowing you to convert up to 4 inputs and 4 outputs to and from the Dante Audio-over-IP (AoIP) networking standard via the single RJ45 port. The RJ45 port also supplies the unit with power over Ethernet (PoE). The system supports the AES67 digital protocol for additional compatibility.
The AVN-AIO4 supports resolutions up to 32 bits and sampling rates up to 96 kHz. At rates over 48 kHz, only two input and output channels are available at once. A firmware update is available from Sonifex that enables four channels of inputs or outputs at 96 kHz.
Features
- 4 balanced analog inputs on XLR
- 4 balanced analog outputs on XLR
- Adjustable global 0dBFS line up selection (+12 / +18 / +24 dBu)
- RJ45 Dante connector (1Gb/s Ethernet port)
- PoE, Link, and Clock LED status indicators
- Configuration using Dante Controller
- AES67 operation & Dante Domain Manager compliant
- Powered by PoE
- 1 RU 19� rackmount form factor
In the Box
- Sonifex AVN-AIO4 4x4 Dante Interface with PoE
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Sonifex AVN-AI04 Specs
Key Specs
| Channels of I/O |
Analog:
4 Inputs / 4 Outputs at 48 kHz Analog: 2 Inputs / 2 Outputs at 96 kHz |
| Maximum Sampling Rate |
96 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
4 x XLR 3-Pin Balanced Line Input
4 x XLR 3-Pin Balanced Line Output |
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| OS Compatibility |
Windows
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
PoE
|
| Channels of I/O |
Analog:
4 Inputs / 4 Outputs at 48 kHz Analog: 2 Inputs / 2 Outputs at 96 kHz |
| Built-In DSP |
No
|
| Maximum Sampling Rate |
96 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Expansion Slots |
No
|
Signal Processing
| Pad |
No
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
4 x XLR 3-Pin Balanced Line Input
4 x XLR 3-Pin Balanced Line Output |
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Host Connection Protocol |
No
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
1 x RJ45 Dante (PoE)
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
XLR Line Inputs:
20 Hz to 20 kHz ±0.2 dB XLR Line Outputs: 20 Hz to 20 kHz ±0.5 dB |
| Maximum Input Level |
+24 dBu for 0 dBFS
|
| Maximum Output Level |
+24 dBu at 0 dBFS
|
| Impedance |
XLR Line Inputs:
> 20 Kilohms (Balanced) XLR Line Outputs: < 50 Ohms (Balanced) |
| SNR |
XLR Line Inputs:
-110 dBFS (20 kHz BW, Rs=200 Ohms) XLR Line Outputs: -107 dBFS (20 kHz BW) |
| THD+N |
XLR Line Inputs:
< -110 dBFS (-30 dBFS, 20 Hz to 20 kHz, 20 kHz BW) XLR Line Outputs: < -107 dBFS (-30 dBFS, 20 Hz to 20 kHz, 20 kHz BW) |
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 kHz (LPCM, AD/DA Conversion)
|
| Sample Rate Conversion |
On Digital Inputs
|
| Bit Depths |
24-Bit
|
| Sync Sources |
Dante
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
Windows
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
No
|
| Mobile App Compatible |
No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements |
PoE
|
| Power Consumption |
4.5 W (Typical)
|
Physical
| Rackmount Size |
1 RU
|
| Dimensions |
18.9 x 4.3 x 1.7" / 48 x 11 x 4.3 cm
|
| Weight |
1.9 lb / 0.9 kg
|
