Description
Sonifex AVN-AI16R Overview

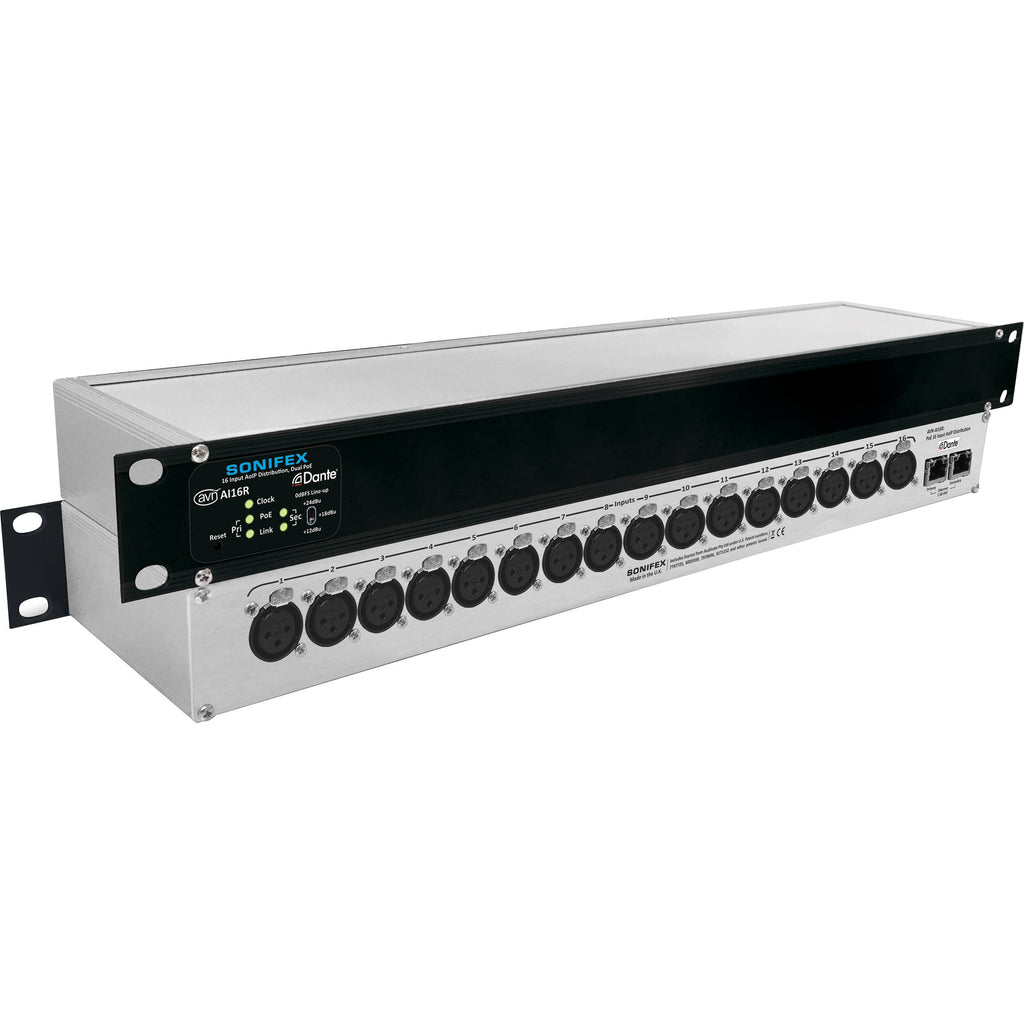

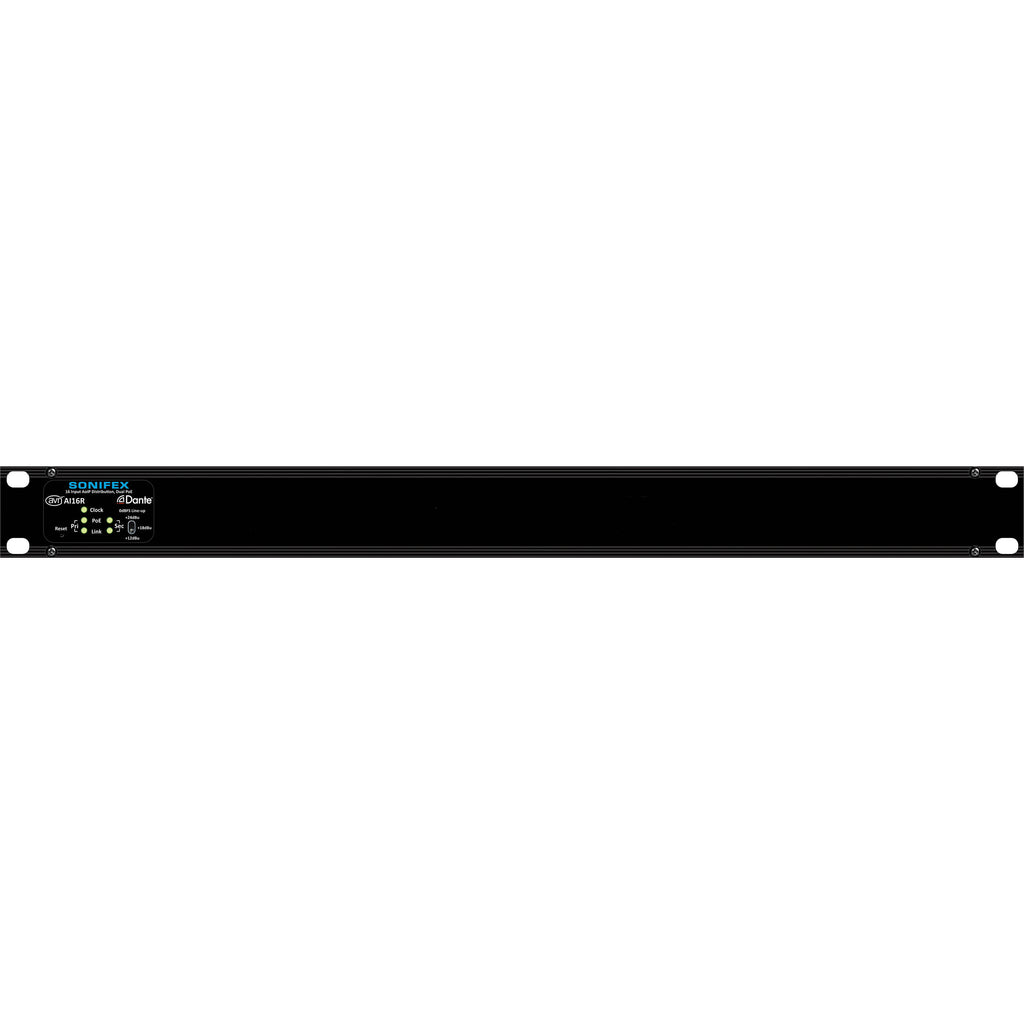

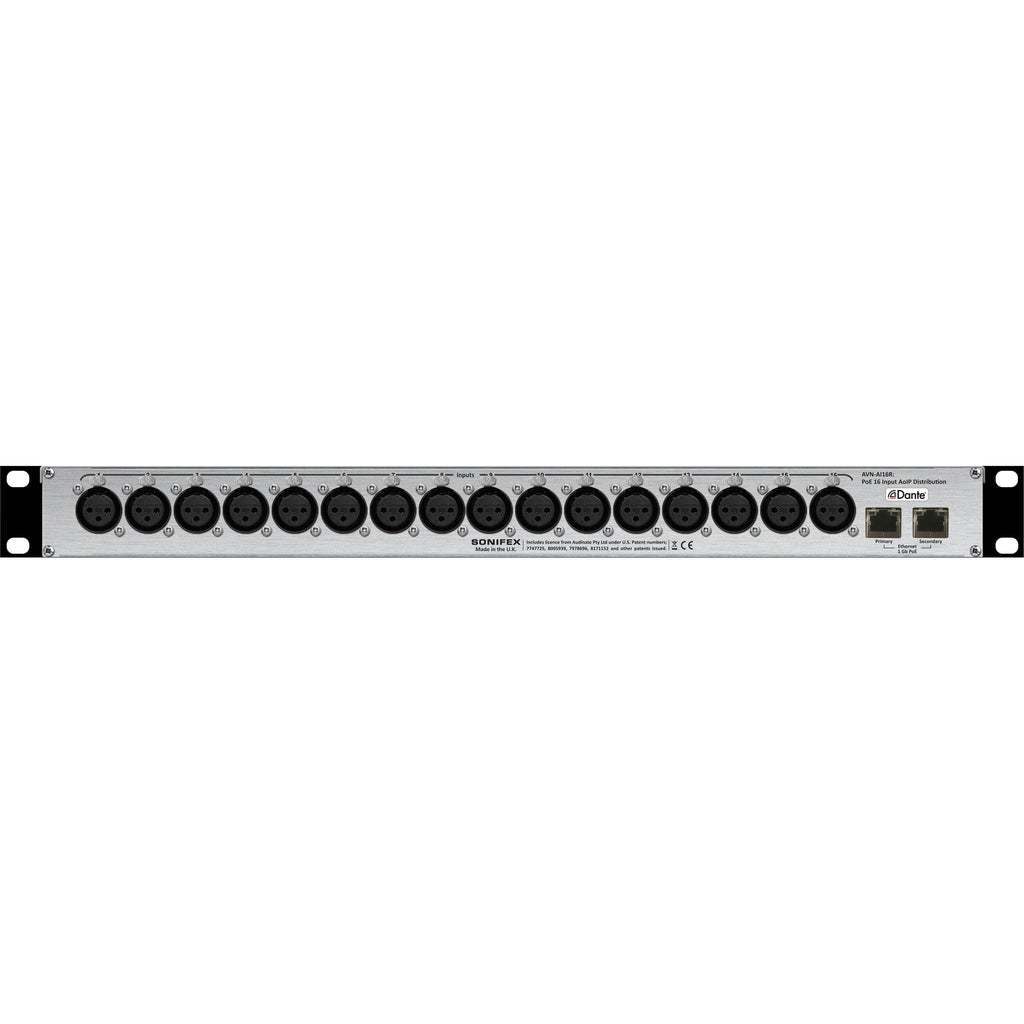

From Sonifex, the AVN-AI16R 16-Input Dual Dante Interface converts up to 16 analog inputs to the Dante Audio-over-IP networking standard. Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections. This 1 RU rackmount unit offers an easy solution for AV professionals and system integrators. All setup, except line-up levels, is done via the standard Dante Controller software, and power is provided via PoE. All analog inputs are on Neutrik XLR connectors, and there are front-panel status/confidence LEDs for PoE, Link, and Clock.
In the Box
- Sonifex AVN-AI16R 16-Input Dual Dante Interface with PoE
Sonifex AVN-AI16R Specs
Key Specs
| Form Factor |
Rackmount (Rack-Mountable with Included Hardware)
|
| Converter Type |
A/D Converter
|
| Number of Channels |
16x A/D
|
| Maximum Sampling Rate |
192 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
16x XLR 3-Pin Line Input
|
| Digital Audio I/O |
No
|
| Converter Type |
A/D Converter
|
| Number of Channels |
16x A/D
|
| Conversion Formats |
Dante
|
| Display |
3x Color LED
|
| Maximum Sampling Rate |
192 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Expansion Slots |
No
|
| Gain/Trim Range |
+12 dBu to +24 dBu
|
Connectivity
| Analog Audio I/O |
16x XLR 3-Pin Line Input
|
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Sync I/O |
No
|
| Network I/O |
2x RJ45 Dante
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
20 Hz to 20 kHz +0/-0.2 dB
|
| Impedance |
XLR Line Inputs:
> 20 Kilohms (Balanced) |
| SNR |
XLR Line A/D Converters:
-110 dBFS (20 kHz to BW, RS=200?) |
| THD+N |
XLR Line Inputs:
< -110 dBFS (20 Hz to 20 kHz, 20kHz BW) |
| Crosstalk |
< -100 dB
|
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (A/D Conversion)
|
| Sample Rate Conversion |
No
|
| Bit Depths |
16 / 24 / 32-Bit
|
| Sync Sources |
Dante
|
| Clocking |
Dante:
|
Compatibility
| OS Compatibility |
Windows 10
|
| Mobile App Compatible |
No
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
Ethernet Port
|
Power
| Power Requirements |
PoE
|
| Power Consumption |
12.94 W (Maximum)
|
Physical
| Rackmount Size |
1 RU (with Non-Included Hardware)
|
| Dimensions |
18.9 x 4.3 x 1.7" / 48 x 11 x 4.3 cm
|
| Weight |
2.4 lb / 1.1 kg
|
