Description
Sonifex Auricon 4.4 Overview
- 1Description
- 2Sigma-Delta Converters
- 3Flexible Configuration Settings
- 4Breakout Cable Options

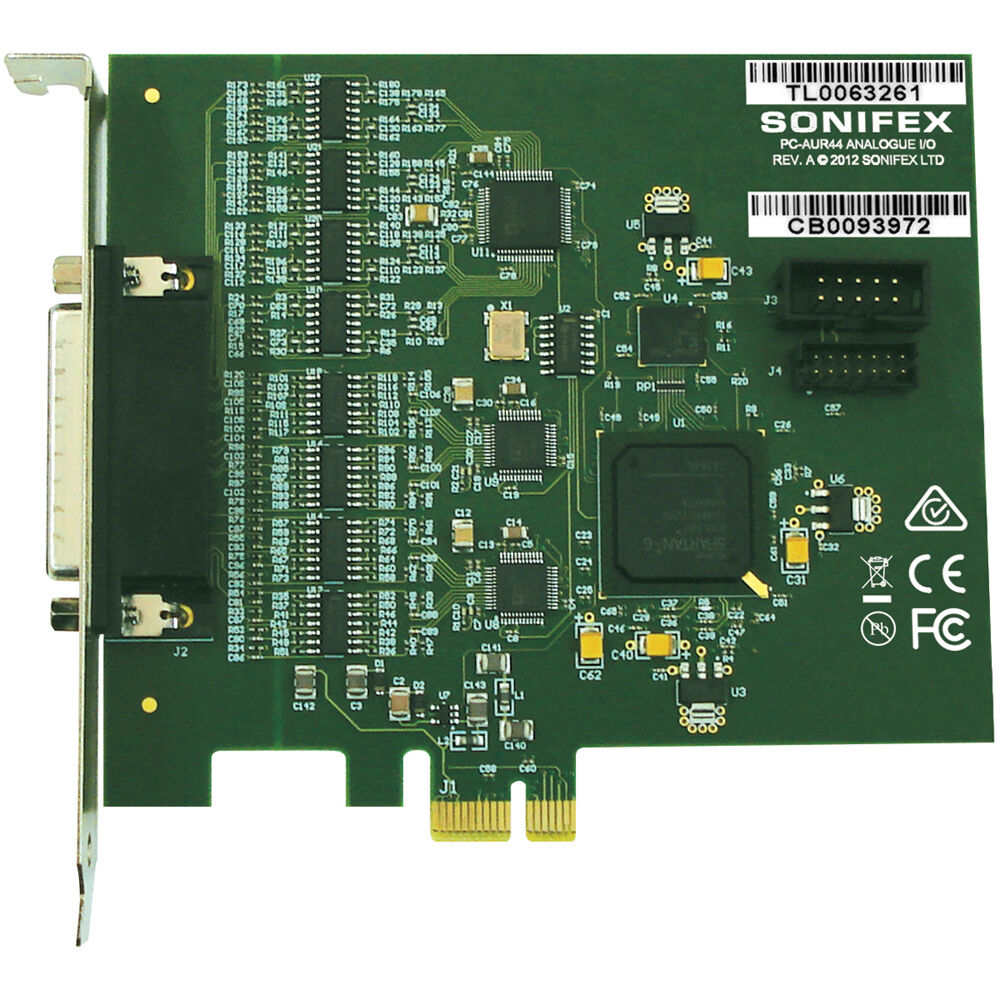

The Auricon 4.4 from Sonifex is a PCIe (Express) card that provides 4 independent transformer-coupled stereo channels of analog audio input or output via 44-pin D connector to a Windows platform. Especially useful for audio workstations, automation systems, audio logging, and multichannel playout, the card is fully compatible with the Wave, DirectSound, DirectShow, MCI, and Core Audio APIs. Multiple cards may be installed in a single PC.
The playback topology consists of a master output level, mute control and peak meter, and input monitor level and mute controls for each of the line inputs. The record topology consists of a master input level, mute control and peak meter, and level controls and mutes for the physical input and digital loopback. The digital loopback allows the output of the card to be digitally mixed back into the input. The range on the input and output master controls and individual line controls is -96 to 0 dB.
In the Box
- Sonifex Auricon 4.4 Analog PCIe Analog Sound Card
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
- Description
- Sigma-Delta Converters
- Flexible Configuration Settings
- Breakout Cable Options
Sonifex Auricon 4.4 Specs
| Channels of I/O |
Analog:
8 Inputs / 8 Outputs at 48/96/192 kHz |
| Maximum Sampling Rate |
192 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| OS Compatibility |
Windows XP
Windows Server Windows Vista Windows Server 2008 Windows 7 Windows Server 2008 R2 Windows 8 Windows Server 2012 (32/64-Bit) Windows 10 Windows Server 2016 Windows Server 2019 |
| Power Requirements |
PCIe
|
| Channels of I/O |
Analog:
8 Inputs / 8 Outputs at 48/96/192 kHz |
| Built-In DSP |
No
|
| Maximum Sampling Rate |
192 kHz / 32-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Expansion Slots |
No
|
| Pad |
No
|
| Gain/Trim Range |
-96 dB to +0 dB
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Other I/O |
1x DB-44 Breakout Cable In/Out (on Non-Included Breakout Cable)
|
| Wireless |
No
|
| Frequency Response |
1 Hz to 88 kHz (at 192 kHz)
|
| Maximum Output Level |
+24 dBu
|
| Impedance |
Inputs:
20 Kilohm (Balanced) Outputs: 40 Ohms (Balanced) |
| Dynamic Range |
114 dB
|
| Sample Rates |
8 / 11.025 / 16 / 22.05 / 32 / 44.1 / 48 / 64 / 88.2 / 96 / 192 kHz
|
| Bit Depths |
8 / 16 / 24 / 32-Bit
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
Windows XP
Windows Server Windows Vista Windows Server 2008 Windows 7 Windows Server 2008 R2 Windows 8 Windows Server 2012 (32/64-Bit) Windows 10 Windows Server 2016 Windows Server 2019 |
| Mobile App Compatible |
No
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
PCIe Card Slot
|
| Power Requirements |
PCIe
|
| Dimensions |
5.5 x 4.9 x 0.8" / 14 x 12.5 x 2 cm
|
| Weight |
0.2 lb / 0.1 kg
|
