Description
Lynx Studio Technology AURORA 24 HD2 Overview
- 1Description
- 2Preinstalled Lynx LT-HD2 Pro Tools HD and HDX Interface Card
- 3Discrete Converter Array
- 4SynchroLock 2 Sample-Clock Technology
- 5Future-Proof LSlot Design
- 6Features at a Glance
By Photo's
Eric Calvi

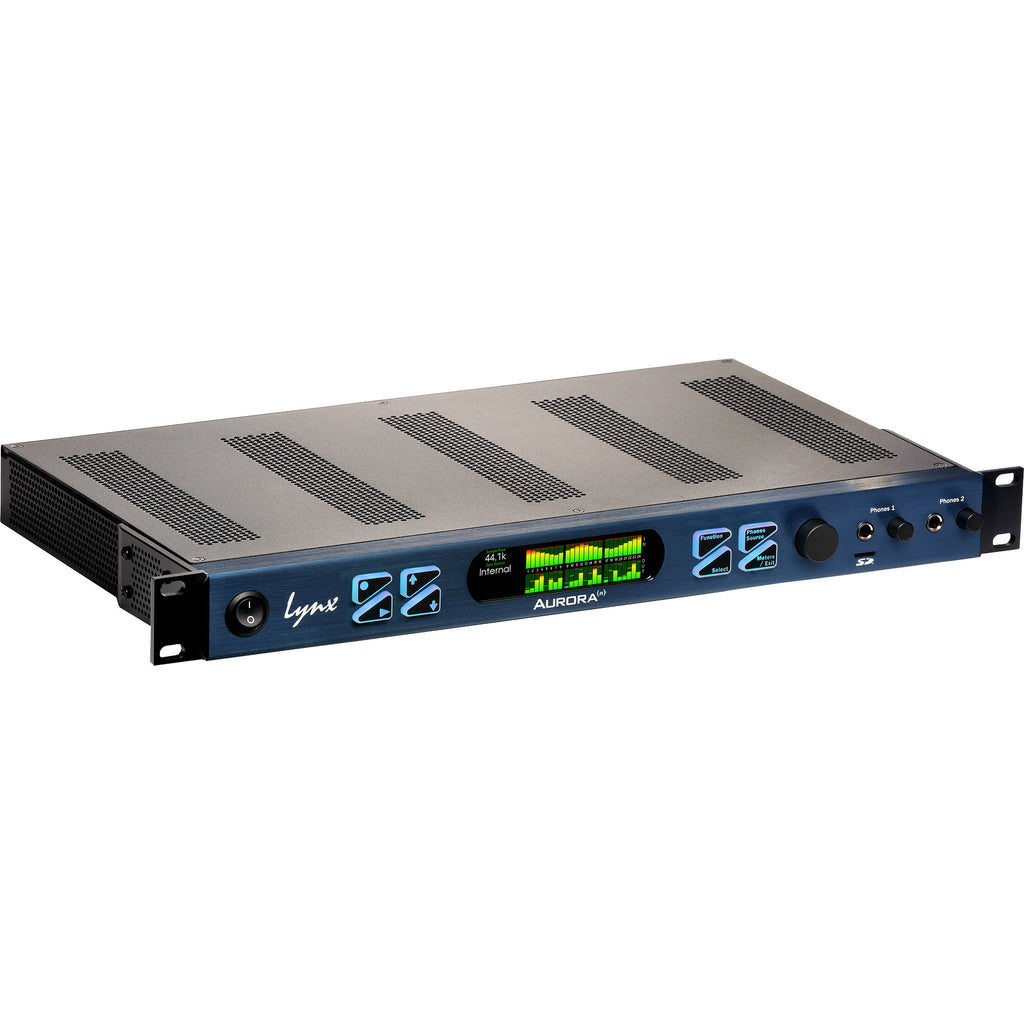

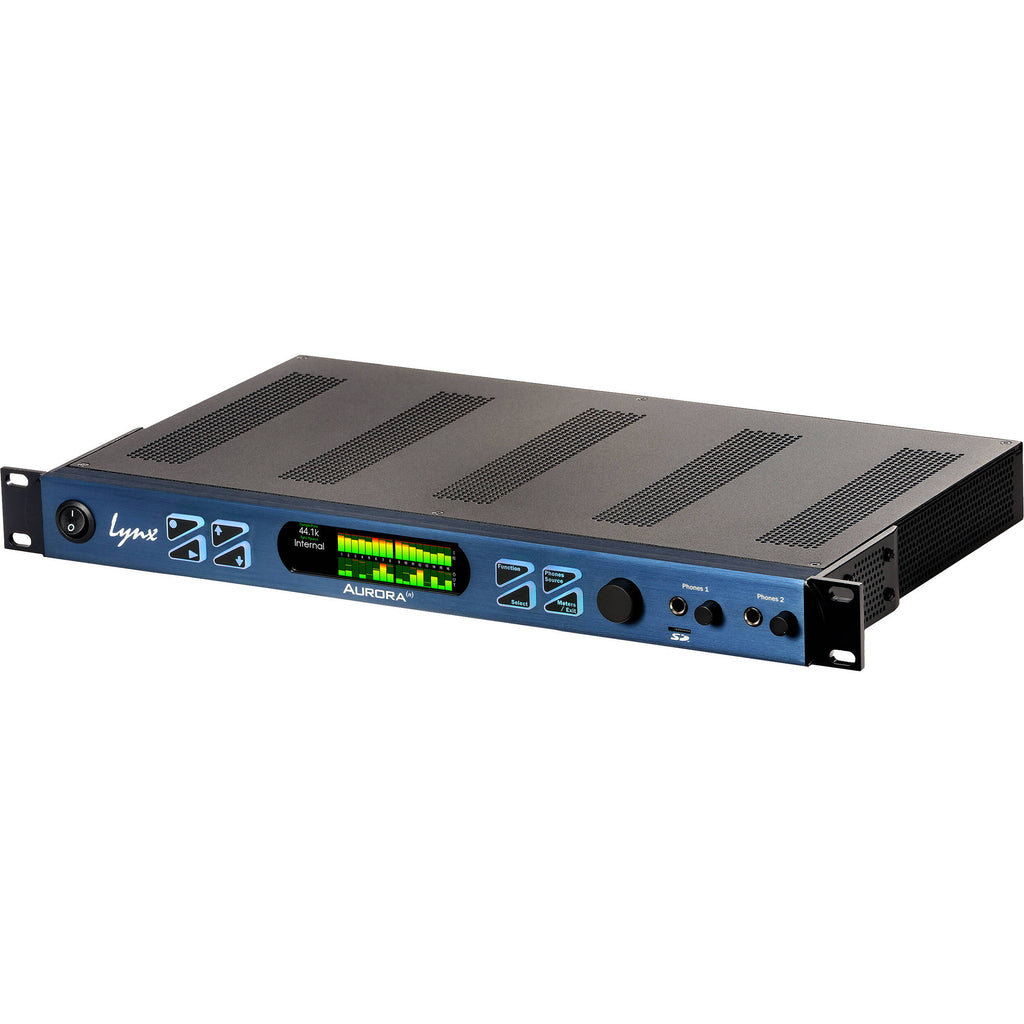

The Lynx Studio Technology Aurora(n) 24 HD2 is preconfigured with 24 analog ins and 24 analog outs on six DB-25 connectors. It is also equipped with a Lynx LT-HD2 Pro Tools HD and HDX interface card that emulates the interface characteristics of the Avid HD I/O converter, allowing seamless operation with Avid systems including HDX and HD Native.
The Aurora(n) 24 HD2 is a mastering-grade 24-in / 24-out AD/DA converter, which supports up to 24-bit / 192 kHz conversion. Design and technology borrowed from the development of Hilo converters is used to significantly improve specifications and transparency over previous models, while attaining stunning Hilo-like performance. Ideal for audio engineers and producers who demand the most pristine recordings and mixes, the 24 HD2 delivers coloration- and degradation-free signal for mission-critical audio applications in studios, mastering facilities, remote recordings, broadcast and live performance facilities.

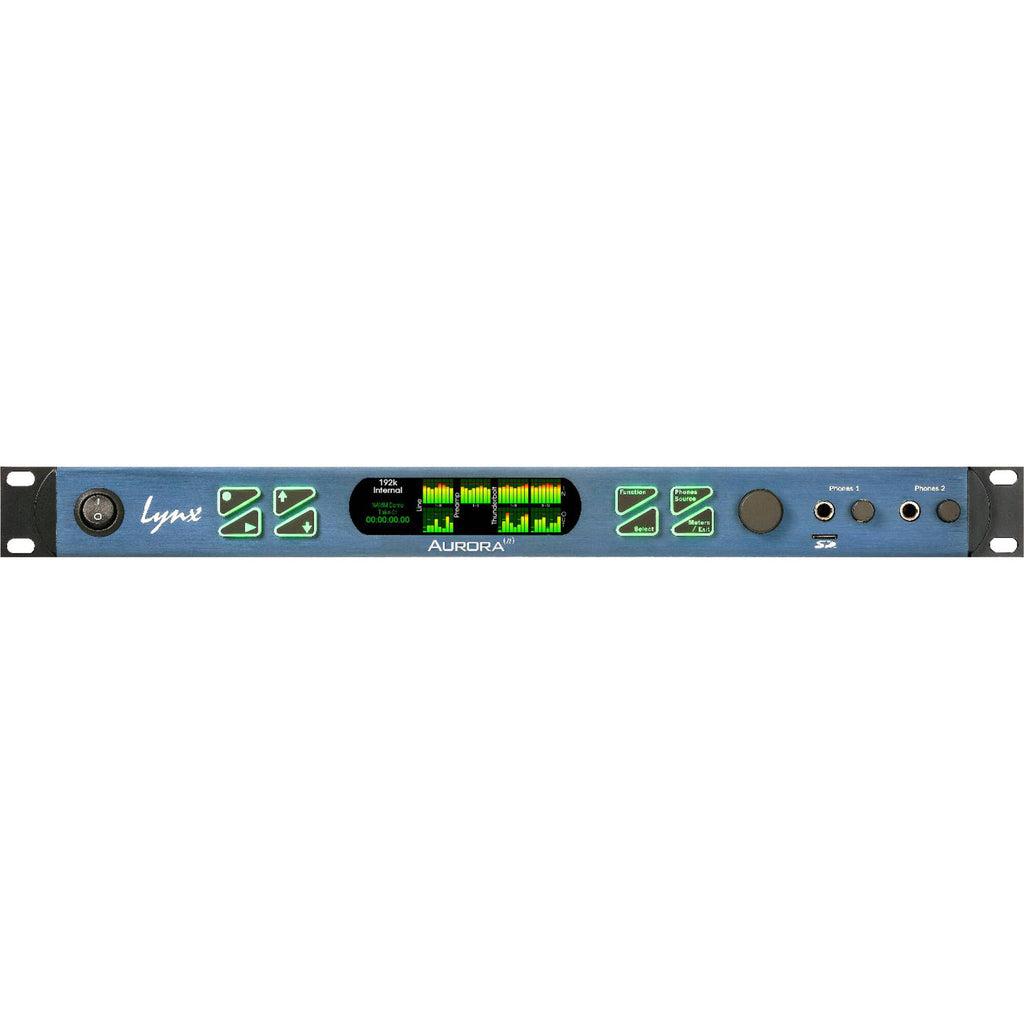

The unit features an onboard microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright TFT LCD display gives you immediate access to all levels and functions, right from the front panel.
Preinstalled Lynx LT-HD2 Pro Tools HD and HDX Interface Card
- The LT-HD2 allows the Aurora(n) to be used in all current Pro Tools HD systems.
- Connected via mini-Digilink cables (available separately) to HD Core, Accel Core, HDX, or Native cards, Pro Tools recognizes the Aurora(n) converter and controls all input and output functions, clocking, routing, and other settings.
- The LT-HD2 features one Primary and one Expansion mini-DigiLink port. Aurora supports full channel count at sample rates up to 192 kHz.
- Pro Tools users can benefit from Lynx�s proprietary SynchroLock 2 wordclock technology for very low jitter and low distortion of digital signals.
Discrete Converter Array
- The analog signal path for each channel has been designed as a self-contained and shielded circuit. Each channel pair has its own dedicated conversion device. This offers many sonic advantages like significantly reducing crosstalk and distortion, while increasing dynamic range and performance.
SynchroLock 2 Sample-Clock Technology
- Proprietary, SynchroLock 2 high-performance sample-clock technology provides a whopping 300,000:1 reduction in jitter, 5-second lock time, and absolute accuracy.
- Wordclock I/Os provides one input and three outputs on BNC connectors.
Future-Proof LSlot Design
Add Channels:
- Start with eight, sixteen, or twenty-four channels and later add additional groups of eight channels for up to thirty two total.
Add Modules:
- Digital I/Os, mic preamps; more are being designed now for future release.
Add Connectivity Options:
- Dante, Thunderbolt 3, or USB via LSlot cards (available separately).
Features at a Glance
- Mastering-quality, 24-in / 24-out AD/DA conversion at up to 24-bit / 192 kHz.

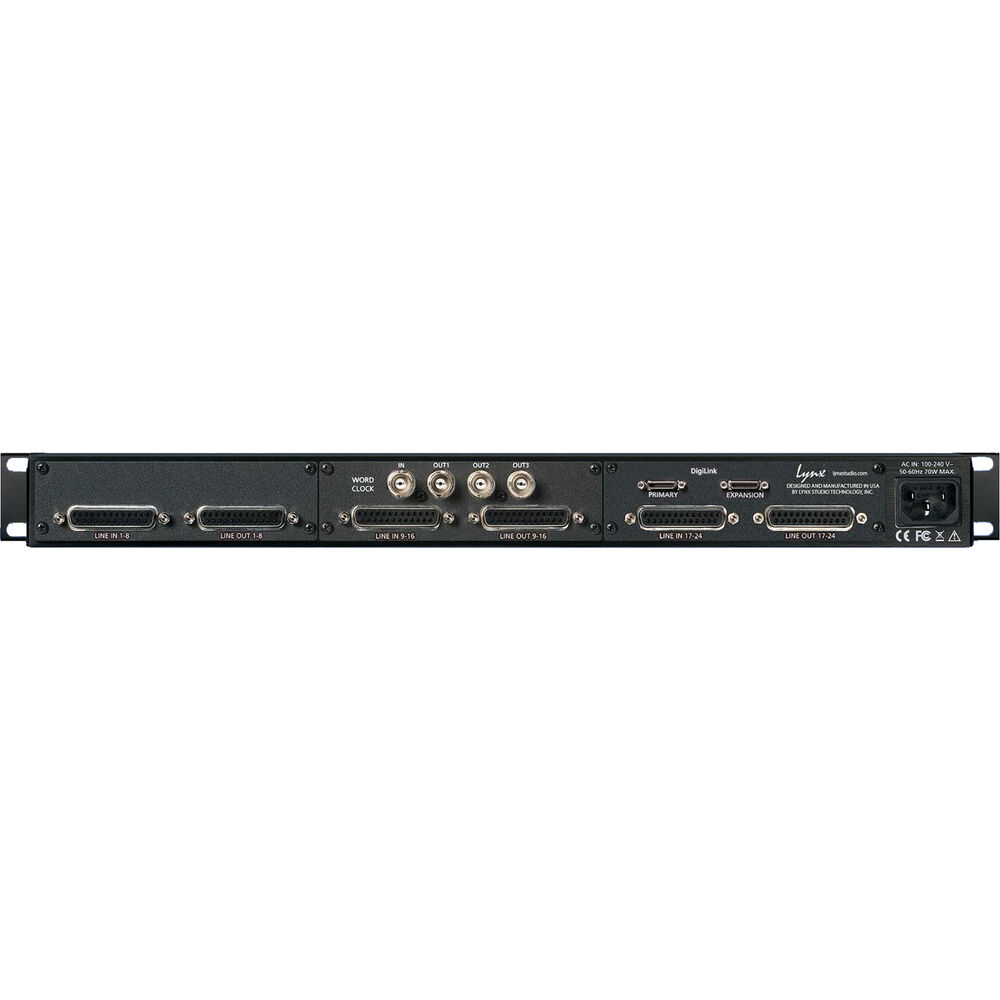

- 24 analog ins and 24 analog outs on six DB-25 connectors.
- Preinstalled Lynx LT-HD2 Pro Tools HD and HDX interface card.
- Wordclock I/O: one input and three outputs on BNC connectors.
- Onboard microSD player/recorder capable of up to 32 channels of direct recording and playback.
- Two audiophile-grade headphone outputs with independent volume control.
- 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle.
- Universal power supply built in, no wall warts.
- 1 RU rack-space design with no fan provides silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise.
- Full Windows and OSX compatibility.
- Designed and built in Southern California, USA.
In the Box
- Lynx Studio Technology Aurora(?) 24 HD2 AD/DA Converter with Pro Tools HD/HDX Interface
- IEC Power Cord
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Preinstalled Lynx LT-HD2 Pro Tools HD and HDX Interface Card
- Discrete Converter Array
- SynchroLock 2 Sample-Clock Technology
- Future-Proof LSlot Design
- Features at a Glance
Lynx Studio Technology AURORA 24 HD2 Specs
Key Specs
| Form Factor |
Rackmount (Rack-Mountable with Included Hardware)
|
| Converter Type |
AD/DA Converter
|
| Number of Channels |
24 x A/D
24 x D/A |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
24 Preamps
|
| Analog Audio I/O |
3 x DB-25 25-Pin Balanced Mic/Line/8-Channel Input
3 x DB-25 25-Pin Balanced Mic/Line/8-Channel Output 2 x 1/4" TRS Headphone Output |
| Converter Type |
AD/DA Converter
|
| Number of Channels |
24 x A/D
24 x D/A |
| Display |
1 x Color TFT
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
24 Preamps
|
| Expansion Slots |
No
|
| Gain/Trim Range |
DB-25 Mic/Line Inputs, Outputs:
+4 dBu (Pro) -10 dBV (Consumer) |
Connectivity
| Analog Audio I/O |
3 x DB-25 25-Pin Balanced Mic/Line/8-Channel Input
3 x DB-25 25-Pin Balanced Mic/Line/8-Channel Output 2 x 1/4" TRS Headphone Output |
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
2 x DigiLink Mini (on Interface)
|
| Host Connection Protocol |
Avid Proprietary
|
| USB (Non-Host) |
No
|
| Sync I/O |
1 x BNC Clock Input
3 x BNC Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
DB-25 Line Inputs:
20 Hz to 20 kHz ±0.01 dB 1/4" Headphone Outputs: 20 Hz to 20 kHz ±0.025 dB DB-25 Line Outputs: 20 Hz to 20 kHz ±0.025 dB |
| Maximum Input Level |
20 dBu
|
| Maximum Output Level |
18.4 dBu
|
| Headphone Output Power |
100 mW into 16 Ohms
212 mW into 32 Ohms 383 mW into 60 Ohms 68 mW into 135 Ohms 135 mW into 300 Ohms |
| Impedance |
Inputs:
100 Kilohm (Unbalanced) 200 Kilohm (Balanced) |
| Dynamic Range |
Line Inputs:
119 dB Line Outputs: 120 dB Headphone Outputs: 120 dB |
| THD+N |
Line Inputs:
-113 dB Line Outputs: -108 dB Headphone Outputs: -107 dB |
| Crosstalk |
Line Inputs:
-130 dB (@1kHz -1dbFS) Line Outputs: -130 dB (@1kHz -1dbFS) Headphone Outputs: -120 dB (@1kHz -1dbFS) |
| CMRR |
Line Inputs:
75 dB |
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Sync Sources |
Word Clock
|
| Clocking |
Word Clock:
Input Termination: 75 Ohms |
Compatibility
| OS Compatibility |
Windows 7 or Later
macOS 10.9 or Later *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
No
|
| Compatible Software (Not Included) |
Pro Tools HD 8.1 or later
|
| Processor Requirement |
1.6 GHz Intel or Better (64-Bit)
|
| RAM Requirements |
4 GB (64-Bit)
|
| Mobile App Compatible |
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility |
No
|
| Required Hardware |
DigiLink Mini Port
|
| Internet Connection |
Required for Software/Driver Download
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Rackmount Size |
1 RU
|
| Dimensions |
19 x 10 x 1.7" / 482.6 x 254 x 43.2 mm
|
