Description

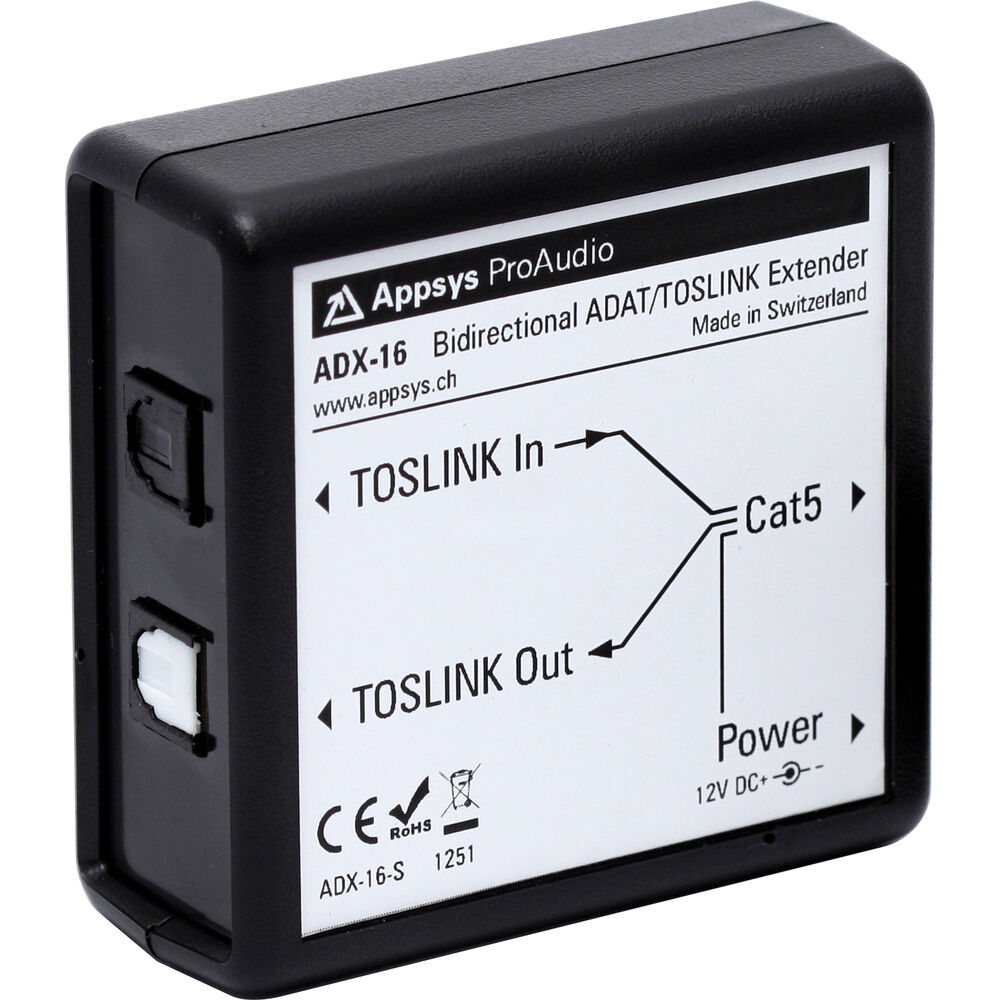

Appsys ProAudio ADX-16 Overview
The Appsys ProAudio Bidirectional ADAT/Toslink Extender (16-Channels) Kit has been designed to overcome the length limitations (5m/16 ft) of optical TOSLINK interconnects running ADAT Lightpipe, S/PDIF and other protocols. The kit enables you to run two TOSLINK connections (one in each direction) over a single Cat5 cable and up to 100m / 330ft. in length, opening a range of new possibilities (e.g., for audio distribution within a building).
- Bidirectional transmission over up to 100m/330ft. using a single Cat5 cable
- Reliable, lossless, true bit-transparent transmission
- Near-zero latency (< 1µs)
- Compatible with any data format which can be sent over TOSLINK (ADAT, SPDIF, AC-3/Dolby Digital, DTS ...)
UPC: 700613617274
In the Box
- Appsys ProAudio Bidirectional ADAT/Toslink Extender (16-Channels)
- Converter Box ADX-16-S (1xTOSLINK In + 1xTOSLINK Out to Cat5 with power supply)
- Converter Box ADX-16-R (1xTOSLINK In + 1xTOSLINK Out to Cat5)
- AC adapter in "green" switching technology
- Printed manual
Appsys ProAudio ADX-16 Specs
| Form Factor | Inline Adapter |
| Converter Type | AD/DA Converter |
| Number of Channels | 8 x D/A 8 x A/D |
| Conversion Formats | ADAT, S/PDIF (Optical), TOSLINK |
| Display | None |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Preamps | None |
| Expansion Slots | None |
Connectivity
| Analog Audio I/O | None |
| Phantom Power | None |
| Digital Audio I/O | 1 x TOSLINK Optical ADAT Input 1 x TOSLINK Optical ADAT Output 1 x RJ45 ADAT Output 1 x RJ45 ADAT Input |
| Host Connection / USB | None |
| Host Connection Protocol | None |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
Digital Audio
| Sample Rates | Up to 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Digital Audio Decoding | DTS-HD, Dolby Digital / AC3 |
| Sync Sources | ADAT, S/PDIF, Word Clock |
Compatibility
| OS Compatibility | None |
| Included Software | None |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility | None |
| Required Hardware | Optical S/PDIF Input, Optical S/PDIF Output |
Power
| Power Requirements | AC/DC Power Adapter (Included) |
| DC Input Power | 9 to 15 VDC |
| AC/DC Power Adapter | 9 to 15 VDC, Center-Positive (Included) |
| Current Consumption | 150 mA |
Physical
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | 32 to 158°F / 0 to 70°C |
| Dimensions | 2.6 x 2.6 x 1.1" / 66.5 x 66.5 x 28 mm |
| Weight | 2.1 oz / 60.0 g |
Packaging Info
| Package Weight | 0.58 lb |
| Box Dimensions (LxWxH) | 9.4 x 6.2 x 1.6" |
