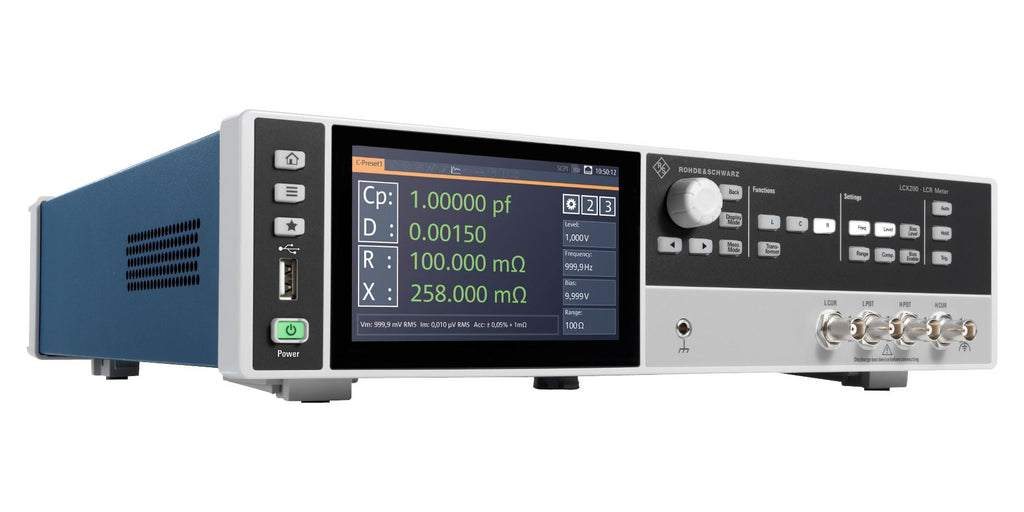

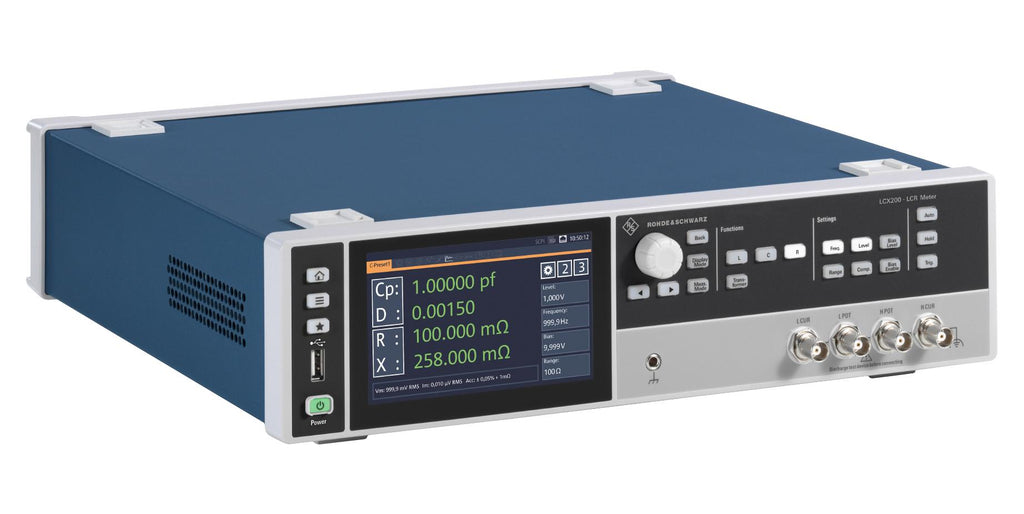

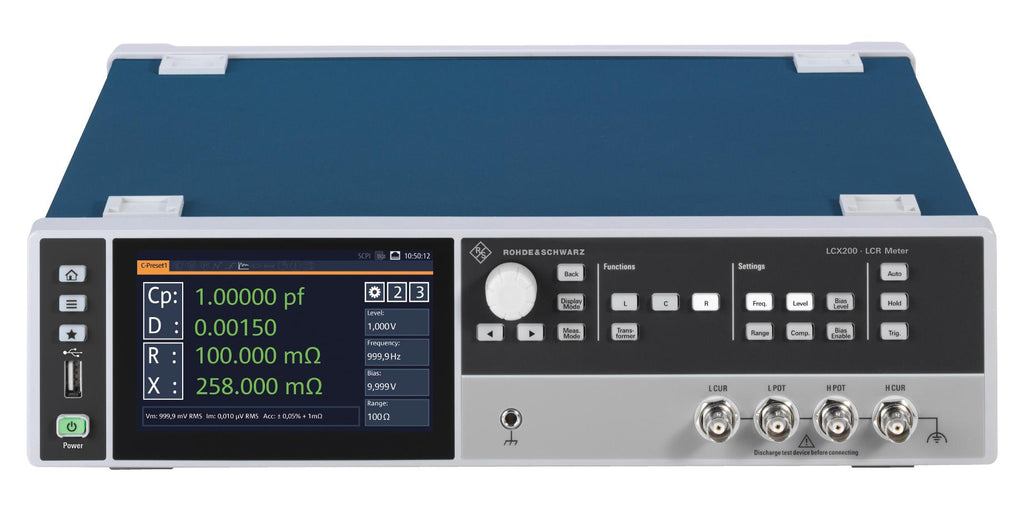

LCX200COM is a package of LCX200 LCR meter with LCX-K106 advanced analysis option, LCX-K107 binning option, LCX-K108 extended bias option. LCX200 is a LCR meter that provides the full range of measurements to characterize resistors, capacitors and inductors, results are displayed in absolute, relative or average values. Because of logging capacities and faster measurements, LCX is more suitable in manufacturing applications.
- Measurement functions L, C, R, Z, X, Y, G, B, D, Q, �, �, M, N
- Measurement range from 4Hz to 500KHz
- Test signal voltage maximum is 10V, test signal current maximum is 200mA
- Adjustable DC bias
- Data logging function
- Large capacitive touchscreen

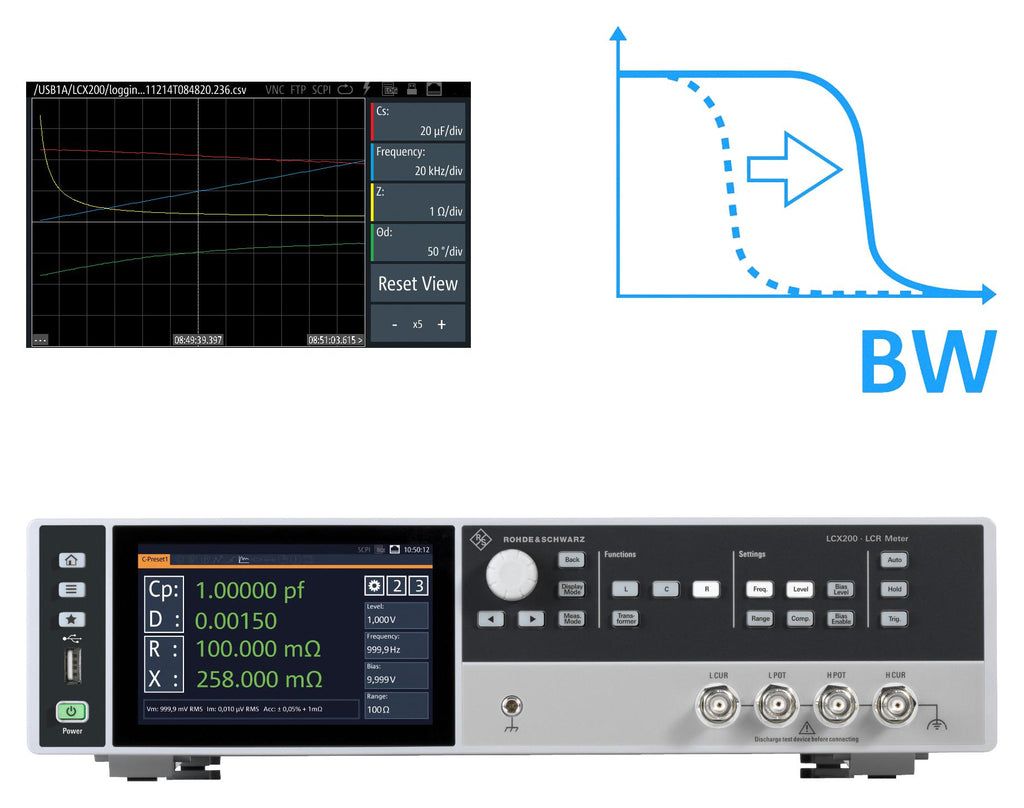

- Graphical representation of measurements
- Save and recall instrument settings
Contents
LCX200 LCR meter with LCX-K106 advanced analysis option, LCX-K107 binning option, LCX-K108 extended bias option, Set of power cables, Quick start guide.
Product details
| LCR Type |
Bench |
| Test Frequency Max |
1MHz |
| Inductance Measure Max |
- |
| Capacitance Measure Max |
- |
| Resistance Measure Max |
0.1Gohm |
| Product Range |
- |
Other details
| Brand |
ROHDE & SCHWARZ |
| Part Number |
LCX200COM |
| Quantity |
1 Kit |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| Quick Start Guide EN |
|
