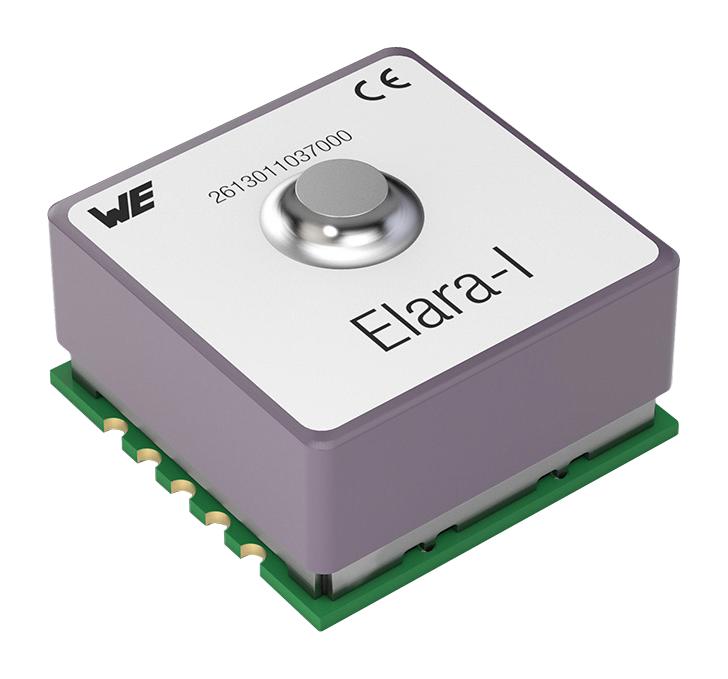

- Fully featured Elara-I GNSS module with integrated antenna
- Concurrent tracking of multiple constellations
- Ultra small size of 10mm x 10mm x 5.9mm
- 1.5m position accuracy (GPS-GLONASS)
- Fast acquisition time of 1s (hot start), 28s (cold start)
- High sensitivity, UART and I2C interfaces
- Based on Qualcomm SirfStar V 5e chipset
- Standard NMEA and chipset-specific communication protocol
- Low power operation to support battery operated applications
- Industrial temperature range from -40°C up to +85°C
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
2613011037000 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
