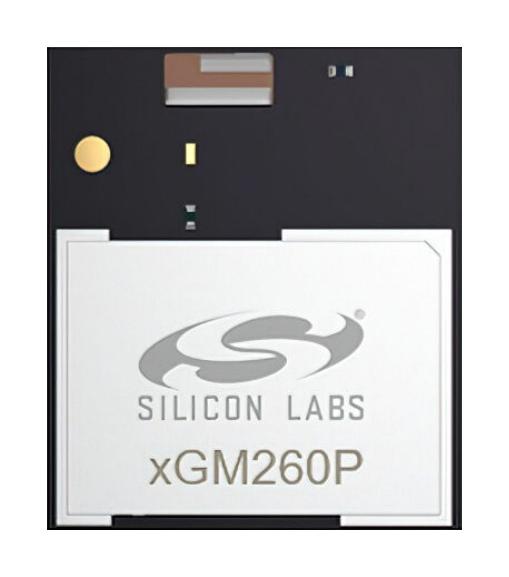

SILICON LABS MGM260PD32VNN2 Zigbee Module, MGM260P, 2 Mbps, I2C/I2S/SPI/UART/USART, IEEE 802.15.4/Thread/BLE 5.4, RF Pin Ant

MGM260PD32VNN2 is a MGM260P multiprotocol wireless module. It is a secure, high-performance wireless module optimized for the requirements of battery and line-powered IoT devices for 2.4GHz mesh networks. Built on the powerful Series 2 EFR32MG26 SoC, the module enables 802.15.4 (Zigbee®, OpenThread®) and BLE connectivity, delivering exceptional RF performance and energy efficiency, an AI/ML hardware accelerator, industry-leading Secure Vault® technology, and a comprehensive range of features that address the evolving needs of IoT applications. The MGM260P is a complete solution offered with robust and fully-upgradeable software stacks, global regulatory certifications, advanced development and debugging tools, and documentation that simplifies and minimizes the development cycle of your end-product, helping to accelerate its time-to-market. The MGM260P is targeted for smart home devices, lighting, gateways and digital assistants, building automation and security and AI/ML.

• Multiprotocol connectivity (802.15.4 and Bluetooth Low Energy 5.4)
• Built-in RF-pin
• TX output power of +20dBm
• 802.15.4 RX sensitivity of -105.8dBm
• Bluetooth low energy 1Mbps RX sensitivity of -98.2dBm
• 32bit ARM® Cortex®-M33 core at 80MHz
• 3200/512kB of flash/RAM memory
• Rich set of analogue and digital peripherals, 32 GPIO pins
• Operating temperature range from -40°C to 125°C
• 12.9mm x 15.0mm size
