Description

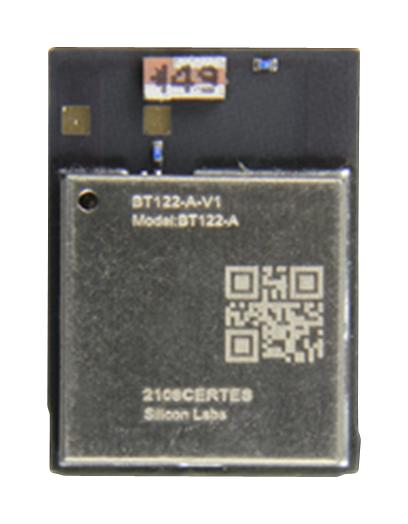

BT122 Bluetooth dual mode BR/EDR - BLE module with an integrated antenna. Module is targeted for applications that require both Bluetooth low energy and classic connectivity. It can connect to legacy devices that only support Bluetooth SPP or Apple® iAP2 profiles as well to devices that support Bluetooth Low Energy. BT122 integrates a high performance Bluetooth radio, a low power ARM Cortex micro-controller and a Silicon Labs Dual Mode stack software. BT122 can be used as a modem together with a separate host MCU, but applications can also be embedded into the built-in ARM® Cortex® MCU with the Silicon Labs BGScriptâ�¢ scripting language.
- Integrated dual mode BLE and BR/EDR stack
- Bluetooth v4.2 compliant, tested against v5.1
- BGAPI� serial protocol API
- Up to 11dBm TX power and -95dBm RX sensitivity
- 32bit ARM Cortex-M4 core
- 256/32KB of flash/RAM memory
- Up to 10 x GPIO
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Bluetooth Version: Bluetooth 4.2 + EDR |
| Supply Voltage Min: 2.2V |
| Supply Voltage Max: 3.6V |
| Signal Range Max: 550m |
| Data Rate: 3Mbps |
| Bluetooth Class: - |
| Receive Sensitivity: -95dBm |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: BT122 Series |
Other details
| Brand | SILICON LABS |
| Part Number | BT122-A-V2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
