| ₹ 3738.43 includes GST and import duties. | |
| B2B customers can avail ₹ 570.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

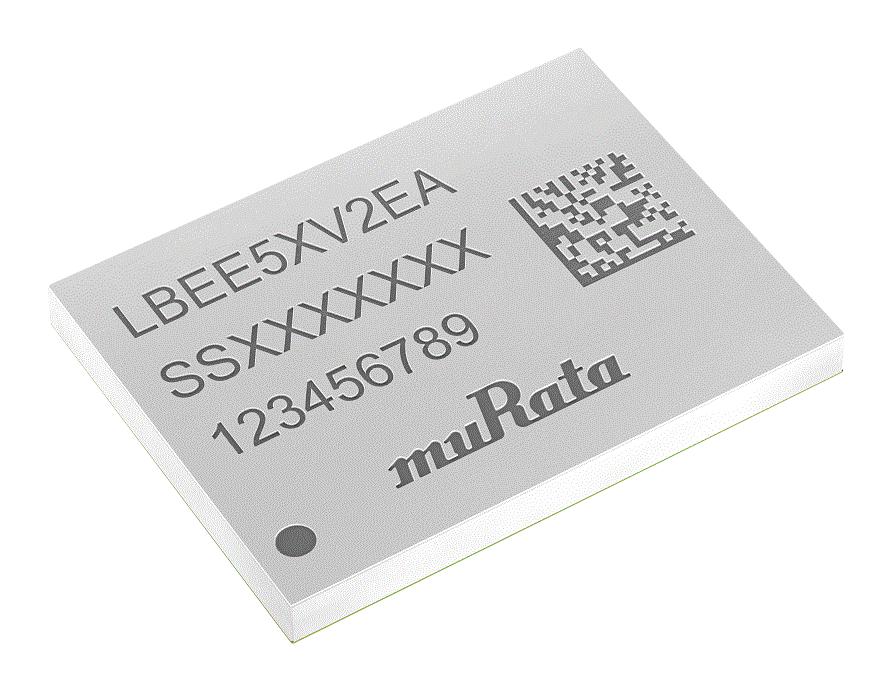

LBEE5XV2EA-802 is a Type 2EA small and very high-performance module based on Infineon CYW55573 combo chipset which supports Wi-Fi® 802.11a/b/g/n/ac/ax 2×2 MIMO Bluetooth® 5.3 BR/EDR/LE up to 1.2Gbps PHY data rate on Wi-Fi® and 3Mbps PHY data rate on Legacy Bluetooth (EDR), and 2Mbps PHY data rate on Bluetooth® LE. The WLAN section supports PCIe v3.0 Gen 2 and SDIO 3.0 interface and the Bluetooth® section supports high-speed 4-wire UART interface and PCM for audio data. The CYW55573 implements highly sophisticated enhanced collaborative coexistence H/W mechanisms and algorithms, which ensure that WLAN and Bluetooth® collaboration is optimized for maximum performance. In IEEE 802.11ax mode, WLAN operation supports rates of MCS0�MCS11 (up to 1024 QAM) in 20MHz, 40MHz and 80MHz channels for data rate up to 1.2Gbps. The small form factor facilitates integration into size and power sensitive applications such as IoT applications, handheld wireless system, gateway and more.
- Good for industrial applications with operating temperature up to +85°C
- 2.4GHz, 5GHz & 6GHz Wi-Fi® + Bluetooth® module
- FCC/IC "Reference" certified
Product details
Other details
| Brand | MURATA |
| Part Number | LBEE5XV2EA-802 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3663.66 |
| 3-5 | ₹ 3626.28 |
| 5-10 | ₹ 3551.51 |
| 10+ | ₹ 3476.74 |
Bulk discount will be automatically applied during checkout based on quantity.
