Description
Product Overview

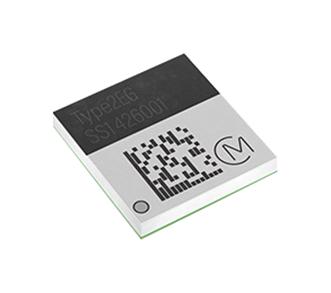

LBCA1HN2EG-917 is a Type 2EG, ultra-low power, ultra-small, and secure Bluetooth Low Energy 5.2 wireless module for connected IoT edge devices in industrial and medical applications.
- Onsemi RSL15 Wireless SoC, Bluetooth® 5.2, 48MHz Arm® Cortex® M33 MCU core
- UART, QSPI, SPI, GPIO, ADC, DAC, PWM, 12C interfaces, Arm® CryptoCell 312
- Regulatory certification: FCC/IC, ETSI, MIC (Japan)
- Powerful MCU core for user applications, ultra-low power consumption
- Integrated IoT cybersecurity platform, rich peripheral interface, ultra-small size
- Dimension is 7.0 x 7.4 x 1.0mm, SMT mounting type
- Supply voltage range from 1.71V to 3.46V, interface voltage range from 1.2V to 3.6V
- Operating temperature range from -40°C to 85°C
- Maximum transmit power: 6dBm, receive sensitivity: -96dBm at 1Mbps
- Ultra-low power, TX 4.3mA at 0dBm, RX 2.7mA at 1Mbps, sleep mode 36nA at 3V VBAT
Product details
Other details
| Brand | MURATA |
| Part Number | LBCA1HN2EG-917 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1665.89 |
| 3-5 | ₹ 1648.89 |
| 5-10 | ₹ 1614.9 |
| 10+ | ₹ 1580.9 |
Bulk discount will be automatically applied during checkout based on quantity.
