Description

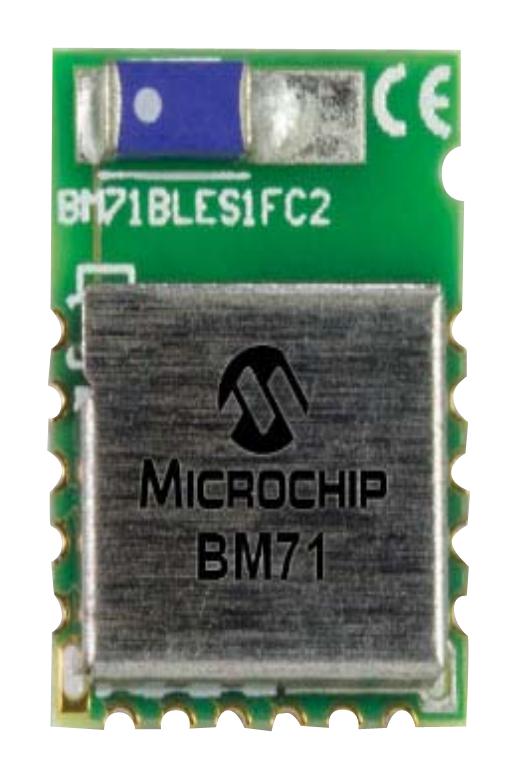

BM71 is a small form factor, Bluetooth Low Energy module measuring only 9 x 11.5 x 2.1 mm. The BM71 module is designed for easy implementation into a broad range of applications. It delivers up to 2.5x throughput improvement and more secure connections vs. Bluetooth 4.1 based products. Developers can easily interface to the device via a standard UART interface, available on most Microcontrollers and Processors.
- Bluetooth 5 Certified, 1.1 firmware version
- Ceramic chip antenna
- Mobile Application supported in Microchip Bluetooth Data (MBD)
- Supports LE secure connections levels 1-3
- UART interface, 1 x PWM supported
- Temperature sensor supported
- 2 bits ADC supported for 5CH input ports and battery voltage detection
- ISM Band 2.402 to 2.480 GHz operation
- Module certified for use in USA, Canada, Brazil, Europe, Japan, Korea, Taiwan and China
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Bluetooth Version: Bluetooth 4.2 |
| Supply Voltage Min: 1.9V |
| Supply Voltage Max: 3.6V |
| Signal Range Max: - |
| Data Rate: - |
| Bluetooth Class: - |
| Receive Sensitivity: -90dBm |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: - |
Other details
| Brand | MICROCHIP |
| Part Number | BM71BLES1FC2-0B02AA |
| Quantity | Each |
| Technical Data Sheet EN |  |
