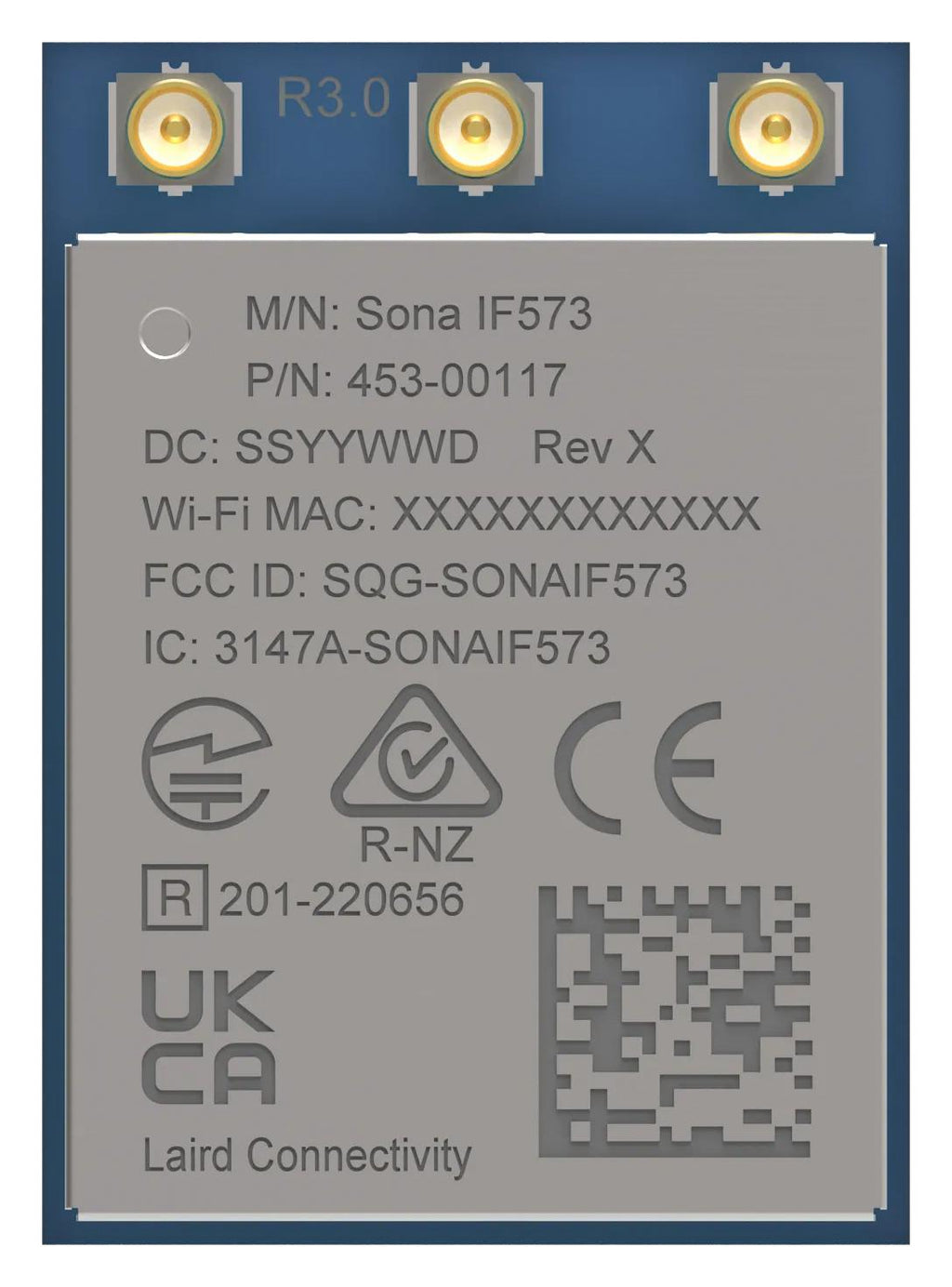

LAIRD CONNECTIVITY 453-00117C Wireless LAN Module, 6 GHz, UART, Several Commercial and Industrial

453-00117C is a Sonaâ�¢ IF573 series Wi-Fi 6E + Bluetooth® 5.4 module. It is based upon Infineonâ��s leading AIROCâ�¢ CYW55573 chipset. A truly robust industrial IoT module: one thatâ��s rugged, small, globally certified, has reliable connectivity, and is easy to integrate. The Sonaâ�¢ IF573 is purpose-built for industrial IoT connectivity with access to both PCIE and SDIO interfaces, industrial operating temp range, latest generation Wi-Fi, and Bluetooth combined with both pluggable card and SMT M.2 packaging. This device is pre-calibrated and integrates the complete transmit/receive RF paths including bandpass filter, diplexer, switches, reference crystal oscillator, and power management units (PMU). The Sona IF573 series device supports IEEE 802.11ax tri-band (2.4/5/6 GHz) 2x2 MIMO with data rates up to MCS11 (287Mbps PHY data rate for 2.4 GHz band and 1.2 Gbps PHY data rate for 5/6 GHz).

• Compatible: our Linux backports package supports many Linux kernels including v6.1.x
• Rich feature-set including 802.11ax Wi-Fi 6E and dual-mode BT v5.4, support for the 6GHz spectrum
• Reliable industrial temp range and solder-down module is suitable for industrial rugged application
• Secure: supports the latest WPA3 security standards
• FCC, IC, MIC, RCM, Bluetooth SIG certifications
• MHF4 antenna type, M.2 1318 form factor, 2.4/5/6GHz frequency
• SDIO/PCIe host interface, 802.11ax, Bluetooth 5.4 technology
• Operating temperature range from -40° to +85°C
• Input voltage requirements are typical DC 3.3V, operating range from DC 3.13V to 3.5V
• Main chipset is Infineon AIROCâ�¢ CYW55573MIWBGT
