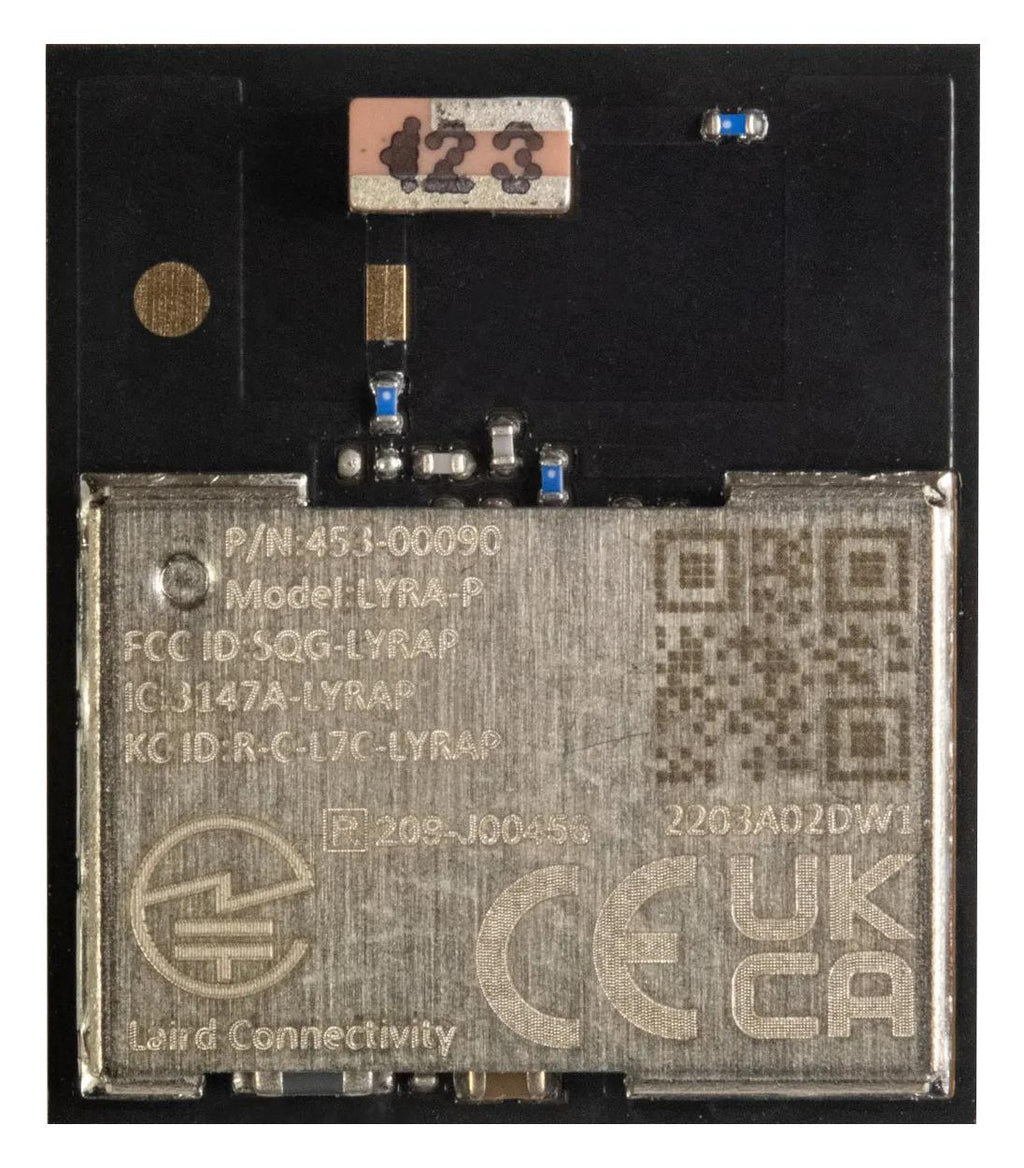

LAIRD CONNECTIVITY 453-00090R Bluetooth Module, BLE 5.3, 2 Mbps, -96.2 dBm, 1.8 V to 3.8 V, -40 °C to 105 °C

453-00090R is a Lyra P Bluetooth v5.3 PCB module with integrated antenna (Silicon Labs EFR32BG22) � Tape / Reel. Lyra P is a module designed and built to meet the performance, security, and reliability requirements of battery-powered IoT products running on Bluetooth networks. Based on the EFR32BG22 SoC, the Lyra P enables BLE connectivity while delivering best-in-class RF range and performance, future-proof capability for feature and OTA firmware updates, enhanced security features, and low energy consumption. Lyra P module is a full solution that comes with fully upgradeable, robust software stacks, world-wide regulatory certifications, advanced development and debugging tools, and support that will minimize and simplify the engineering and development of your end-products helping to accelerate their time-to-market. Applications include asset tags and beacons portable medical, connected home, industrial and building automation and Bluetooth mesh low power nodes.

• EFR32BG22 SoC / High-performance 32-bit ARM Cortex-M33® with DSP instruction and floating-point unit
• 512/32KB of flash/RAM memory
• Built-in antenna
• Up to 8dBm TX power
• BLE RX sensitivity of -98.6dBm at 1Mbps
• Optimal selection of MCU peripherals
• Up to 24 GPIO pins
• Supply voltage range from 1.8 to 3.8V
• 12.9 x 15.0 x 2.2mm
• Extended industrial temperature rating from -40°C to +105°C
