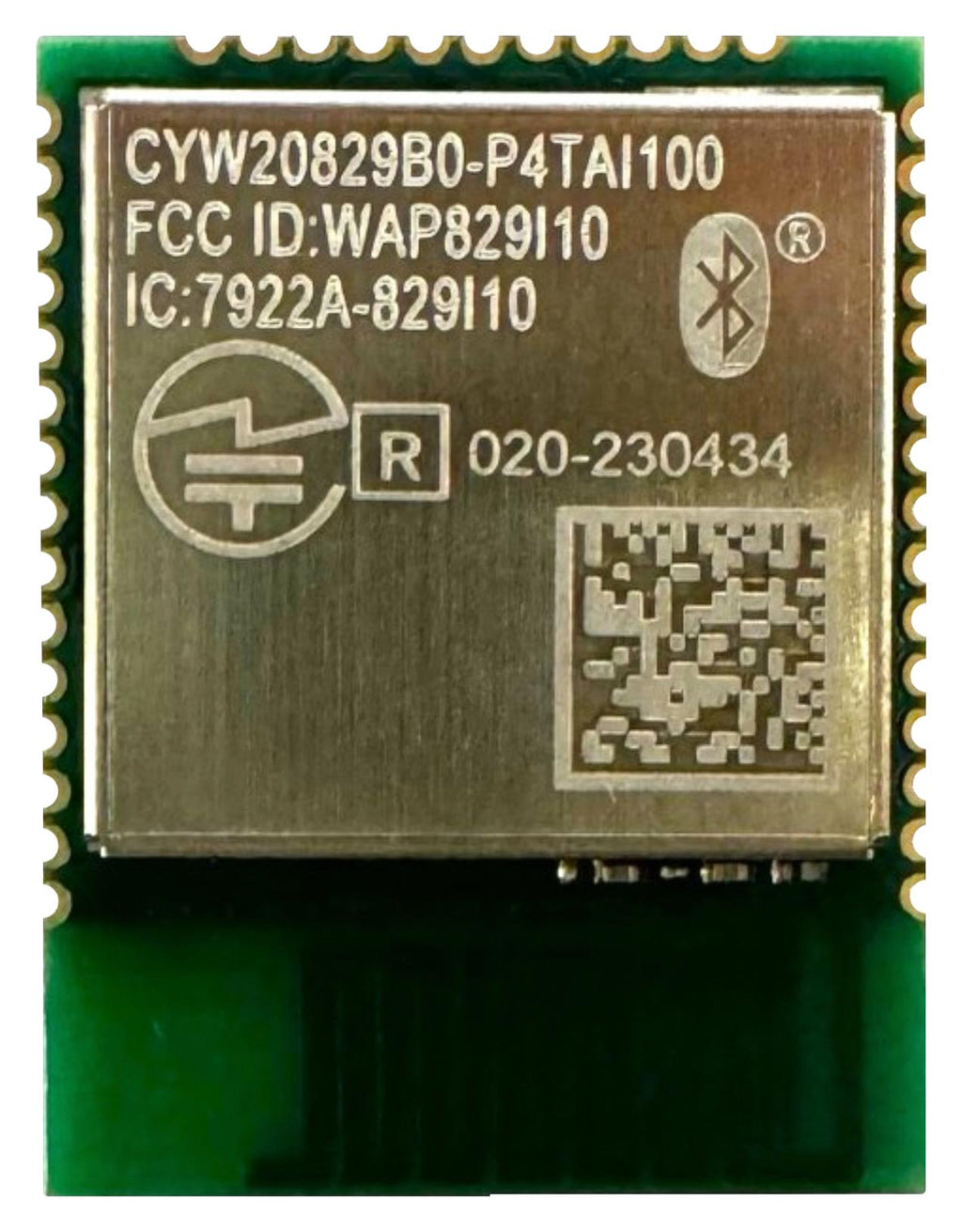

INFINEON CYW20829B0-P4TAI100 Bluetooth Module, BLE 5.4, Class 1/Class 2, 2 Mbps, -106 dBm, 2.75 to 3.6 V, -30 °C to 85 °C

CYW20829B0-P4TAI100 is a fully integrated AIROC� Bluetooth® LE wireless module. It includes an onboard crystal oscillator, passive components, flash memory, and the CYW20829 silicon device. It supports high-performance analogue-to-digital conversion audio input, I2S/PCM, CAN, LIN for automotive use cases and other standard communication and timing peripherals. This module includes a royalty-free Bluetooth® stack compatible with Bluetooth® 5.4 core spec in a 14.5 x 19 x 1.95mm package. The CYW20829B0-P4TAI100 includes 1MB of onboard serial flash memory and is designed for standalone operation.

• Includes an integrated trace antenna
• Flexible clocking options, Quad SPI (QSPI)/serial memory interface (SMIF)
• Audio subsystem: Two PDM channels and one I2S channel with time division multiplexed (TDM) mode
• ADC and MIC: Sigma-delta switched cap ADC for audio and DC measurements
• Up to 32 programmable GPIOs: programmable drive modes, strengths, and slew rates
• Security built into platform architecture
• 96MHz Arm® Cortex®-M33 CPU with single-cycle multiply and MPU
• 1MB embedded on-module serial flash memory and castelated solder pad connections for ease-of-use
• Proven ready-to-use hardware design
• Cost optimized for applications without space constraints
