Description

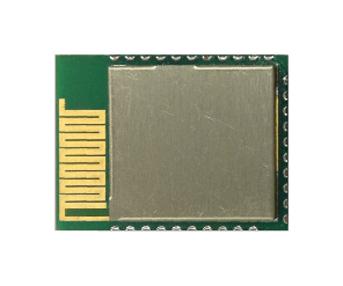

EZ-BLEâ�¢ creator Bluetooth 4.2 module. The CYBLE-212020-01 is a turnkey Bluetooth® Low Energy (BLE) wireless module solution and includes on-board crystal oscillators, trace antenna, passive components and the Cypress PSoC 4 BLE BT 4.2 chip. The CYBLE-212020-01 supports a number of peripheral functions (ADC, timers, counters, PWM) and serial communication protocols (I2C, UART, SPI) through its programmable architecture. The CYBLE-212020-01 is targeted at applications requiring large memory size and Bluetooth 4.2 compliance all in a cost-optimized solution.
- Castelated solder pad connections for ease of use
- Reprogrammable architecture
- Cost-optimized for applications without space constraint
- Bluetooth SIG qualified with QDID and Declaration ID
- Flexible communication protocol support
- 256KB flash memory, 32KB SRAM memory
- Up to 23 GPIOs configurable as open drain H/L, pull-up/down, HI-Z analogue/digital or strong output
- 32bit processor (0.9 DMIPS/MHz) with single cycle 32bit multiply operating at up to 48MHz
- Watchdog timer with dedicated internal low-speed oscillator (ILO)
- Two-pin SWD for programming
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts
Product details
| Bluetooth Version: Bluetooth 4.2 |
| Supply Voltage Min: 1.8V |
| Supply Voltage Max: 5.5V |
| Signal Range Max: - |
| Data Rate: 1Mbps |
| Bluetooth Class: - |
| Receive Sensitivity: -87dBm |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: EZ-BLE Series |
Other details
| Brand | INFINEON |
| Part Number | CYBLE-212020-01 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
