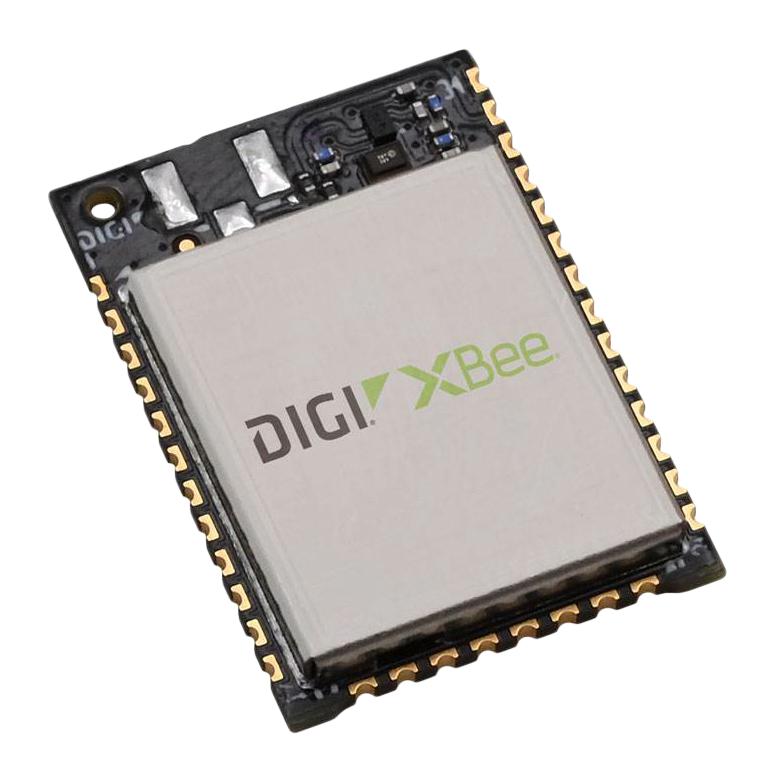

DIGI INTERNATIONAL XB-9XR-DMRM-001 RF Wireless Module, XBee XR, 868 MHz, 250Kbps, EFR32FG, 2.1 to 3.6V, DigiMesh, RF Pad, Micro Mount

XB-9XR-DMRM-001 is a Digi XBee XR 900MHz module with DigiMesh and RF pad antenna. This is a compact and reliable solution supporting deployment of long-range connectivity applications. The Digi XBee XR 900 module can be configured easily using Digi�s easy-to-use Digi XBee Studio software or via Digi�s simplified AT or API command sets. The utilization of Frequency Hopping Spread Spectrum (FHSS) on the XBee XR along with an industrial temperature range of -40 to 85°C (-40 to 185°F) makes it ideal for applications in noisy, challenging environments. The module supports both point-to-point and mesh networking protocols (DigiMesh®) with a line-of-sight range up to 17kilometers. It is well suited for agriculture and energy applications where long-distance communication is required. The Digi XBee XR 900 RF module is a complete hardware and software solution that works directly out of the box.

• Fully certified for use in unlicensed 900MHz band and RF module based on Silicon Labs EFR32 MCU
• Design includes SAW filter for optimal performance in noisy RF environments
• 256-bit AES encryption for secure data communication
• DigiMesh networking topology for redundancy and reliability
• Simple and advanced configuration using Digi XBee Studio accelerates time to market
• Digi XBee tools to simplify tasks and get to market faster
• RF data rate: Low data rate: 10kbps, middle data rate: 110kbps, high data rate: 250kbps
• Micro mount (MMT) form factor
• Up to 921.6kbps UART data rate and up to 5Mbps SPI data rate
• Dimension: MMT: 13mm x 19mm x 2mm (0.533in x 0.76in x 0.087in)
