Description

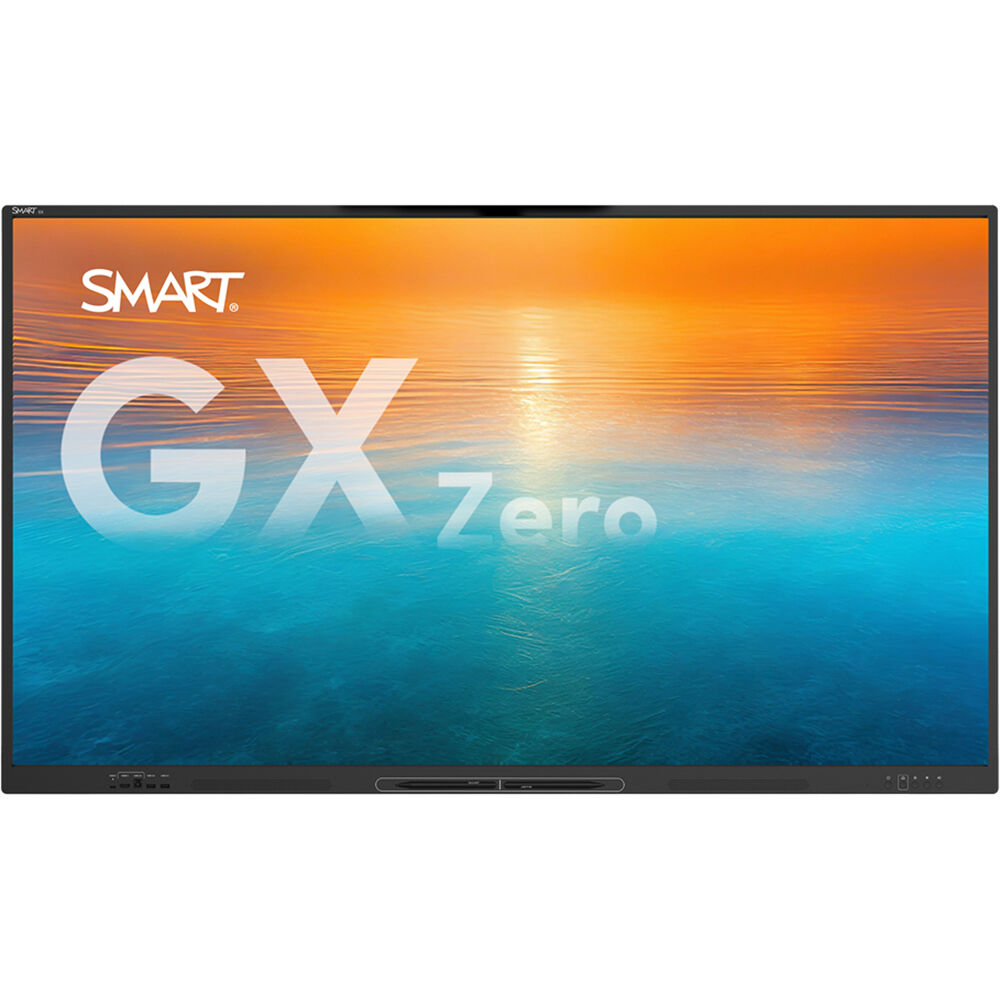

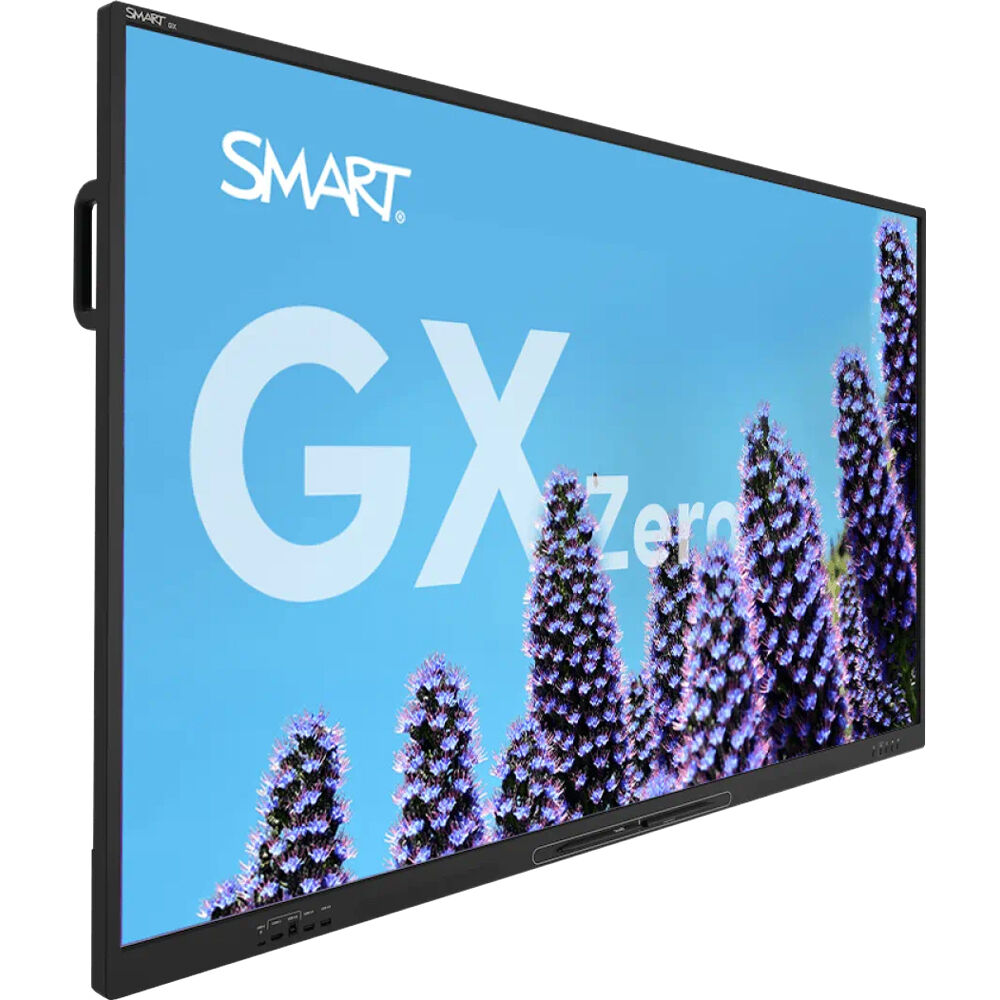

SMART Technologies GX Zero Overview
The SMART Technologies GX Zero Series 86" UHD 4K Touch Screen Commercial Monitor with No Onboard OS is a 400 nits bright interactive LCD screen with up to 40-point simultaneous touch via advanced IR technology. With no onboard operating system the GX086-V3 will work with any laptop, desktop, or OPS module to provide a responsive touch display for presentation and collaboration. Connect a variety of devices through HDMI, VGA, and DisplayPort inputs with USB for touch interaction, or simplify with all-in-one USB-C. Additionally, a pair of 20-watt speakers are built in to present clear audio.
SMART Ink
SMART Ink software lets users write, erase, highlight, and draw on any file type instantly, without frustrating overlays or flow disruptions. Plus, you can write directly into Microsoft Office and PDF files without losing your annotations, your inking stays where you put it.
Responsive Touch Interaction
Object awareness means pens write, fingers move, and palms erase automatically so your team can get to work without any technology distractions.
UPC: 628012404489
Items Included
- SMART Technologies GX Zero Series 86" UHD 4K Touch Screen Commercial Monitor with No Onboard OS
- Power Cable
- USB-A to USB-B Cable (16'5")
- USB-C Cable (6')
- 2 x Interactive Pen
- Remote Control
- 2 x AAA Battery for Remote
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
SMART Technologies GX Zero Specs
Key Specs
| Display Size |
86"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| Touchscreen |
Yes, Infrared (IR)
|
| Inputs |
Front
1x HDMI 2.0 Rear 2x HDMI 2.0 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear
1x HDMI 2.0 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| USB I/O |
Front
1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Control/Touchscreen Control/Video) 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 2.0 (Touchscreen Control) Rear 1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Control/Touchscreen Control/Video) 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 2.0 (Touchscreen Control) |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
Rear
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 20 W
|
Display
| Display Size |
86"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| HDR Support |
No
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Viewing Angle (H x V) |
178 x 178°
|
| Finish |
Anti-Glare / Matte
|
Surface
| Touchscreen |
Yes, Infrared (IR)
|
| Multi-Touch Points |
40
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
Front
1x HDMI 2.0 Rear 2x HDMI 2.0 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear
1x HDMI 2.0 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes, Version 2.2
|
| NFC |
No
|
| USB I/O |
Front
1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Control/Touchscreen Control/Video) 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 2.0 (Touchscreen Control) Rear 1x USB-C 3.0 / 3.1/3.2 Gen 1 (DisplayPort Alt Mode/Audio/Charging/Control/Touchscreen Control/Video) 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 2.0 (Touchscreen Control) |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
Rear
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 20 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: 119.0 W
Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C
|
| Certifications |
CB, CE, ENERGY STAR, FCC, HDCP, REACH, RoHS, UKCA, WEEE, cULus
|
| VESA Mounting-Hole Pattern |
800 x 600 mm
|
| Lighting Lifespan |
50000 Hours
|
| Dimensions |
77.3 x 46.1 x 3.4" / 1963 x 1171 x 86 mm
|
| Weight |
143.3 lb / 65 kg
|
Packaging Info
| Package Weight |
198 lb
|
| Box Dimensions (LxWxH) |
84 x 52 x 6"
|
