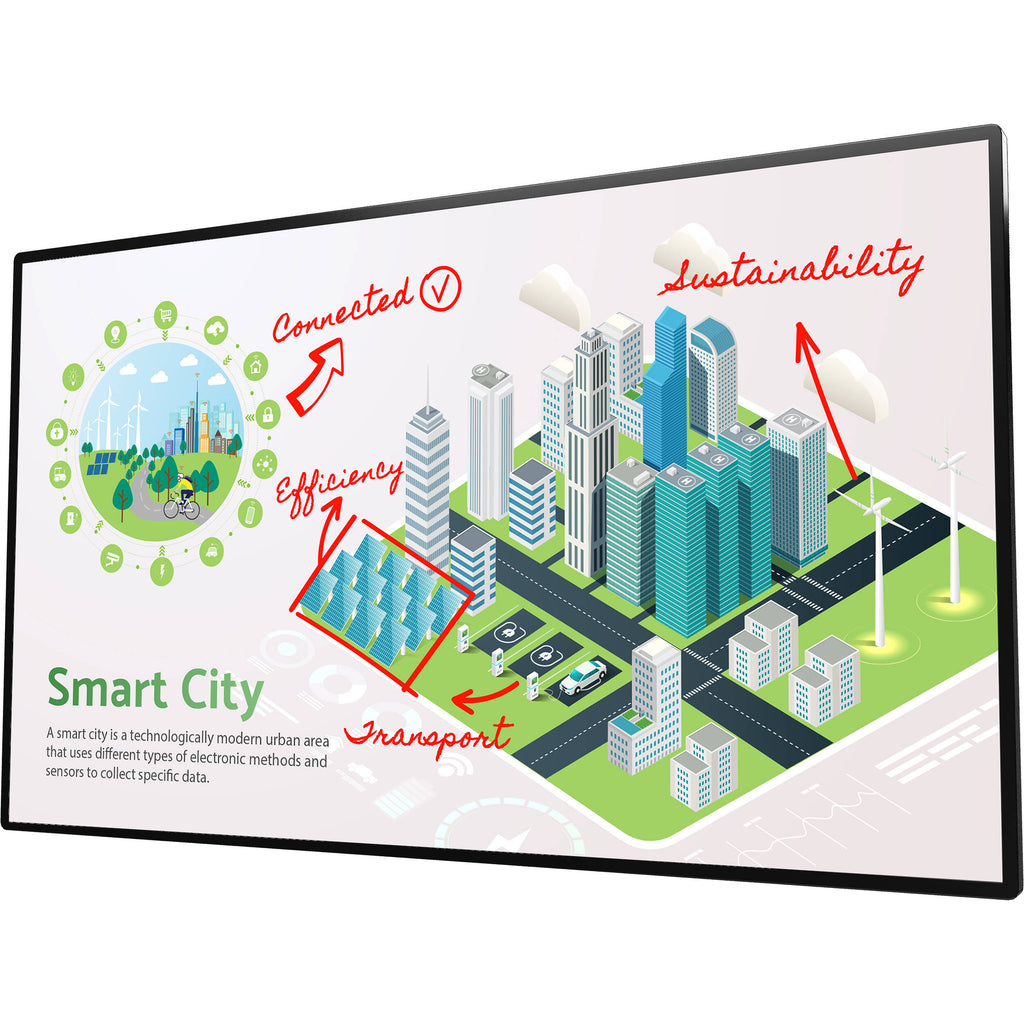

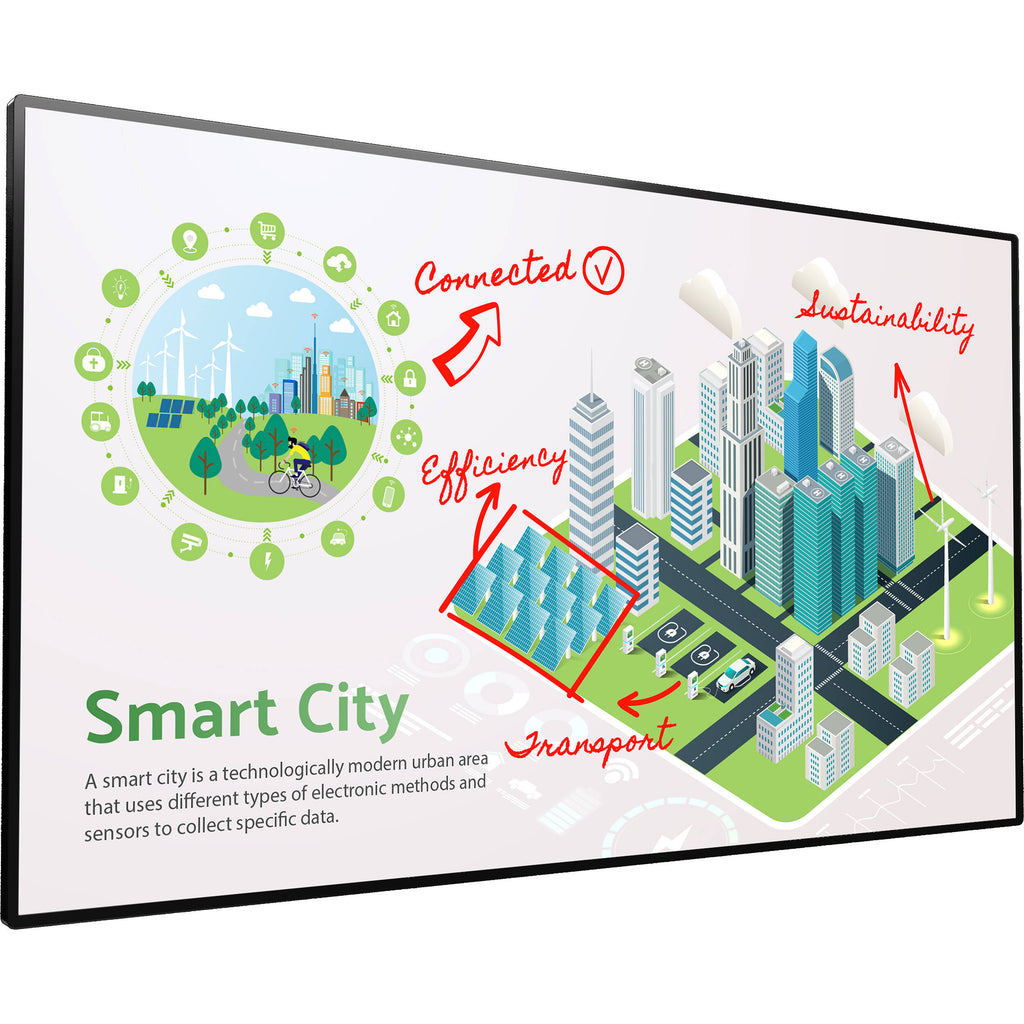

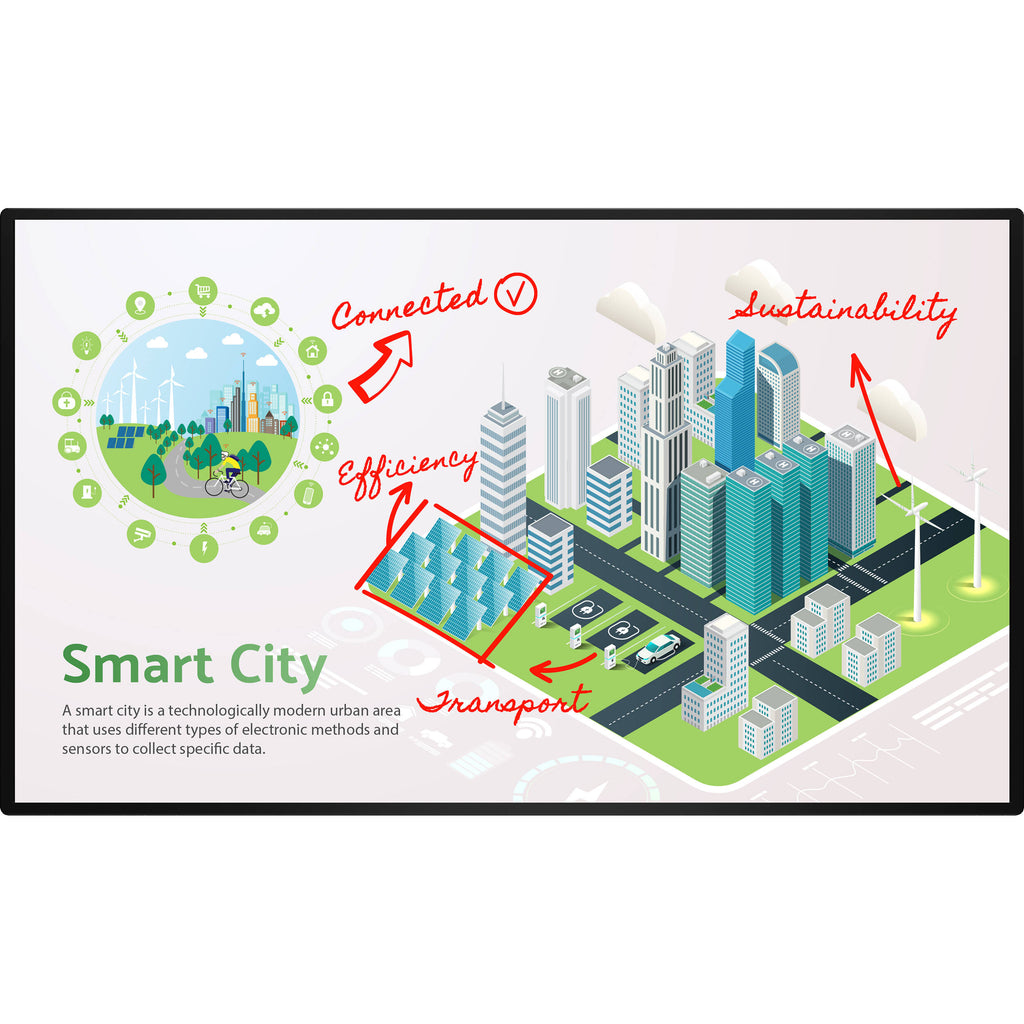

Sharp AQUOS BOARD 4W-B75FT5U 75" 4K LED Interactive Display

Sharp Pen Software

Using one of the included touch pens, you can launch a floating icon menu that can launch pen settings and functions, or be moved out of the way as you write or draw. Functions include handwriting conversion, a whiteboard mode, and an overlay mode. These modes let you save your brainstorming ideas into actual files that can be printed, saved, or shared.

• Handwriting Recognition - Select hand-written text to have the software convert it into standard digital print. It also converts basic shapes into objects, such as circles, triangles, and straight lines.
• Whiteboard Mode - Write memos and diagrams, saving them to PNG, PDF, and BMP files for printing and sharing. You can also access background templates, such as a calendar, action plan, to-do list, corkboard, and more.
• Overlay Mode: Like a transparency, you can write or draw onto displayed photos, videos, PDFs, or Excel, Word, and PowerPoint documents. You can capture screenshots of your work to save, print as a PDF, or share via email.

Write Naturally

A durable anti-glare tempered glass protects the display from damage without sacrificing clarity or hindering the ability to write and draw. With the combination of the anti-glare surface and the material on the touch pen, writing feels as natural as using a pen on paper.

Public Mode

In this mode, operational controls are disabled to unwanted display adjustments are prevented.

Wireless Casting

Cast your mobile device's screen to the 4W-B to view it on the big screen. It supports any content on your phone or tablet, such as videos, photos, apps, documents, and more.

HTML5 Browser

Improve efficiency with the Included HTML5 browser app that lets you get up and running quickly, and helps you leverage web-based content.

Additional Features

• Supports 16 hours of operation per day
• Multi OS support for plug and play functionality
• LAN and RS-232C controls for centralized display management
• Built-in Wi-Fi 5 (802.11ac)

Sharp BFT5U Specs

Display Size	75"
Inputs	3x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x Coaxial F-Type (RF Antenna)
Outputs	1x 1/8" / 3.5 mm (Analog Audio)
Wireless	Wi-Fi 5 (802.11ac)
USB I/O	2x USB-A (Unspecified Version)

Display Size	75"
Panel Type	TFT LCD
Aspect Ratio	16:9
Display Orientation	Landscape
Native Resolution	3840 x 2160
Maximum Brightness	350 nits / cd/m2
Contrast Ratio	1200:1
Refresh Rate	60 Hz
Color Support	1.07 Billion Colors (10-Bit)
Viewing Angle (H x V)	178 x 178°

Touchscreen	Yes, Infrared (IR)
Multi-Touch Points	20

Inputs	3x HDMI 1x 1/8" / 3.5 mm (Analog Audio) 1x Coaxial F-Type (RF Antenna)
Outputs	1x 1/8" / 3.5 mm (Analog Audio)
Wireless	Wi-Fi 5 (802.11ac)
USB I/O	2x USB-A (Unspecified Version)
Other I/O	1x 1/8" / 3.5 mm Serial (RS-232C) Control Input 1x RJ45 Input/Output

Built-In Speakers	Yes, 2x 8 W
Speaker Configuration	2-Channel

Smart TV

No

Input Power

120 VAC, 60 Hz

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 80% Humidity
VESA Mounting-Hole Pattern	600 x 300 mm
Duty Cycle	16 Hours / 7 Days
Dimensions	67.1 x 39.2 x 3.4" / 170.4 x 99.6 x 8.6 cm (without Stand)
Weight	112.4 lb / 51 kg

Package Weight	128.5 lb
Box Dimensions (LxWxH)	74 x 46 x 8"
