Description
Planar Systems URW105-ERO-T Overview
- 1Description
- 2Extended Ruggedness and Optics
- 3HDR Ready
- 4Landscape or Portrait Orientation
- 524/7 Reliability
- 6Built-In Scheduling
- 7Stay Informed
- 8TAA Compliant
- 9Crestron and Q-SYS Modules and Drivers
- 10Additional Features

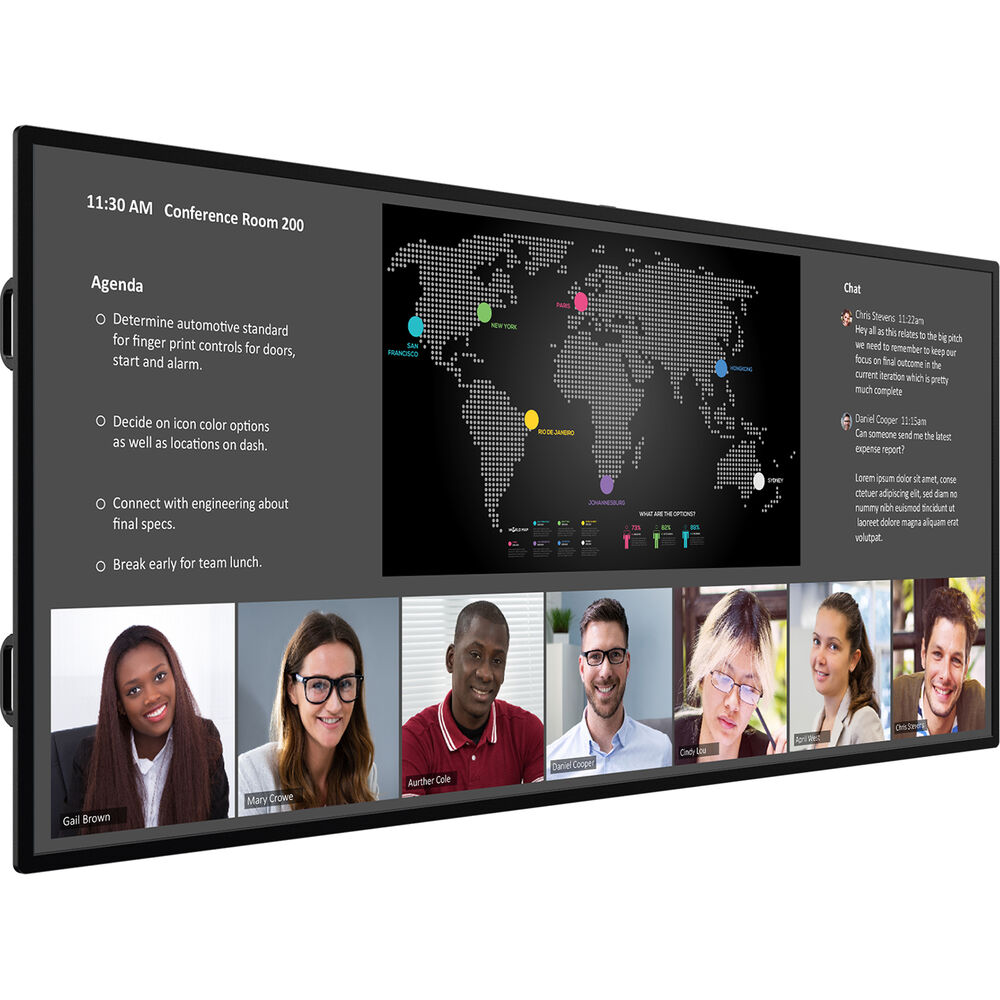

The Planar Systems URW105-ERO-T 105" UHD 5K 21:9 Ultra-Wide Touchscreen LED Display is a 450 nit bright LCD capable of 24/7 operation and ideally sized to suit popular unified communications and video collaboration platforms such as Microsoft Teams with its Front Row layout. The URW105-ERO-T features protective glass with anti-glare plus anti-friction coating and pin-point accurate projected capacitive touch that supports up to 50 simultaneous touch points. As well as being a great collaboration display, the ultra-wide 21:9 aspect ratio of the UltraRes W series is perfect for native cinematic playback. With built-in scheduling, monitoring, control system support, and the ability to display in portrait or landscape orientation, the URW105-ERO-T is ideal for dynamic digital signage, especially where interactivity is needed. Additionally, you can view two input sources at once with dual layout or picture-in-picture. The URW105-ERO-T is TAA compliant with no wireless function or open-source OS, making it secure for government applications.
Extended Ruggedness and Optics
Planar ERO-LCD (Extended Ruggedness and Optics) protective glass is bonded to the front surface of the display using a proprietary process that creates a highly durable display surface that withstands the rigors of high-traffic and interactive environments. It also delivers up to 300% more perceived contrast.
HDR Ready
The Planar UltraRes W series displays are ready for high dynamic range content, maximizing the image quality of each pixel for brighter whites, darker blacks, and more true-to-life colors. Displays are designed to show a larger percentage of the visible color spectrum, rendering on-screen content with the hues and shades creators intended for a more genuine viewing experience.

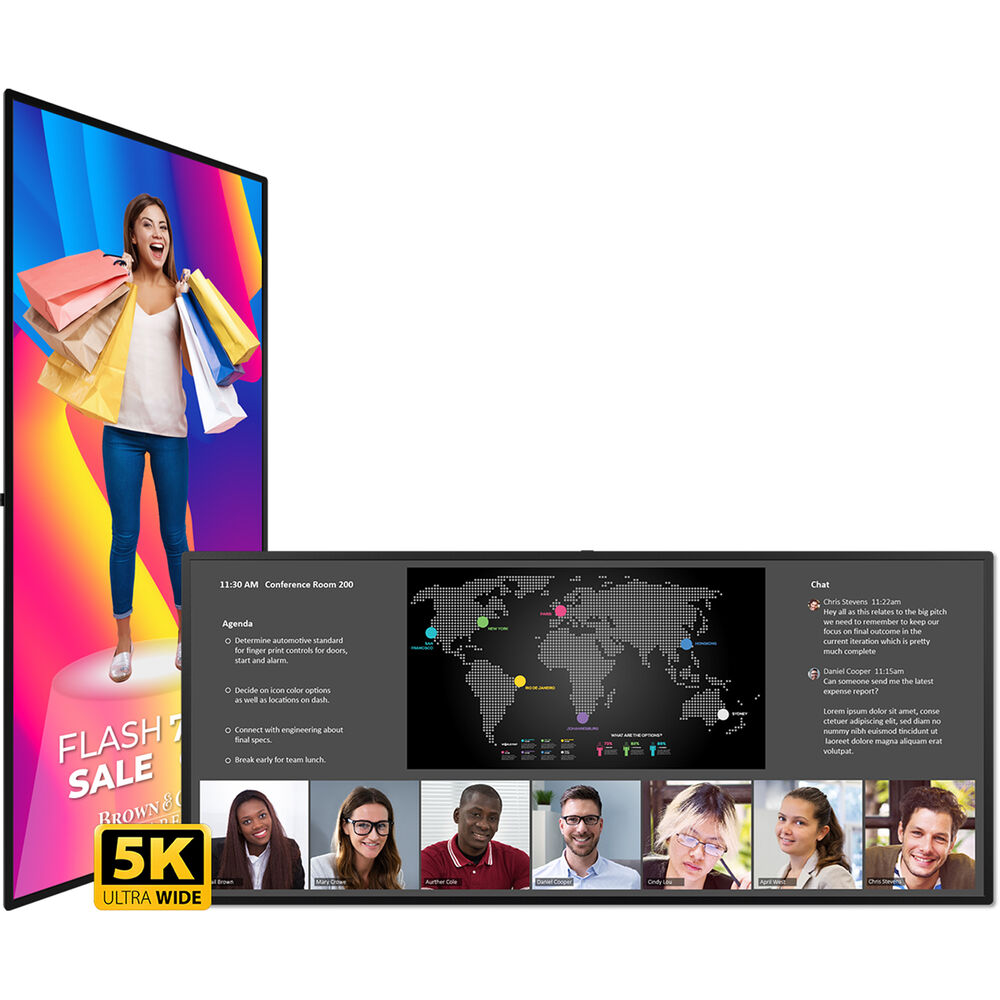

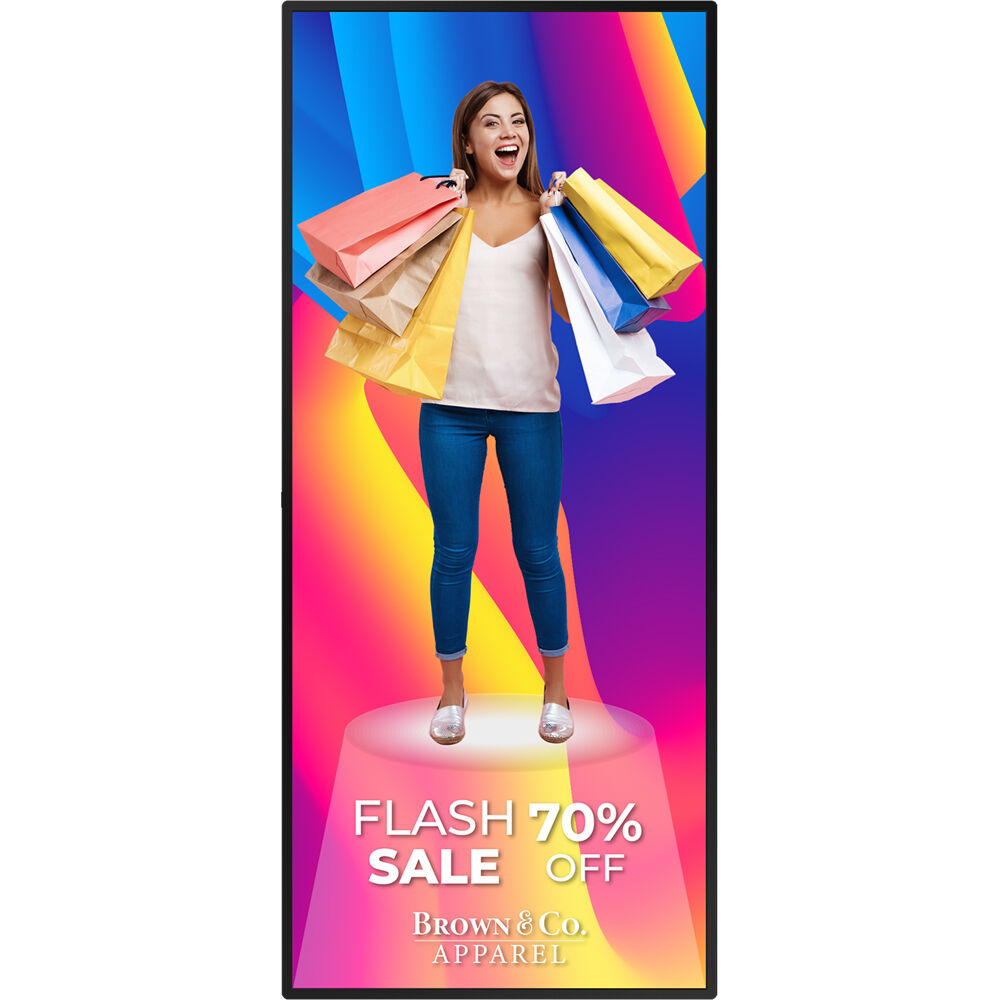

Landscape or Portrait Orientation
The URW105-ERO-T can be mounted in either landscape or portrait orientation, opening the door to a wider array of deployment environments and applications and enabling greater creativity in content development.
24/7 Reliability
Planar displays are designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Built-In Scheduling
Schedule automated events such as recalling image layout configurations, adjusting brightness, and powering on/off. Scheduling events can save energy usage and administrative time.
Stay Informed
Browser-based Remote Monitoring software displays information about the display and lets users make adjustments to zones, brightness, power settings, and more. Set up e-mail notifications to be alerted about designated performance incidents and always remain looped in.
TAA Compliant
Organizations that prefer to use products manufactured in the United States or countries designated in the U.S. Trade Agreements Act (TAA) need look no further.
Crestron and Q-SYS Modules and Drivers
Control system modules, drivers, and plugins ease reseller integration and consultant recommendations. Crestron and Q-SYS drivers and plugins can save hours of programming, installation, and cost.
Additional Features
- 2mm Corning Gorilla Glass with anti-glare coating
- 50-point PCAP touch
- IR remote included
- RS-232 control capable
- RJ45 LAN network connection
- HDMI-CEC
- Optical and 3.5mm audio outputs
- Built-in 15W stereo speakers
- Fanless design for quiet operation
In the Box
- Planar Systems URW105-ERO-T 105" UHD 5K 21:9 Ultra-Wide Touchscreen Commercial Monitor
- Remote Control
- 2 x AAA Battery
- Dual-Tip Stylus
- DisplayPort Cable
- USB-C Cable
- USB-B to USB-A Cable
- IR Sensor
- US Power Cord
- EU Power Cord
- IEC C14 to NEMA 5-15R AC Adapter Cable
- IEC C14 to EU/UK AC Cable
- Limited 3-Year Manufacturer Warranty (Planar Advance Exchange)
Table of Contents
- Description
- Extended Ruggedness and Optics
- HDR Ready
- Landscape or Portrait Orientation
- 24/7 Reliability
- Built-In Scheduling
- Stay Informed
- TAA Compliant
- Crestron and Q-SYS Modules and Drivers
- Additional Features
Planar Systems URW105-ERO-T Specs
Key Specs
| Display Size |
105"
|
| Resolution |
5120 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
2 x DisplayPort (1.4)
2 x HDMI (2.1) |
| Outputs |
1 x DisplayPort
1 x 1/8" / 3.5 mm (Analog Audio) 1 x TOSLINK Optical (Digital Audio) |
| Wireless |
No
|
| USB I/O |
1 x USB-C Unspecified Version (Audio/Video)
4 x USB-A Unspecified Version (Audio/Photo/Video/Control/Power) 2 x USB-B Unspecified Version (Touchscreen Control) 1 x USB-A Unspecified Version (Service) |
| Ethernet I/O |
1 x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2 x 15 W
|
| Media Card Reader |
No
|
Display
| Display Size |
105"
|
| Panel Type |
LCD
|
| Aspect Ratio |
21:9
|
| Display Orientation |
Landscape, Portrait
|
| Resolution |
5120 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Compatibility |
HDR10
|
| Contrast Ratio |
1200:1
|
| Dynamic Contrast Ratio |
33,000:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| Color Gamut |
88% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
96.4 x 40.7" / 2449.2 x 1033.6 mm
|
| Dot Pitch |
0.479 x 0.479 mm
|
| Pixels Per Inch (ppi) |
53 ppi
|
| Finish |
Anti-Glare / Matte, Anti-Friction
|
Surface
| Touchscreen Technology |
Projected Capacitive
|
| Multi-Touch Points |
50
|
| Haze Level |
25%
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
2 x DisplayPort (1.4)
2 x HDMI (2.1) |
| Outputs |
1 x DisplayPort
1 x 1/8" / 3.5 mm (Analog Audio) 1 x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1 x USB-C Unspecified Version (Audio/Video)
4 x USB-A Unspecified Version (Audio/Photo/Video/Control/Power) 2 x USB-B Unspecified Version (Touchscreen Control) 1 x USB-A Unspecified Version (Service) |
| Ethernet I/O |
1 x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
Yes, 2 x 15 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| OS Compatibility |
Windows 10
Windows 11 macOS Linux *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Languages |
English
French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| O |
