Description
Planar Systems URX75 Overview

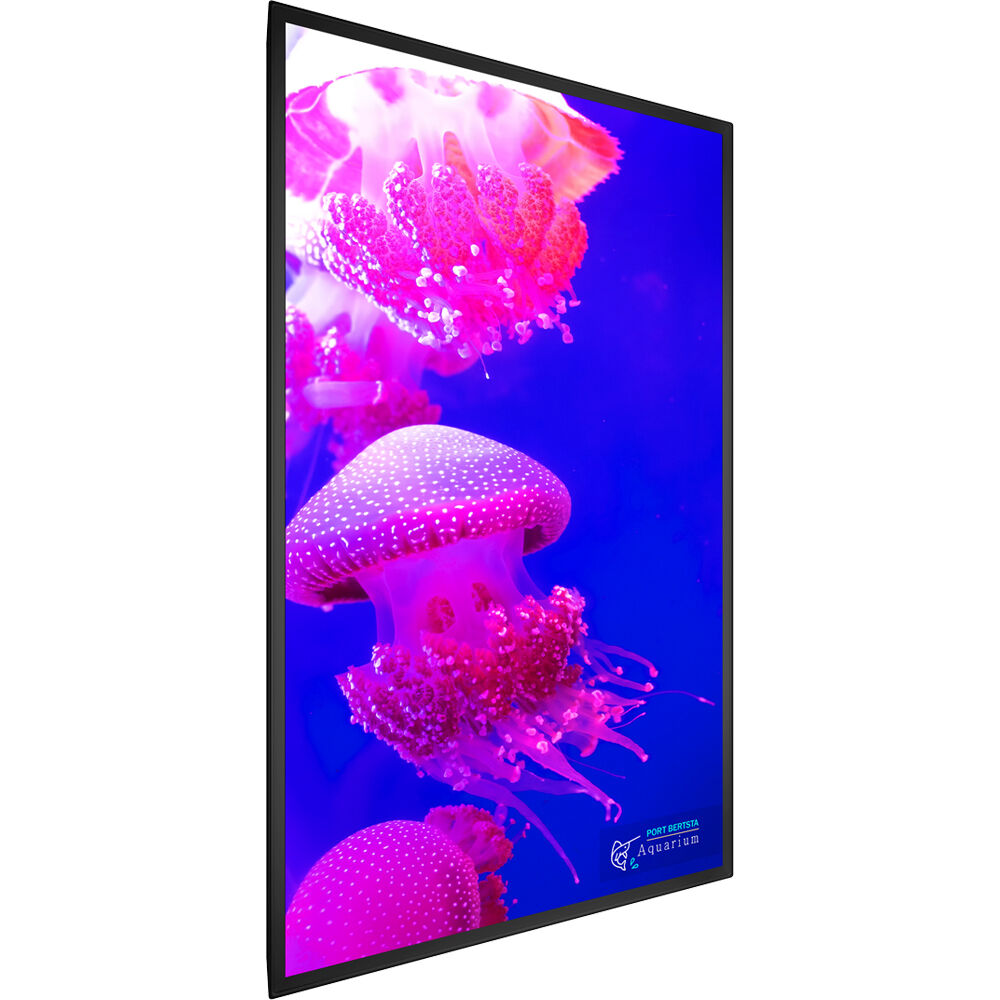

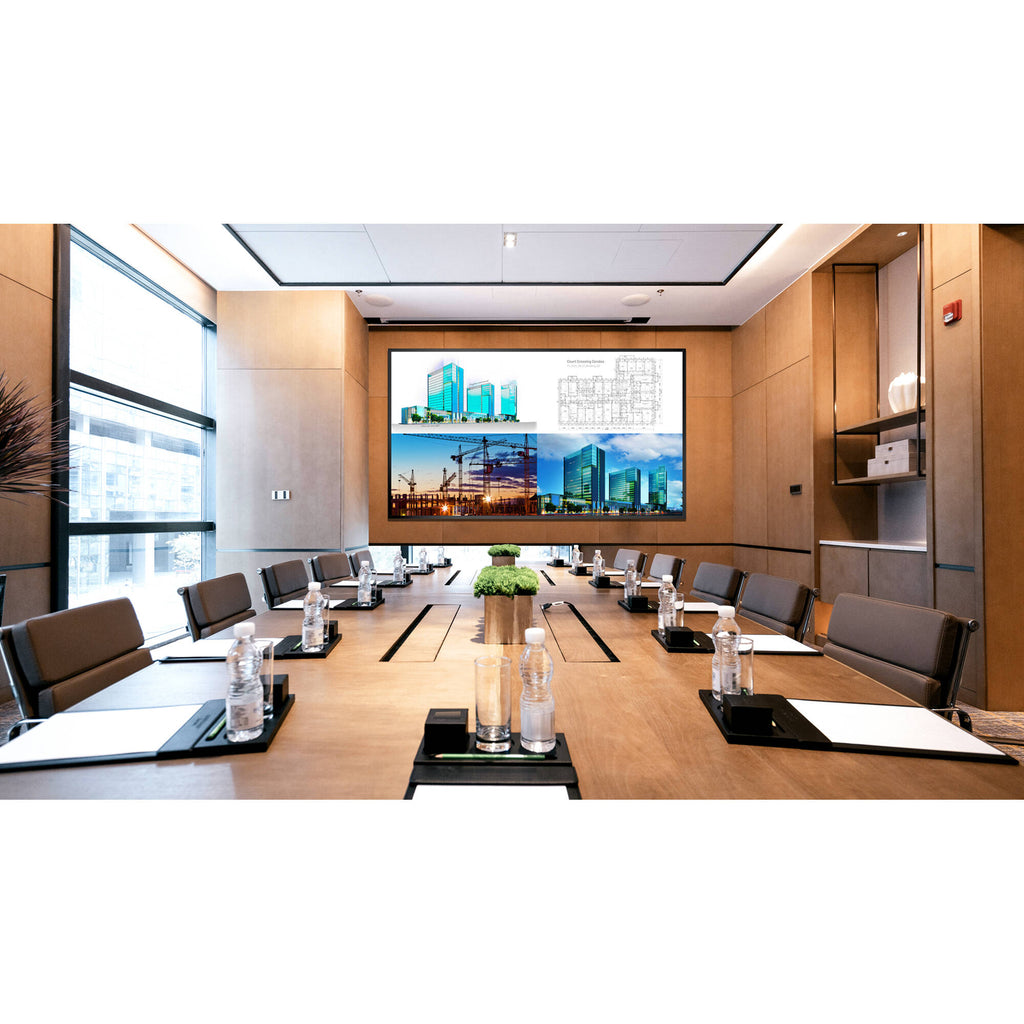

The Planar UltraRes X Series 75" UHD 4K HDR Commercial Monitor is a 700 nits bright display, capable of 24/7 continuous operation for demanding applications in bright environments. With HDR color, built-in scheduling, monitoring, control system support, and the ability to display in portrait or landscape orientation, the URX75 is ideal for high-impact digital signage, control rooms, media rooms, and more.
Connect sources via DisplayPort and HDMI inputs with the ability to view up to four sources on screen simultaneously. The URX75 offers an OPS slot for additional connectivity, and a redundant power supply to prevent failure and aid in maintenance. This display is TAA compliant with signed and encrypted firmware and no Wi-Fi or Android OS making it secure for government applications. Additionally, with the optional Planar Profile Mounting System, it can achieve ADA compliance.
Multi-Source Viewing

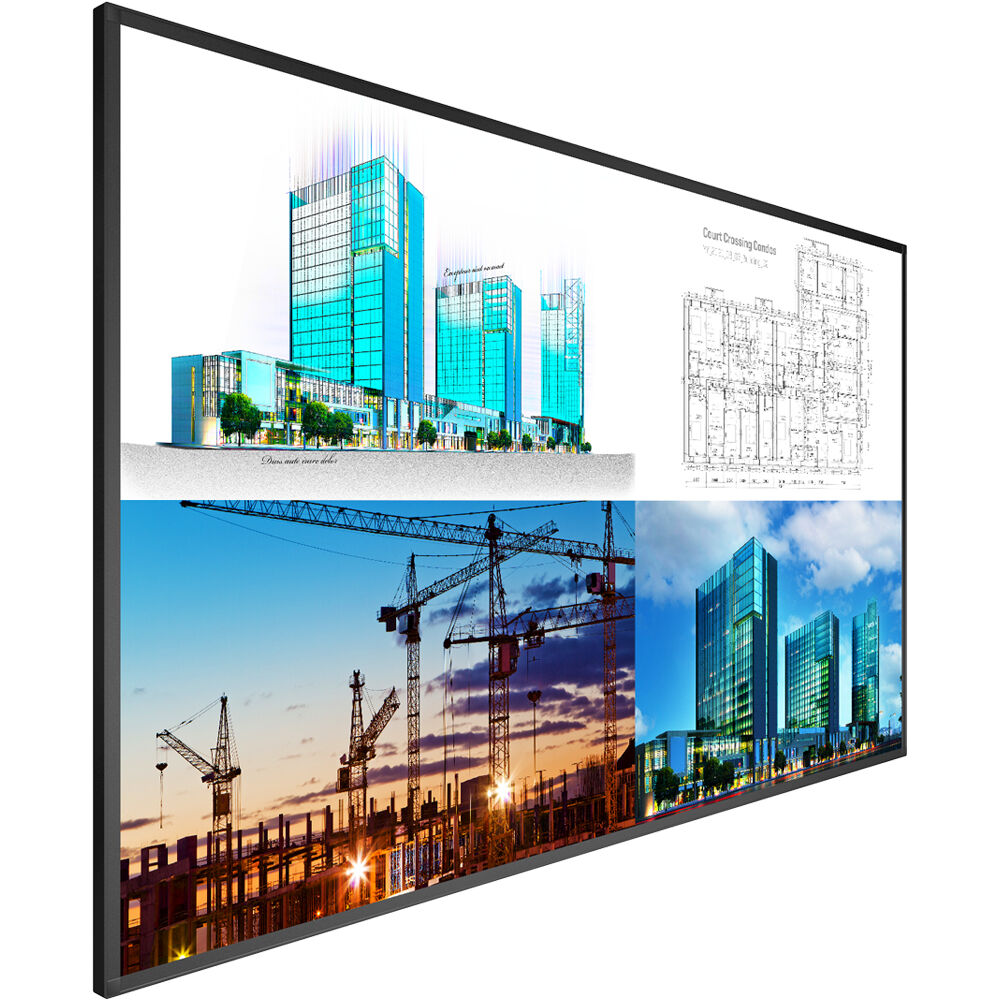

Planar MediaPlex Plus Processing enables advanced multi-source viewing, image adjustments, remote monitoring, and e-mail alerts. It supports picture-in-picture, dual, triple, or quad layouts and storable preset configurations that can be recalled with one command.
Always-On Reliability
The Planar URX Series is designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Convenient Control
Conveniently manage multi-source viewing remotely when connected to the same network using the Planar UltraRes App. Available for Android devices.
On Your Schedule
Schedule automated events such as recalling image layout configurations, adjusting brightness, and powering on and off. Scheduling events can save energy usage and administrative time.
HDR Ready
This display is ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks, and more true-to-life colors. HDR displays are designed to show a larger percentage of the visible color spectrum, rendering on-screen content with the hues and shades creators intended, for a more genuine viewing experience.
Made for America
Organizations that prefer to use products that have been manufactured in the United States or countries designated in the U.S. Trade Agreements Act (TAA) need look no further.
Crestron & Q-SYS Modules & Drivers
Control system modules, drivers, and plug-ins ease reseller integration and consultant recommendations. Crestron and Q-SYS drivers and plugins can save hours of programming, installation, and cost.
Planar Profile Mounting System

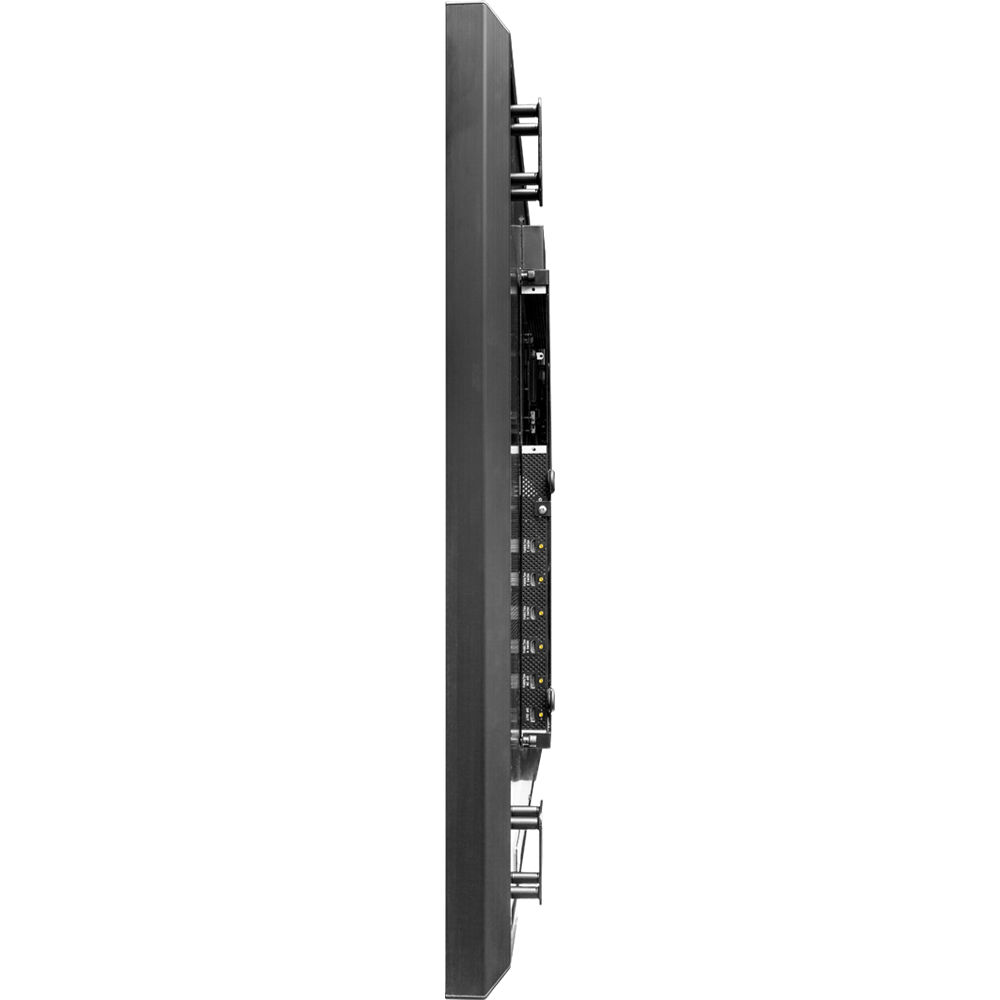

The Planar Profile Mounting System (sold separately) creates a very slim profile when wall mounted and incorporates a lockable kickstand that tilts the display away from the wall for easy access to electronics on the back. This feature eliminates the need to completely remove the display from the wall when accessing inputs or servicing the display.
With the Planar Profile Mounting System, Planar UltraRes X Series displays are thin enough to meet rigorous Americans with Disabilities Act (ADA) accessibility guidelines in buildings and facilities, requiring mounted depth to be less than 4" from the wall. The mounting system is also lockable for added security and is available in both landscape and portrait options.
Additional Features
- IR remote included
- RS-232 control capable
- RJ45 LAN network connection
- HDMI-CEC
- Optical and 3.5mm audio outputs
- Built-in 10W stereo speakers
- Fanless design for quiet operation
Items Included
- Planar Systems UltraRes X Series 75" UHD 4K HDR Commercial Monitor
- Remote Control
- 2 x AAA Battery
- AC Power Cord
- IR Sensor
- HDMI Cable
- USB-A to USB-B Cable
- 2 x Carrying Strap for Lifting and Carrying the Display Using Three People
- Limited 3-Year Manufacturer Warranty (Planar Advance Exchange)
Additional Resources
Planar Systems URX75 Specs
Key Specs
| Display Size |
75"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
700 nits / cd/m2
|
| Inputs |
2x HDMI 2.0
2x HDMI 1.4 1x DisplayPort 1.2 |
| Outputs |
1x DisplayPort
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
1x USB-A (Unspecified Version) (Service) |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 2.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 10 W
|
| Media Card Reader |
No
|
Display
| Display Size |
75"
|
| Panel Type |
VA LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
700 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
Yes, HDR10
|
| Contrast Ratio |
5000:1
|
| Dynamic Contrast Ratio |
20,000:1
|
| Response Time |
6.5 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Color Gamut |
88% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
65.0 x 36.5" / 1650.2 x 928.3 mm
|
| Pixels Per Inch (ppi) |
59 ppi
|
| Finish |
Anti-Glare / Matte
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
2x HDMI 2.0
2x HDMI 1.4 1x DisplayPort 1.2 |
| Outputs |
1x DisplayPort
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
1x USB-A (Unspecified Version) (Service) |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 2.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
Yes, 2x 10 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| OS Compatibility |
Computer: Windows 10 or Later / macOS / Linux
Mobile: Android Only |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: 180.0 W
Maximum: 240.0 W Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 85% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Certifications |
FCC Class A, cTUVus, CE, RoHS
|
| Mounting-Hole Pattern |
400 x 400 mm
|
| Lighting Lifespan |
50000 Hours at 50% Brightness
|
| Impact Resistance |
No
|
| Bezel Thickness |
16.5 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
66.3 x 37.9 x 3.7" / 1685 x 963 x 92.9 mm
|
| Weight |
145.5 lb / 66 kg
|
Packaging Info
| Package Weight |
194 lb
|
| Box Dimensions (LxWxH) |
74 x 44 x 27"
|
