Description
Planar Systems UC Complete Overview
- 1Description
- 2HDR Ready
- 3Powerful Video Control
- 4Always-On Reliability
- 5Accessibility Matters
- 6TAA Compliant
- 7Planar EverCare

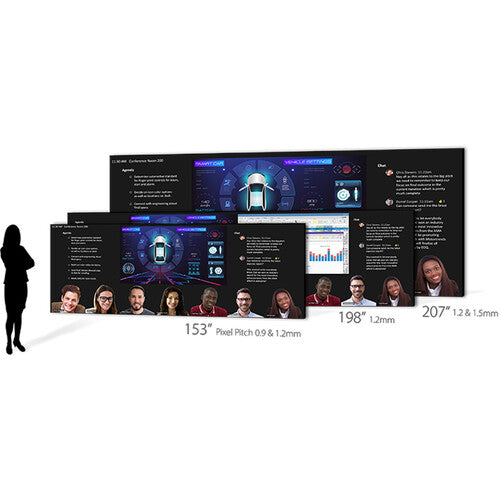

The Planar UC Complete 153" 0.9mm Pixel Pitch 21:9 LED Video Wall Display is an all-in-one package LED video wall solution. Included with this model are the LED display cabinets, video wall controller, trim, wall mounts, cables, remote control, and spare modules to create a 153" diagonal ultra-wide LED video wall display. The Planar UC Complete are seamless LED displays ideally suited to the most popular unified communications and video collaboration platforms such as Microsoft Teams with its front row layout, and it can support comfortable viewing from as close as 5'.
HDR Ready
Displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks, and more true-to-life colors.
Powerful Video Control
The compact and scalable Planar WallDirector Video Controller drives the video wall at native resolution while its corresponding web-based management software simplifies set-up, configuration, operation, and monitoring. The 1U rack mount video controller captures multiple 4K inputs and can be stacked with additional controllers for more video inputs.
Always-On Reliability
Displays are designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Accessibility Matters
With an installed profile depth of less than 4", the display solution meets the requirements of the Americans with Disabilities Act (ADA) Standards for Accessible Design.
TAA Compliant
Organizations that prefer to use products manufactured in the United States or countries designated in the U.S. Trade Agreements Act (TAA) need look no further.
Planar EverCare
Planar EverCare Lifetime Limited Warranty is designed to deliver total assurance for our customers while reducing their lifetime cost of ownership. It demonstrates Planar's profound confidence in their products and Service Organization's ability to deliver. Planar EverCare is comprehensive, covering the product as long as the end customer continues to own and use it in a fixed location. It covers the entire product from controller to sub-pixel, including every component in between. To take advantage of Planar EverCare, the product must be registered with Planar within 60 days of purchase and owned and deployed in North America.
In the Box
- Planar Systems UC Complete 153" 0.9mm Pixel Pitch 21:9 LED Video Wall Display
- Display Cabinets
- Video Controller
- Remote Control
- Wall Mounts
- Trim
- Cables
- Spare Modules
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- HDR Ready
- Powerful Video Control
- Always-On Reliability
- Accessibility Matters
- TAA Compliant
- Planar EverCare
Planar Systems UC Complete Specs
Key Specs
| Display Size |
153"
|
| Resolution |
3840 x 1440
|
| Maximum Brightness |
600 nits / cd/m2
|
| Inputs |
4x HDMI 2.0
|
| Wireless |
No
|
| USB I/O |
1x USB-A Unspecified Version
1x USB-B Unspecified Version |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x RJ45 Serial (RS-232C) Control
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
153"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
21:9
|
| Display Orientation |
Landscape
|
| Resolution |
3840 x 1440
|
| Maximum Brightness |
600 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
7000:1
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
Not Specified by Manufacturer
|
| Viewing Angle (H x V) |
160 x 140°
|
| Screen Area |
142.92 x 53.88" / 363.02 x 136.86 cm
|
| Dot Pitch |
0.9 x 0.9 mm
|
| Pixels Per Inch (ppi) |
27 ppi
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
4x HDMI 2.0
|
| HDCP Support |
Yes
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-A Unspecified Version
1x USB-B Unspecified Version |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x RJ45 Serial (RS-232C) Control
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Mobile App Compatible |
No
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
10 to 80%
|
| Storage Humidity |
10 to 85% (Non-Condensing)
|
Electrical
| Power Consumption |
Maximum: 3770.0 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
100000 Hours
|
| IK Rating |
No
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
11.9 x 4.5 x 0.4' / 362.7 x 137.2 x 12.2 cm
|
| Weight |
401.85 lb / 182.28 kg
|
