Description
Panasonic 55CQE2U Overview
- 1Description
- 24K Image Quality
- 3Wi-Fi and Android OS
- 4High-Visibility
- 5USB-C Connectivity
- 64K USB-A and microSD Media Player
- 7Android OS for Easy Signage Updates
- 8Built-In Tuner
- 9Additional Features

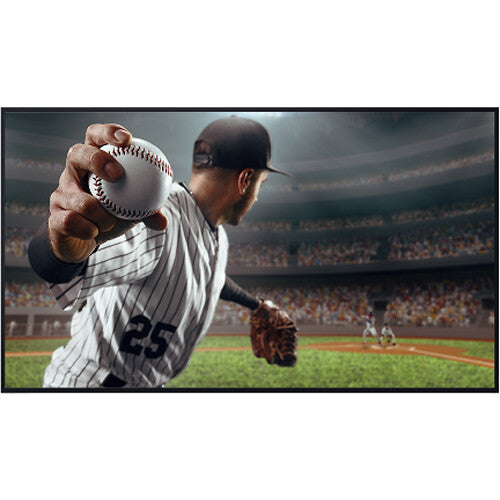

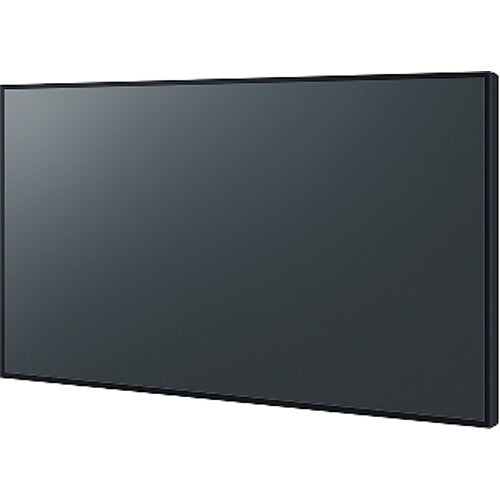

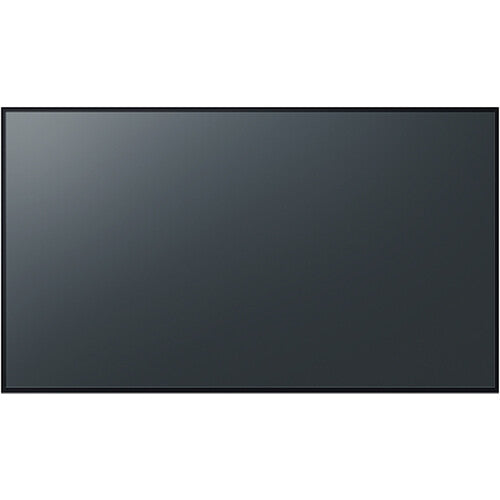

The TH-55CQE2U 55" UHD 4K Commercial Monitor from Panasonic is a 500 nits bright LCD ideal for conference rooms, classrooms, and entry-level digital signage. The TH-55CQE2U features HDMI, RF antenna, USB, and microSD inputs and is capable of operating 16 hours per day, 7 days a week in landscape or portrait orientation. The built-in Android OS and Wi-Fi capability allow for stand-alone operation or connecting the display to a larger A/V network via RS-232 and LAN control.
4K Image Quality
The TH-55CQE2U projects detailed content clearly with 500 nits brightness and a wide viewing panel suitable for use in corporate conference rooms and educational facilities. With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images.
Wi-Fi and Android OS
The CQE2 series is equipped with Android OS, making it possible to operate digital signage without additional equipment. The TH-55CQE2U is equipped with Wi-Fi functionality to wirelessly display images on the display from a PC or Android device. Control is possible via RS-232 or LAN. Simultaneous control and batch management over a network is also possible.
High-Visibility
The CQE2 series displays 4K resolution images at a brightness of 500 nits, ensuring high visibility even in bright environments.
USB-C Connectivity
The CQE2 series has a USB-C terminal (15W) that allows connection from mobile devices. The 4K display, data transfer, and charging of connected devices can be simultaneously conducted over a single cable with the USB-C port.
4K USB-A and microSD Media Player
Video and still images saved into USB or microSD media in advance can simply be inserted into the CQE2 series for automatic playback.
Android OS for Easy Signage Updates
By installing the apk file via USB or network, digital signage can be operated without STB or PC.
Built-In Tuner
A TV tuner is built in, providing highly precise 4K images. A Sports mode is also equipped, ideal for live sports relays with dynamic images. And in addition to use in sports bars and restaurants, the CQE2 Series is optimal for refreshing office entertainment and information gathering during emergencies.
Additional Features
- Built-in stereo speakers
- Bluetooth 5.1
- LAN control support
- Crestron Connected support
- PJLink support
- Multi-monitoring and control software compatible
- HDMI CEC
- USB data cloning
- External IR sensor
UPC: 885170410305
In the Box
- Panasonic TH-55CQE2U 55" UHD 4K Commercial Monitor
- Remote Control
- 2 x AA Battery
- AC Power Cord
- IR Sensor (4.85')
- IR Sensor Holder with Mounting Screws
- RS-232C Cable (3.28')
- 3 x Cable Clamper
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 4K Image Quality
- Wi-Fi and Android OS
- High-Visibility
- USB-C Connectivity
- 4K USB-A and microSD Media Player
- Android OS for Easy Signage Updates
- Built-In Tuner
- Additional Features
Panasonic 55CQE2U Specs
Key Specs
| Display Size |
54.63"
|
| Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Inputs |
4x HDMI
1x Coaxial F-Type (RF Antenna) |
| Outputs |
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical (Digital Audio) |
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 5.1
|
| USB I/O |
1x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-A 2.0 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Other I/O |
1x 1/8" / 3.5 mm Serial (RS-232C) Control Input
1x 1/8" / 3.5 mm IR Input |
| Built-In Speakers |
Yes, 2x 10 W
|
| Media Card Reader |
1x microSDXC
|
Display
| Display Size |
54.63"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
1200:1
|
| Dynamic Contrast Ratio |
50,000:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
47.6 x 26.8" / 1209.6 x 680.4 mm
|
| Horizontal Frequency |
15.63 to 135 kHz
|
| Vertical Frequency |
24 to 85.06 Hz
|
| Pixels Per Inch (ppi) |
81 ppi
|
| Finish |
Anti-Glare / Matte
|
Surface
| Haze Level |
1%
|
Video
| TV Tuner |
Yes - ATSC
|
Connectivity
| Inputs |
4x HDMI
1x Coaxial F-Type (RF Antenna) |
| Outputs |
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 5.1
|
| NFC |
No
|
| USB I/O |
1x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-A 2.0 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Other I/O |
1x 1/8" / 3.5 mm Serial (RS-232C) Control Input
1x 1/8" / 3.5 mm IR Input |
Speaker
| Built-In Speakers |
Yes, 2x 10 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Android
|
| OS Compatibility |
Windows
|
| Mobile App Compatible |
Yes: Android Only
|
| Media Card Reader |
1x microSDXC
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Video File Types |
AVI, H.263, H.264/AVC, H.265/HEVC, MJPEG, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9, WMV3, Xvid
|
| Supported Audio File Types |
AAC, APE, FLAC, MP1, MP2, MP3, PCM-WAV, WMA, WMA8, WMA9
|
| Supported Photo File Types |
BMP, GIF, JPEG, PNG
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
20 to 80%
|
Electrical
| Power Consumption |
Typical: 148.0 W
Standby: 0.5 W |
| AC Input Power |
110 to 127 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General

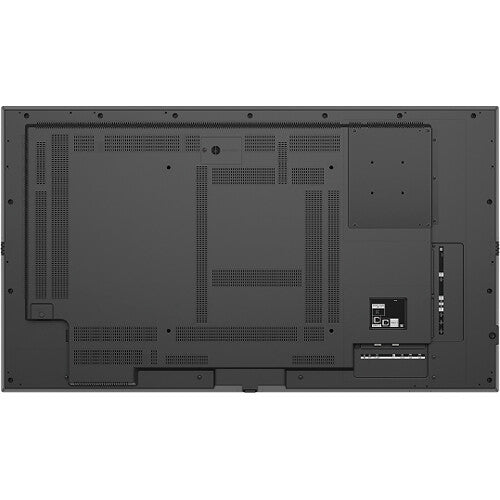

| Mounting-Hole Pattern |
400 x 400 mm
|
| Lighting Lifespan |
50000 Hours
|
| IK Rating |
No
|
| Bezel Thickness |
11 mm (Right/Top/Left)
13.8 mm (Bottom) |
| Duty Cycle |
16 Hours / 7 Days
|
| Dimensions |
48.7 x 28 x 2.7" / 1236 x 710 x 68 mm
|
| Weight |
39.5 lb / 17.9 kg</
|
