Description
Orion Images R4N86N Overview

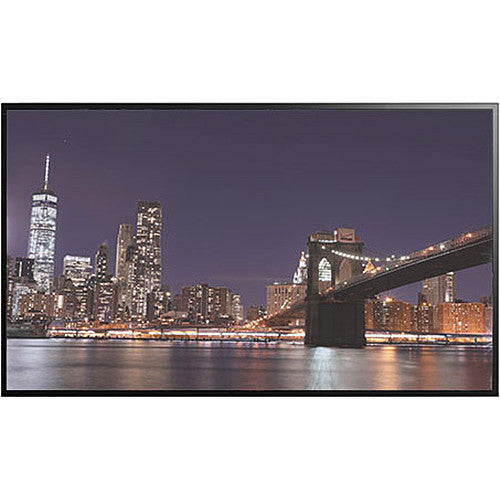

Put up an ultra-high-definition video wall that grabs and holds audience attention with the R4N86NNU 86" 4K UHD Video Wall Display from Orion Images. Integrating a video wall processor, the R4N86NNU gives you the ability to take a single video source and display it across an entire video wall. The display's narrow bezel is 12.6mm all around to minimize gaps in multi-display images.
Besides 3840 x 2160 native resolution and input support, the display offers 500 cd/m? brightness, wide 178? viewing angles, and a response time of less than 8 ms. Connect the display to your system via HDMI, DisplayPort, DVI, or VGA. Integrated RS-232C, IR, and RJ45 control interfaces, along with optional Wi-Fi, give you easy and convenient options for controlling and managing the display.
Items Included
- Orion Images R4N86NNU 86" 4K UHD Video Wall Display
- Power Cable
- IR Remote Control with Batteries
- 2 x Joint Bracket
- 8 x Screw for Joint Bracket
- UTP Cable
- DP Cable
- HDMI Cable
- Male to Female Serial Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Orion Images R4N86N Specs
| Display Size |
85.6"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Touchscreen |
No
|
| A/V Inputs |
1x DisplayPort
3x HDMI 1x DVI-D 1x DE-15/DB-15 (VGA) |
| USB I/O |
1x USB-A (Unspecified Version) [Service]
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Built-In Speakers |
No
|
| Display Size |
85.6"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Viewing Angle (H x V) |
178 x 178?
|
| Touchscreen |
No
|
| Video System |
NTSC / PAL
|
| TV Tuner |
No
|
| A/V Inputs |
1x DisplayPort
3x HDMI 1x DVI-D 1x DE-15/DB-15 (VGA) |
| A/V Outputs |
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
No
|
| USB I/O |
1x USB-A (Unspecified Version) [Service]
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| NFC |
No
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control
1x 1/8" / 3.5 mm IR |
| OPS/Expansion Slots |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
Yes: Picture-in-Picture (PIP)
|
| Built-In Speakers |
No
|
| Smart TV |
No
|
| Built-In Mic |
No
|
| Power Consumption |
Operational: < 310.0 W
|
| Input Power |
100 to 240 VAC, 60 / 50 Hz
|
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| VESA Mounting-Hole Pattern |
800 x 600 mm
|
| Environmental Resistance |
No
|
| Lock Slot |
No
|
| Bezel Thickness |
12.6 mm (Right/Top/Left/Bottom)
|
| Dimensions |
75.7 x 43 x 3.3" / 1922.8 x 1092.2 x 83.8 mm
|
| Weight |
165.3 lb / 74.98 kg
|
