Description

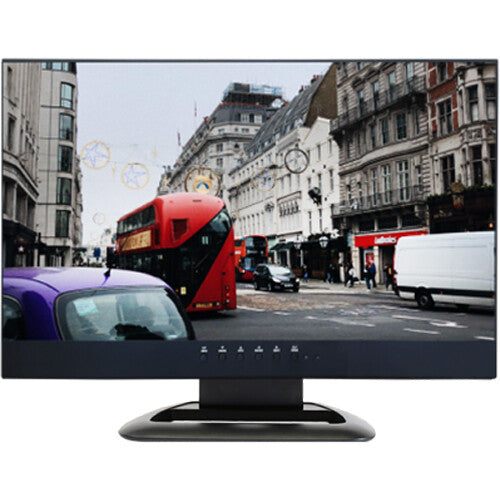

Orion Images 24HSDI3G Overview
The Orion Images 24HSDI3G 24" Full HD Commercial Monitor is a 250-nit bright LCD LED screen that supports 3G/HD/SD-SDI formats for use in broadcast and CCTV applications. It features 24/7 operability, an anti-glare screen, and an electronic galvanized iron metal frame for continuous use in demanding environments.
Additional Details
- 3G/HD/SD-SDI (level A/level B) is supported in addition to composite, PC (VGA), and HDMI inputs
- Built-in dual 1W speakers
- 3D comb filter
- Deinterlacing
- Advanced auto power recovery
- Noise Reduction control (NR)
- Auto pixel shift
- Auto source sequencing
- Trigger sensor
Items Included
- Orion Images 24HSDI3G 24" Full HD Commercial Monitor
- Power Supply and Cable
- Remote Control
- Desktop Stand
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Orion Images 24HSDI3G Specs
Key Specs
| Display Size |
23.8"
|
| Native Resolution |
16 x 9
|
| Maximum Brightness |
250 nits / cd/m2
|
| Touchscreen |
No
|
| A/V Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) 1x BNC (SDI) 2x BNC (Composite) 2x 2RCA (Analog Audio) |
| USB I/O |
1x USB-A (Unspecified Version) [Service]
|
| Ethernet I/O |
No
|
| Built-In Speakers |
Yes: 2x 1 W
|
Display
| Display Size |
23.8"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
16 x 9
|
| Maximum Brightness |
250 nits / cd/m2
|
| Lighting System |
Backlit LED
|
| HDR Support |
No
|
| Contrast Ratio |
1500:1
|
| Response Time |
< 14 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors
|
| Viewing Angle (H x V) |
178 x 178?
|
| Finish |
Anti-Glare
|
Surface
| Touchscreen |
No
|
Video
| Video System |
NTSC / PAL
|
| TV Tuner |
No
|
Connectivity
| A/V Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) 1x BNC (SDI) 2x BNC (Composite) 2x 2RCA (Analog Audio) |
| A/V Outputs |
1x BNC (SDI)
2x BNC (Composite) |
| HDCP Support |
No
|
| USB I/O |
1x USB-A (Unspecified Version) [Service]
|
| Ethernet I/O |
No
|
| NFC |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes: 2x 1 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Operational: < 33.0 W
|
| Input Power |
12 VDC at 5 A
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| VESA Mounting-Hole Pattern |
100 x 100 mm
|
| Lighting Lifespan |
30000 Hours
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
No
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
21.2 x 15.2 x 7.2" / 538 x 387.1 x 182 mm (with Stand)
21.2 x 13.4 x 2.1" / 539 x 339.2 x 52.7 mm (without Stand) |
| Weight |
14.6 lb / 6.6 kg
|
