Description
Newline 24ZPRO Overview

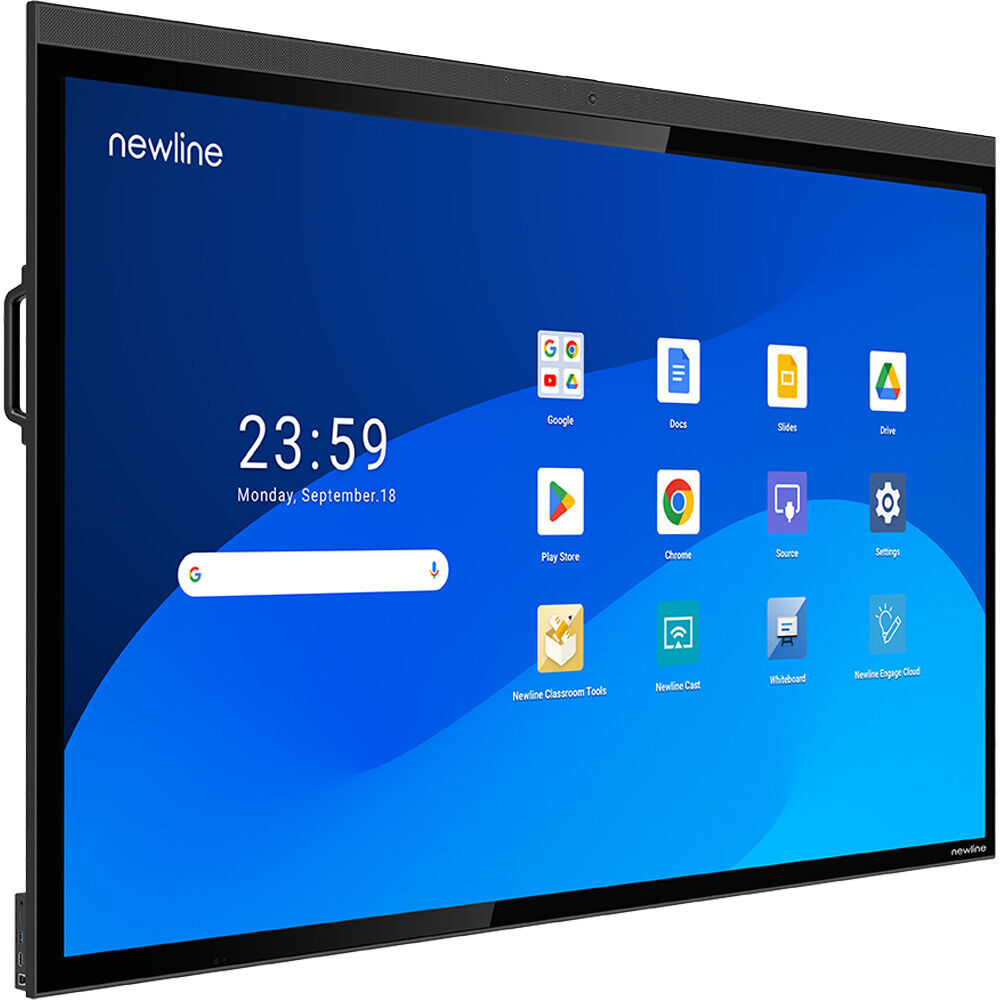

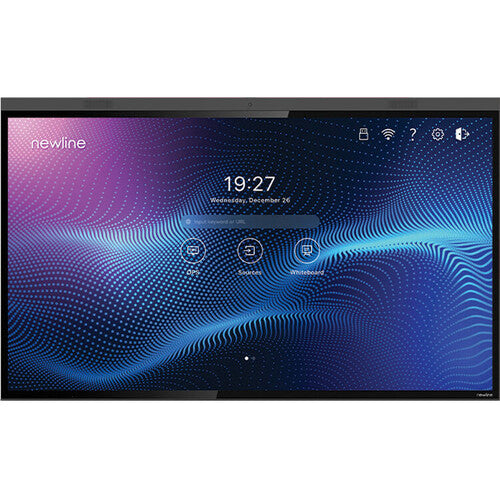

Add streamlined, interactive collaboration to meeting rooms, huddle spaces, classrooms, and more with the Newline Z Pro Series 55" UHD 4K Touchscreen Commercial Monitor. The Z Pro Series displays are Google EDLA-certified, with an embedded Android 13 operating system, 8-microphone array, and 2-channel speaker system for an all-in-one solution well suited to corporate and hybrid education environments.
Google Play Store, Google Workspace & Advanced Security
Discover the capabilities of the Google EDLA-Certified Newline Z Pro series. It provides connectivity to Google accounts and access to a suite of Google Workspace applications like Gmail, Drive, Docs, Sheets, Slides, Meet, and beyond. With robust security features such as password protection, two-step authentication, data encryption, and more, the Newline Z Pro series ensures unparalleled protection for your corporate data and communications, giving you peace of mind.
Immersive Audio-Visual Experience
The TT-5524ZPRO features an integrated 8-microphone array with automatic gain control and echo-canceling technology for clear voice transmission from any corner of the room. Coupled with a powerful 2-channel speaker system, including dual 20W speakers. The optical bonding technology with a 4K display offers an ultra-wide 178° viewing angle, ensuring robust and clear images from any seating position. Equipped with a Proximity Sensor, the Newline Z Pro will power on/off automatically based on human presence in the room.
OS Compatibility
The integrated Android 13 Operating System delivers fast performance, exceptional response, and top-tier security. The TT-5524ZPRO includes 8GB RAM and 64GB ROM, offering improved performance and expanded storage capacity. Plug in an SDM-S type peripheral for easy expansion and flexible integration with Windows OS or Linux OS.
Optional 4K AI Camera
The Newline 4K AI Camera (sold separately) works with video conferencing software like Zoom, Google Meet, Microsoft Teams, Webex, and more. With a wide-angle field of view, auto- framing, and tiltable camera design, you will always be at the center of the presentation from anywhere in the room.
Additional Features
- 20-point touch with embedded Android system
- 40-point touch with Windows devices
- Multi-touch with palm rejection and object recognition
- Antimicrobial glass helps prevent the spread of germs among users
- Built-in Wi-Fi 6 and Gigabit Ethernet connectivity
- Customize and save multiple user profiles
Items Included
- Newline Z Pro Series 55" UHD 4K Touchscreen Commercial Monitor
- Power Cord (6.5')
- USB-A to USB-B Cable (10')
- USB-C Cable (6.5')
- Audio Cable (10')
- HDMI Cable (10')
- Remote Control
- 2 x AAA Batteries for Remote
- Magnetic Pen Set
- Screen Cleaning Kit
- 4 x M8 x 20 Screws
- Limited 3-Year Manufacturer Warranty
Additional Resources
Newline 24ZPRO Specs
Key Specs
| Display Size |
55"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| Touchscreen |
Yes, Projected Capacitive
|

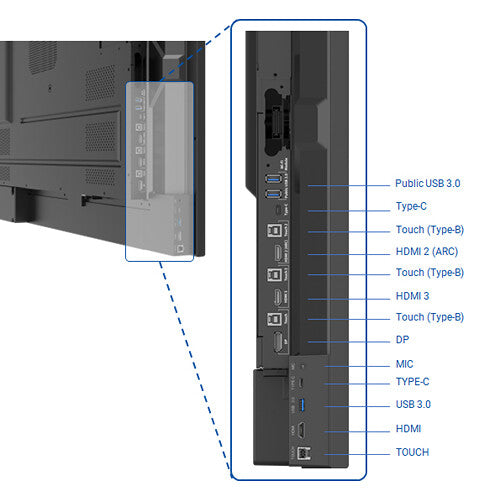

| Inputs |
3x HDMI 2.0
1x DisplayPort 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x HDMI
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.2
|
| USB I/O |
2x USB-C (Unspecified Version) (DisplayPort Alt Mode/Audio/Charging/Control/Touchscreen Control/Video)
3x USB-B (Unspecified Version) (Touchscreen Control) 3x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
2x RJ45
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Built-In Speakers |
Yes, 2x 20 W
|
Display
| Display Size |
55"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
No
|
| Contrast Ratio |
4000:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors
|
| Viewing Angle (H x V) |
178 x 178°
|
| Finish |
Anti-Glare / Matte, Anti-Friction
|
Surface
| Touchscreen |
Yes, Projected Capacitive
|
| Multi-Touch Points |
40
|
| Hardness Rating |
9H
|
| Haze Level |
2%
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
3x HDMI 2.0
1x DisplayPort 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x HDMI
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes
|
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.2
|
| NFC |
No
|
| USB I/O |
2x USB-C (Unspecified Version) (DisplayPort Alt Mode/Audio/Charging/Control/Touchscreen Control/Video)
3x USB-B (Unspecified Version) (Touchscreen Control) 3x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
2x RJ45
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 20 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Yes, Android 13
|
| CPU |
8-Core:
Cortex A73 (4 Core) Cortex A53 (4 Core) |
| Storage |
64 GB
|
| RAM |
8 GB
|
| OS Compatibility |
Windows
|
| Built-In Mic |
Yes
|
Supported File Formats
| Supported Video File Types |
H.263, H.264/AVC, H.265/HEVC, MJPEG, MPEG, MPEG2, VP8, VP9
|
| Supported Audio File Types |
AAC, FLAC, LPCM, MP1, MP2, MP3
|
| Supported Photo File Types |
BMP, GIF, JPG, PNG
|
Electrical
| Power Consumption |
Maximum: < 600.0 W
Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 6 A
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 0 to 93% Humidity
|
| Certifications |
ENERGY STAR, FCC Part 15 Class B
|
| VESA Mounting-Hole Pattern |
400 x 400 mm
|
| Lighting Lifespan |
50000 Hours
|
| Impact Resistance |
No
|
| Lock Slot |
No
|
| Dimensions |
50.3 x 31.4 x 3.1" / 1277.6 x 797.6 x 78.7 mm
|
| Weight |
61.7 lb / 28.0 kg
|
