Description
Lilliput MD31 Overview

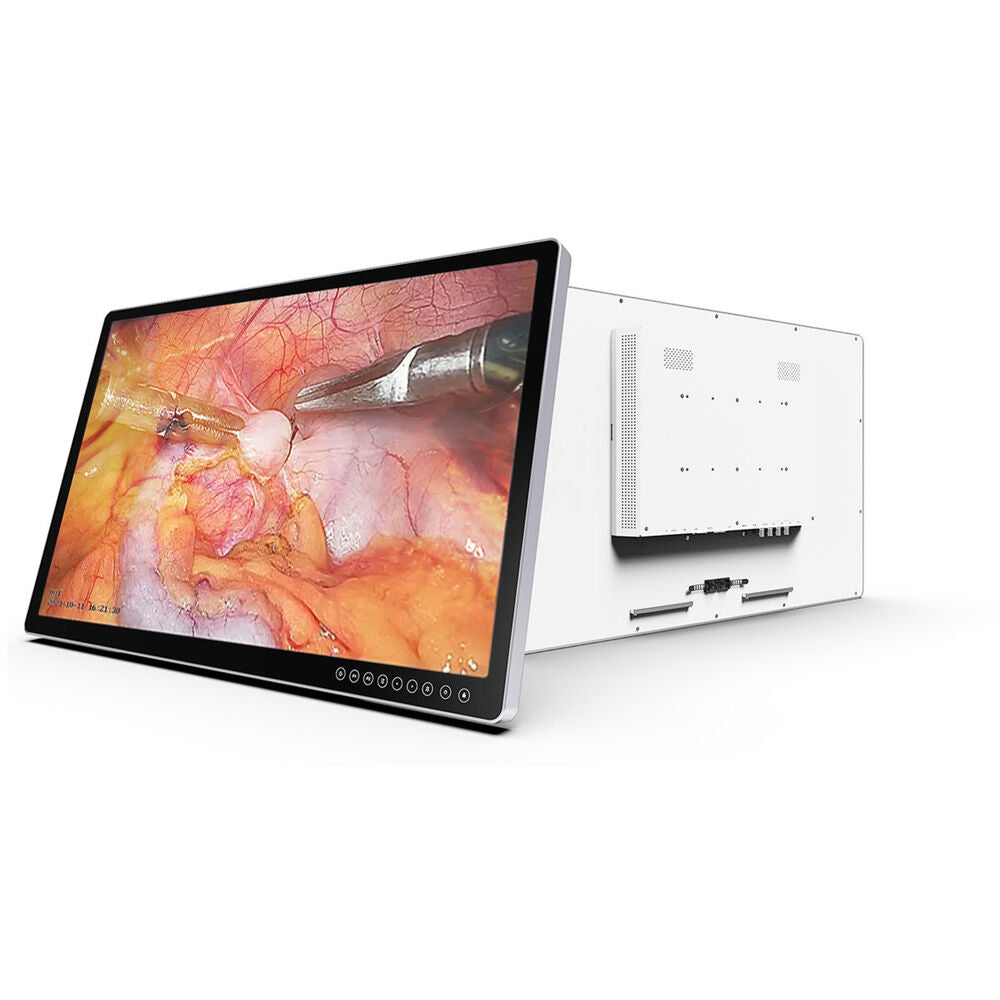

The Lilliput Aimedik MD31 31.5" UHD 4K Surgical Monitor is a 350-nit bright, IP54-rated, medical-grade display with optically bonded antireflective glass, wide color gamut, and calibration capability for accurate image reproduction in endoscopy and surgery applications.
Antireflective Screen Coating
The optical bonding process can remove the air between the LCD panel and the glass, ensuring that foreign objects such as dust and moisture will not damage the panel. The antireflective screen coating reduces interfering glare, such as reflections from surgical lights.
Color Correction
HDR capability and 10-bit color processing provide a wide color gamut and calibration capability. The MD31 is compliant with DICOM part 14 and Gamma 1.8-2.6.
Additional Details

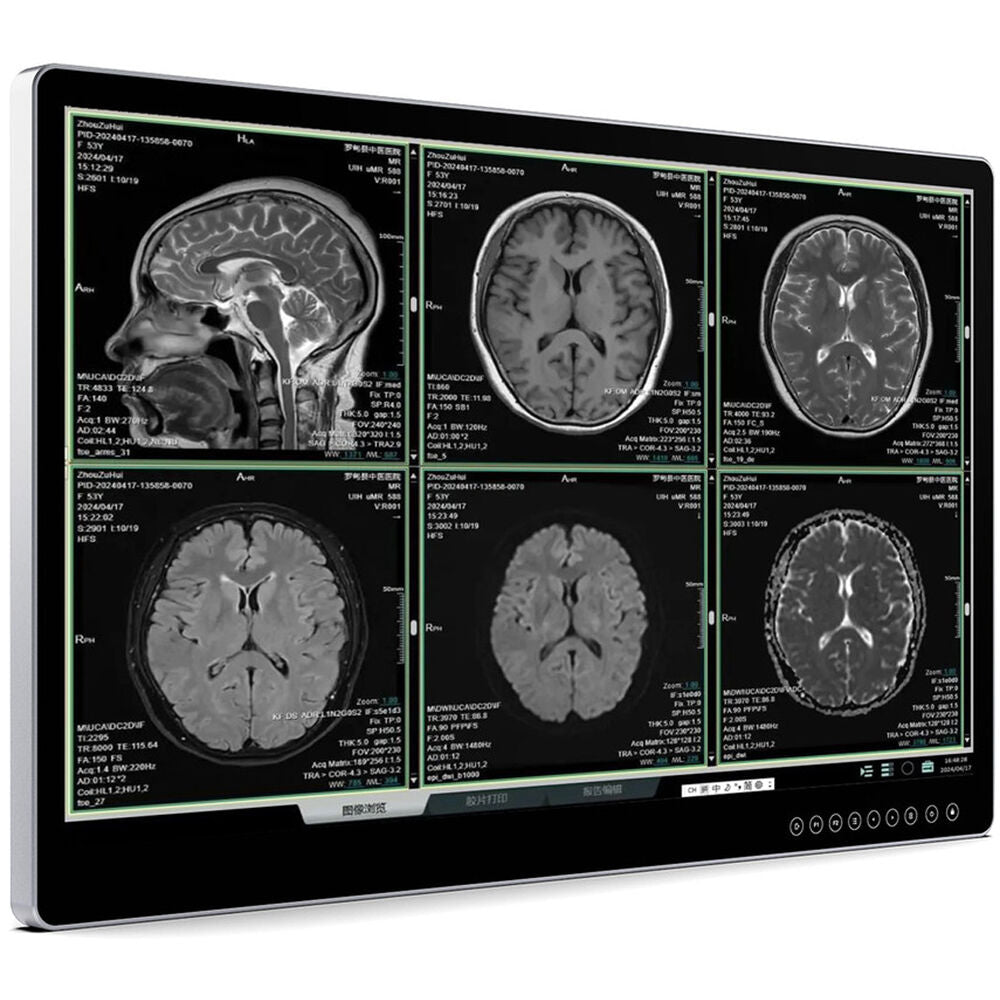

- Multiview capability supports dual-screen, quad-screen, and picture-in-picture
- Displayed images can be rotated fully or mirrored to match the line of sight
- Auto Input Select mode switches to another active input if the signal is interrupted

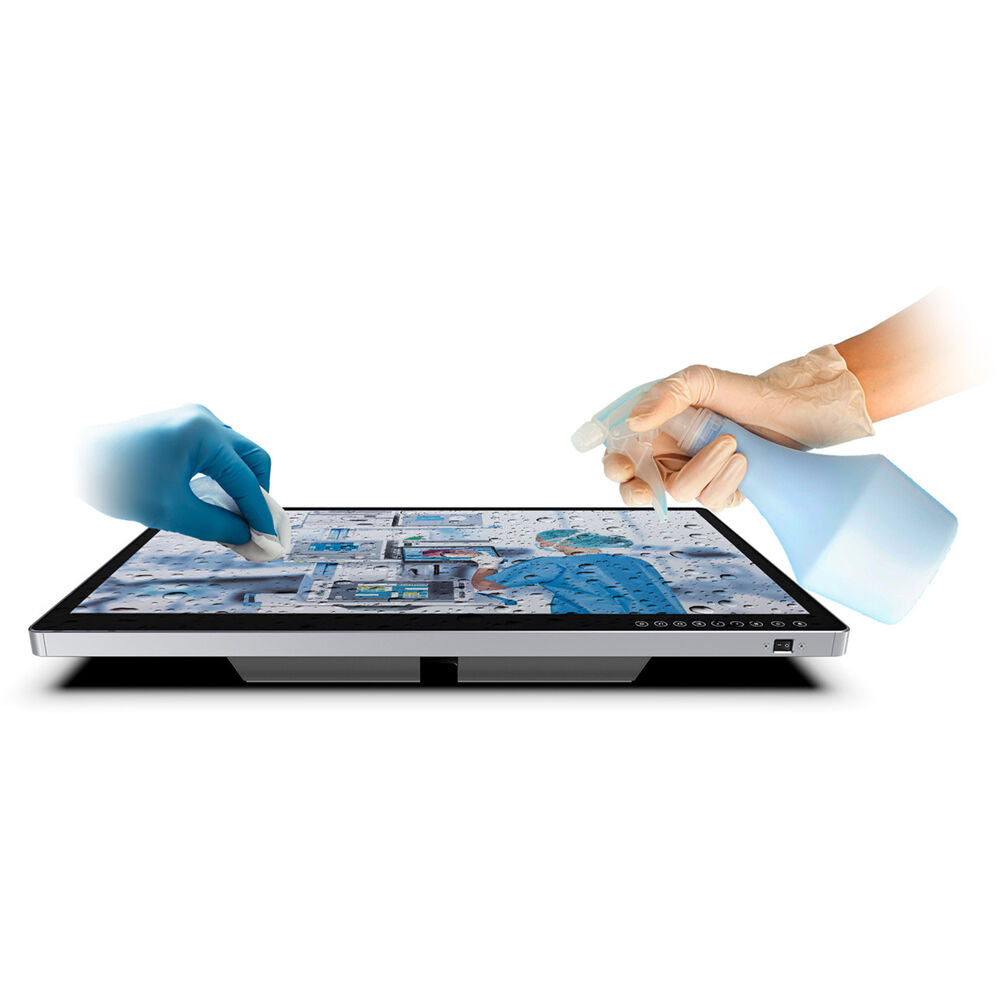

- IP54 water and dustproof capability makes it easy to clean with alcohol or water

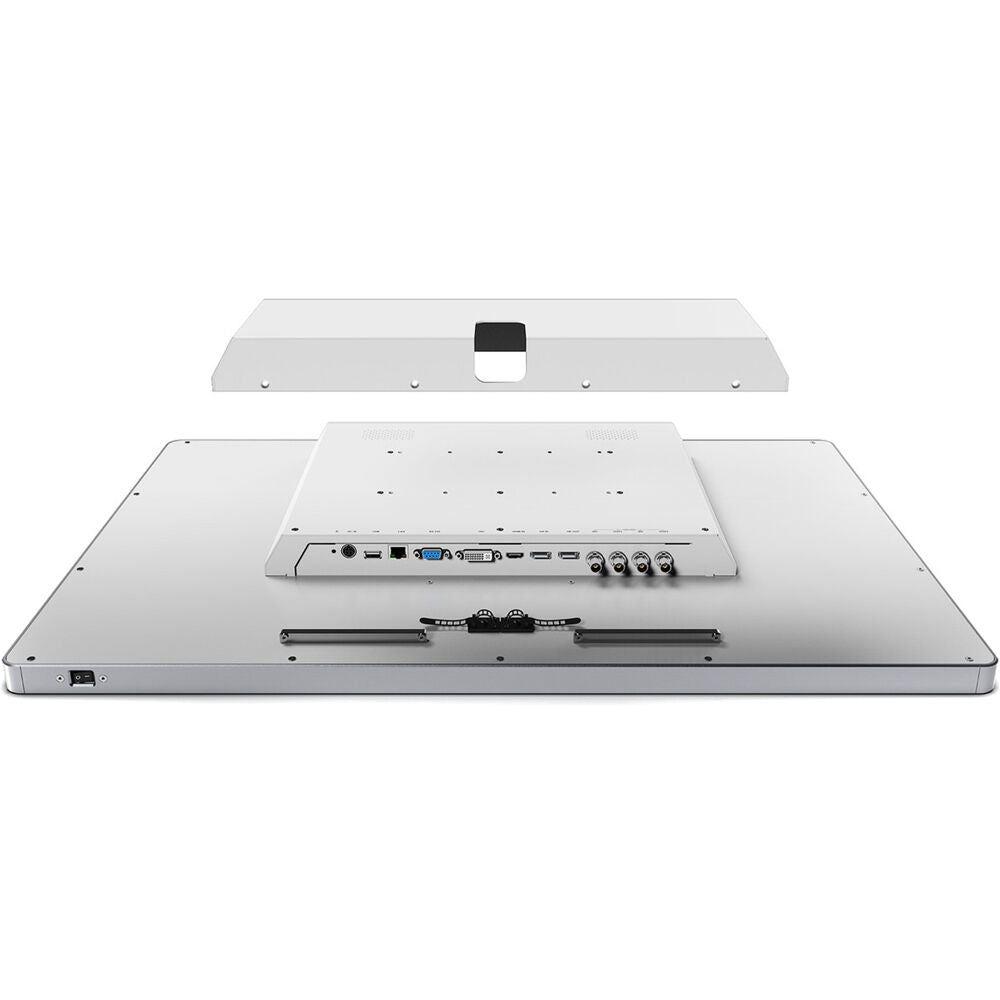

- Cable Shield helps prevent cleaning solutions from coming in contact with the interface
Items Included
- Lilliput Aimedik MD31 31.5" UHD 4K Surgical Monitor
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lilliput MD31 Specs
Key Specs
| Display Size |
31.5"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| Touchscreen |
No
|
| A/V Inputs |
1x DVI-D
1x HDMI 2.0 1x DisplayPort 2x 12G-SDI |
| USB I/O |
1x USB-A (Unspecified Version)
|
| Ethernet I/O |
1x RJ45
|
| Built-In Speakers |
No
|
Display
| Display Size |
31.5"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| HDR Support |
Yes
|
| Contrast Ratio |
1000:1
|
| Response Time |
14 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Viewing Angle (H x V) |
178 x 178?
|
| Finish |
Anti-Glare
|
Surface
| Touchscreen |
No
|
Video
| TV Tuner |
No
|
Connectivity
| A/V Inputs |
1x DVI-D
1x HDMI 2.0 1x DisplayPort 2x 12G-SDI |
| A/V Outputs |
1x DisplayPort
2x BNC (SDI) |
| HDCP Support |
Yes
|
| USB I/O |
1x USB-A (Unspecified Version)
|
| Ethernet I/O |
1x RJ45
|
| NFC |
No
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Operational: < 60.0 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 122?F / 0 to 50?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Certifications |
EN60601-1, IEC 60601-1
|
| VESA Mounting-Hole Pattern |
100 x 100 mm, 200 x 100 mm
|
| Lighting Lifespan |
30000 Hours
|
| Environmental Resistance |
Dust/Water-Resistant (IP54)
|
| Impact Resistance |
No
|
| Dimensions |
29.4 x 18.3 x 2.5" / 747 x 464 x 64.5 mm
|
| Weight |
26.5 lb / 12 kg
|
Packaging Info
| Package Weight |
36.5 lb
|
| Box Dimensions (LxWxH) |
34 x 23 x 6.5"
|
