Description

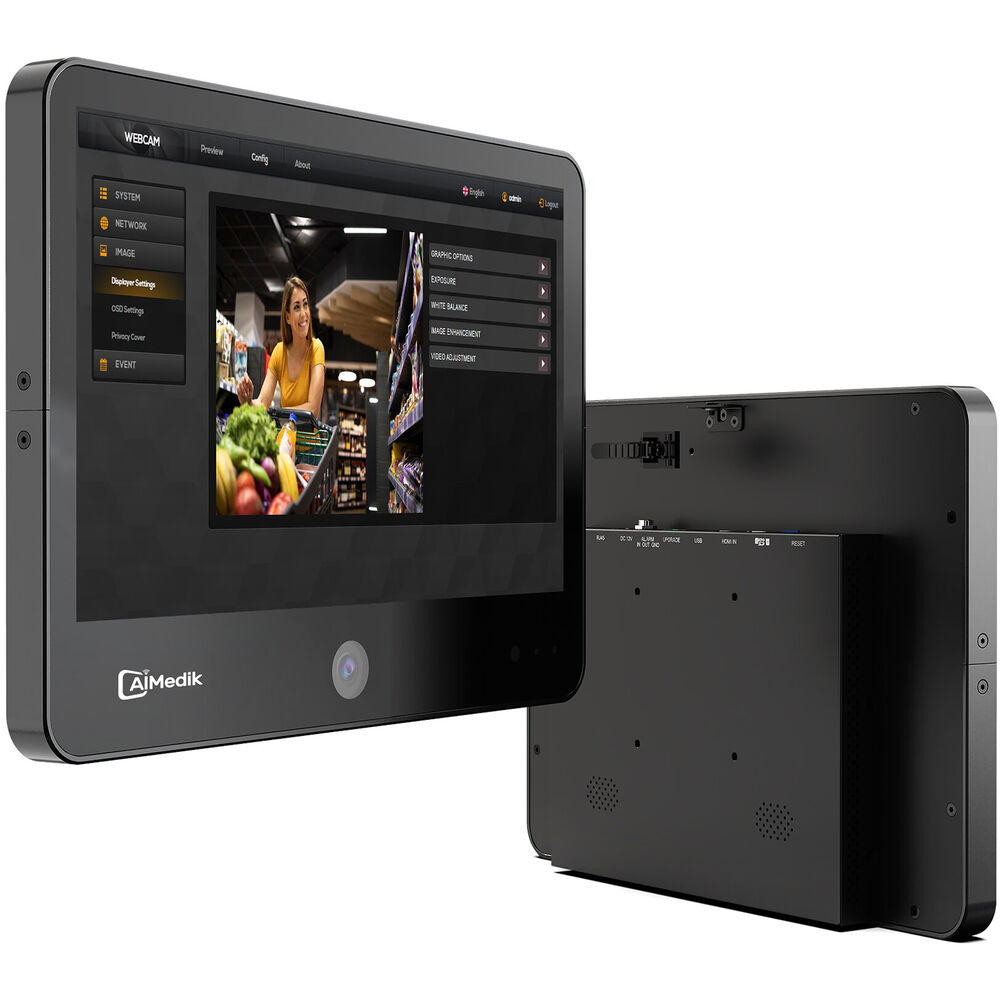

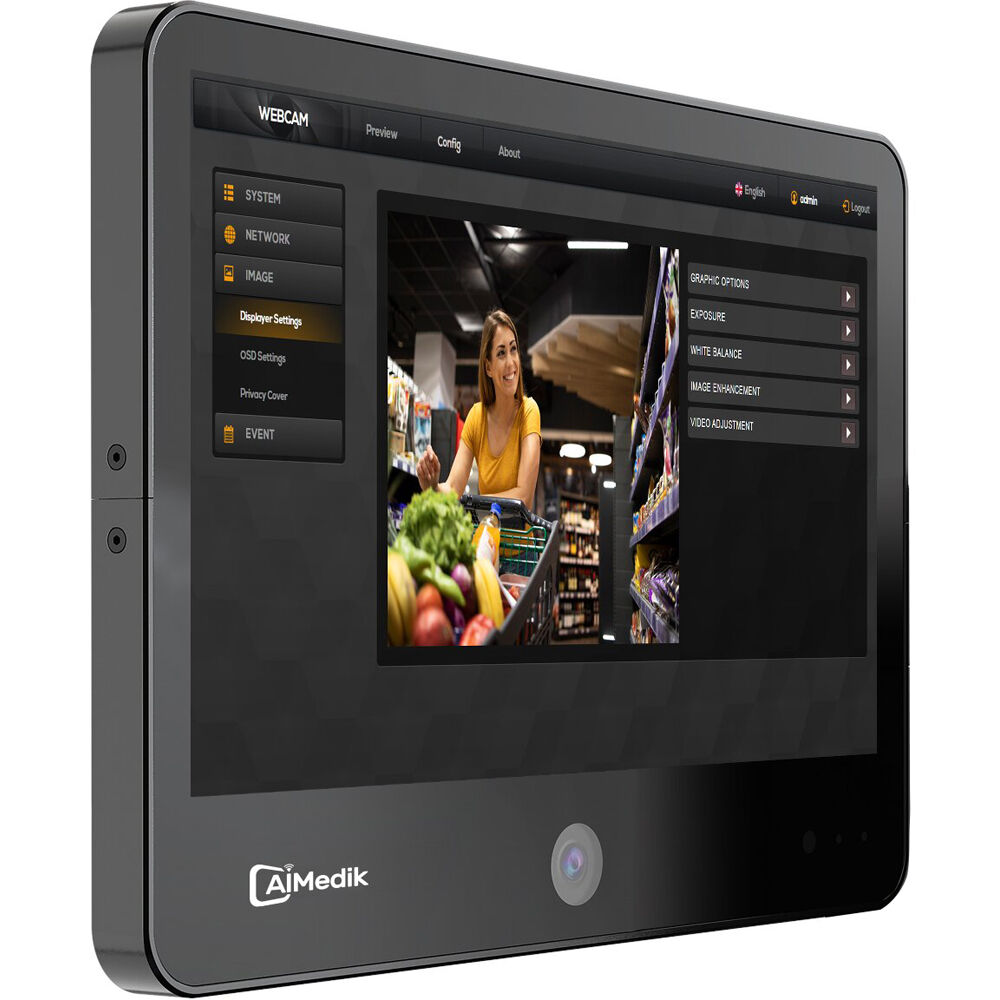

Lilliput IPV1330 Overview
Combine messaging and monitoring in one compact display with the Lilliput 13.3" IP Public View Monitor. This 300 nits bright, Full HD display comes in a rugged metal casing with an integrated 2MP, wide-angle camera. It is an ideal option for monitoring and recording in medical, retail, and surveillance applications.
A Gigabit Ethernet input allows for video, data, control, and power over a single cable connection. Media playback is also available via USB and MicroSD inputs, or connect an external player via HDMI input.
Safety Performance
The IPV1330 comes with features such as obstruction detection, video loss detection, and motion detection, which can improve the security within the surveillance area. When the camera is blocked by an object, an interruption in video signal occurs, or when an object is moving under the designated area, the monitor will sound an alarm to alert the user to check for abnormalities.
Set Text On the Screen
Different texts can be selected for inclusion in the image to inform people that a video is being recorded, which is a deterrent.
Additional Features
- Integrated 2MP camera has 123° horizontal viewing angle
- An interface cover prevents cables from disconnected by eternal forces
- An integrated cable clamp provides strain relief and helps prevent connections from falling off
- A cable outlet bunches cables to keep tidy
- Control and monitor remotely via network platform
- Phoenix connector included for alarm in/out/GND
- PoE supported, DC power supply included
Items Included
- Lilliput 13.3" Full HD IP Public View Monitor
- DC Power Adapter
- Phoenix Base for Alarm Connection
- Remote Control
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lilliput IPV1330 Specs
Key Specs
| Display Size |
13.3"
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
300 nits / cd/m2
|
| Inputs |
1x HDMI
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Audio/Photo/Video)
1x Mini-USB (Unspecified Version) (Service) |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Other I/O |
1x Terminal Block Input/Output
|
| Built-In Speakers |
Yes, 2
|
| Media Card Reader |
1x microSDXC
|
| Webcam |
User-Facing: 2 MP (1080p)
|
Display
| Display Size |
13.3"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
300 nits / cd/m2
|
| HDR Support |
Yes, HDR10
|
| Contrast Ratio |
800:1
|
| Viewing Angle (H x V) |
170 x 170°
|
| Pixels Per Inch (ppi) |
166 ppi
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x HDMI
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Audio/Photo/Video)
1x Mini-USB (Unspecified Version) (Service) |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Other I/O |
1x Terminal Block Input/Output
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Yes
|
| Mobile App Compatible |
No
|
| Media Card Reader |
1x microSDXC
|
Camera
| Webcam |
User-Facing: 2 MP (1080p)
|
Electrical
| Power Consumption |
Typical: 17.0 W
|
| Input Power |
12 VDC at 3 A
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 122°F / 0 to 50°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Mounting-Hole Pattern |
75 x 75 mm
|
| Material of Construction |
Metal
|
| Dimensions |
13.2 x 9.6 x 1.7" / 334.6 x 244 x 42.9 mm
|
| Weight |
5.03 lb / 2.28 kg
|
