Description
LG UH5F Overview
- 1Description
- 2Clear View with Non-Glare Coating
- 34K UHD Resolution
- 4High Performance with webOS
- 5Various Sensor Applications
- 6Compatible with A/V Control Systems
- 7Compatible with Cisco Video Conference Systems
- 8Real Time Monitoring & Control
- 9Multiscreen Feature with PBP & PIP
- 10Wireless Access Point
- 11Optional LG ConnectedCare Maintenance Service
- 12HDCP Compliance
- 13Additional Features

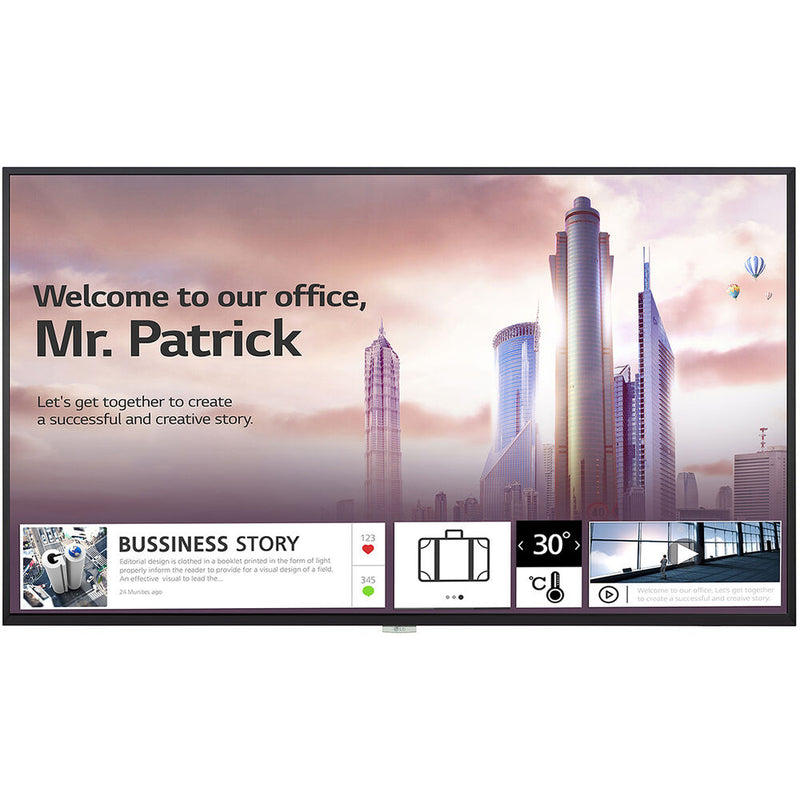

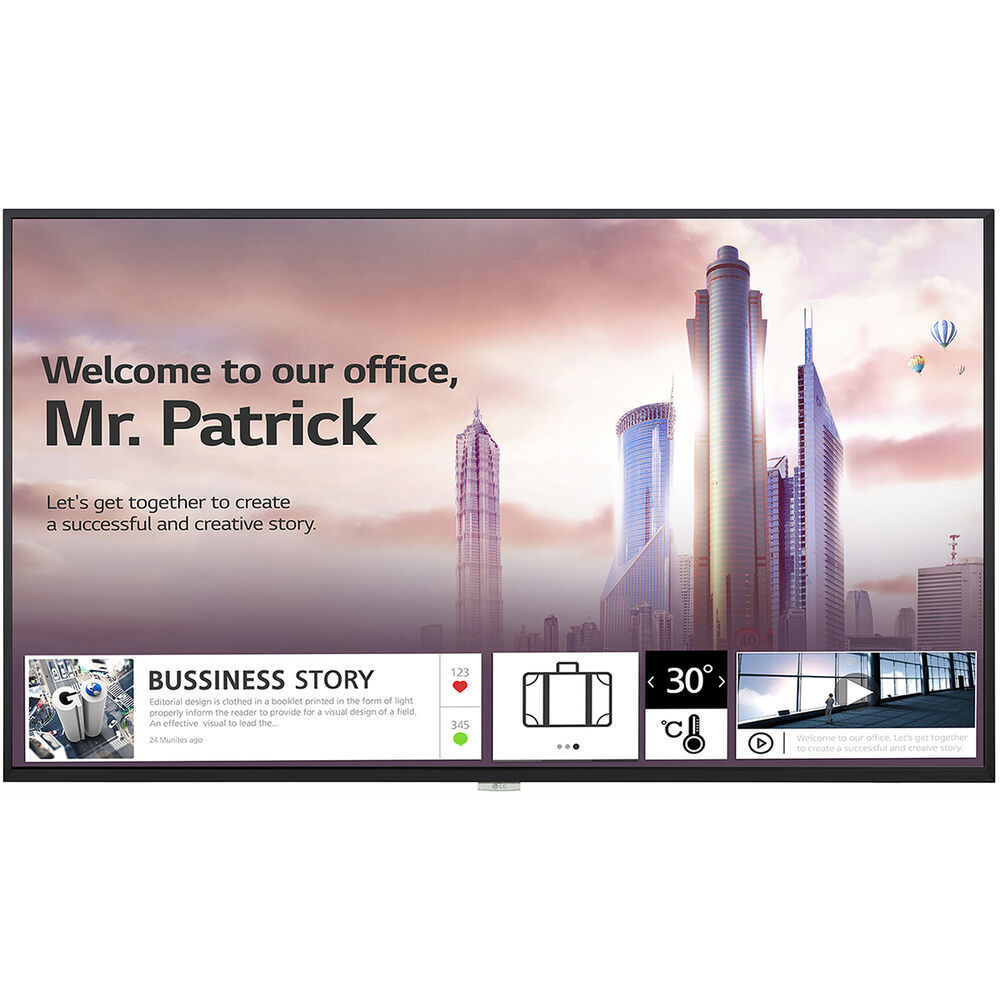

Conduct productive meetings or advertise your business or product with the LG UH5F-H 86" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display. The onboard webOS platform provides a variety of tools to meet your signage and communication needs. The display features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 500 cd/m² helps improve visibility in high-brightness environments, such as a retail store.
The UH5F-H features a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, and the included remote control.
Clear View with Non-Glare Coating
Viewers can be distracted by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
4K UHD Resolution
With resolution that is four times that of Full HD, Ultra HD makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle enabled by LG's IPS panel provides clear content without distortion.
High Performance with webOS
The UH5F-H series has a built-in quad-core system-on-chip (SoC) that can execute several tasks at once while providing smooth content playback without the need for a media player. Utilizing the SoC, LG's webOS smart signage platform has a convenient graphical user interface and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via its USB port. That means there is no cost to purchase or maintain additional software or media players for creating value-added solutions.
Compatible with A/V Control Systems
The UH5F-H series has been certified Crestron Connected for high compatibility with professional A/V controls to achieve seamless integration and network-based control, boosting business management efficiency.
Compatible with Cisco Video Conference Systems
The UH5F-H is compatible with Cisco conferencing systems that offer powerful HDMI-based control for a smarter video conference experience that avoids wasted time setting up the picture or input settings.
Real Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Multiscreen Feature with PBP & PIP
PBP (picture-by-picture) features multiple screens in a single display with up to four input sources while PIP (picture-in-picture) supports playing both a main screen and a sub-screen at the same time with various layouts. This provides great flexibility to allocate space for each content source.
Wireless Access Point
The UH5F-H series operates as a virtual router that can be used as a wireless access point for mobile devices.
Optional LG ConnectedCare Maintenance Service
Maintenance is easier and faster with the optional LG ConnectedCare service, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
HDCP Compliance
- HDCP 2.2 on HDMI 1
- HDCP 1.4 on all HDMI and DVI-D
- HDCP 2.2 & 1.3 on DisplayPort
Additional Features
- Built-in handle
- Temperature sensor
- Auto brightness sensor
- Local Key Operation
- Local Contents Scheduling
- Group Manager
- USB Plug & Play
- Fail over
- Booting Logo Image
- No Signal Image
- RS-232C Sync
- Local Network Sync
- Screen Share
- Video Tag (4)
- Play via URL
- External Input Rotation
- Gapless Playback
- Tile Mode (up to 15 x 15)
- Setting Data Cloning
- SNMP
- ISM Method
- Auto Set ID
- Status Mailing
- Control Manager
- Crestron Inside
- Smart Energy Saving
- PM Mode
- Wake on LAN
- Beacon
- HDMI-CEC
- SI Server Setting
- webRTC
- Pro:Idiom
- 733.69 BTU/Hr (typical), 955.5 BTU/Hr (max)
- SuperSign CMS with SuperSign Control, Control+, SuperSign WB, SuperSign Media Editor, and Signage 365 Care
UPC: 719192642676
In the Box
- LG UH5F-H 86" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display
- Remote Control with Batteries
- DisplayPort Cable (5.9')
- IR Receiver/Ambient Light Sensor
- RS232C DE9 to 3.5mm Adapter
- Power Cord
Table of Contents
- Description
- Clear View with Non-Glare Coating
- 4K UHD Resolution
- High Performance with webOS
- Various Sensor Applications
- Compatible with A/V Control Systems
- Compatible with Cisco Video Conference Systems
- Real Time Monitoring & Control
- Multiscreen Feature with PBP & PIP
- Wireless Access Point
- Optional LG ConnectedCare Maintenance Service
- HDCP Compliance
- Additional Features
LG UH5F Specs
Display
| Screen Size (Diagonal) | 86" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 72% NTSC |
| Brightness | 500 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 120 Hz |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI � Audio, Video (Bottom) 1 x HDMI � Audio, Video (Side) 1 x DisplayPort � Audio, Video (Side) 1 x DVI-D � Video (Side) 1 x 1/8" / 3.5 mm � Audio (Bottom) |
| Output Ports | 1 x DisplayPort � Audio, Video (Side) 1 x 1/8" / 3.5 mm � Audio (Bottom) |
| USB Ports | 2 x USB 2.0, USB-A (Side) |
| Ethernet Ports | Bottom: 1 |
| Control I/O | IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output |
| Wi-Fi | Built-in |
| Number of OPS/Expansion Slots | 1 |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes |
| Maximum Multiple Display Configuration | 15 x 15 |
| Ambient Light Sensor | Yes |
Surface
| Surface Treatment | Anti-Glare |
| Haze Level | 28% |
Audio
| Built-In Speakers | Yes |
Hardware
| Operating System | webOS 4.0 |
| RAM | 8 GB |
Electrical
| Power Consumption | Typical: 215.0 W Maximum: 280.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | CE, FCC-A *as per Manufacturer |
Physical
| Wall Mounting | 600 x 400 mm |
| IP Rating | IP5X |
| IR Sensor | Yes, Detachable |
| Bezel Thickness | 14.3 mm |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 75.8 x 43.2 x 2.4" / 1926.2 x 1097.2 x 60.6 mm (without Handle) |
| Weight | 108 lb / 49.0 kg |
Packaging Info
| Package Weight | 152.2 lb |
| Box Dimensions (LxWxH) | 81 x 50 x 11" |
