Description
LG UH5F Overview
- 1Description
- 2Clear View with Non-Glare Coating
- 34K UHD Resolution
- 4Narrow Bezel & Slim Depth
- 5Detachable Logo and Built-In Speaker
- 6IP5X Certified Design
- 730° Tilting Installation
- 8Auto Screen Rotation
- 9Fine Adjustment
- 10High Performance with webOS
- 11Various Sensor Applications
- 12Compatible with A/V Control Systems
- 13Compatible with Cisco Video Conference Systems
- 14HDCP Compliance
- 15Additional Features

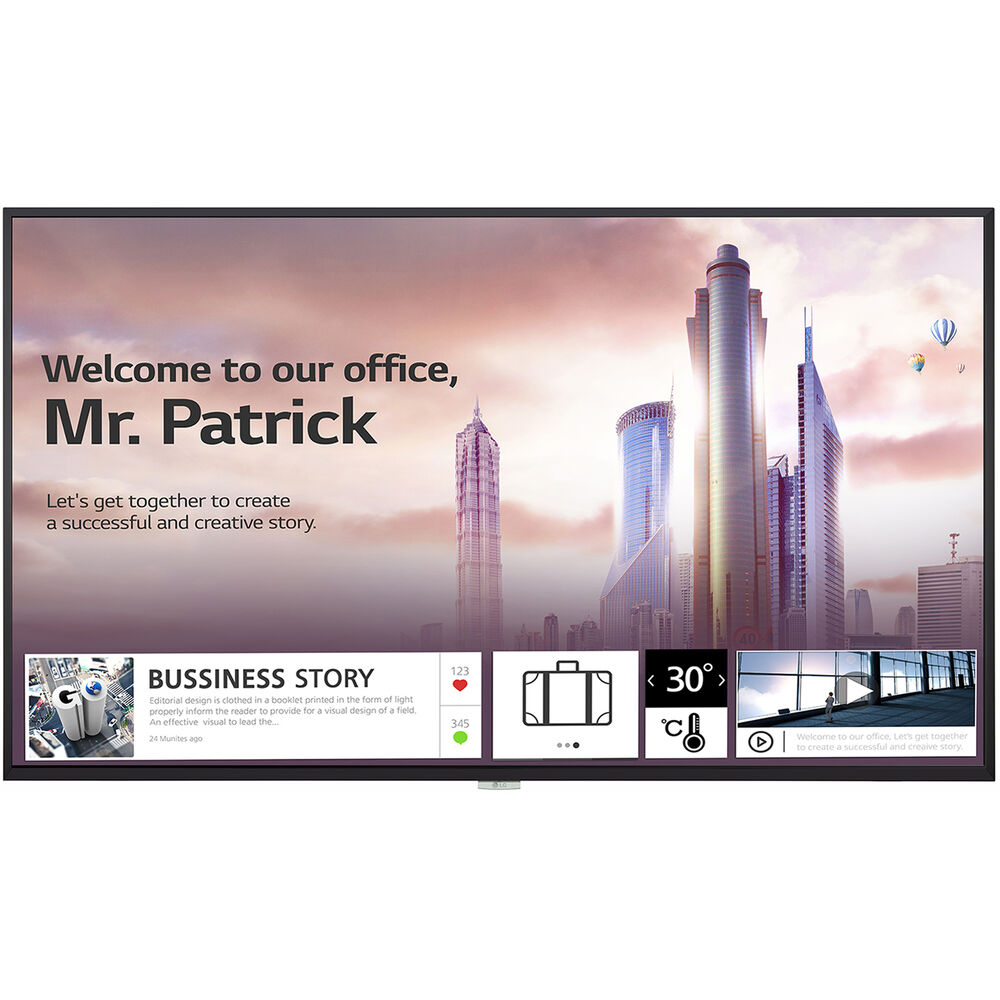

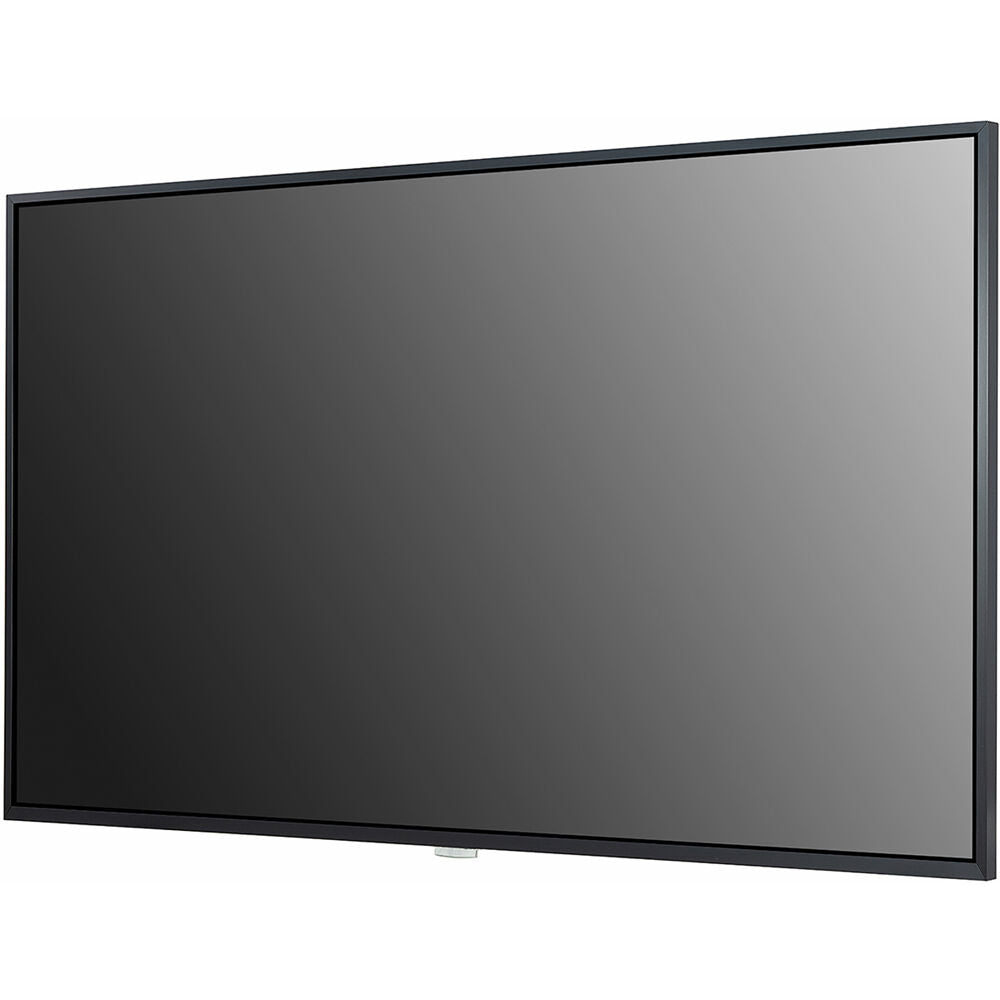

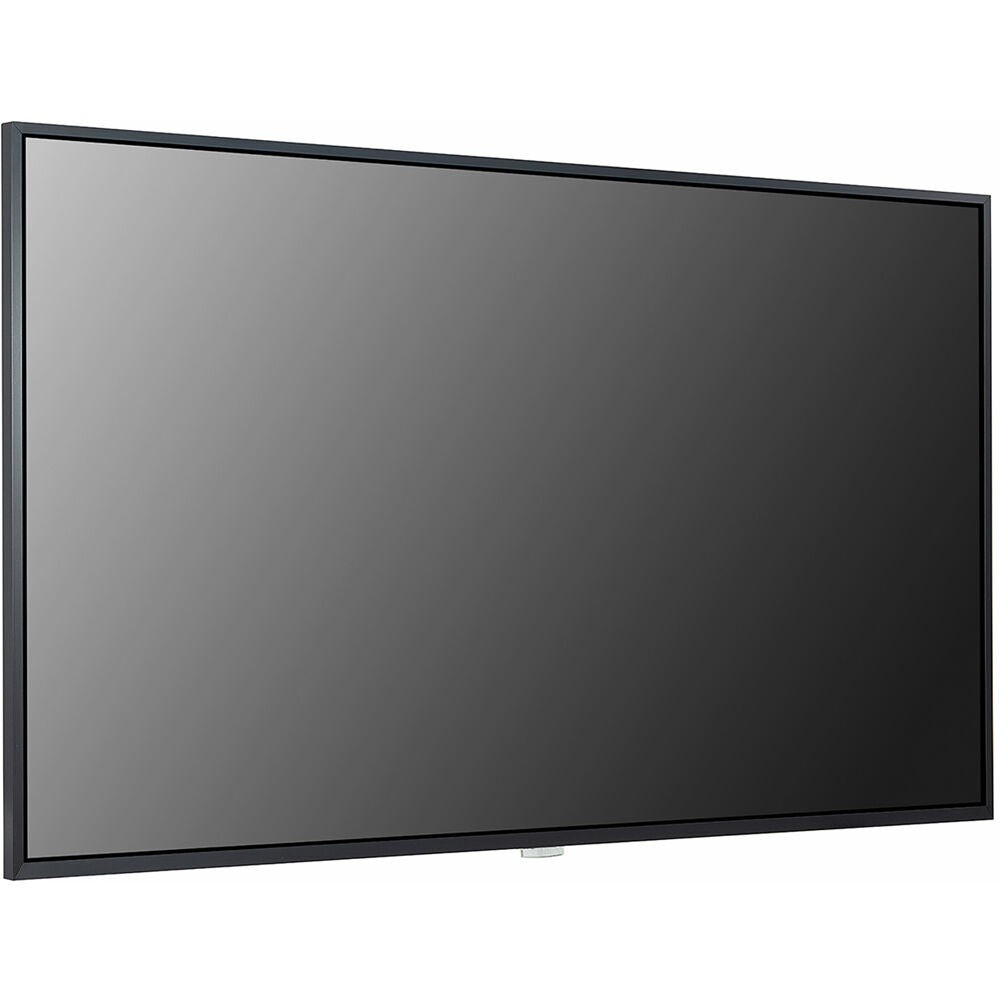

Conduct productive meetings or advertise your business or product with the LG UH5F-H 65" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display. The onboard webOS platform provides a variety of tools to meet your signage and communication needs. The display features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 500 cd/m² helps improve visibility in high-brightness environments, such as a retail store.
The UH5F-H features a slim bezel design, a narrow overall depth, and a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, or the included remote control.
Clear View with Non-Glare Coating
Viewers can be distracted by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
4K UHD Resolution
With resolution that is four times that of Full HD, Ultra HD makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle enabled by LG's IPS panel provides clear content without distortion.

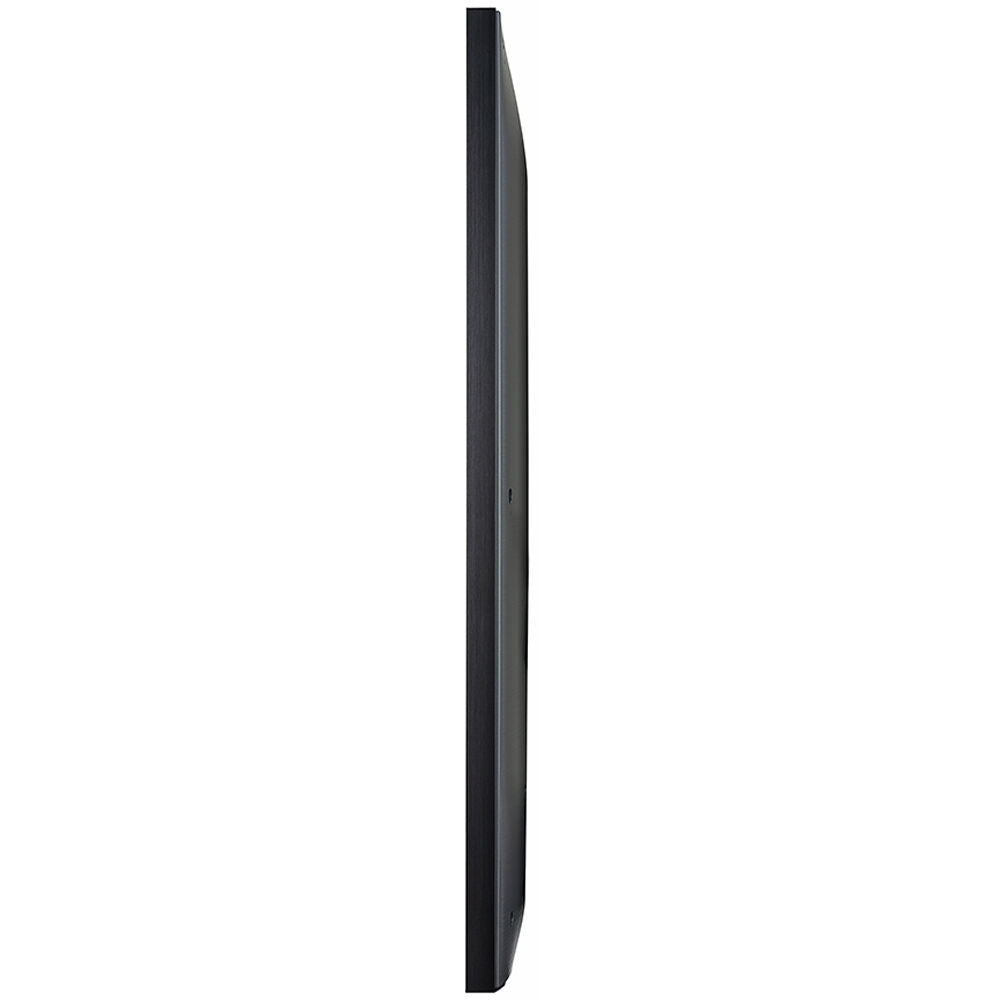

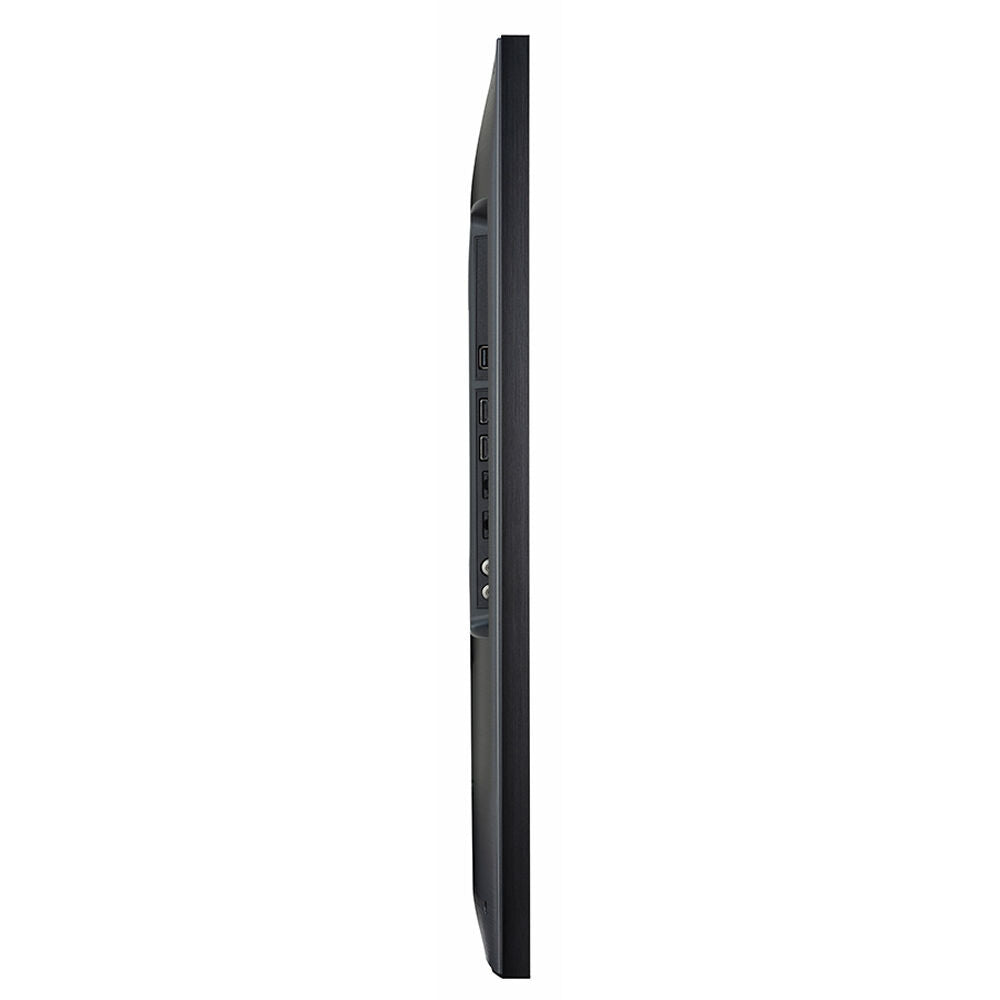

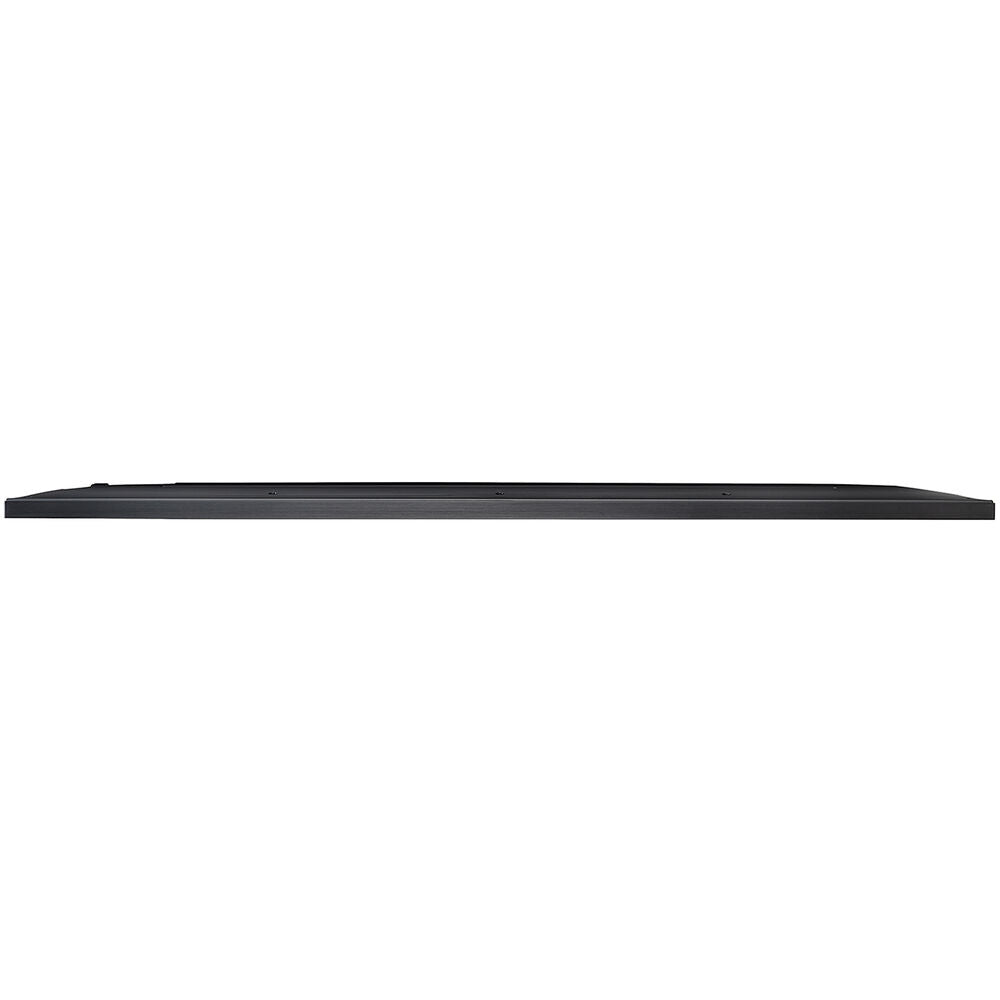

Narrow Bezel & Slim Depth
This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Detachable Logo and Built-In Speaker
This series is equipped with a new transparent logo to help it blend into its surroundings. Also, this logo is removable, offering flexibility during installation. Content will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
IP5X Certified Design
The IP5X dust-proof certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
30° Tilting Installation
When a display is installed at high places, it is usually tilted for the user's viewing comfort. The UH5F-H series supports the installation with 30 degrees of downward tilt in environments up to 86°F, 50% humidity.
Auto Screen Rotation
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so a manual rotation setup process isn't required. The direction of display and background content will be already set when you first turn on the display.
Fine Adjustment
The UH5F-H series is equipped with a horizontal sensor � a digital level � which shows users how the device is tilted, so that it can be precisely installed.
High Performance with webOS
The UH5F-H series has a built-in quad-core system-on-chip (SoC) that can execute several tasks at once while providing smooth content playback without the need for a media player. Utilizing the SoC, LG's webOS smart signage platform has a convenient graphical user interface and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via its USB port. That means there is no cost to purchase or maintain additional software or media players for creating value-added solutions.
Compatible with A/V Control Systems
The UH5F-H series has been certified Crestron Connected for high compatibility with professional A/V controls to achieve seamless integration and network-based control, boosting business management efficiency.
Compatible with Cisco Video Conference Systems
The UH5F-H is compatible with Cisco conferencing systems that offer powerful HDMI-based control for a smarter video conference experience that avoids wasted time setting up the picture or input settings.
HDCP Compliance
- HDCP 2.2 on HDMI 1 & 2 and DisplayPort
- HDCP 1.4 on all HDMI and DVI-D
- HDCP 1.3 on DisplayPort
Additional Features
- Built-in handle
- OPS slot
- Temperature sensor
- Auto brightness sensor
- Local Key Operation
- Local Contents Scheduling
- Group Manager
- USB Plug & Play
- Fail over
- Booting Logo Image
- No Signal Image
- RS-232C Sync
- Local Network Sync
- PIP
- 4-image PBP
- Screen Share
- Video Tag (4)
- Play via URL
- External Input Rotation
- Gapless Playback
- Tile Mode (up to 15 x 15)
- Setting Data Cloning
- SNMP
- ISM Method
- Auto Set ID
- Status Mailing
- Control Manager
- Crestron Inside
- Smart Energy Saving
- PM Mode
- Wake on LAN
- Beacon
- HDMI-CEC
- SI Server Setting
- webRTC
- Pro:Idiom
- 409 BTU/Hr (typical), 563 BTU/Hr (max)
- SuperSign CMS with SuperSign Control, Control+, SuperSign WB, SuperSign Media Editor, and Signage 365 Care
UPC: 719192639331
In the Box
- LG UH5F-H 65" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display
- Remote Control with Batteries
- DisplayPort Cable (5.9')
- IR Receiver/Ambient Light Sensor
- RS232C DE9 to 1/8" Adapter
- Power Cord
- Limited 3-Year Warranty
Table of Contents
- Description
- Clear View with Non-Glare Coating
- 4K UHD Resolution
- Narrow Bezel & Slim Depth
- Detachable Logo and Built-In Speaker
- IP5X Certified Design
- 30° Tilting Installation
- Auto Screen Rotation
- Fine Adjustment
- High Performance with webOS
- Various Sensor Applications
- Compatible with A/V Control Systems
- Compatible with Cisco Video Conference Systems
- HDCP Compliance
- Additional Features
LG UH5F Specs
Display
| Screen Size (Diagonal) | 65" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 95% Rec. 709 |
| Brightness | 500 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 60 Hz |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort � Audio, Video 1 x 1/8" / 3.5 mm � |
| USB Ports | 1 x USB (Version Unspecified) Type-A |
| Ethernet Ports | 1 |
| Control | IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output |
| Wi-Fi | Built-in |
| Number of OPS/Expansion Slots | 1 |
General
| TV Tuner | No |
| Display Orientation | 30° Downward Angle, Landscape, Portrait |
| HDCP Support | Yes |
| Maximum Multiple Display Configuration | 15 x 15 |
| Lighting Lifespan | 50000 Hours |
Surface
| Surface Treatment | Anti-Glare |
| Haze Level | 28% |
Audio
| Built-In Speakers | Yes |
Hardware
| Operating System | webOS 4.1 |
| RAM | 8 GB |
Electrical
| Power Consumption | Typical: 120.0 W Maximum: 165.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | CE, ENERGY STAR, FCC-A, as per Manufacturer |
Physical
| Wall Mounting | 300 x 300 mm |
| IP Rating | IP5X |
| IR Sensor | Yes |
| Bezel Thickness | 9.9 mm (Right/Top/Left) 14.4 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 57.2 x 33.2 x 1.6" / 1453.3 x 844.0 x 39.9 mm |
| Weight | 62.3 lb / 28.3 kg |
Packaging Info
| Package Weight | 75 lb< |
