Description
LG EW5TP-A Overview

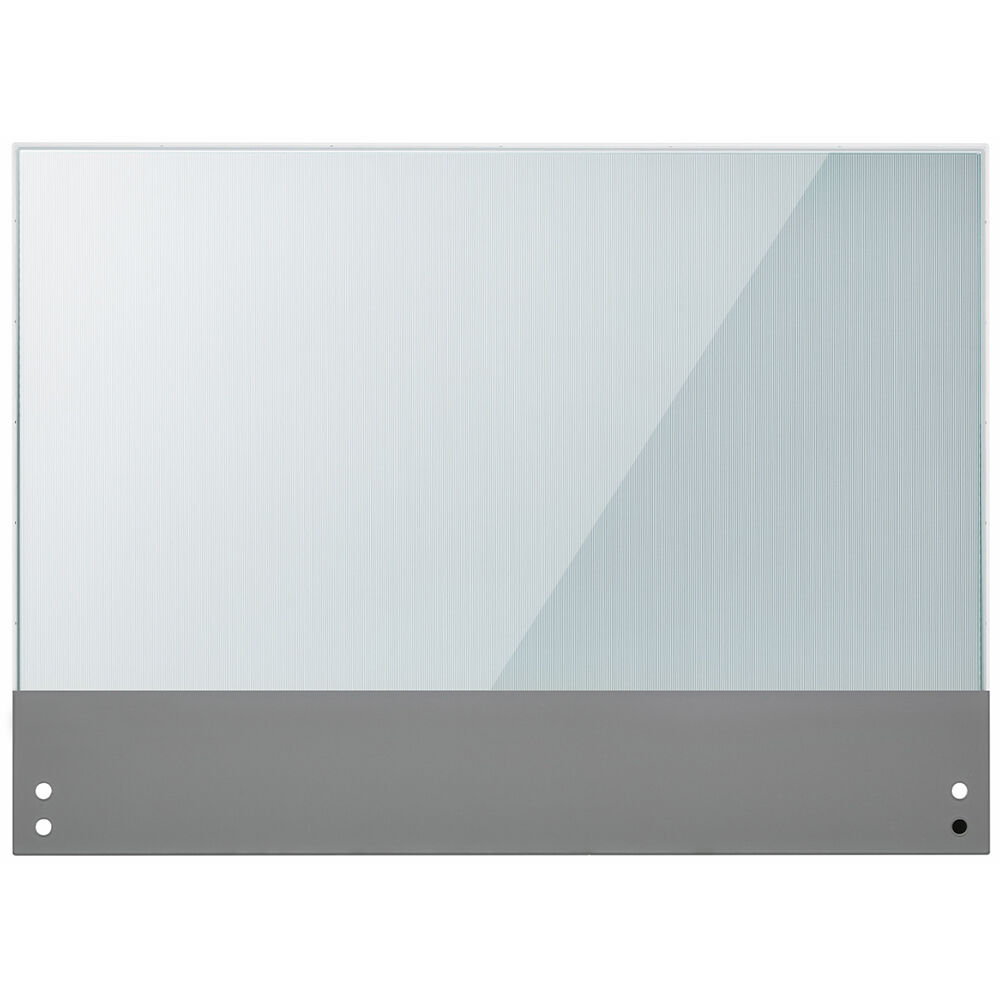

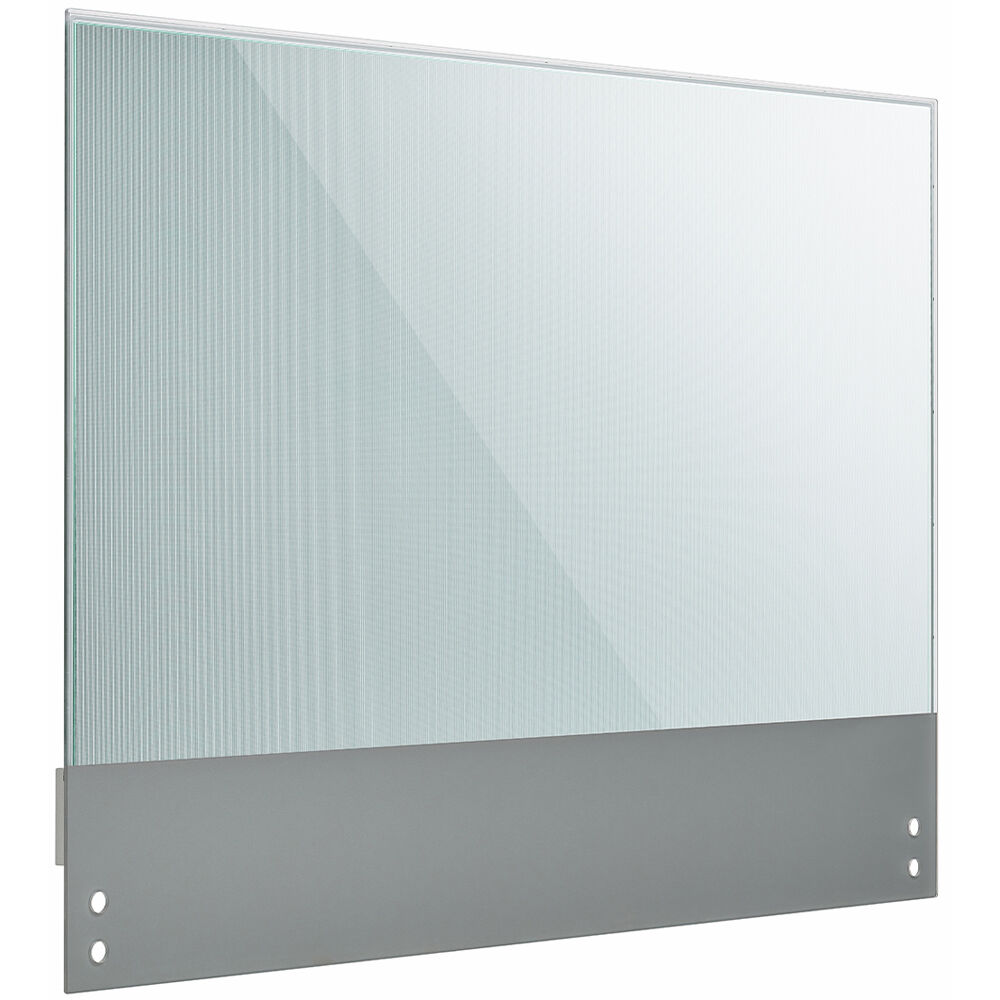

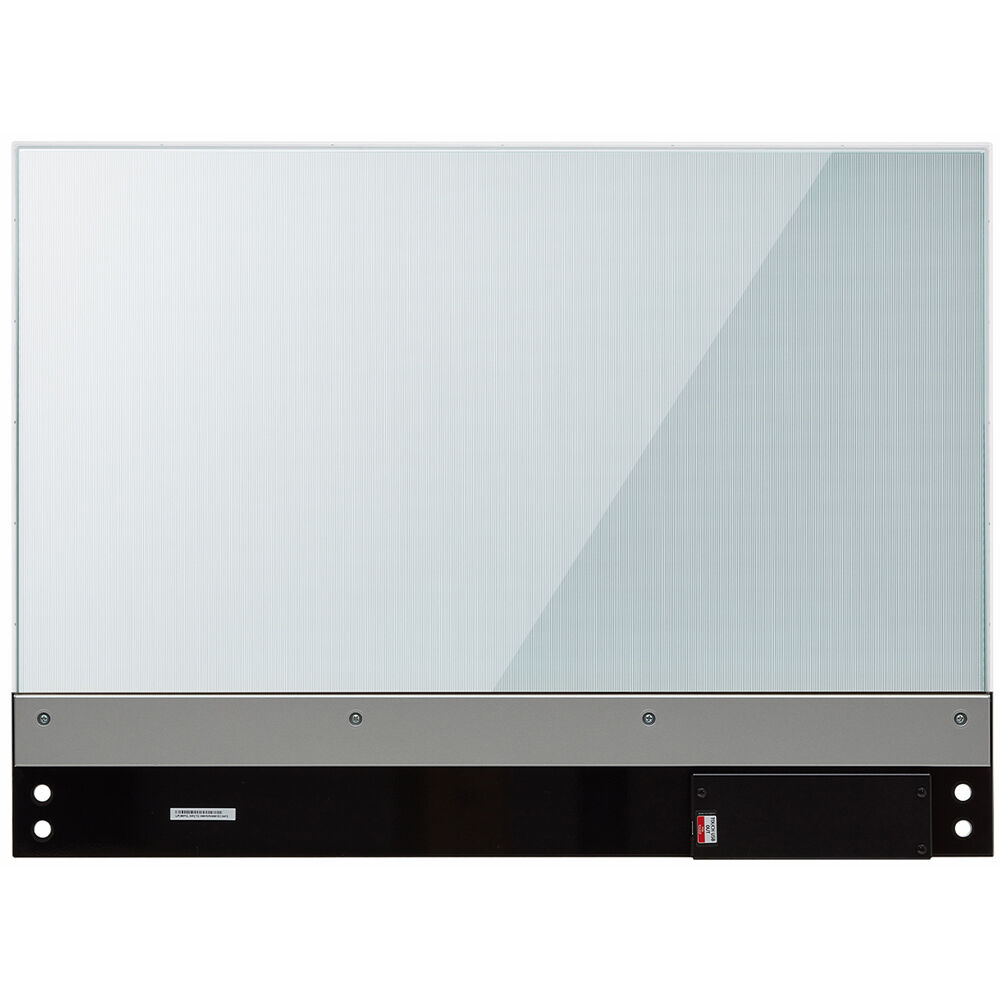

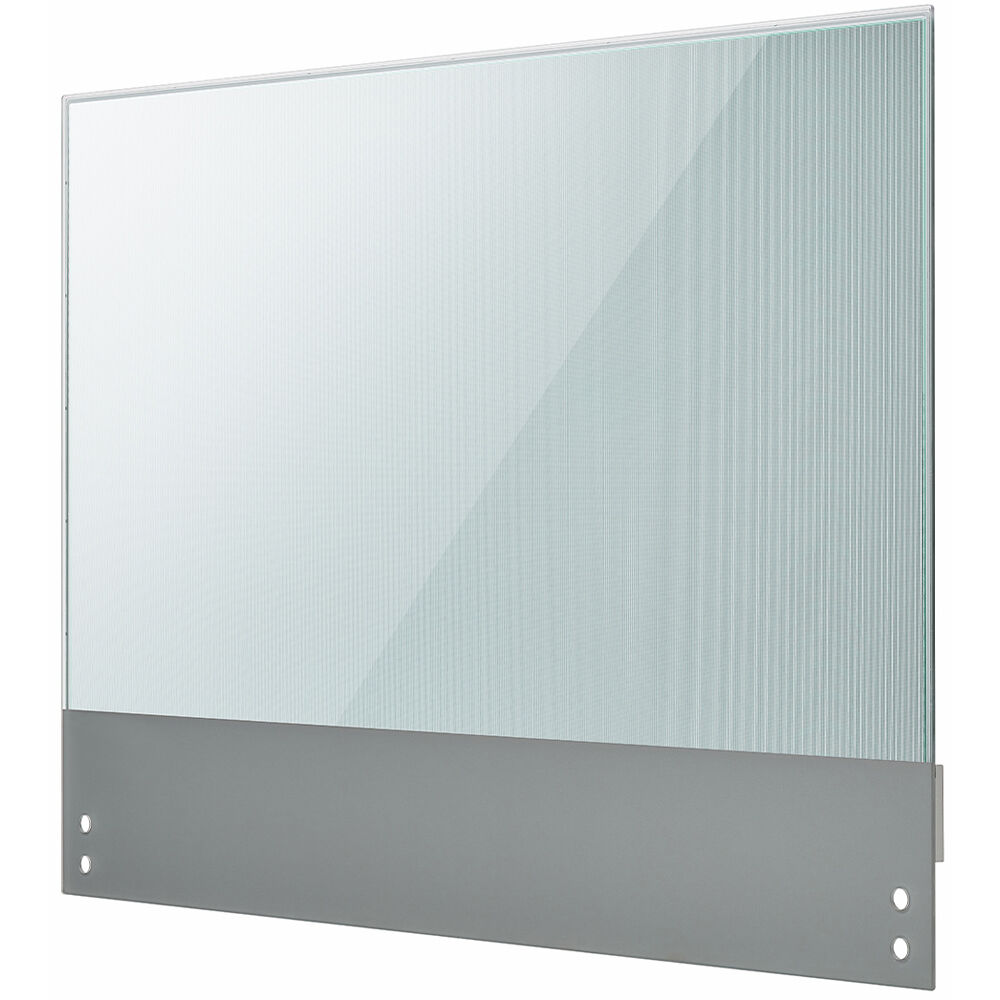

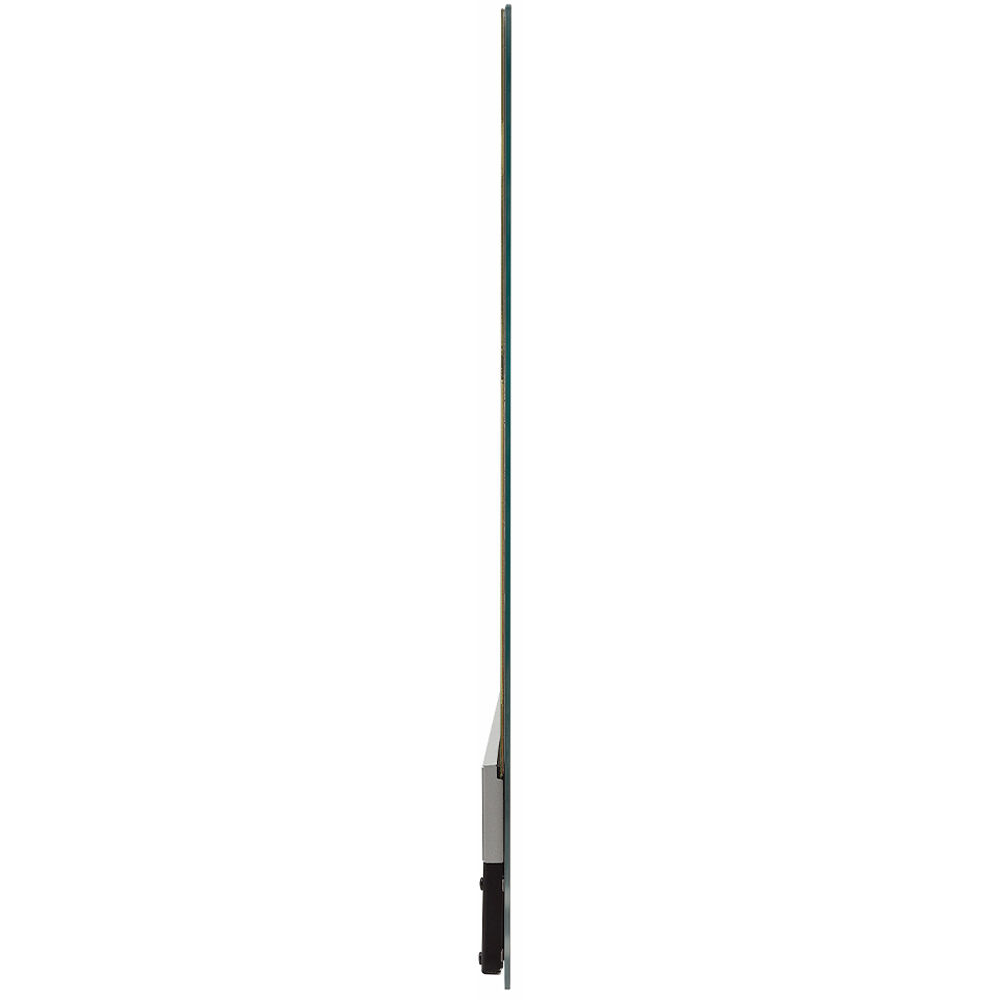

Break down the barriers of traditional signage and incorporate your messaging into the surrounding environment with the LG EW5TP-A 30" HD Transparent OLED Touch Signage Display. The EW5TP-A is a state-of-the-art transparent OLED panel with 10-point Projected Capacitive touch control. This innovative display can be placed at the point of customer interaction while still being able to show objects behind it, perfect for a wide array of retail and customer service applications.
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Intuitive P-Cap Touch
By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.
High Transparency

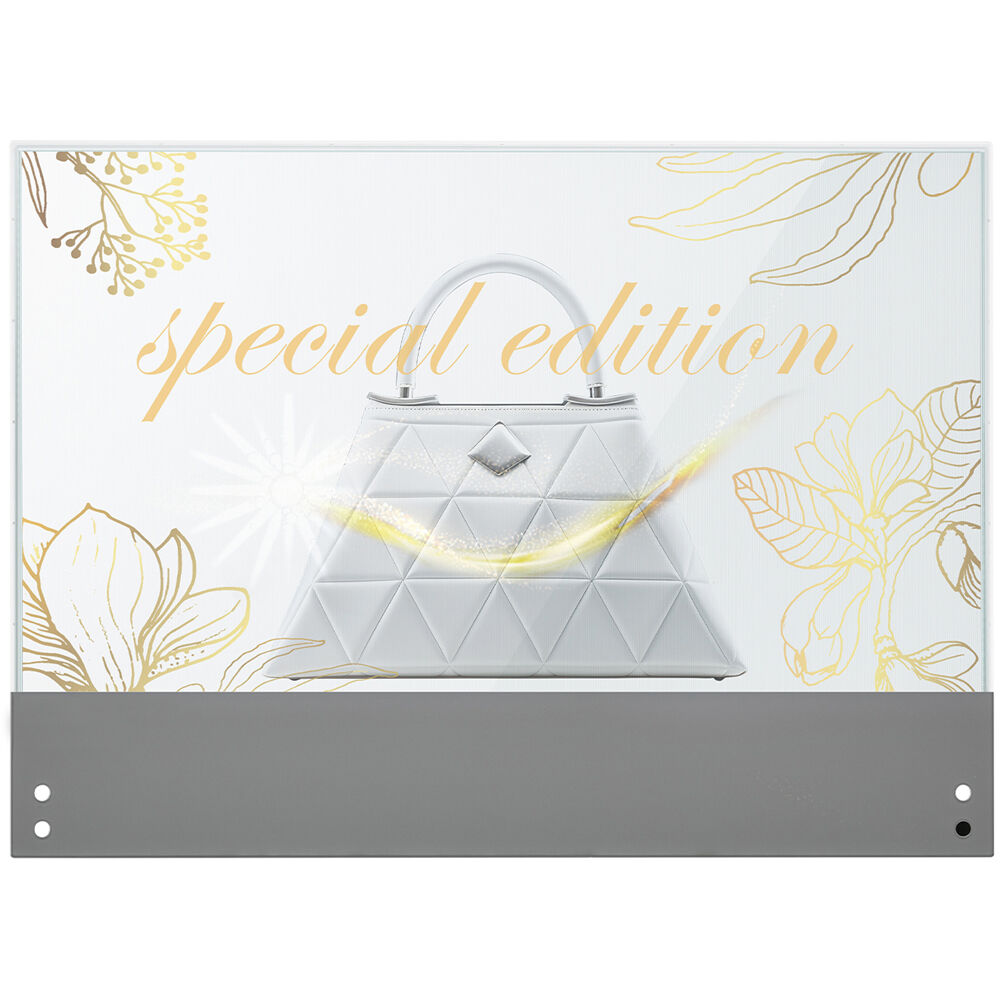

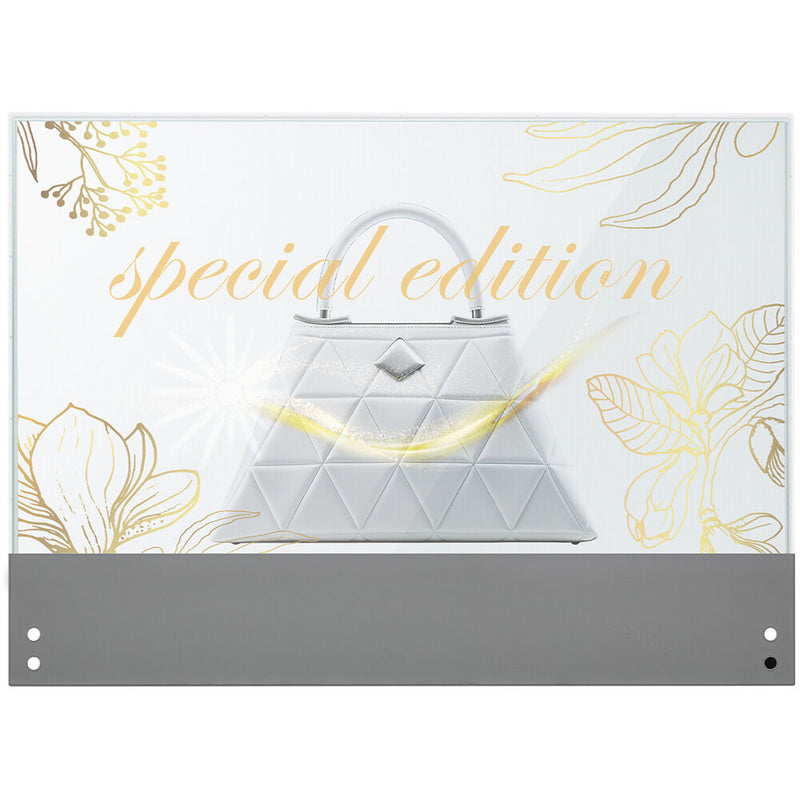

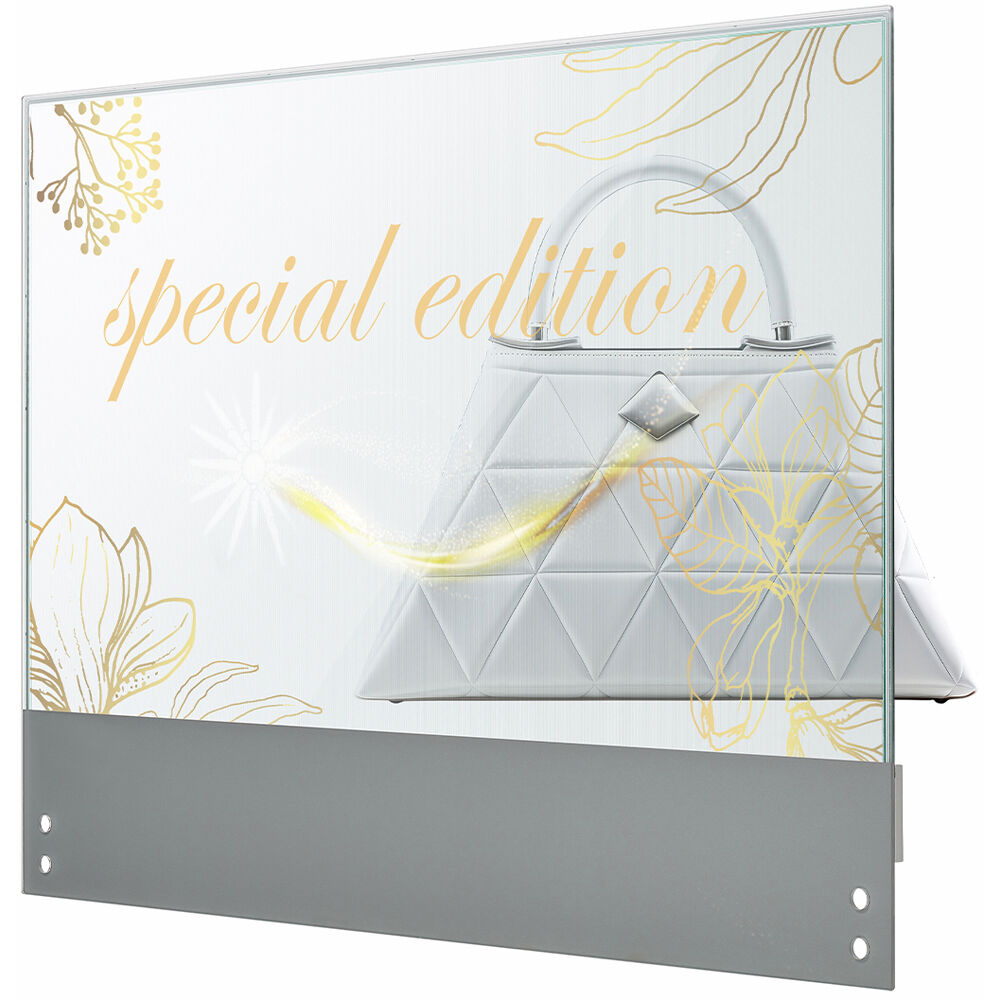

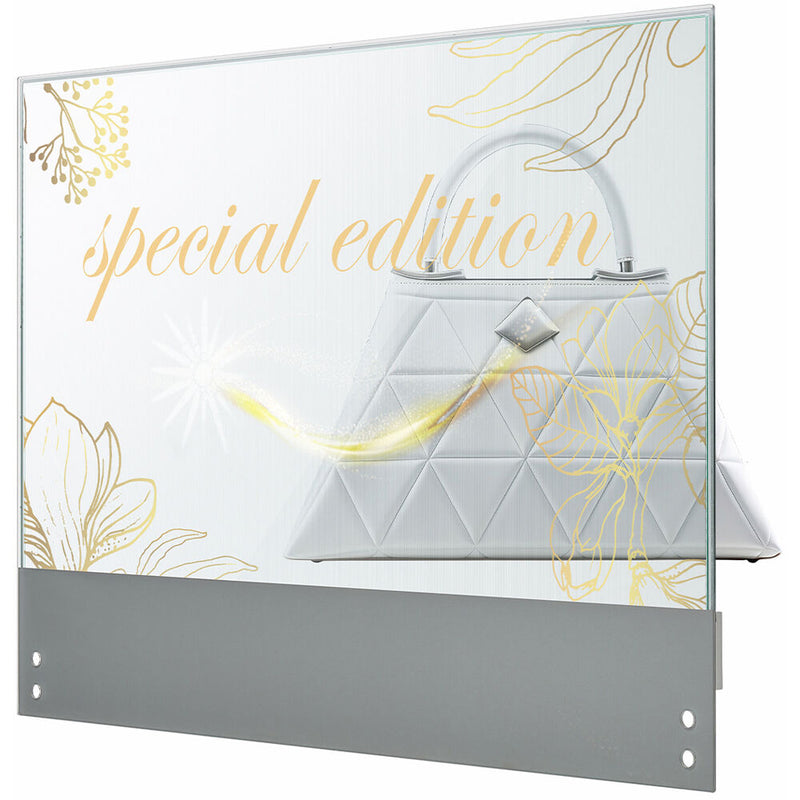

LG's OLED technology allows the 30EW5TP-A to have a very slim structure compared to traditional LED LCD screens. With no backlight or liquid crystal layer, the Touch Signage Display achieves high transparency, even with P-Cap touch film. While clearly showing objects behind the screen, the display can overlay relevant and interactive information right before them.
Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered front glass protects products from such external impacts and its anti-shatter glass is designed to minimize customers' injuries in case of accidents.
Additional Features
- SuperSign CMS
- SuperSign Control+
- SuperSign Cloud
- Mobile CMS
- Connected Care
- Temperature sensor
- Local contents scheduling
- Group manager
- USB plug and play
- Fail over
- RS-232 sync
- Local network sync
- Video tag (4)
- Screen rotation
- Gapless playback
- Setting data cloning
- SNMP
- ISM method
- Status mailing
- Control manager
- PM mode
- Wake on LAN
- HDMI-CEC
- SI server setting
UPC: 195174085080
Items Included
- LG EW5TP-A 30" HD Transparent OLED Touch Signage Display
- Remote Control with Batteries
- Power Cord
- IR Receiver
- RS-232 Adapter
- 6 x MCX/Harness Cables
- HDMI Cable
- Micro-USB to USB-A Cable
- USB-A to USB-B Cable
- Shield Cover Assembly
- 4 x Rubber Damper
- 2 x Touch Cable Holder
- 2 x MCX Cable Holder
- Limited 3-Year Manufacturer Warranty
Additional Resources
LG EW5TP-A Specs
Key Specs
| Display Size |
30"
|
| Native Resolution |
1366 x 768
|
| Maximum Brightness |
600 nits / cd/m2
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
1x HDMI
1x DisplayPort |
| Outputs |
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
1x Micro-USB (Unspecified Version) (Touchscreen Control)
1x USB-B (Unspecified Version) (Touchscreen Control) 1x USB-A 2.0 (Audio/Photo/Video) |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm Serial (RS-232C) Control Input 1x 1/8" / 3.5 mm Serial (RS-232C) Control Output |
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
30"
|
| Panel Type |
OLED
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
1366 x 768
|
| Maximum Brightness |
600 nits / cd/m2
|
| Contrast Ratio |
200,000:1
|
| Response Time |
0.1 ms (GtG)
8 ms (MPRT) |
| Refresh Rate |
120 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Color Gamut |
110% Rec. 709
|
| Viewing Angle (H x V) |
178 x 178°
|
| Pixels Per Inch (ppi) |
52 ppi
|
| Finish |
Glossy with Antireflective Coating, Anti-Friction
|
Surface
| Touchscreen Technology |
Projected Capacitive
|
| Multi-Touch Points |
10
|
| Hardness Rating |
5H
|
| Haze Level |
3%
|
| TV Tuner |
No
|
Connectivity
| Inputs |
1x HDMI
1x DisplayPort |
| Outputs |
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
No
|
| USB I/O |
1x Micro-USB (Unspecified Version) (Touchscreen Control)
1x USB-B (Unspecified Version) (Touchscreen Control) 1x USB-A 2.0 (Audio/Photo/Video) |
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm Serial (RS-232C) Control Input 1x 1/8" / 3.5 mm Serial (RS-232C) Control Output |
| Built-In Speakers |
No
|
Hardware
| Smart TV |
webOS 23
|
| Storage |
16 GB eMMC
|
| OS Compatibility |
Computer: Windows 8 or Later
Mobile: Android/iOS |
| OS Compatibility |
Windows 8.1
Windows 10 |
| Mobile App Compatible |
Yes: Android & iOS
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Languages |
Arabic
Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish |
Electrical
| Power Consumption |
Typical: 45.0 W
Maximum: 86.0 W Standby: 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 80% Humidity
|
| Certifications |
CB, NRTL, FCC Class "A", CE, KC, ErP
|
| Mounting-Hole Pattern |
Custom
|
| Lighting Lifespan |
30000 Hours
|
| Material of Construction |
3.2T Glass
|
| Lock Slot |
No
|
| Bezel Thickness |
7.9 mm (Right/Top/Left)
114.7 mm (Bottom) |
| Duty Cycle |
18 Hours / 7 Days
|
| Dimensions |
26.8 x 19.5 x 0.6" / 680.2 x 496.2 x 15.3 mm
17.7 x 11.4 x 1.7" / 449.2 x 288.6 x 42.8 mm (Signage Box) |
| Weight |
9.3 lb / 4.2 kg
5.3 lb / 2.4 kg (Signage Box) |
