Description
LG BH7N-H Overview
- 1Description
- 232:9 Extended Wide Format
- 3Environmental Conformal Coating
- 4Daisy Chain Management
- 5High Performance with LG webOS 6.0
- 6LG SuperSign
- 7Optional Real-Time Monitoring with LG ConnectedCare
- 8Additional Features

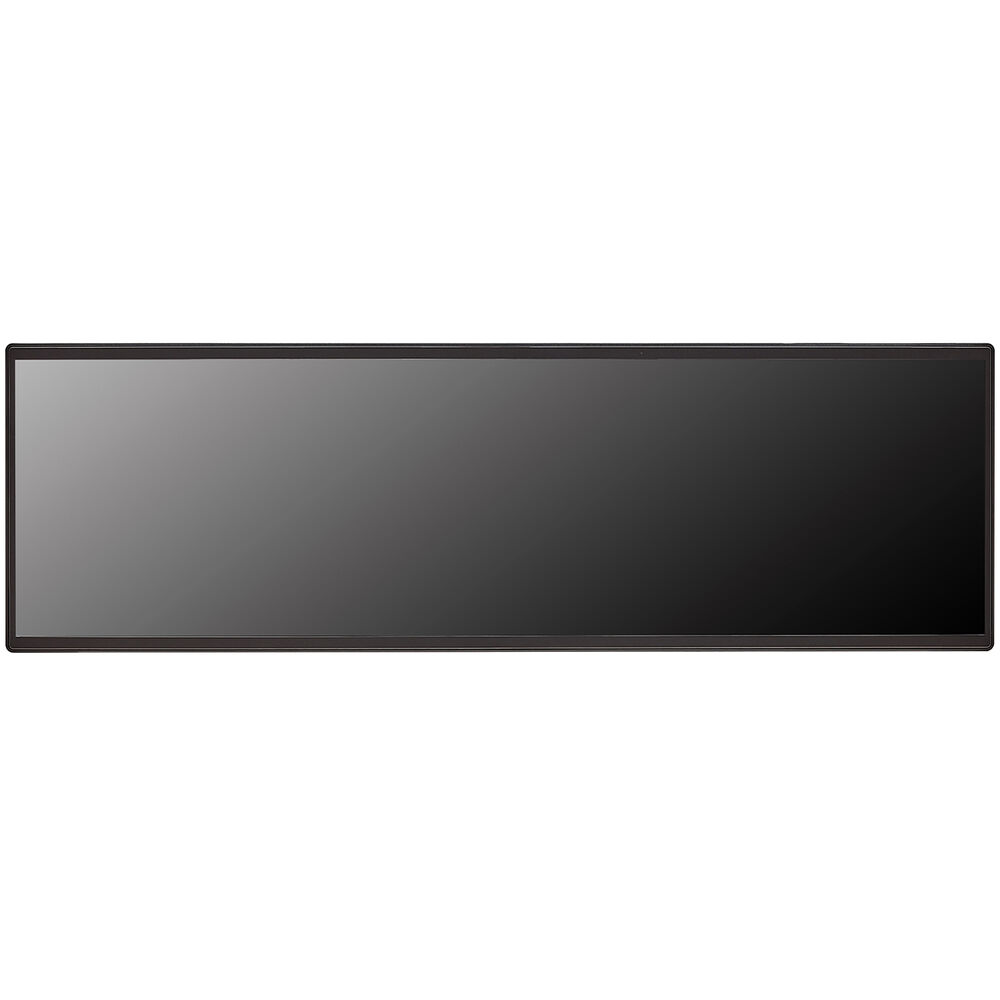

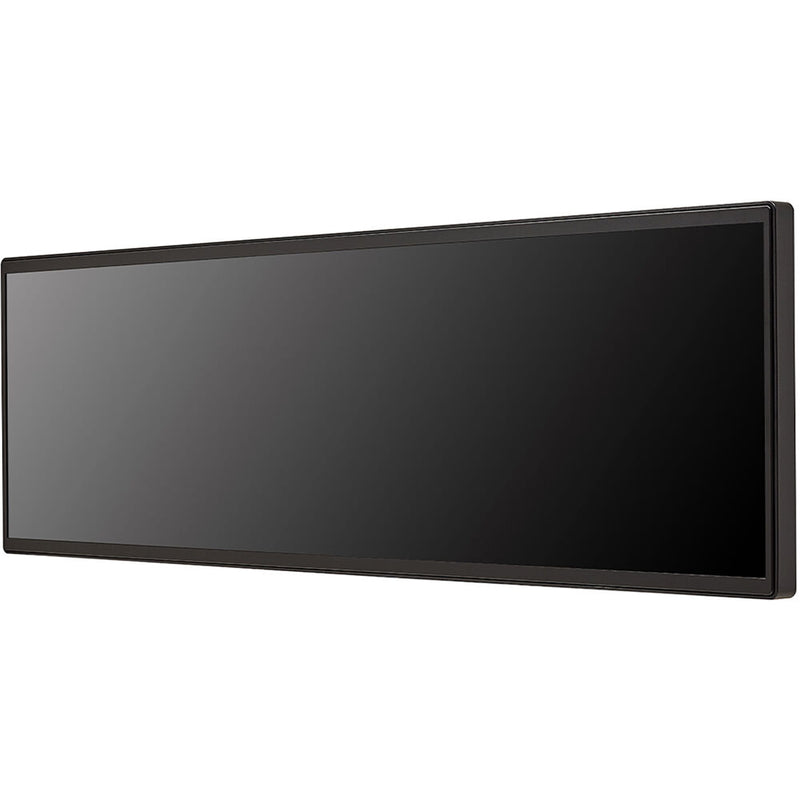

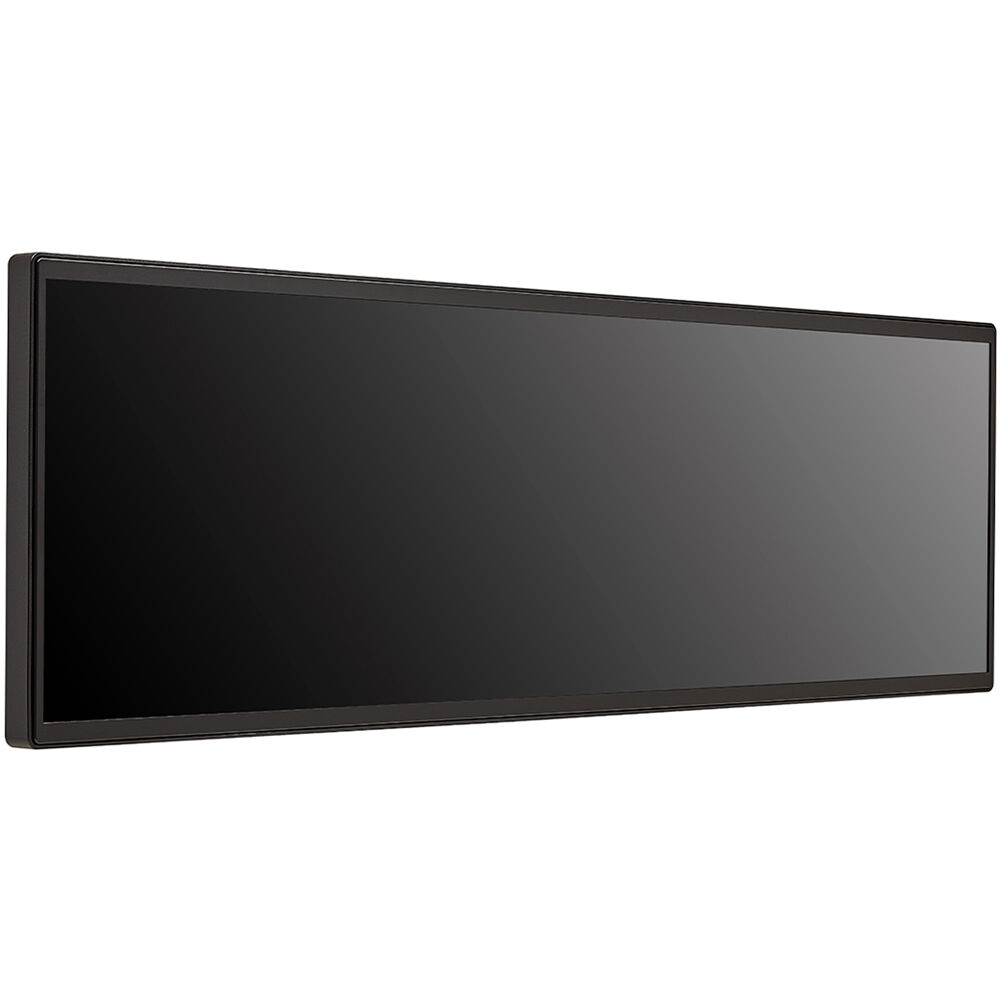

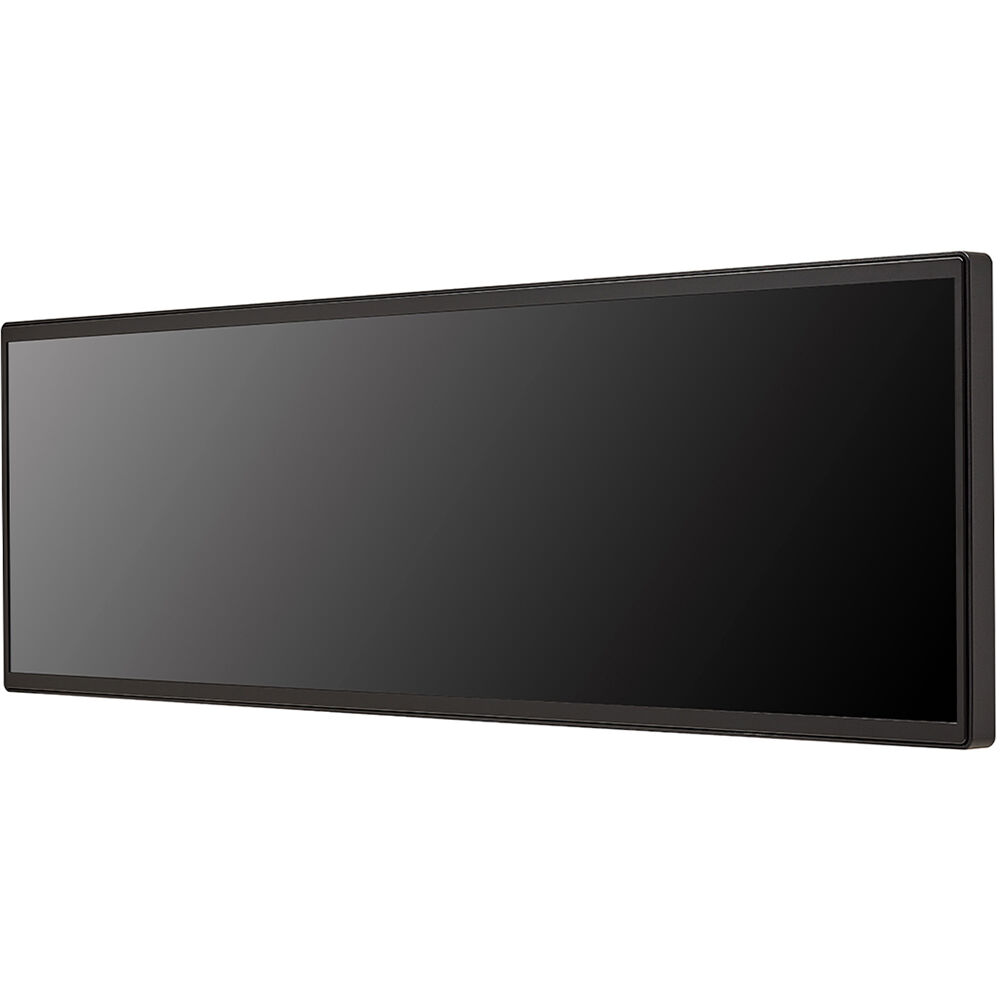

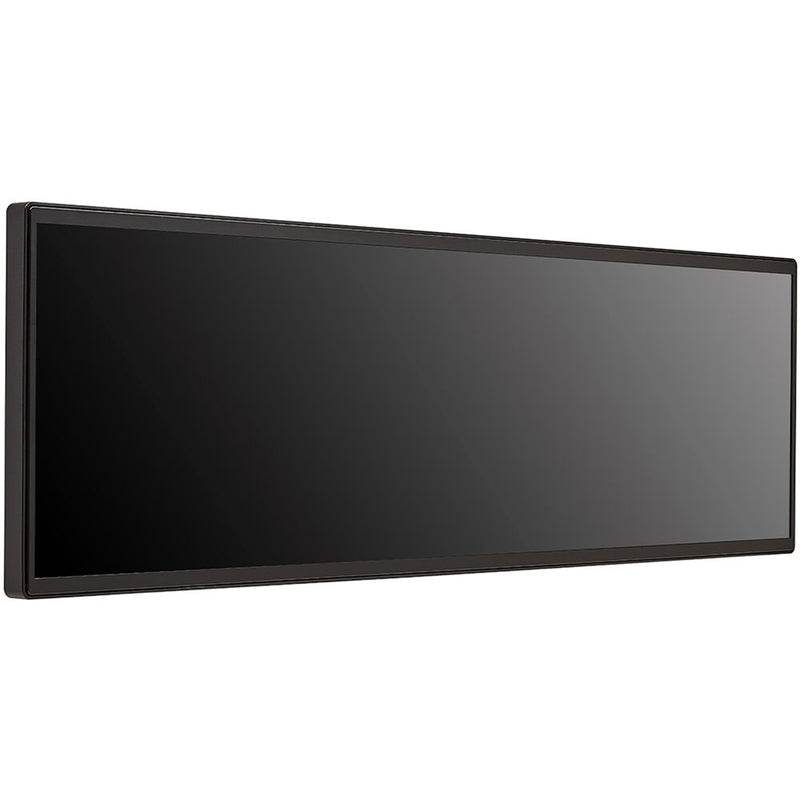

Enjoy unique space-filling and flexible signage with the LG 37BH7N-H 37" 32:9 Stretch Signage Display. The 37BH7N is a 700 nits, Full HD commercial monitor, capable of 24/7 operation, making it a suitable solution for marketing in airports, retail, shopping malls, and other indoor high-visibility spaces.
This stretch 32:9 wide screen supports landscape, portrait, and 30° forward tilt, allowing for creative arrangements and easy deployment in unused, and leftover spaces. Content can be delivered over the network via built-in Wi-Fi and LAN connectivity, or locally via HDMI, DisplayPort, and USB inputs. HDMI out allows for daisy-chaining of content and tile-matrix capability. LG's SuperSign software for content management and display control is included.

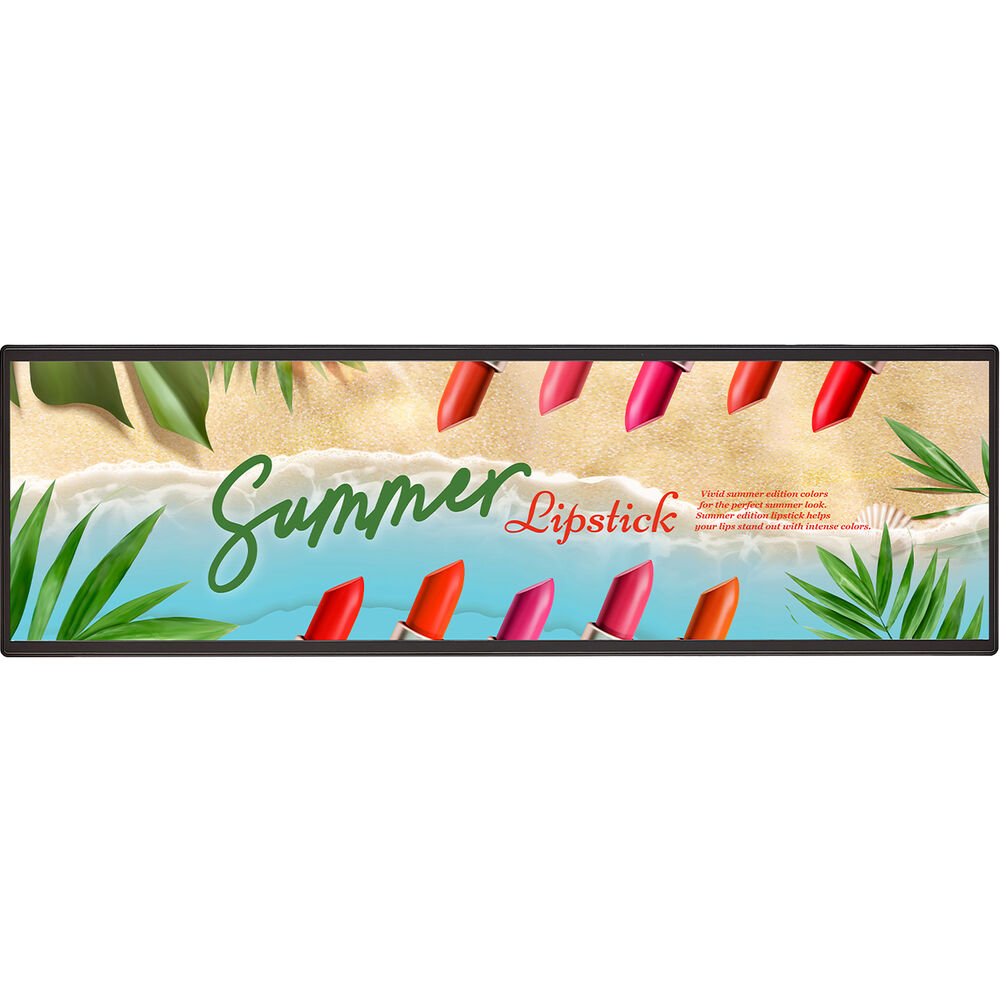

32:9 Extended Wide Format
The LG 37BH7N-H is a unique wide screen with 32:9 bar type which provides much more flexibility in content than the conventional display of 16:9 ratio.
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display. It is very useful and convenient to deliver various advertisements or pieces of information at the same time.
Environmental Conformal Coating
Optimized for business environments, the BH7N is protected against salt, dust, iron powder, and humidity thanks to conformal coating on power board, allowing for stable operation and high reliability, even in humid environments.
Daisy Chain Management
A daisy chain via HDMI allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, ultimately resulting in cost savings during installation.
High Performance with LG webOS 6.0
LG webOS 6.0 is available on the BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with an intuitive graphical user interface (GUI).
LG SuperSign
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Optional Real-Time Monitoring with LG ConnectedCare
Easy and Fast maintenance are available with LG's optional cloud service solution LG ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Additional Features
- Internal sensor for temperature, auto brightness, and acceleration (gyro)
- Portrait / landscape sensor
- Local button key operation
- Embedded CMS
- USB plug and play
- Fail over
- Background image - booting logo and no signal
- RS-232C and LAN syn
- PIP, PBP
- Screen rotation
- Tile mode - 15 x 15 max
- Setting data cloning
- SNMP
- ISM method
- Beacon
- HDMI CEC
- webRTC
- Pro:Idiom
UPC: 195174069998
In the Box
- LG 37BH7N-H 37" Full HD 32:9 Stretch Signage Display
- Power Cord
- Remote Control
- 2 x AAA Battery for Remote
- RS-232 Adapter
- Cable Clip
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 32:9 Extended Wide Format
- Environmental Conformal Coating
- Daisy Chain Management
- High Performance with LG webOS 6.0
- LG SuperSign
- Optional Real-Time Monitoring with LG ConnectedCare
- Additional Features
LG BH7N-H Specs
Key Specs
| Display Size |
37"
|
| Resolution |
1920 x 540
|
| Maximum Brightness |
700 nits / cd/m2
|
| Inputs |
2x HDMI
1x DisplayPort |
| Outputs |
1x HDMI
1x TOSLINK Optical |
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth
|
| USB I/O |
1x USB-A 2.0
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x Serial (RS-232C) Control Input
1x Serial (RS-232C) Control Output 1x IR Input |
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
37"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
32:9
|
| Display Orientation |
30° Downward Angle, Landscape, Portrait
|
| Resolution |
1920 x 540
|
| Maximum Brightness |
700 nits / cd/m2
|
| Lighting System |
Edge-Lit LED
|
| Contrast Ratio |
1000:1
|
| Dynamic Contrast Ratio |
1,000,000:1
|
| Response Time |
14 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| Color Gamut |
72% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Horizontal Frequency |
28.1 to 67.5 kHz
|
| Vertical Frequency |
50 to 60.317 Hz
|
| Pixels Per Inch (ppi) |
54 ppi
|
| Finish |
Anti-Glare / Matte
|
Surface
| Haze Level |
25%
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
2x HDMI
1x DisplayPort |
| Outputs |
1x HDMI
1x TOSLINK Optical |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth
|
| USB I/O |
1x USB-A 2.0
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x Serial (RS-232C) Control Input
1x Serial (RS-232C) Control Output 1x IR Input |
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
| Built-In Speakers |
No
|
Hardware
| Smart TV |
webOS 6
|
| Storage |
16 GB
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Video File Types |
3G2, 3GP, ASF, AVI, H.264/AVC, M4V, MJPEG, MKV, MOV, MP4, MPEG2, MPEG4, MTS, TP, TRP, TS, VC-1, VOB, VP8, VP9, WMV, Xvid
|
| Supported Audio File Types |
AAC, AC-4, ADPCM-WAV, LPCM, MP1, MP2, MP3, PCM-WAV, WMA
|
| Supported Photo File Types |
BMP, JPE, JPEG, JPG, PNG
|
| Supported Languages |
Arabic
Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
10 to 80%
|
| Storage Humidity |
5 to 85% (Non-Condensing)
|
Electrical
| Power Consumption |
Typical: 40.0 W
Standby: 0.5 W |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Certifications |
CB, NRTL, FCC Class "B", CE, KC
|
| Mounting-Hole Pattern |
400 x 200 mm
|
| Lighting Lifespan |
50
|
