| ₹ 377025.0 includes GST and import duties. | |
| B2B customers can avail ₹ 57496.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Elo Touch E693211 Overview

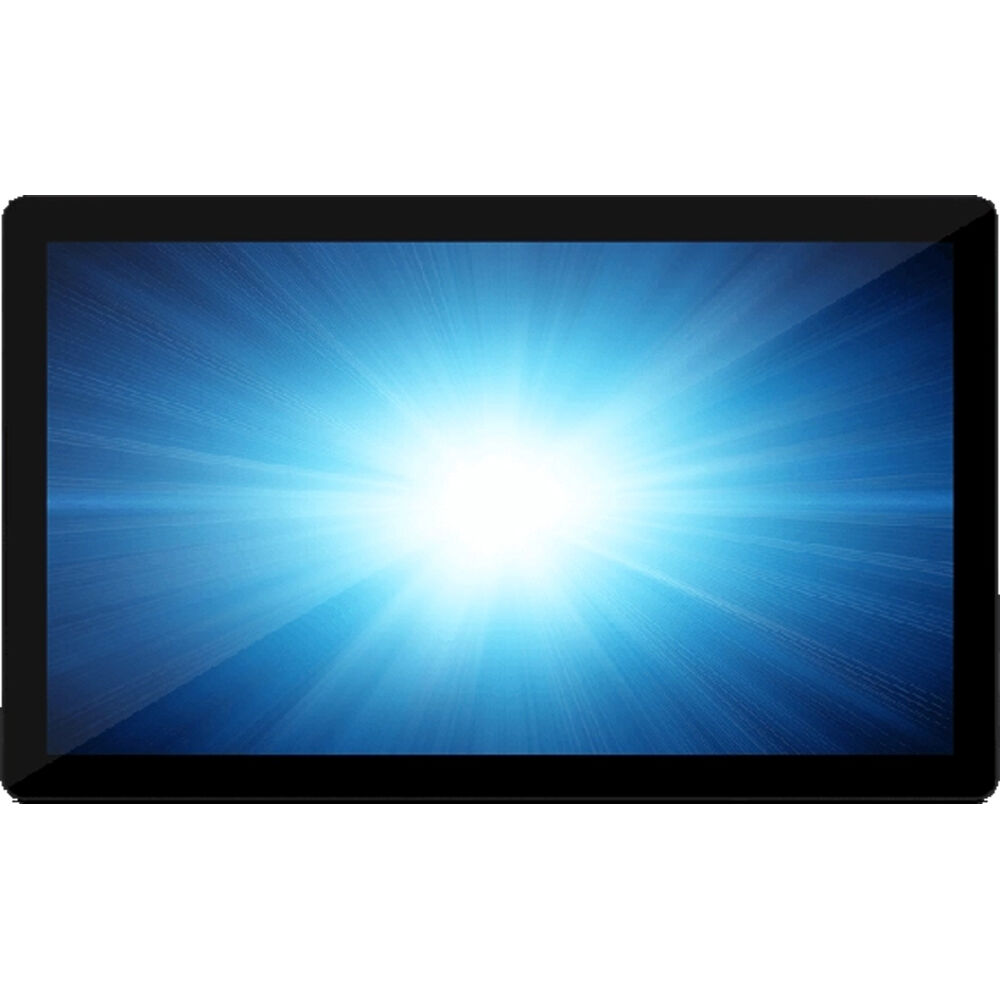

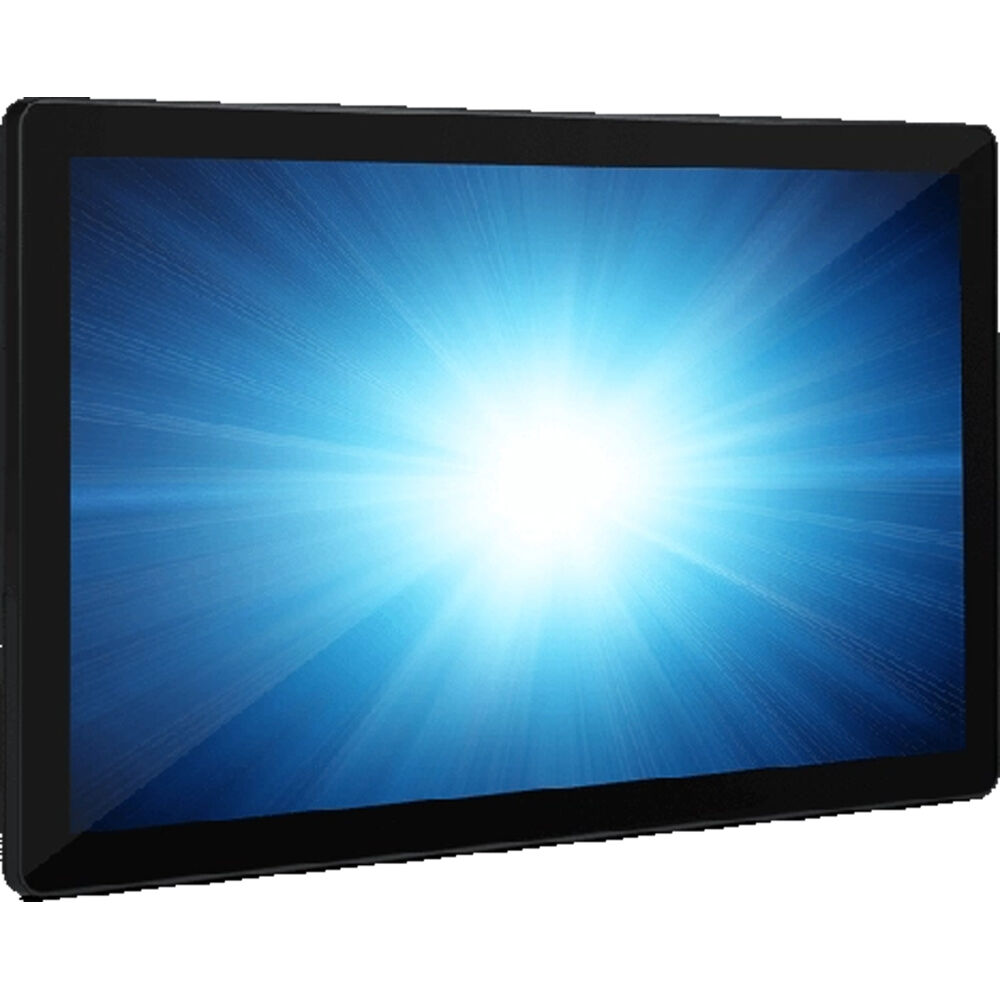

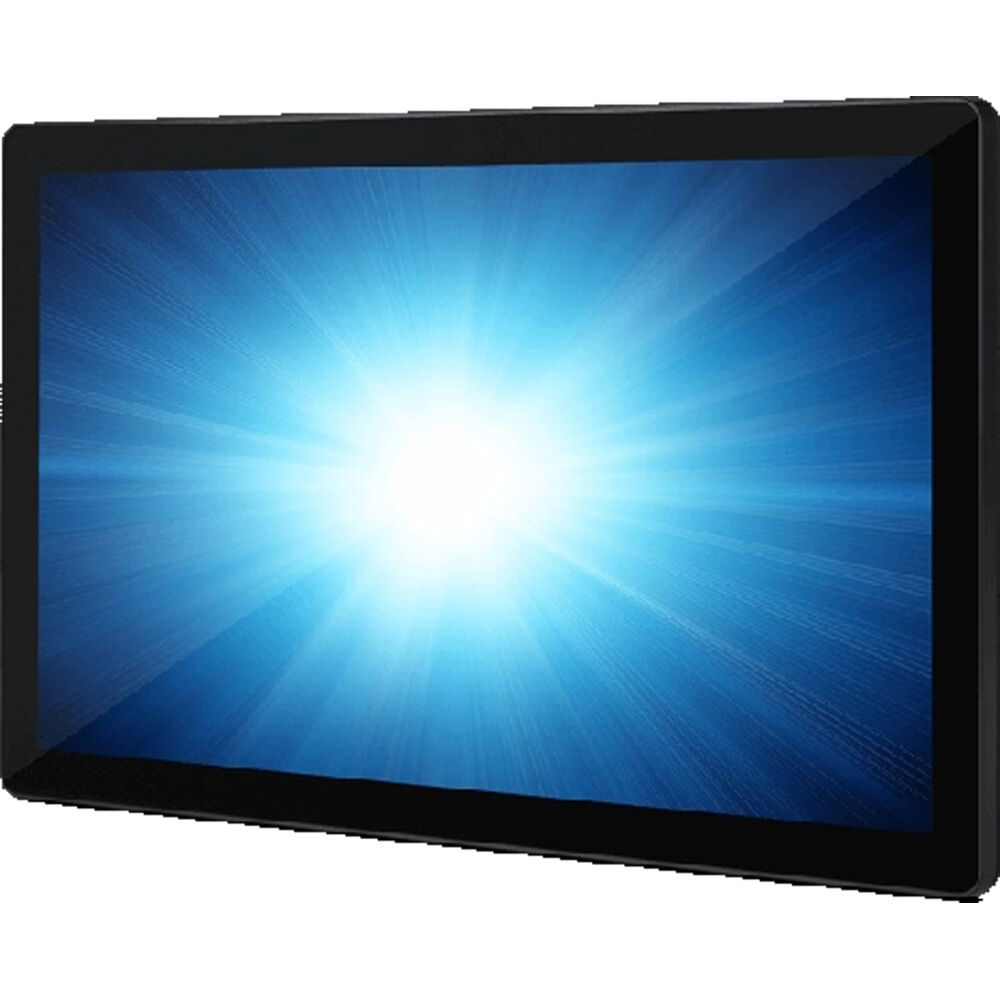

The Elo Touch I-Series 2 E693211 22" Full HD Touchscreen Commercial Monitor is a 225-nit bright, TFT LCD with Intel i5 processing designed for interactive signage, point-of-sale locations, self-service kiosks, and more. It features customizable Elo Edge connectivity to add peripherals specific to your needs, and supports VESA mounting, along with portrait and landscape orientation to enable a wide variety of uses.
No Embedded OS
Elo's I-Series utilizes the reliability-tested performance and security of Intel 9th Generation processors, integrated Trusted Platform Modules, and Intel vPro. For added flexibility, this model comes with no preloaded operating system. It has been pretested with Linux SuSE, Ubuntu, and Red Hat operating systems, allowing businesses to get the solution best suited for them.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change. Options include barcode scanners, LED status lights, magnetic stripe readers, fingerprint scanners, and more.
UPC: 843173109497
Items Included
- Elo Touch I-Series 2 E693211 22" Full HD Touchscreen Commercial Monitor with Intel i5 Processor
- Power Cable
- USB-C Power Adapter
- Cable Cover Locking Screw
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch E693211 Specs
Key Specs
| Display Size |
21.5"
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
225 nits / cd/m2
|
| Touchscreen |
Yes: Projected Capacitive
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 5.0
|
| USB I/O |
4x Micro-USB (Unspecified Version) [Control]
1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C (Unspecified Version) |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Built-In Speakers |
Yes: 2x 2 W
|
Display
| Display Size |
21.5"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
225 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Response Time |
14 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors
|
| Viewing Angle (H x V) |
178 x 178?
|
Surface
| Touchscreen |
Yes: Projected Capacitive
|
| Multi-Touch Points |
10
|
Video
| TV Tuner |
No
|
Connectivity
| A/V Inputs |
No
|
| A/V Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| HDCP Support |
No
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 5.0
|
| USB I/O |
4x Micro-USB (Unspecified Version) [Control]
1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C (Unspecified Version) |
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| NFC |
No
|
| OPS/Expansion Slots |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes: 2x 2 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
No
|
| Processor |
Intel Core i5-9500TE
|
| Storage |
128 GB 2.5" SSD
|
| RAM |
8 GB DDR4 2666 MHz
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: 83.0 W
Standby: < 5.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 95?F / 0 to 35?C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 5 to 95% Humidity
|
| Certifications |
CB, CCC, CE, FCC, TUV, UKCA, UL, VCCI, cUL
|

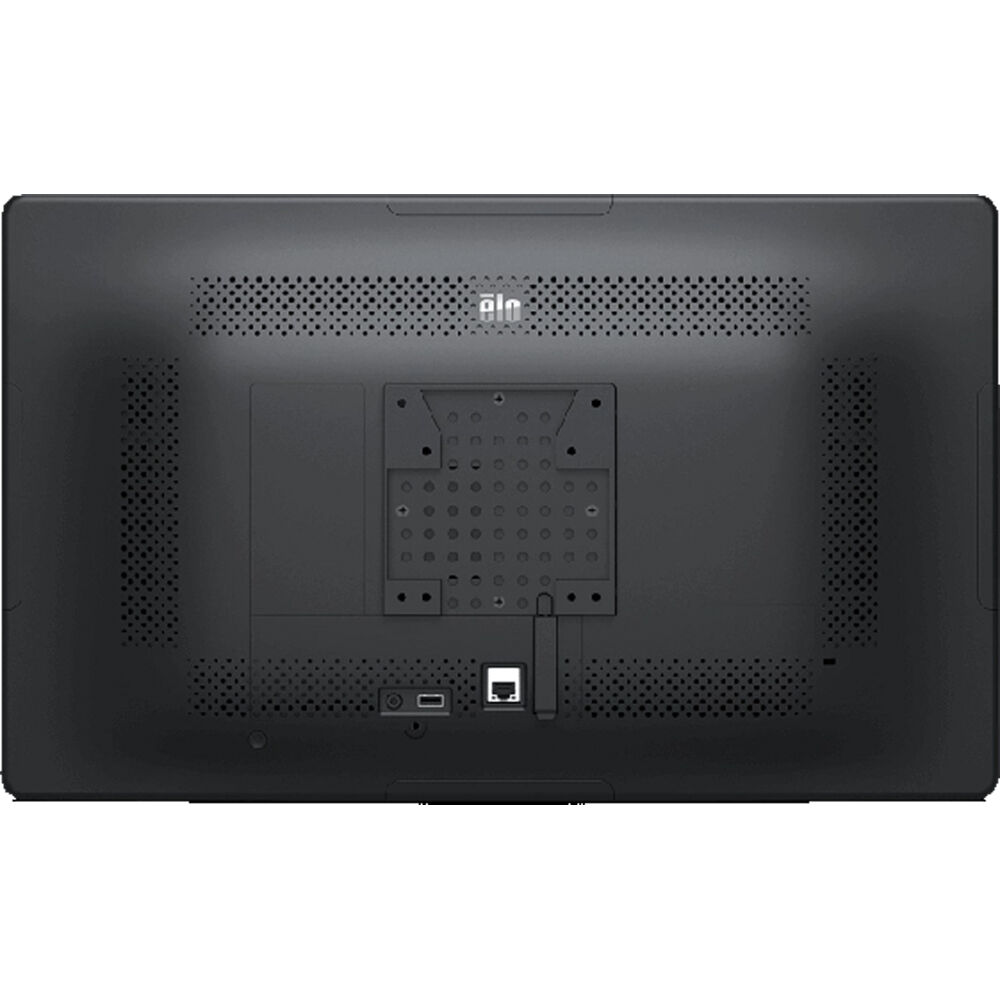

| VESA Mounting-Hole Pattern |
100 x 100 mm, 75 x 75 mm
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
Yes: Kensington
|
| Dimensions |
20.7 x 12.6 x 2.1" / 525.9 x 319.2 x 52.6 mm
|
| Weight |
11.5 lb / 5.2 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 369484.5 |
| 3-5 | ₹ 365714.25 |
| 5-10 | ₹ 358173.75 |
| 10+ | ₹ 350633.25 |
Bulk discount will be automatically applied during checkout based on quantity.
