Description
Elo Touch E402382 Overview

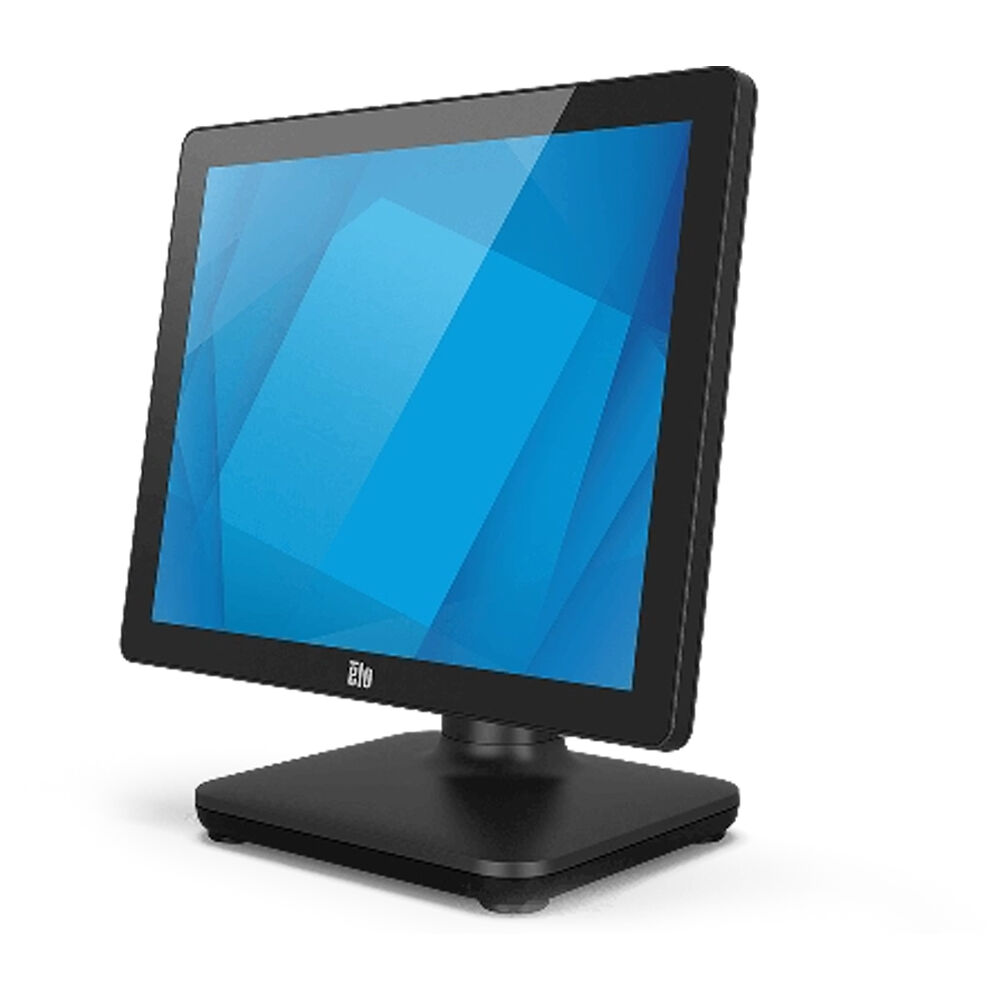

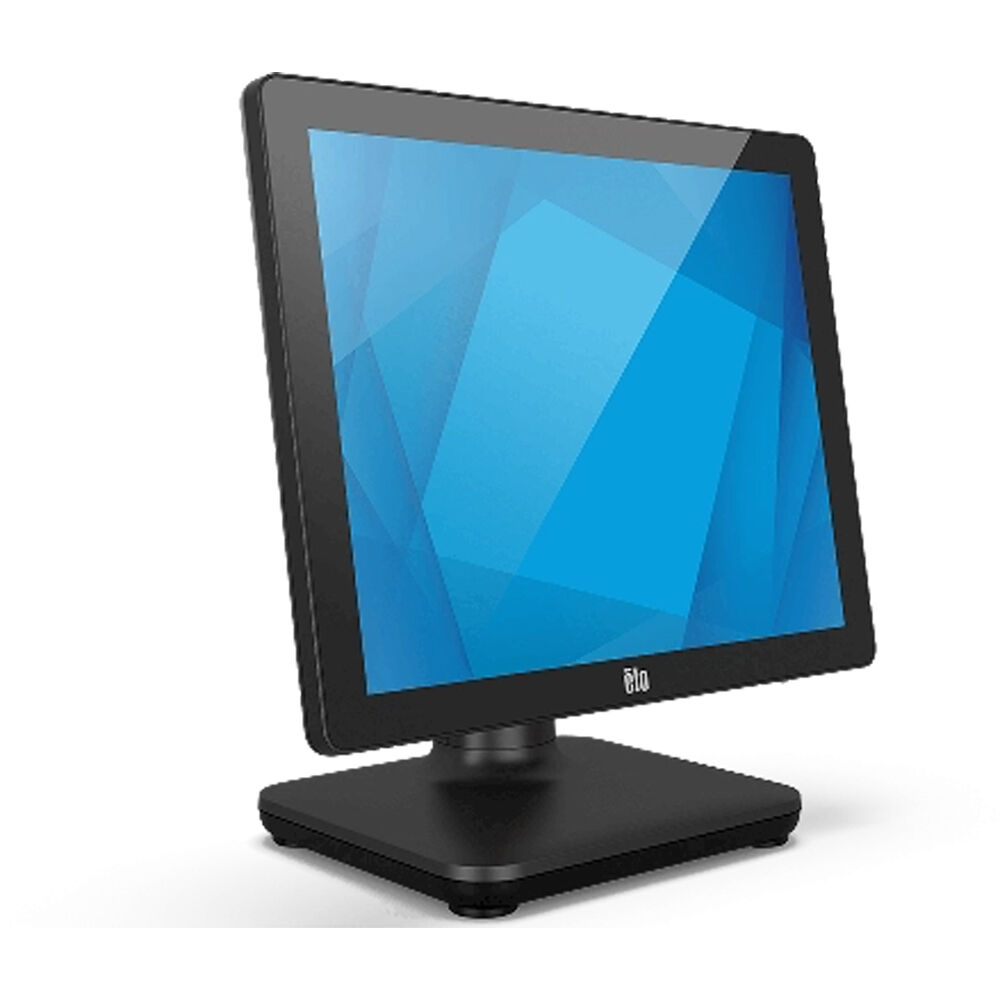

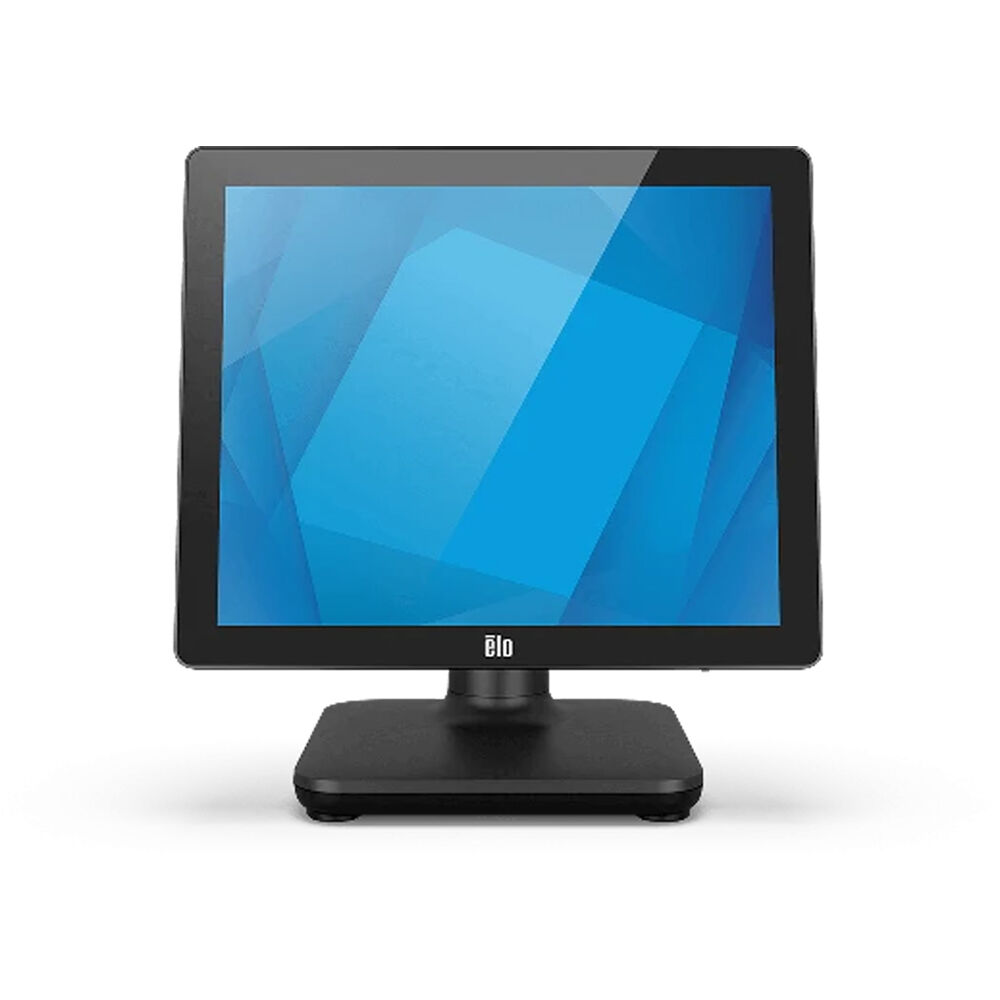

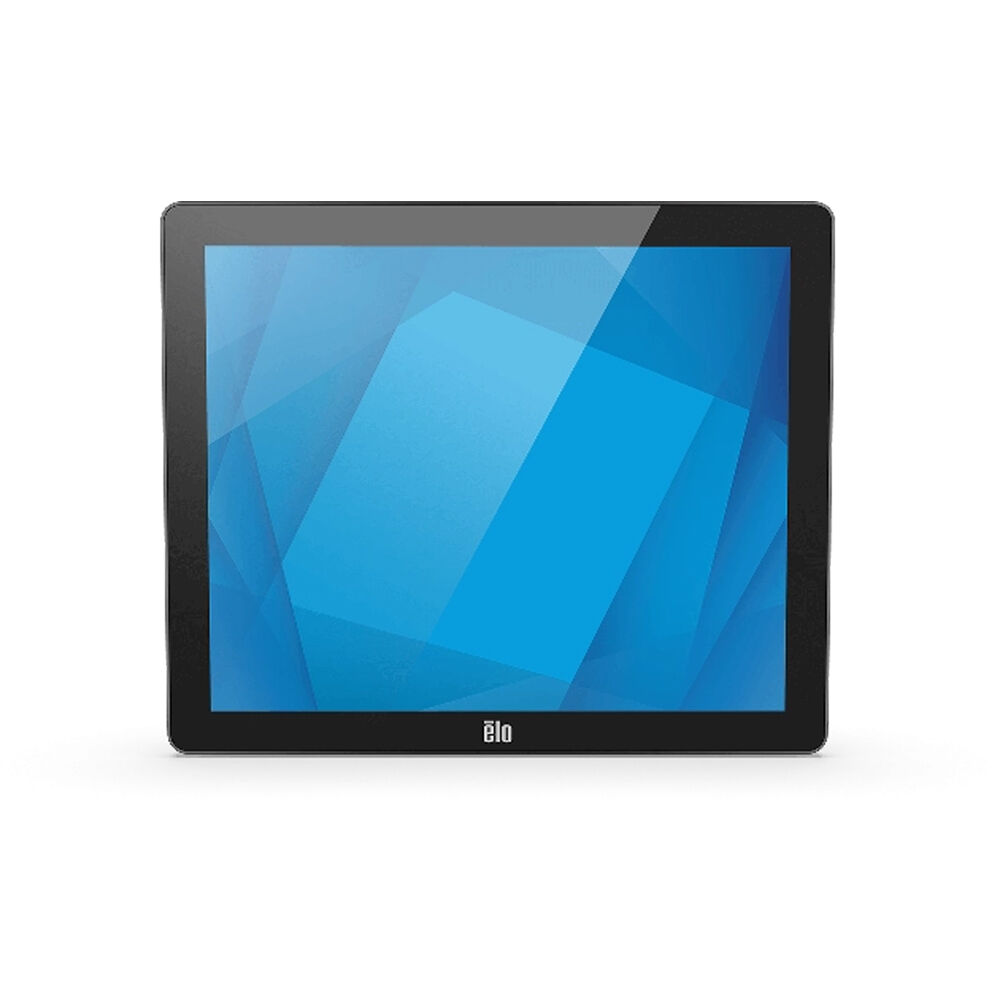

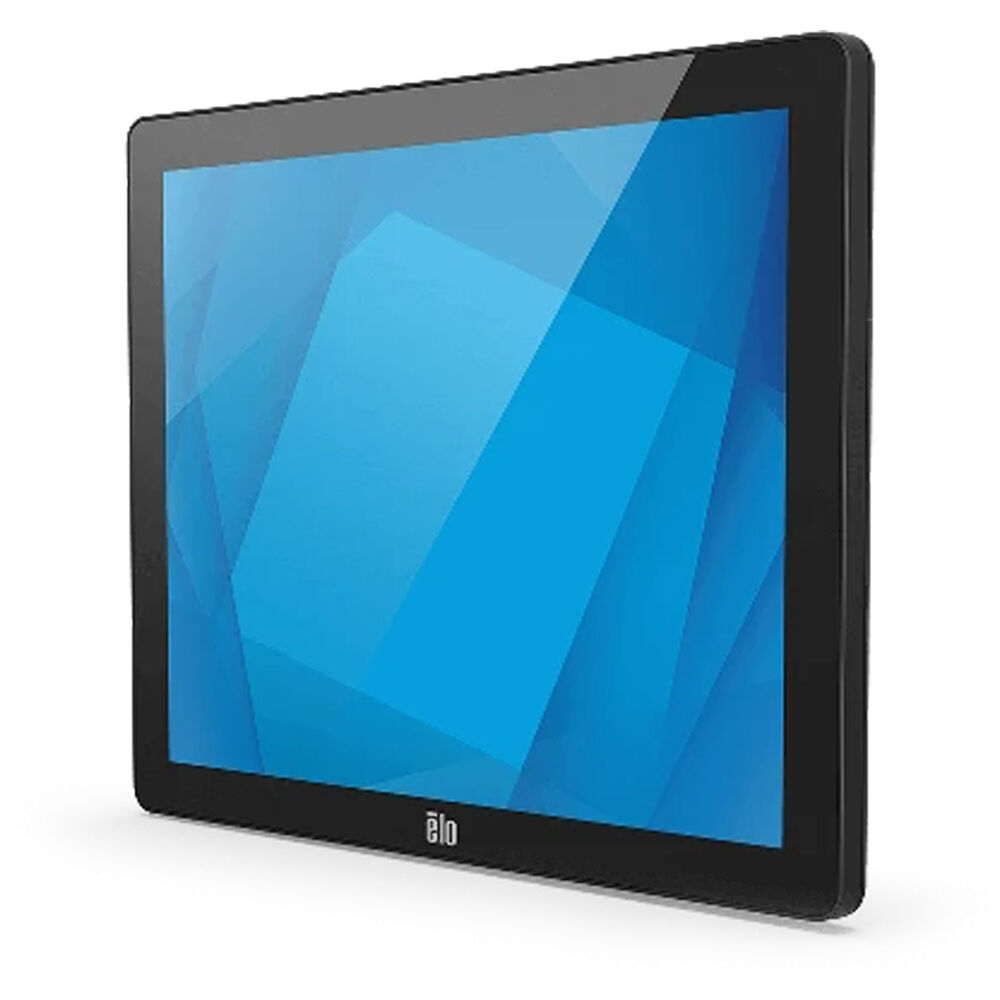

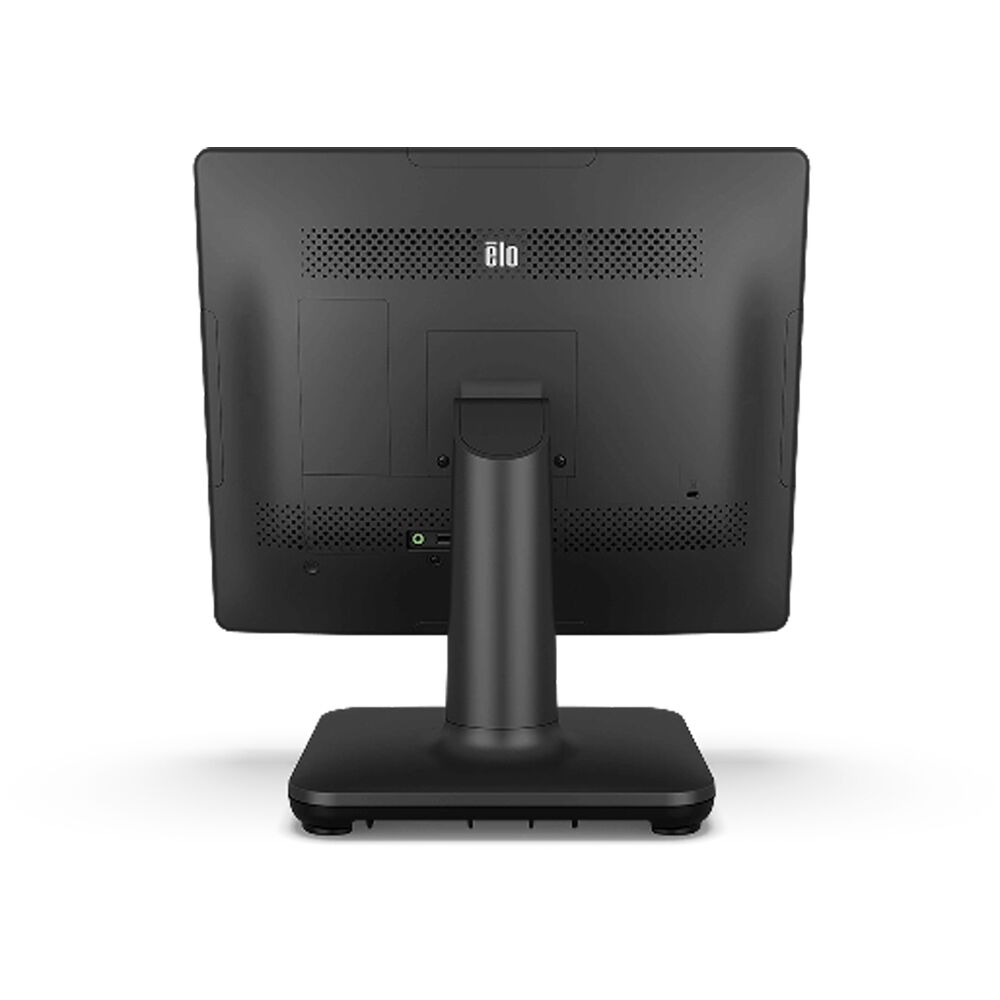

Experience modular flexibility and commercial-grade reliability with the Elo Touch E402382 EloPOS System 17" SXGA Touchscreen Commercial Monitor. This model comes equipped with an Intel i3 processor, Windows 10 operating system, and additional connectivity with the included I/O Hub Stand. With plenty of connections for peripherals like cash drawers, printers, barcode scanners, and more, the EloPOS System is built for retail point-of-sale applications.
Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display (sold separately), providing touch, data, and power with just one cable. By reducing the number of cables required for setup from three to one, installation and servicing are a breeze.
Do More with Elo Edge Connect
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point-of-sale, endless-aisle, or self-order applications, you can seamlessly attach any combination of up to four peripherals directly to the edge of the touchscreen, creating a bespoke solution. And, you can add or move them later as your needs change.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one- and two-year warranty extensions are available as well as EloCare options (all sold separately), making EloPOS the ideal product for point-of-sale applications.
UPC: 843173128917
Items Included
- Elo Touch E402382 EloPOS System 17" SXGA Touchscreen Commercial Monitor with Intel i3, Windows 10 & I/O Hub Stand
- Power Cord
- Power Adapter
- RJ-45 to DB-9 Adapter Cable
- Cable Cover Locking Screw
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch E402382 Specs
Key Specs
| Display Size |
17"
|
| Native Resolution |
1280 x 1024
|
| Maximum Brightness |
212 nits / cd/m2
|
| Touchscreen |
Yes: Projected Capacitive
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 5.0
|
| USB I/O |
4x Micro-USB (Unspecified Version) [Control]
3x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 1x USB-C (Unspecified Version) 6x USB-A (Unspecified Version) [Charging] |
| Ethernet I/O |
1x RJ45
|
| Built-In Speakers |
Yes: 2x 2 W
|
Display
| Display Size |
17"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
5:4
|
| Display Orientation |
Landscape
|
| Native Resolution |
1280 x 1024
|
| Maximum Brightness |
212 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Response Time |
5 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors
|
| Viewing Angle (H x V) |
170 x 160?
|
Surface
| Touchscreen |
Yes: Projected Capacitive
|
| Multi-Touch Points |
10
|
Video
| TV Tuner |
No
|
Connectivity
| A/V Inputs |
No
|
| A/V Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| HDCP Support |
No
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth 5.0
|
| USB I/O |
4x Micro-USB (Unspecified Version) [Control]
3x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 1x USB-C (Unspecified Version) 6x USB-A (Unspecified Version) [Charging] |
| Ethernet I/O |
1x RJ45
|
| NFC |
No
|
| Other I/O |
2x RJ45 Serial (RS-232C) Control Input/Output
|
| OPS/Expansion Slots |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes: 2x 2 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
No
|
| Processor |
Intel Core i3-9100TE
|
| Storage |
128 GB 2.5" SSD
|
| RAM |
4 GB DDR4 2666 MHz
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Operational: 63.0 W
Standby: < 0.5 W |
| Input Power |
24 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 95?F / 0 to 35?C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 5 to 95% Humidity
|
| Certifications |
CB, CCC, CE, FCC, TUV, UKCA, UL, VCCI, cUL
|
| VESA Mounting-Hole Pattern |
75 x 75 mm
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
Yes: Kensington
|
| Dimensions |
15.5 x 12.8 x 8.7" / 393.5 x 325.9 x 221.3 mm (with Stand)
15.5 x 12.8 x 3.3" / 393.5 x 325.9 x 83.3 mm (without Stand) |
| Weight |
14.8 lb / 6.7 kg (with Stand)
10.6 lb / 4.8 kg (without Stand) |
