Description
Elo Touch 2794L Overview
- 1Description
- 2Enabling Partners to Build Smarter Kiosks
- 3Flexibility for Your Install
- 4Touch-Through Glass Enabled with PCAP

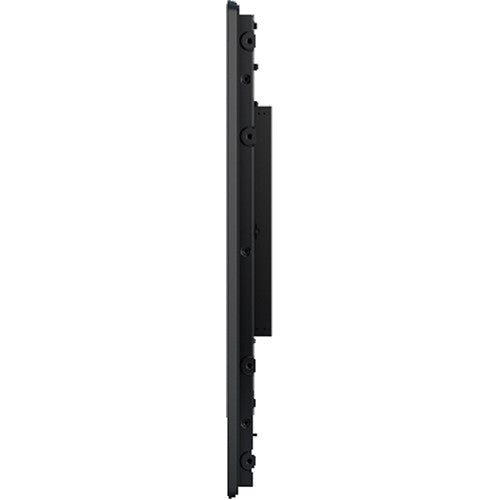

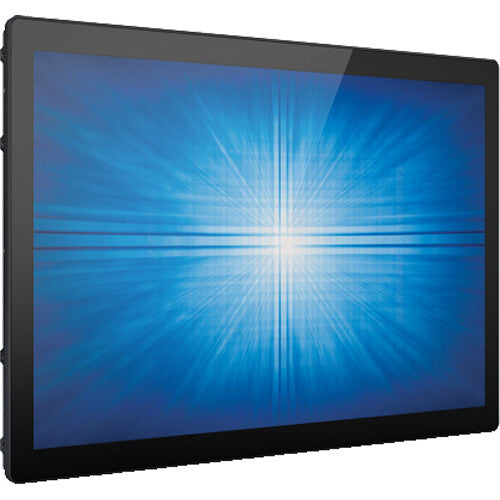

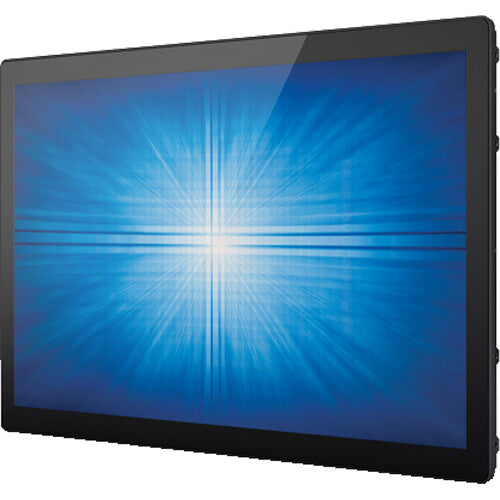

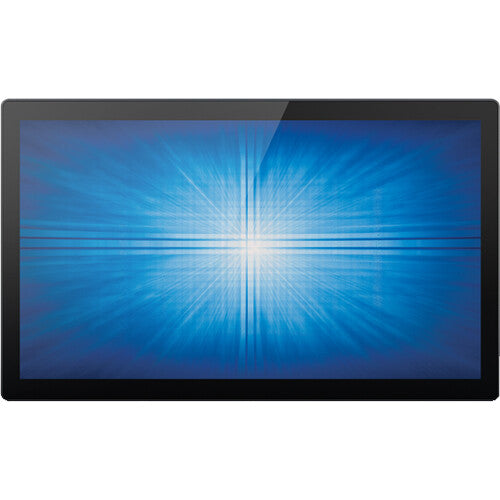

The Elo Touch 2794L 27" Class 1080p HD Open Frame Touchscreen Display delivers an industrial-grade solution that is cost-effective for OEMs and system integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The display offers the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
With EloView and the optional Backpack accessory, managing kiosks is easy. The Elo Backpack is an Android-powered engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
It can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, the open frame offers what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch-Through Glass Enabled with PCAP
TouchPro PCAP technology supports touch-through functionality for installations that require a front layer of glass with thickness's up to 0.2" or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, the robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
In the Box
- Elo Touch 2794L 27" Class 1080p HD Open Frame Touchscreen Display (TouchPro PCAP)
- HDMI Cable
- VGA Cable
- RJ45 OSD Remote
- Flush Mount Brackets with Screws
- Touch USB Cable
- Limited 3-Year Warranty
Table of Contents
- Description
- Enabling Partners to Build Smarter Kiosks
- Flexibility for Your Install
- Touch-Through Glass Enabled with PCAP
Elo Touch 2794L Specs
Display
| Screen Size (Diagonal) | 27" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | 640 x 480 / 6060 Hz 720 x 400 / 70 Hz 800 x 500 / 60 Hz 800 x 600 / 60 Hz 1024 x 768 / 60 Hz 1280 x 800 / 60 Hz 1280 x 1024 / 60 Hz 1366 x 768 / 60 Hz 1440 x 900 / 60 Hz 1680 x 1050 / 60 Hz 1920 x 1080 / 50 Hz 1920 x 1080 / 60 Hz |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 270 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 23.5 x 13.23" / 597.6 x 336.15 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Response Time | 12 ms |
| Horizontal Frequency | 30 to 82 kHz |
| Vertical Frequency | 50 to 75 Hz |
Connectivity
| Input Ports | 1 x HDMI 1.3 Video 1 x 15-Pin VGA Video 1 x DisplayPort 1.1 Video |
| USB Ports | 1 x USB 2.0 Type-B |
Surface
| Touchscreen Technology | Projected Capacitive |
Electrical
| Power Consumption | Typical: 27.0 W Standby: 1.5 W |
| DC Input Power | 12 VDC |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
Physical

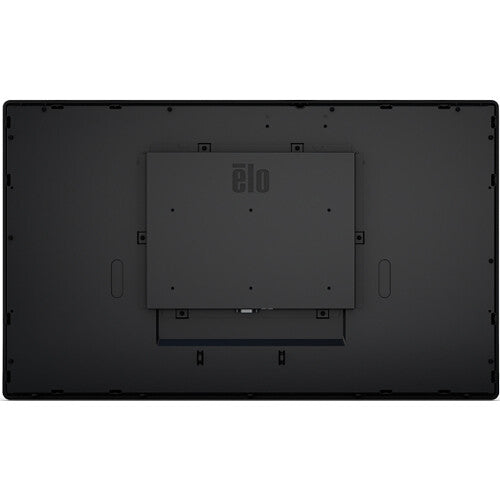

| Wall Mounting | 200 x 100 mm |
| Dimensions | 24.9 x 14.7 x 1.6" / 633.2 x 374.4 x 41.8 mm (with Bracket) 25.4 x 15.3 x 1.6" / 644.2 x 388.4 x 40.6 mm (Panel) |
| Weight | 16.09 lb / 7.30 kg |
