Description
Elo Touch 2094L Overview

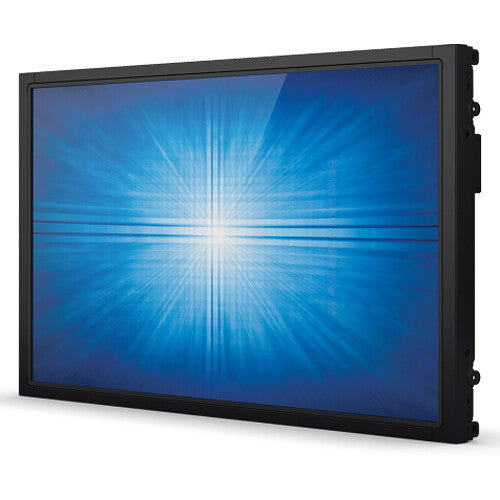

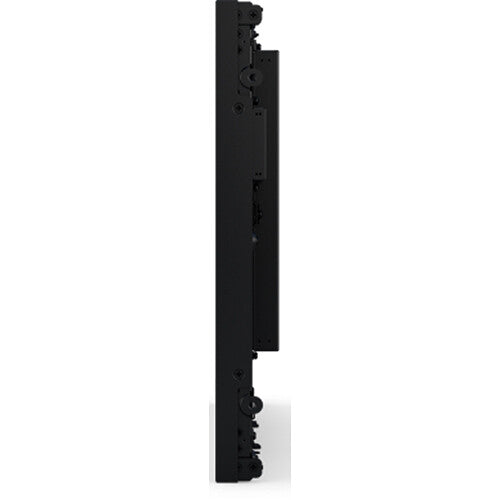

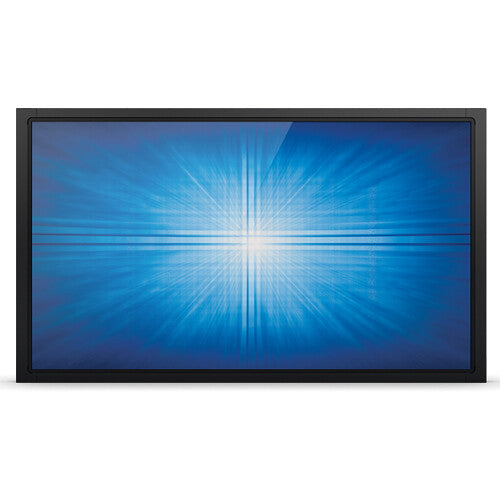

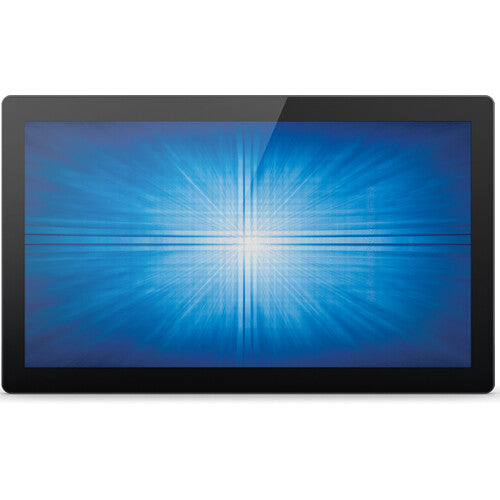

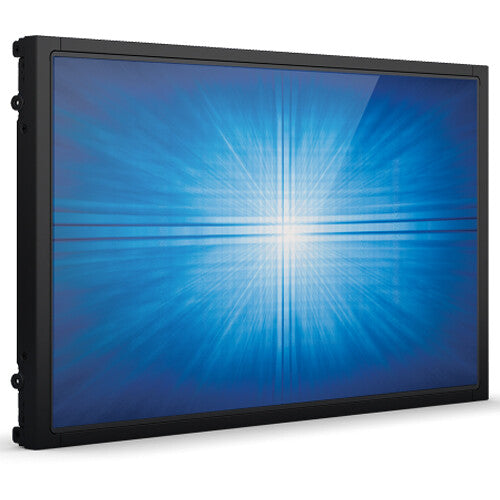

The Elo Touch 2094L 19.5" Class 1080p HD Open Frame Touchscreen Display delivers an industrial-grade solution that is cost-effective for OEMs and system integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The display offers the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
With EloView and the optional Backpack accessory, managing kiosks is easy. The Elo Backpack is an Android-powered engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
It can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, the open frame offers what you need while maintaining optimal clarity and the viewing experience you want to deliver.
In the Box
- Elo Touch 2094L 19.5" Class 1080p HD Open Frame Touchscreen Display (IntelliTouch)
- HDMI Cable
- VGA Cable
- RJ45 OSD Remote
- "L" (Side Mount) Brackets and with Screws
- Touch USB Cable
- Limited 3-Year Warranty
Elo Touch 2094L Specs
Display
| Screen Size (Diagonal) | 19.5" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | 640 x 480 / 60 Hz 720 x 400 / 70 Hz 800 x 500 / 60 Hz 800 x 600 / 56 Hz 800 x 600 / 60 Hz 1024 x 768 / 60 Hz 1280 x 800 / 60 Hz 1280 x 1024 / 60 Hz 1366 x 768 / 60 Hz 1440 x 900 / 60 Hz 1680 x 1050 / 60 Hz 1920 x 1080 / 50 Hz 1920 x 1080 / 60 Hz |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 225 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 17.12 x 9.32" / 434.88 x 236.68 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Response Time | 20 ms |
| Horizontal Frequency | 30 to 82 kHz |
| Vertical Frequency | 50 to 75 Hz |
Connectivity
| Input Ports | 1 x HDMI 1.3 1 x 15-Pin VGA 1 x DisplayPort 1.1 |
| USB Ports | 1 x USB 2.0 |
| Other I/O | 2 x Serial |
Surface
| Touchscreen Technology | Surface Capacitive |
Electrical
| Power Consumption | Typical: 16.5 W Standby: 1.5 W |
| DC Input Power | 12 VDC |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
Physical

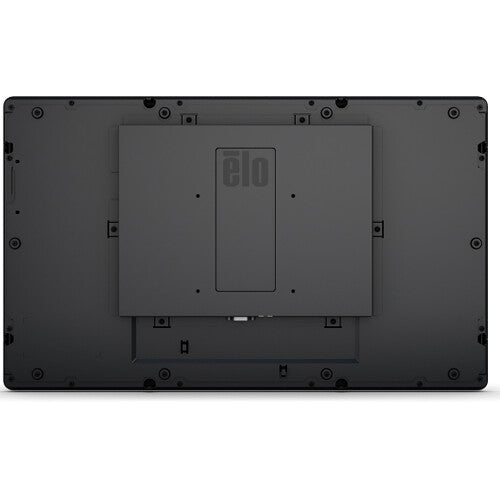

| Wall Mounting | 100 x 100 mm |
| Dimensions | 18.7 x 11.0 x 1.7" / 476.0 x 280.1 x 43.4 mm (with Bracket) 18.9 x 11.2 x 1.6" / 479.2 x 285.0 x 40.5 mm (Panel) |
| Weight | 10.36 lb / 4.70 kg |
