Description
Elo Touch 1723L Overview

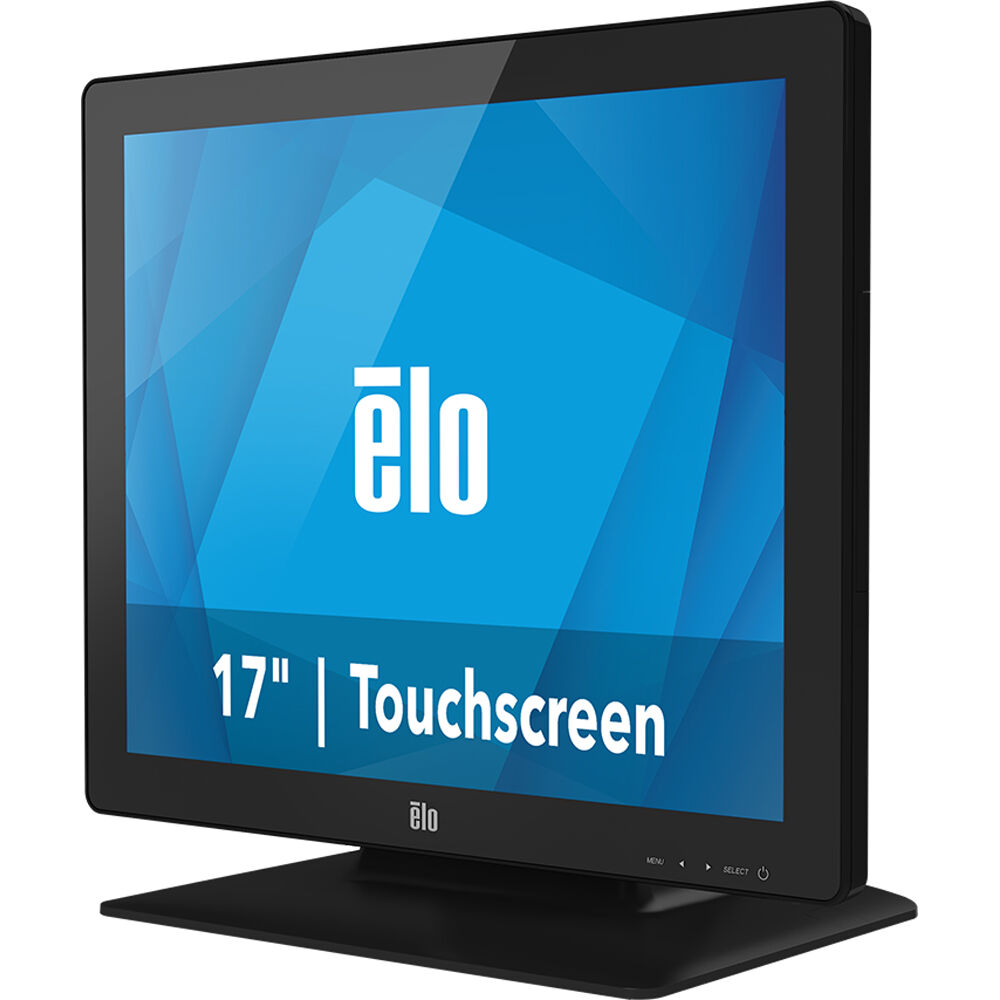

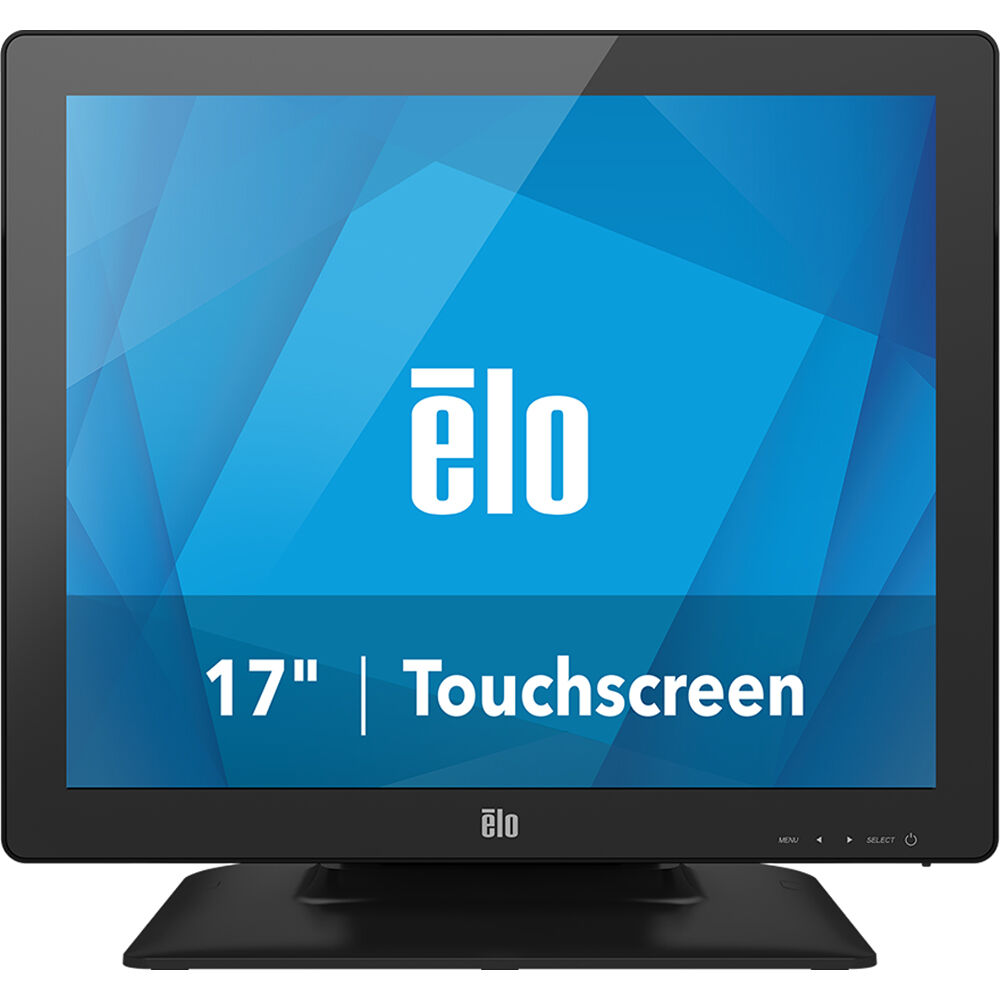

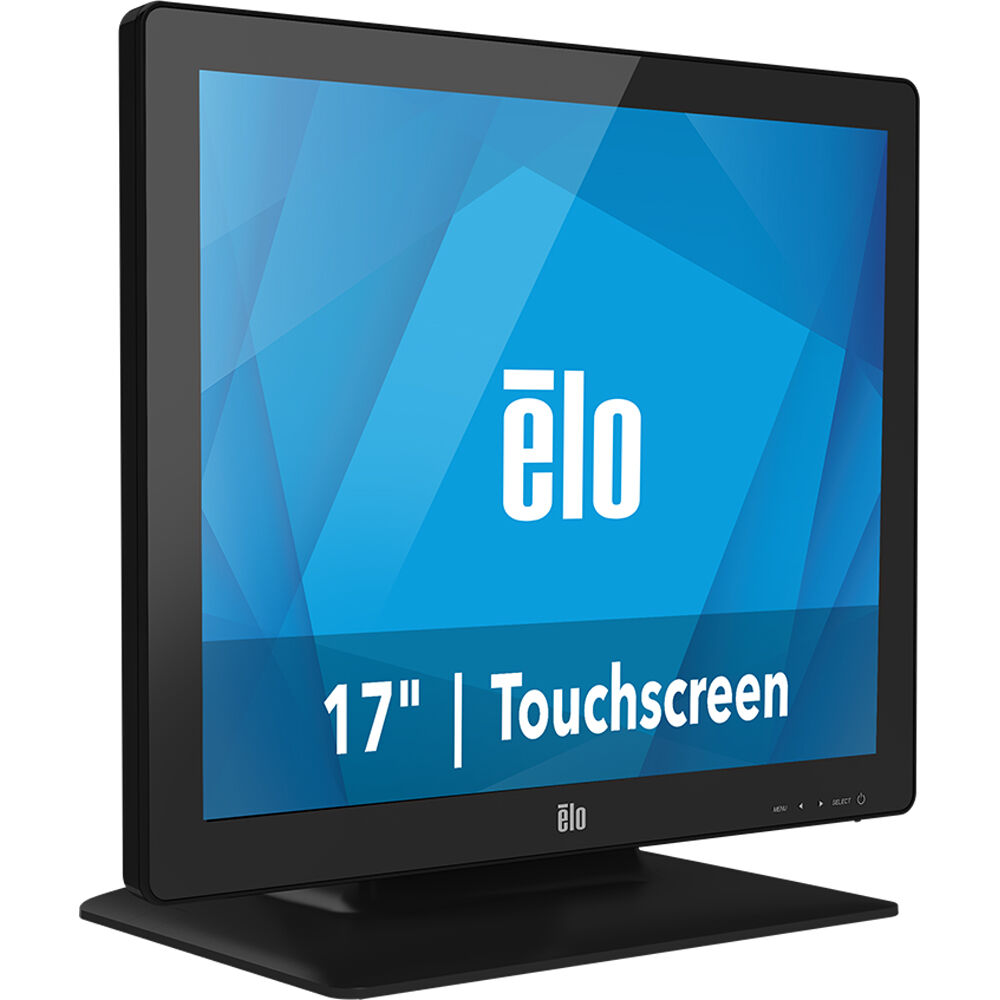

The Elo Touch 1723L 17" SXGA Touchscreen Commercial Monitor is a 250-nit bright, commercial grade, multi-touch interactive display. The 1723L features a sleek, edge-to-edge glass design with Elo's TouchPro PCAP touch technology and is ideal for retail and hospitality applications. Connect a computer via HDMI, VGA, or DVI-D for video and USB for touch control to enjoy accurate touch response and vivid images. It ships with a desktop stand that can hold the screen vertically or in a low-profile "hostess" position with backward tilting capability.
Integrated Touch
The 17" monitor offers a 10-point touch tablet-like experience. TouchPro PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Endless Function
The 1723L has been designed for touch from the ground up, with such features as spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
Commercial Grade
The 17" touchscreen monitor delivers the quality and reliability Elo is known for and is backed by their three-year standard warranty. All Elo products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Additional Features
- Integrated cable management
- Long-lasting product cycle
- Dual-position stand: Single hinge with high/low settings and tilt
- The screen is resistant to dirt, dust, and liquid
- Desktop, wall, or VESA mounting
- Built-in stereo speakers
Items Included
- Elo Touch 1723L 17" SXGA Touchscreen Commercial Monitor (Black)
- AC/DC Power Adapter
- Power Cable
- HDMI Cable
- VGA Cable
- DVI Cable
- USB Touch Cable
- 3.5mm Audio Cable
- Stand Base Assembly
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch 1723L Specs
Key Specs
| Display Size |
17"
|
| Native Resolution |
1280 x 1024
|
| Maximum Brightness |
225 nits / cd/m2
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
1x HDMI
1x DVI-D 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
2x USB-A (Unspecified Version) |
| Ethernet I/O |
No
|
| Built-In Speakers |
Yes, 2x 2 W
|
| Media Card Reader |
No
|
Display
| Display Size |
17"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
5:4
|
| Display Orientation |
Landscape
|
| Native Resolution |
1280 x 1024
|
| Maximum Brightness |
225 nits / cd/m2
|
| Lighting System |
Backlit LED
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Response Time |
20 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Viewing Angle (H x V) |
170 x 160°
|
| Screen Area |
13.30 x 10.64" / 337.92 x 270.34 mm
|
| Horizontal Frequency |
31.5 to 80 kHz
|
| Vertical Frequency |
56 to 75 Hz
|
| Pixels Per Inch (ppi) |
96 ppi
|
Surface
| Touchscreen Technology |
Projected Capacitive
|
| Multi-Touch Points |
2
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x HDMI
1x DVI-D 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
No
|
| HDCP Support |
Yes
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
2x USB-A (Unspecified Version) |
| Ethernet I/O |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 2 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| OS Compatibility |
Windows
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Languages |
English
French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Operational: < 11.0 W
Standby: < 1.3 W |
| Input Power |
12 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
|
| Certifications |
UL, cUL, FCC, IC, CCC, CE, UKCA, VCCI, Kcc, BSMI Mark, CB, RoHS, RCM, WEEE
|
| Adjustments |
Tilt: 90° (0 to 90°)
|
| Mounting-Hole Pattern |
75 x 75 mm
|
| Lighting Lifespan |
50000 Hours
|
| Impact Resistance |
No
|
| Lock Slot |
Yes, Kensington
|
| Dimensions |
15.4 x 14.2 x 8.2" / 391.9 x 360.7 x 209.4 mm
|
| Weight |
11.5 lb / 5.2 kg
|
