Description
- 17" Touch Display
- 1280 x 1024 Native Resolution
- Serial, USB, and VGA Ports
- 5:4 Aspect Ratio
- 1000:1 Contrast Ratio
- Brightness Level of 200 Nits
- VESA Compliant

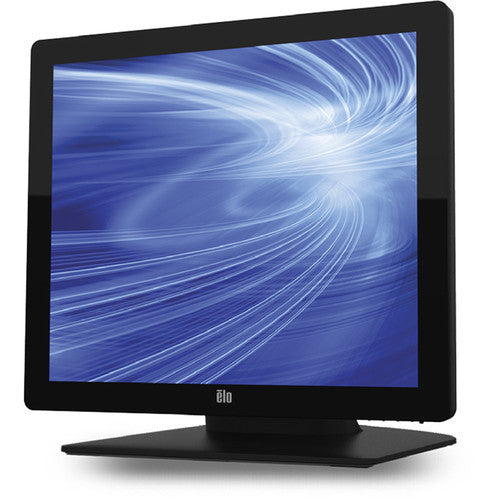

The black 1717L 17" Rev B Multifunction AccuTouch Desktop Monitor from Elo Touch is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin, and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touch monitor needs. It is well suited for high-traffic public venues where point-of-sale, point-of-information, point-of-service, shelf-level, and countertop interactive digital signage as well as loyalty systems are found.
This monitor features AccuTouch, which utilizes five-wire resistive technology, so you can input commands by just tapping on the 17" display. AccuTouch can be used in retail and hospitality environments based on its ability to survive splashing liquids, food, and grease. This monitor connects via USB, serial, and VGA to your system for utilizing the touch feature. In addition, the display has a native resolution of 1280 x 1024, 1000:1 contrast ratio, and 200 nits of brightness.
- Power Cable
- Detachable Touch and Video Cables
| Technical Information | |
|---|---|
| Screen Size | 17" |
| Screen Mode | SXGA |
| Response Time | 7.8 ms |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 170� |
| Vertical Viewing Angle | 160� |
| Surface Treatment | Anti-glare |
| Mount Type | Desk Mountable Pole Mount Wall Mountable |
| Backlight Technology | LED |
| Features | Security Lock |
| Video | |
|---|---|
| Maximum Resolution | 1280 x 1024 |
| Supported Resolutions | 640 x 480 @ 60 Hz, 75 Hz 720 x 400 @ 70 Hz 800 x 600 @ 56 Hz, 60 Hz, 75 Hz 1024 x 768 @ 60 Hz, 75 Hz 1280 x 1024 @ 60 Hz, 75 Hz |
| Color Supported | 16.7 million Colors |
| Contrast Ratio | 1000:1 |
| Brightness | 200 nits |
| Frequency | Analog VGA on female DE-15 connector Horizontal Sync Frequency Range: 31.5 to 80 KHz Vertical Sync (frame rate) Frequency Range: 56 to 75Hz |
| Touchscreen Information | |
|---|---|
| Touchscreen | Yes |
| Touchscreen Type | AccuTouch 5-wire Resistive |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| VGA | Yes |
| Serial | Yes |
| Power Description | |
|---|---|
| Operating Power Consumption | 20 W |
| Standby Power Consumption | 1.1 W |
| Off-Mode Power Consumption | 0.8 W |
| Input Power | 100 to 240 VAC, 12 VDC �5%, 50/60 Hz |
| Miscellaneous | |
|---|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | China RoHS RoHS WEEE |
| Temperature | Operating: 32 to 104�F / 0 to 40�C Storage: 68 to 140�F / 20 to 60�C |
| Humidity | Operating: 20 to 80% Storage: 10 to 90% |
| MTBF | 50,000 hours demonstrated |
| Physical Characteristics | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Dimensions | With Stand: 15.4 x 7.5 x 14.2" / 39.1 x 19.1 x 36.1 cm |
| Weight with Stand (Approximate) | 11.9 lb / 5.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 18.95 lb |
| Box Dimensions (LxWxH) | 19.5 x 18.9 x 10.0" |
