Description

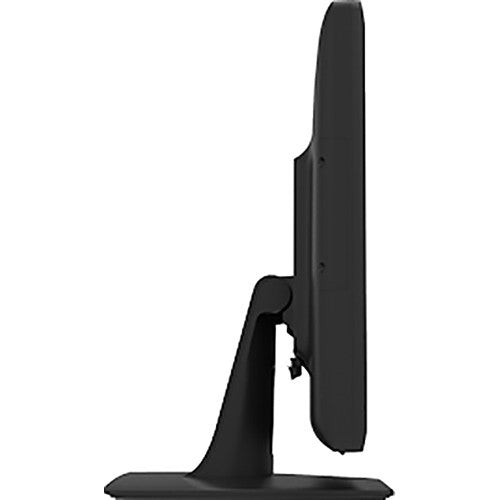

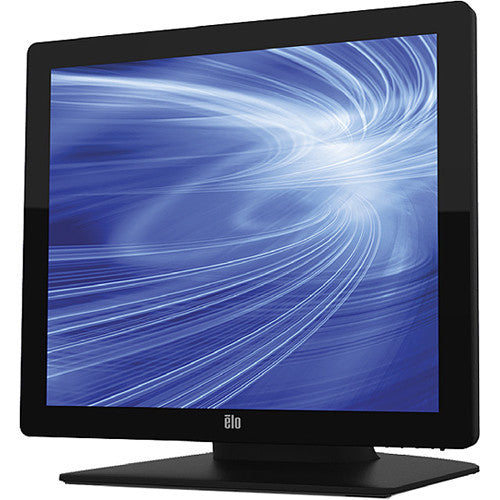

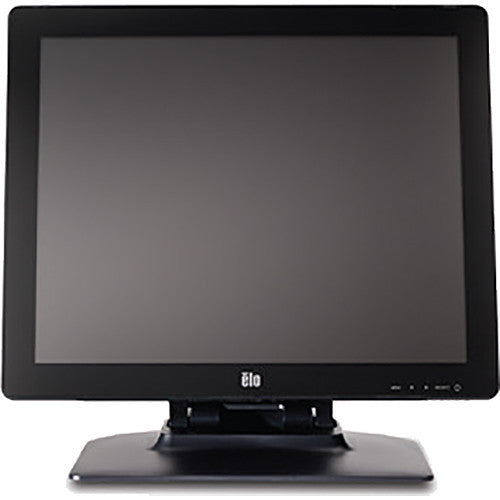

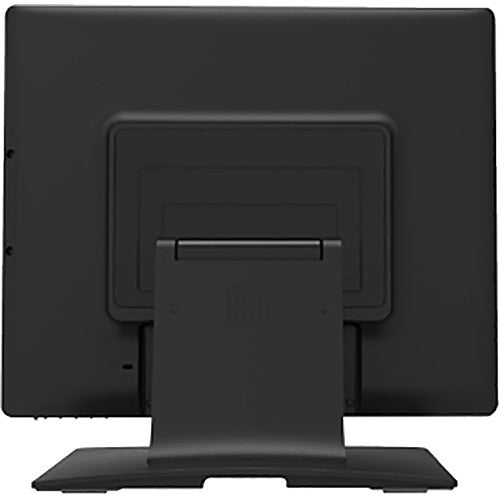

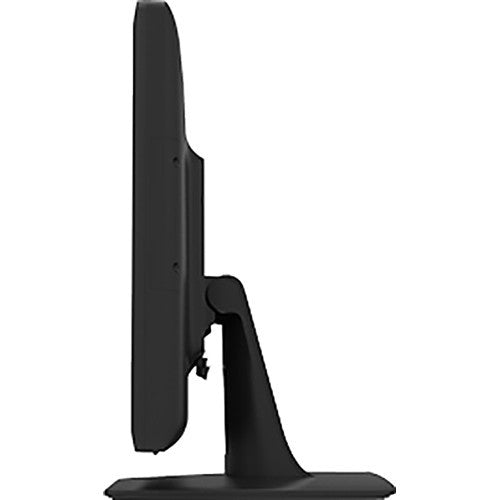

The 17" black 1717L LED Desktop Touchmonitor from Elo Touch is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its thin look is coupled with a retail-focused feature set and is suitable for commercial touchmonitor needs. It is well suited for high-traffic public venues where point-of-sale, point-of-information, point-of-service, shelf-level, and countertop interactive digital signage as well as loyalty systems are found.
The monitor utilizes IntelliTouch Surface Acoustic Wave touch technology with transactional single-touch capability. There are no coatings, plastic films or moving parts to wear out or be damaged. The active area of the touchscreen is resistant to chemicals such as acetone, toluene, methyl ethyl ketone, isopropyl alcohol, methyl alcohol, ethyl acetate, ammonia-based glass cleaners, gasoline, kerosene, and vinegar.
- Monitor
-
- 40% energy savings using LED technology
- Antiglare glass
- USB and RS232 serial connections
- Internal and external power options (external AC power adapter available separately)
- Traditional bezel
- Integrated cable management
- Can be desktop, wall, or VESA mounted
- IntelliTouch Surface Acoustic Wave Touch Technology
-
- Compatible with Microsoft Windows 7 operating system
- Pure-glass construction
- Tested to more than 50 million touches in one location without failure
- Application
-
- Public environments such as hotel lobbies, office buildings, auto dealerships, bank branches, gaming casinos, healthcare waiting rooms, retail stores, and train stations
- Point-of-information kiosks
- Vending and ticket sales
- Interactive digital signage
- Industrial control rooms
In the Box
Elo Touch 1717L 17"-Class LED Touchmonitor (IntelliTouch Single-Touch, Anti-Glare, Black)
- Limited 3-Year Warranty
| Monitor | |
|---|---|
| Diagonal Size | 17" (43.2 cm) |
| Aspect Ratio | 5:4 |
| Active Display Area | 13.3 x 10.6" (33.8 x 27.0 cm) |
| LCD Technology | Active matrix TFT LCD with LED backlighting |
| Native Resolution | 1280 x 1024 |
| Supported Resolutions | 640 x 480 @ 60 Hz, 75Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 56 Hz, 60 Hz, 75 Hz; 1024 x 768, @ 60 Hz, 75 Hz; 1280 x 1024 @ 60 Hz, 75 Hz |
| Colors | 16.7 million colors |
| Brightness | LCD Panel: 250 cd/m 2 With IntelliTouch: 225 cd/m 2 |
| Response Time (Typical) | 7.8 ms |
| Viewing Angle | Horizontal: �85� Vertical: �80� |
| Contrast Ratio (Typical) | 1000:1 |
| OSD Controls | Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults Lockouts: OSD, Power |
| Languages | English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese |
| Video Input Connectors | 1 x VGA (female DE-15) |
| Video Sync Input | Horizontal: 31.5 to 80 kHz Vertical: 56 to 75 Hz |
| Power Input Connector | AC: IEC 60320 C6 DC: Coaxial power jack (2.1 mm pin outer diameter, 6.4 mm barrel inner diameter) |
| Power Input | AC: 100 - 240 VAC, 50/60 Hz DC: 12 VDC �5% |
| Power Consumption (typical) | ON (Monitor Only): 20 W SLEEP (Monitor Only): 1.1 W OFF (Monitor Only): 0.8 W |
| MTBF | 50,000 hours demonstrated |
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Storage Temperature | -4 to 140�F (-20 to 60�C) |
| Operating Humidity | 20 to 80%, non-condensing |
| Storage Humidity | 10 to 90%, non-condensing |
| Mounting Options | 3" (75 mm) VESA mount, capped through-mount holes |
| Panel Depth | 1.7" (4.3 cm) |
| Dimensions | With Stand: 15.4 x 8.5 x 14.2" / 39.2 x 21.5 x 36.1 cm |
| Weight | With Stand: 11.9 lb / 5.4 kg |
| Touchscreen Information | |
|---|---|
| Technology | IntelliTouch Surface Acoustic Wave |
| Input Method | Finger or gloved hand (cloth, leather, or rubber) activation, or soft stylus |
| Profile | Front surface of touchscreen is completely flat |
| Position Accuracy | Standard deviation of error is less than 0.1" (2.5 mm) and is typically much less with calibration to display image |
| Resolution | 6.19 points per mm typical (A/D sampling capability is extended by pattern recognition software) |
| Actuation Force | 2 to 3 oz (55 to 85 g) typical |
| Controller | USB |
| Light Transmission | 92% �2% |
| Anti-Glare | 95 �15 or 65 �15 gloss units when measured per ASTM D2457 using a 60� gloss meter |
| Durability | Surface durability is that of glass |
| Surface Hardness | Mohs' Scale: 6.5 |
| Life Expectation | Tested to more than 50 million touches in one location without failure, using a stylus similar to a finger |
| Approvals | UL, cUL, T�V, CE, FCC Class A, RoHS compliant |
| Protection | Per EN 61000-4-2, 1995 meets Level 4 (15 kV air/8kV contact discharges) |
| Operating Humidity (Relative) | 104�F (40�C) at 90%, non-condensing |
| Operating Temperature | Operating: 32 to 122�F (0 to 50�C) |
| Storage Temperature | Storage: -40 to 160�F (-40 to 71�C) |
