Description
Elo Touch 1517L Overview

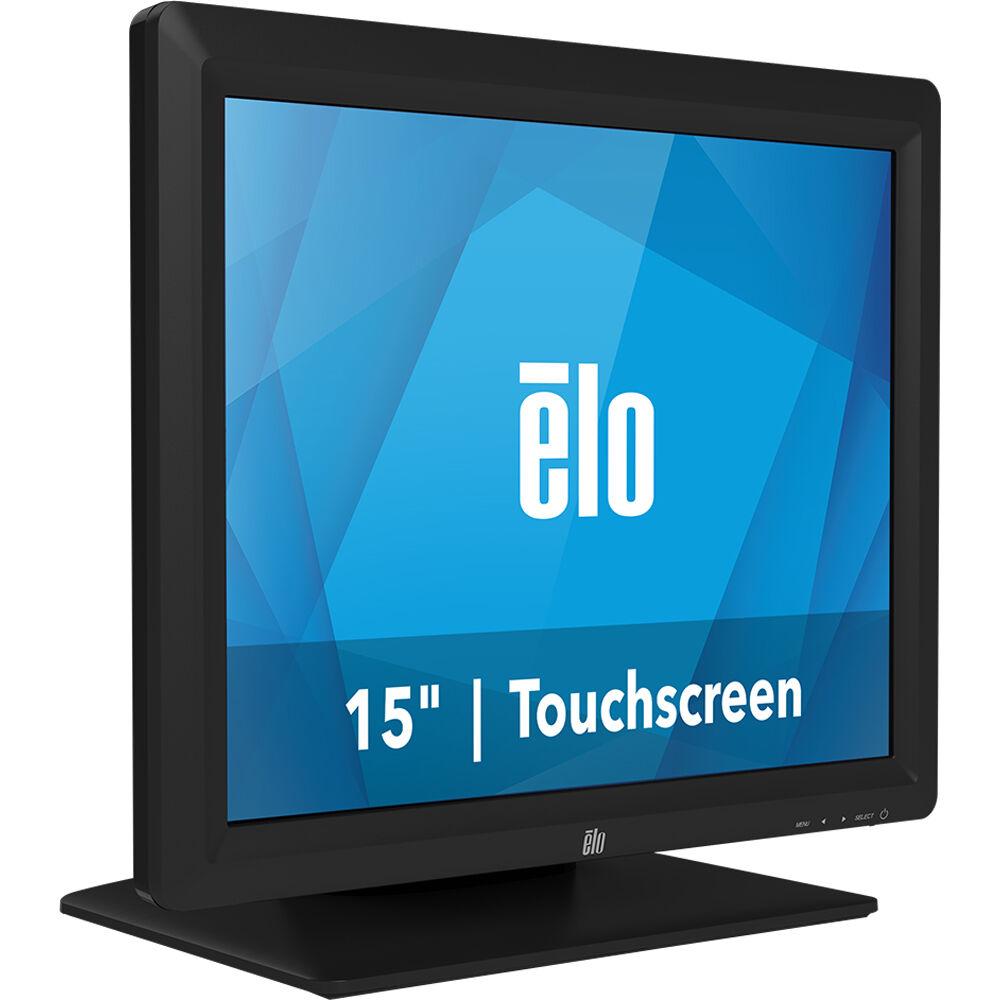

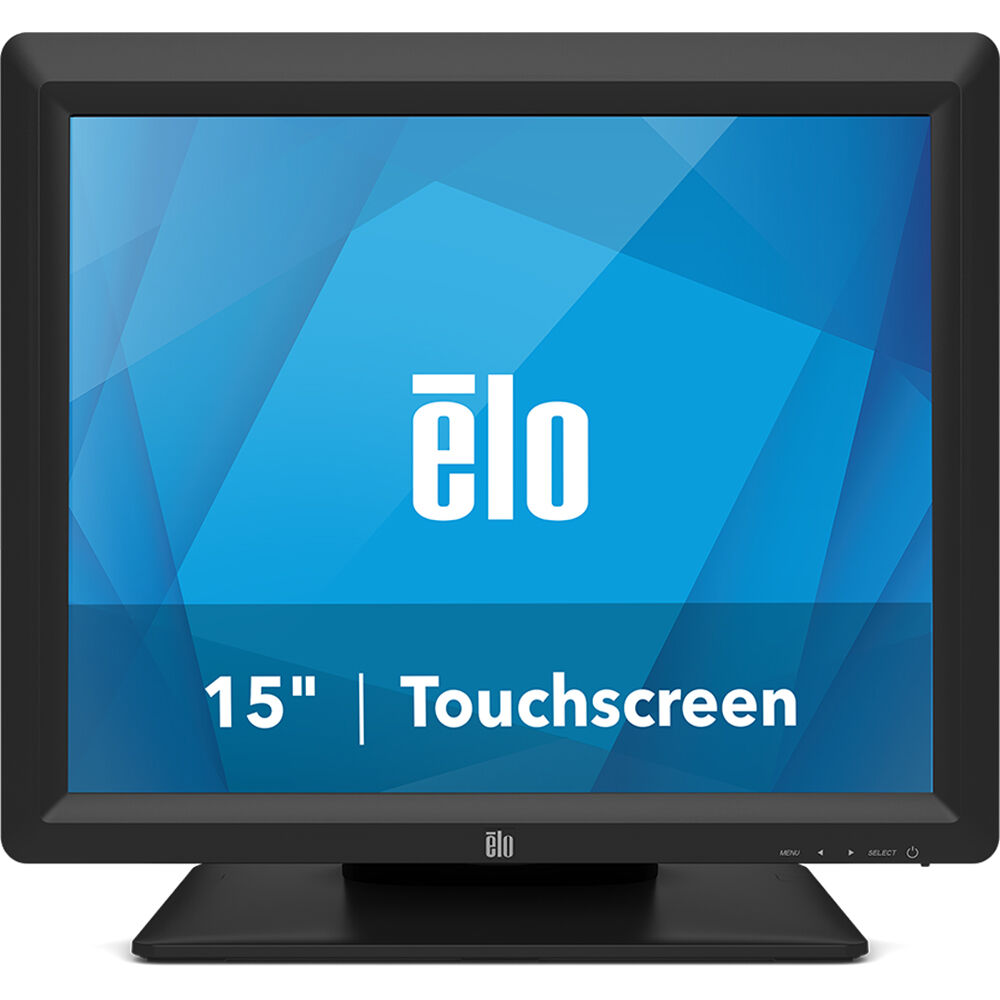

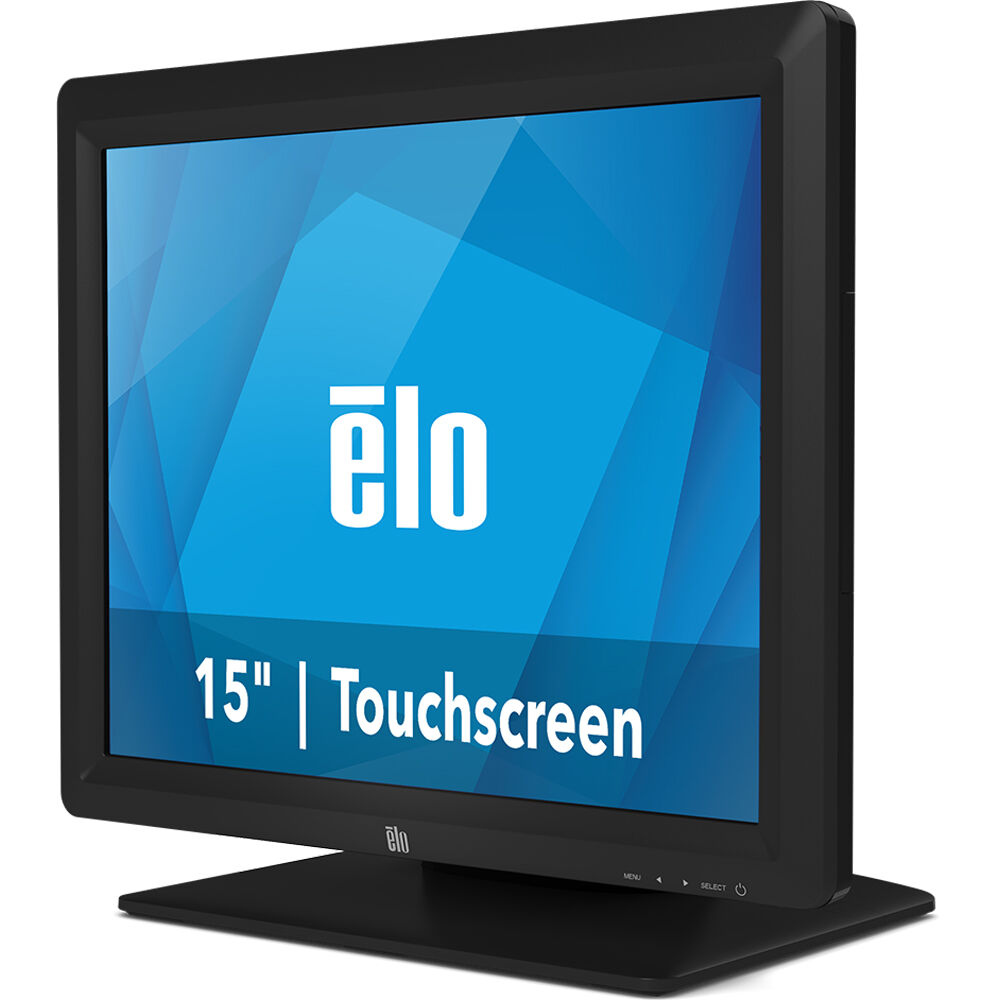

The Elo Touch 1517L E523163 AccuTouch 15" XGA Touchscreen Commercial Monitor is a 240 nits bright, single-point touch display, with a rugged design, and retail focused features, that is well suited for applications like point-of-sale, information services, and interactive signage. Sources can be connected via HDMI or VGA, with USB or RS-232 for touch control. Additionally, this monitor can be powered by the included AC power cable, or with a separately available DC power adapter.
Integrated Touch
The IntelliTouch AccuTouch five-wire resistive technology is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food, and grease while delivering excellent optical quality for dry retail and hospitality applications.
MSR Ready
The optional ergonomic three-track mag stripe reader (MSR) is easily installed providing an elegant, integrated solution. The MSR is available in two versions, USB with keyboard emulation, and USB with human interface device (HID).
Installation Flexibility

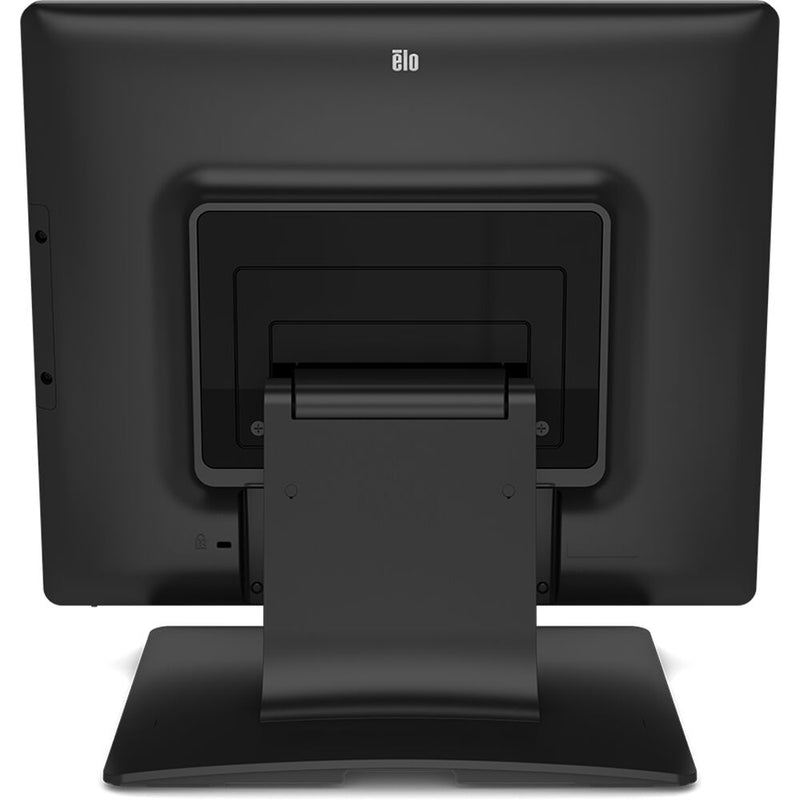

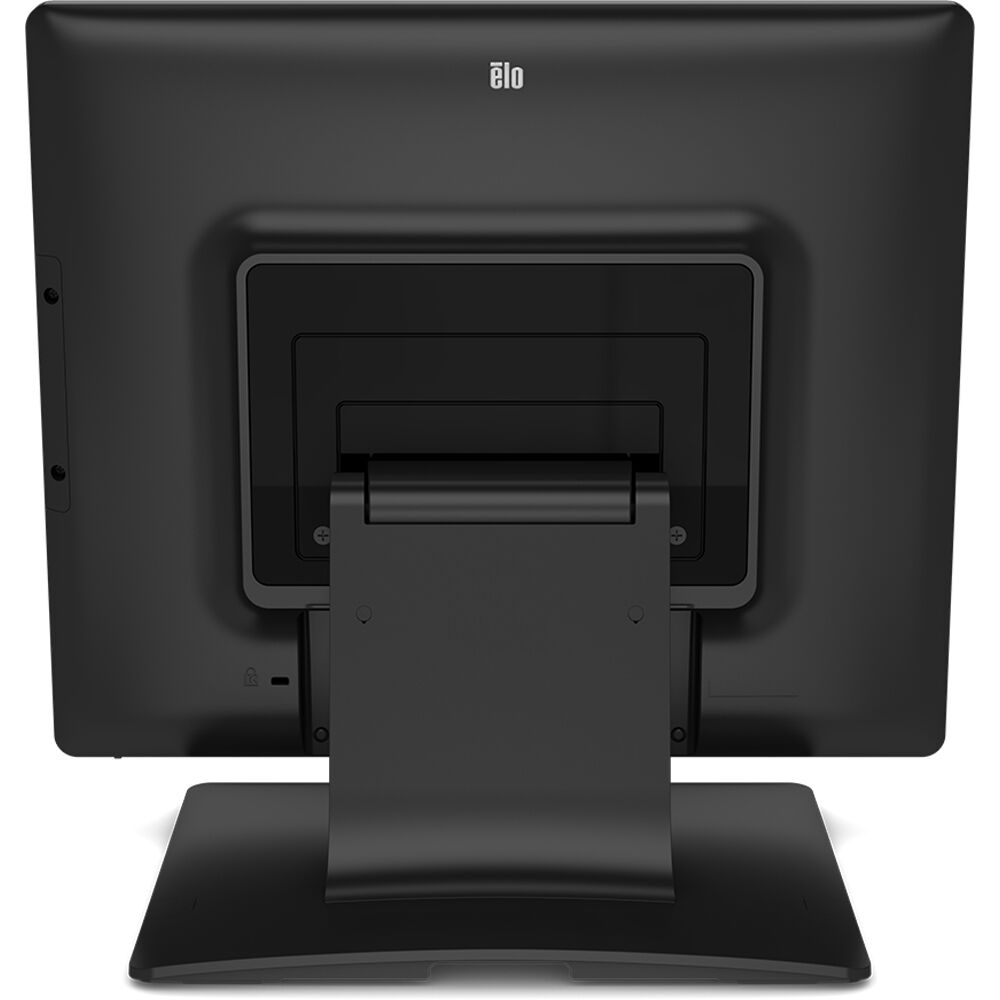

The Elo 1517L offers multiple mounting options to ensure installation flexibility, including wall and pole-mount via 75 x 75mm VESA mount as well as tabletop with the use of the included stand. Additionally, capped through-mount holes on the base of the monitor ensure table-top security.
Additional Features
- Dual serial/USB touch interface
- Screen is sealed against dirt, dust, and liquid
- Power via internal AC power or optional external 12VDC power supply
Items Included
- Elo Touch 1517L E523163 AccuTouch 15" XGA Touchscreen Commercial Monitor
- Power Cable
- HDMI Cable
- VGA Cable
- USB Touch Cable
- Stand Base Assembly
- Filler Plate
- Limited 3-Year Manufacturer Warranty
Additional Resources
Elo Touch 1517L Specs
Key Specs
| Display Size |
15"
|
| Native Resolution |
1024 x 768
|
| Maximum Brightness |
240 nits / cd/m2
|
| Touchscreen Technology |
Resistive
|
| Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) |
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
|
| Ethernet I/O |
No
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
15"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
4:3
|
| Display Orientation |
Landscape
|
| Native Resolution |
1024 x 768
|
| Maximum Brightness |
240 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
800:1
|
| Response Time |
23 ms
|
| Color Support |
16.2 Million Colors (6-Bit+FRC)
|
| Viewing Angle (H x V) |
160 x 150°
|
| Screen Area |
11.97 x 8.98" / 304.13 x 228.10 mm
|
| Horizontal Frequency |
31.5 to 60 kHz
|
| Vertical Frequency |
56 to 75 Hz
|
| Pixels Per Inch (ppi) |
85 ppi
|
Surface
| Touchscreen Technology |
Resistive
|
| Multi-Touch Points |
1
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) |
| Outputs |
No
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
|
| Ethernet I/O |
No
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Built-In Speakers |
No
|
Hardware
| Mobile App Compatible |
No
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
| Supported Languages |
English
French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Operational: 10.5 W
Standby: 1.4 W |
| Input Power |
12 VDC
100 to 240 VAC, 50 / 60 Hz |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
|
| Certifications |
cUL, IC, CCC, CE, UKCA, Kcc, BSMI, FCC, VCCI, CB, RCM, EAC, NOM, BIS, RoHS, WEEE
|
| Mounting-Hole Pattern |
75 x 75 mm
|
| Lighting Lifespan |
50000 Hours
|
| Dimensions |
14.1 x 12.6 x 7.8" / 358 x 319 x 197 mm (with Stand)
14.1 x 12.6 x 2" / 357 x 319 x 50 mm (without Stand) |
| Weight |
16.1 lb / 7.3 kg (with Stand)
|
