Description
Elo Touch 1509L Overview

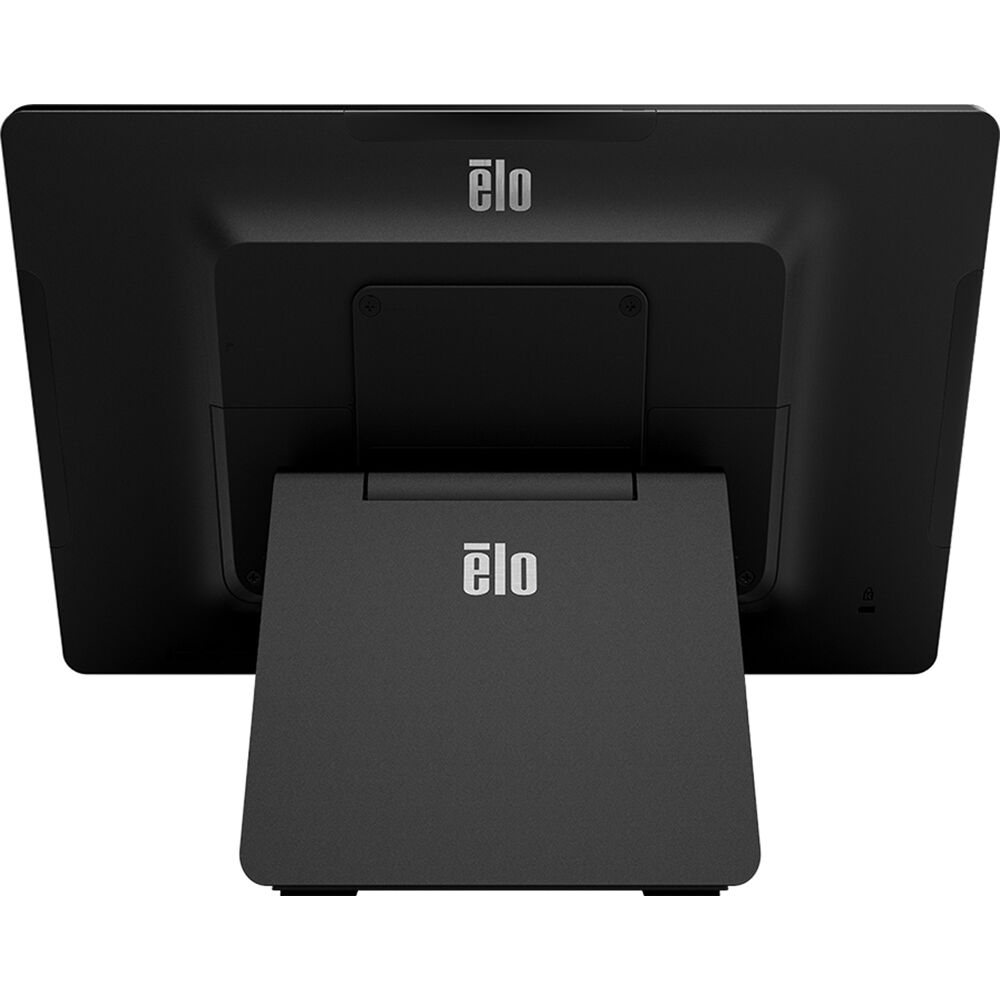

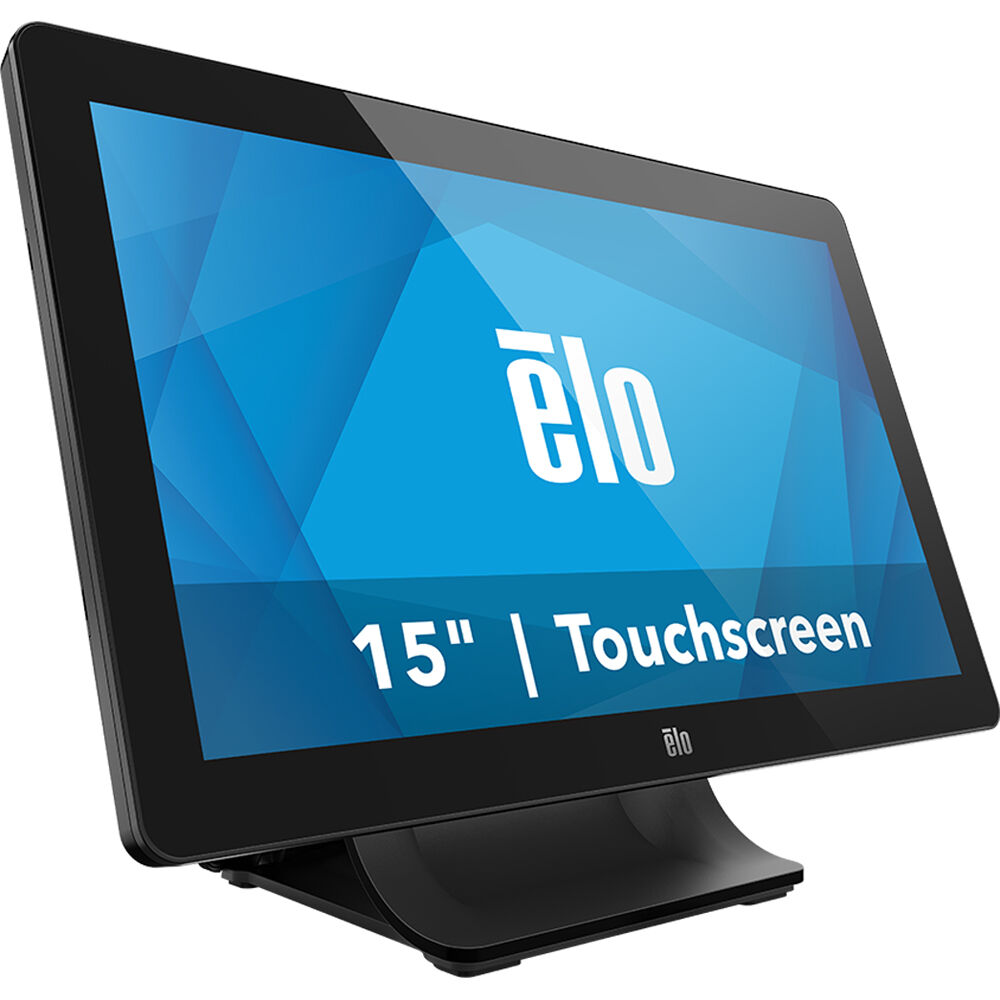

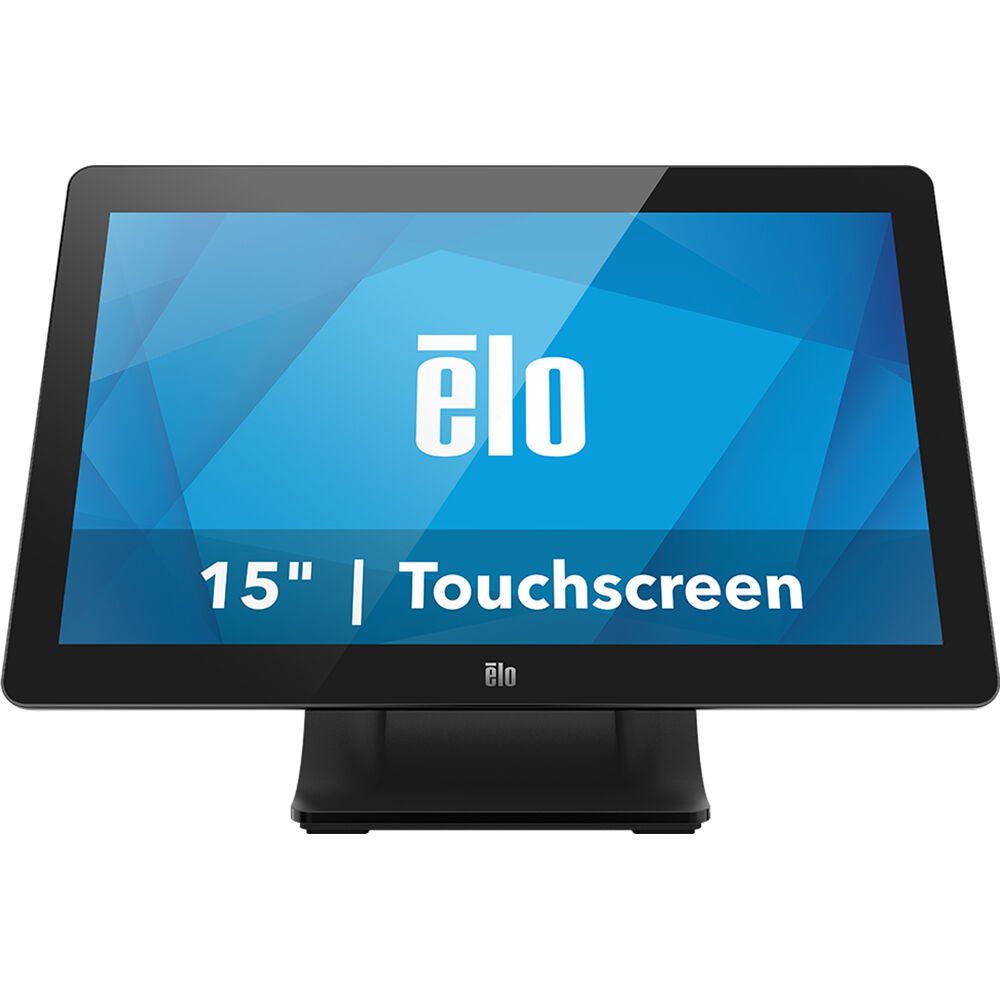

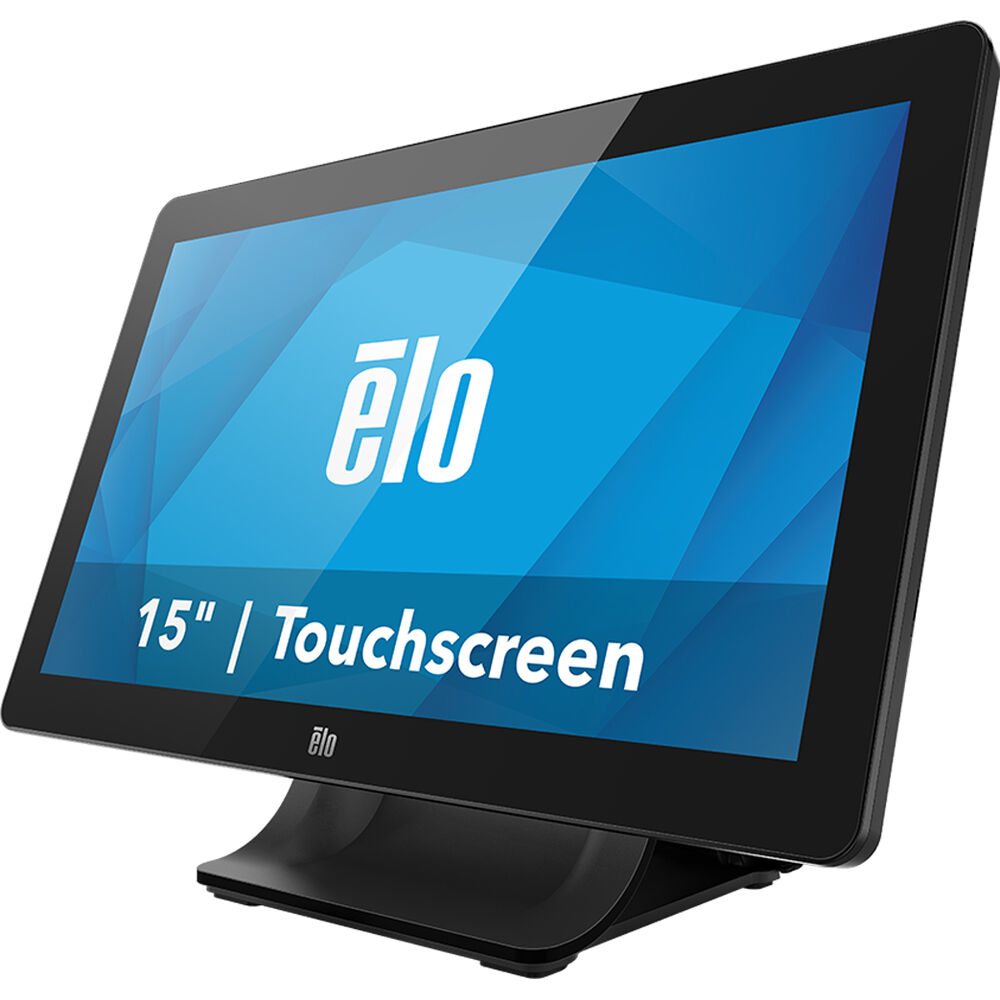

The Elo Touch 1509L 15.6" HD Touchscreen Commercial Monitor is a low-profile, retail-ready solution with single-point Intellitouch surface acoustic wave touch interaction for accurate response using a finger, gloved hand, or soft stylus. Additionally, it comes with an integrated desktop stand that can be removed for wall mounting.
Additional Features
- Pure, clear glass touchscreen for superior picture quality
- Fixable to counter for extra security
- Touchscreen is sealed for resistance to water, dust, grease
- Optional, field-installable magnetic stripe reader (MSR) (sold separately)
Items Included
- Elo Touch 1509L 15.6" HD Touchscreen Commercial Monitor
- Power Adapter
- VGA Cable
- USB Touch Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch 1509L Specs
Key Specs
| Display Size |
15.6"
|
| Native Resolution |
1366 x 768
|
| Maximum Brightness |
180 nits / cd/m2
|
| Touchscreen Technology |
Surface Capacitive
|
| Inputs |
1x DE-15/DB-15 (VGA)
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
|
| Ethernet I/O |
No
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
15.6"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
1366 x 768
|
| Maximum Brightness |
180 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
400:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors
|
| Viewing Angle (H x V) |
90 x 15°
|
| Screen Area |
13.5 x 7.6" / 344 x 194 mm
|
| Horizontal Frequency |
30 to 80 kHz
|
| Vertical Frequency |
60 Hz
|
| Pixels Per Inch (ppi) |
100 ppi
|
Surface
| Touchscreen Technology |
Surface Capacitive
|
| Multi-Touch Points |
1
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x DE-15/DB-15 (VGA)
|
| Outputs |
No
|
| HDCP Support |
No
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
|
| Ethernet I/O |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Built-In Speakers |
No
|
Hardware
| OS Compatibility |
Windows
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Languages |
English
French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Typical: < 15.0 W
Standby: < 2.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
|
| Certifications |
cUL, IC, CCC, CE, UKCA, VCCI, Kcc, BSMI, UL, FCC, RoHS, WEEE
|
| Mounting-Hole Pattern |
75 x 75 mm
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
No
|
| Dimensions |
15.4 x 11.4 x 9.5" / 392.2 x 288.3 x 241.5 mm
|
| Weight |
5.3 lb / 2.4 kg
|
