Description

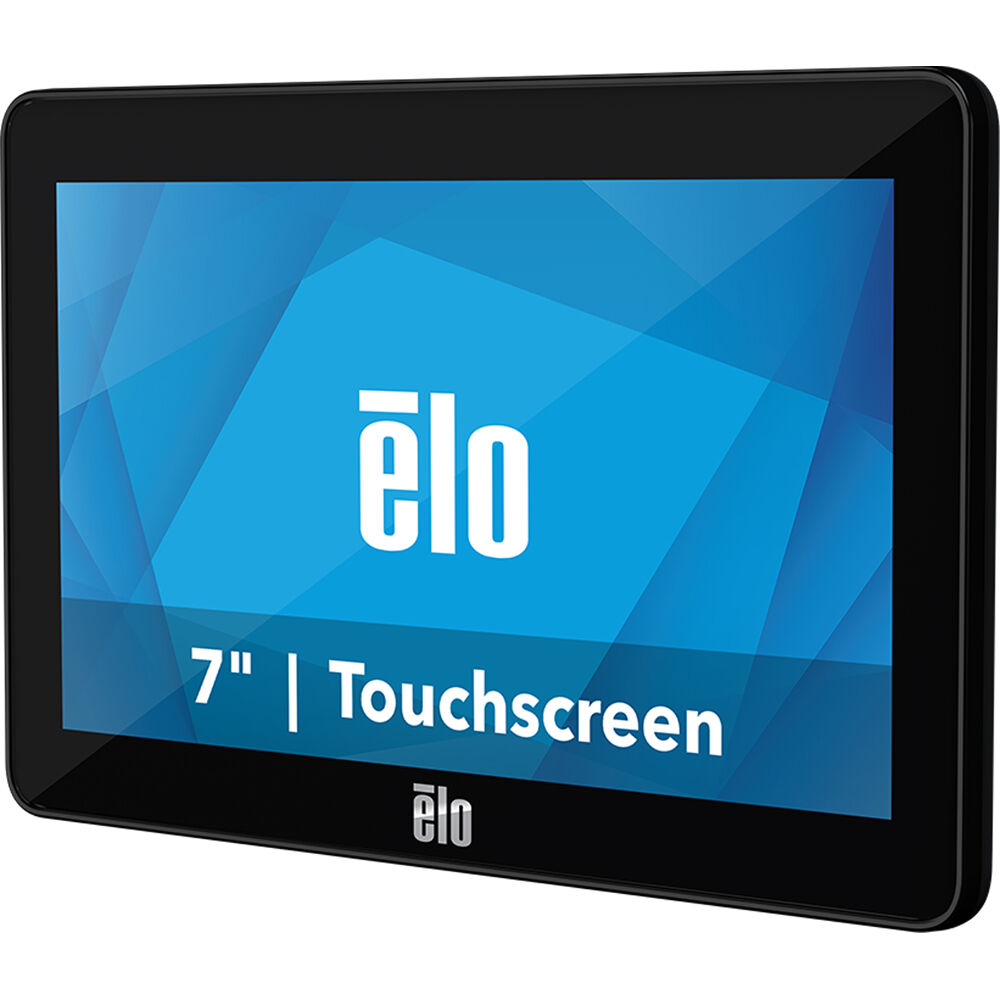

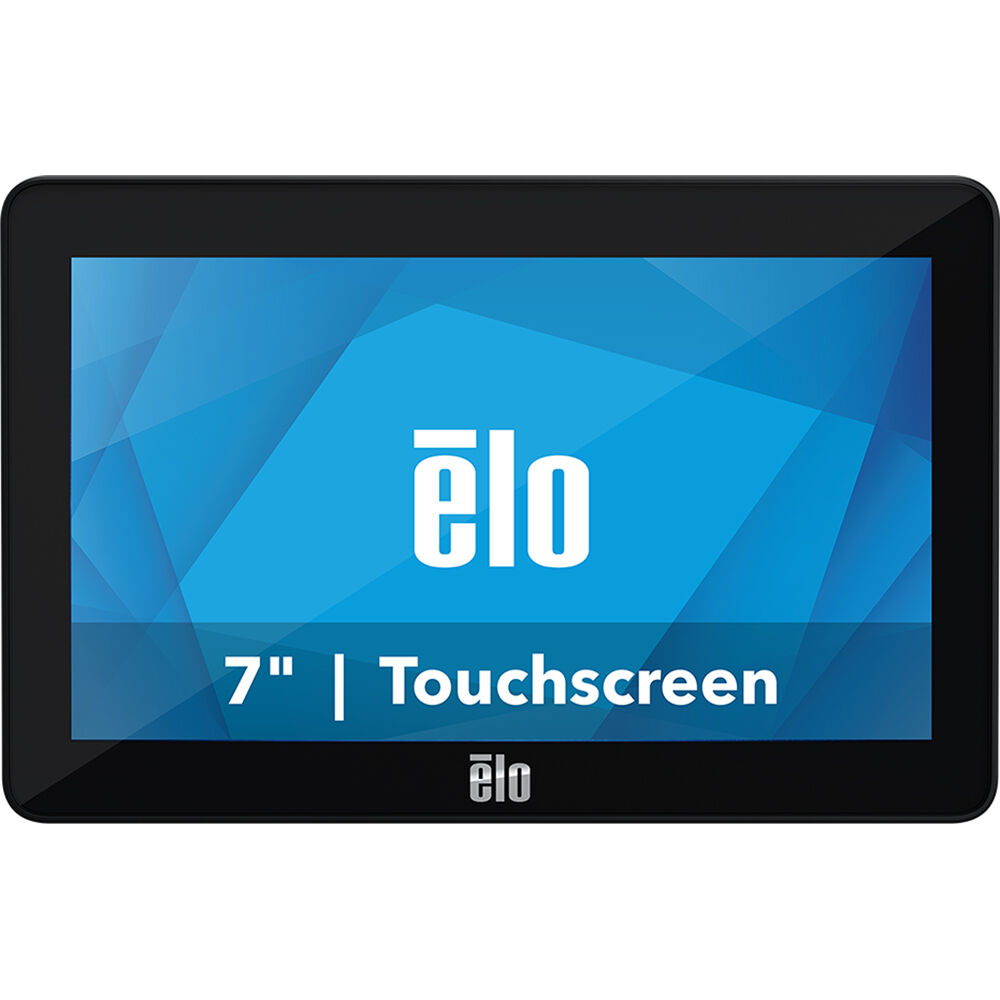

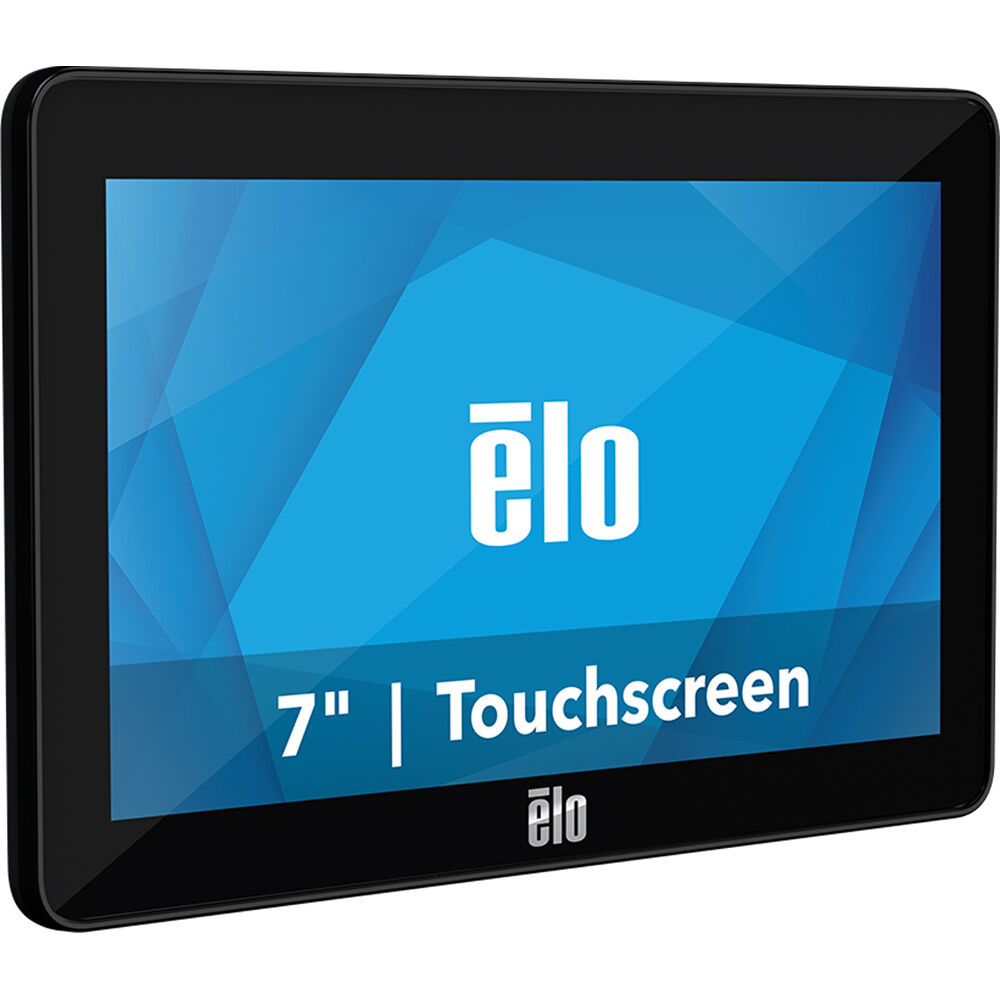

Elo Touch 0702L Overview
The Elo Touch 0702L 7" WVGA Touchscreen Commercial Monitor is a compact and rugged display to provide interactivity for applications such as, customer facing point of interaction installations, or industrial equipment controllers. Integrated TouchPro PCAP technology enables up to ten points of simultaneous touch that responds to your finger, glove, or stylus. IP56 ingress and IK06 impact protection make this a solution well suited to public facing and other demanding commercial environments.
Single-Cable Connection
The 0702L is equipped with DisplayLink Technology that provides power, video, and touch control signal into one micro-USB connection on the monitor. The supplied USB Y-cable consists of a single micro-USB for the monitor side and dual USB-A ends that connect to two ports on the same computer. DisplayLink supports Windows, Android, and Linux operating systems.
Flexible Mounting
With its compact size and flexible mounting options, the 0702L can be easily integrated where you need it using separately available stands, pole mounts, shelf mounts wall mounts, and 3rd party VESA mounts.
Extended Warranty
Elo Touch's robust touchscreen solutions have undergone rigorous testing to ensure long life and reliability. This display comes backed by Elo's 3-year standard warranty, with purchasable options to extend to 4 or 5 years.
UPC: 843173110721
Items Included
- Elo Touch 0702L 7" WVGA Touchscreen Commercial Monitor
- Micro-USB to Dual USB-A Y-Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Elo Touch 0702L Specs
Key Specs
| Display Size |
7"
|
| Native Resolution |
800 x 480
|
| Maximum Brightness |
430 nits / cd/m2
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
1x Proprietary
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
1x Micro-USB (Unspecified Version)
|
| Ethernet I/O |
No
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
7"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
5:3
|
| Display Orientation |
Landscape
|
| Native Resolution |
800 x 480
|
| Maximum Brightness |
430 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
500:1
|
| Response Time |
25 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.2 Million Colors (6-Bit+FRC)
|
| Viewing Angle (H x V) |
150 x 120°
|
| Screen Area |
6.07 x 3.38" / 154.08 x 85.92 mm
|
| Horizontal Frequency |
31.5 kHz
|
| Vertical Frequency |
60 Hz
|
| Pixels Per Inch (ppi) |
133 ppi
|
| Finish |
Anti-Glare / Matte
|
Surface
| Touchscreen Technology |
Projected Capacitive
|
| Multi-Touch Points |
10
|
| TV Tuner |
No
|
Connectivity
| Inputs |
1x Proprietary
|
| Outputs |
No
|
| HDCP Support |
No
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x Micro-USB (Unspecified Version)
|
| Ethernet I/O |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Built-In Speakers |
No
|
Hardware
| OS Compatibility |
Windows / macOS / Chrome OS / Ubuntu
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: 3.7 W
Standby: < 1.0 W |
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
|
| Certifications |
cUL, CCC, CE, UKCA, FCC, UL, VCCI, CB, RCM, NOM
|

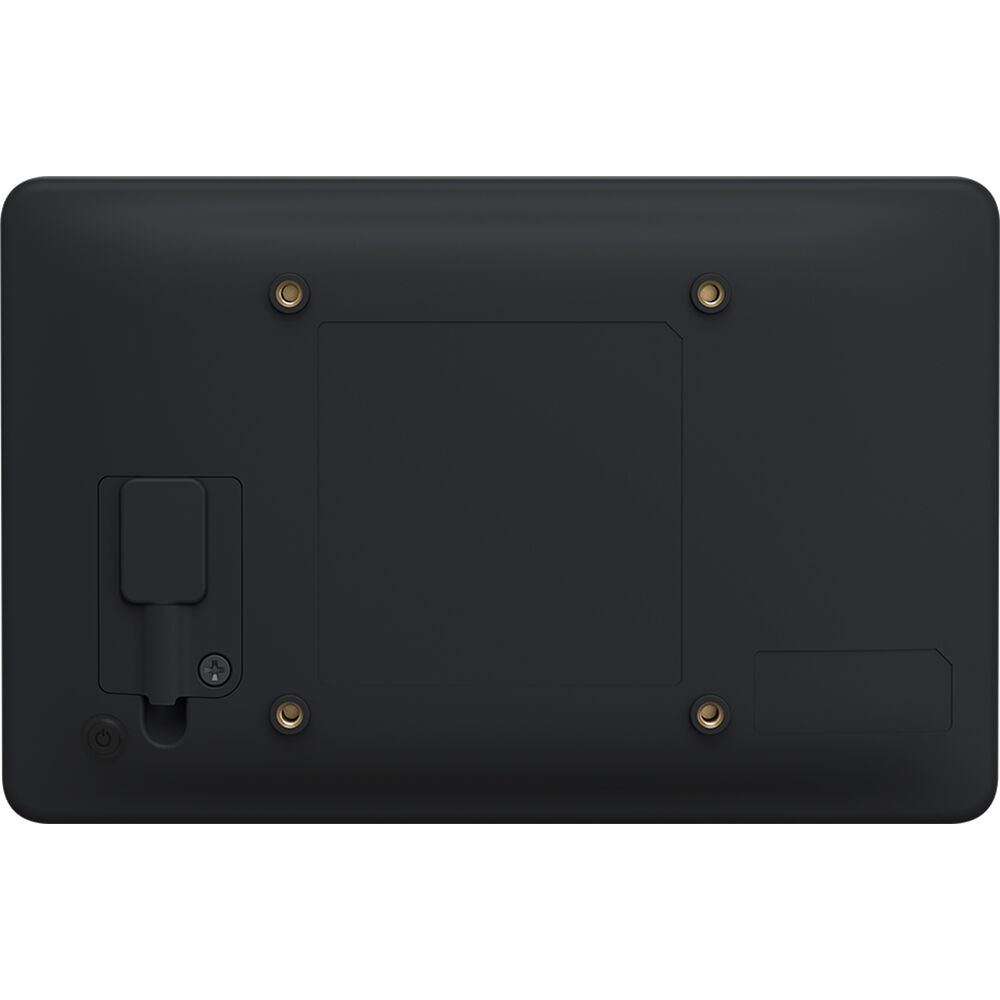

| Mounting-Hole Pattern |
75 x 75 mm
|
| Environmental Resistance |
Dust/Humidity/Water-Resistant (IP65)
|
| Impact Resistance |
Impact-Resistant (IK06)
|
| Lock Slot |
No
|
| Dimensions |
7.1 x 4.6 x 0.7" / 180.6 x 117.2 x 17.7 mm
|
| Weight |
0.77 lb / 0.35 kg
|
Packaging Info
| Package Weight |
1.515 lb
|
| Box Dimensions (LxWxH) |
9.4 x 7 x 3.8"
|
